up and down pneumatic door Rubber belt tumble Shot Blasting Cleaning Machine

  • 2 - 2 Sets
    $6,500.00
  • >=3 Sets
    $6,300.00
Model Number:
Q32
Feature:
Critical Cleaning / Residue Free Non-Ionic Non-Toxic Rust / Corrosion Inhibitor
Industry Used:
casting metal
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 3 5 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Abrator
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Dongheng
Fuel:
Electric
Certification:
ce, ISO, CE,ISO9001
Use:
Burnishing, Descaling / Stripping, foundry, automotive, marine, rail, construction,etc.
Cleaning Process:
abrasive/sand/grits
Cleaning Type:
blasting, automatia
Material:
Metal / Coil
Power:
customized
Dimension(L*W*H):
customized
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training
Color:
customized
warranty:
one year
Frequency inverter:
Mitsubishi/Omron
control mode:
PLC
blast chamber:
rolled Mn13 steel guard plate
ow voltage apparatus:
Scheider or CHNT
impeller:
high chromium wear resistant casting iron
Supply Ability
Supply Ability:
868 Set/Sets per Year
Packaging & Delivery
Packaging Details
packing do according to custom requirements
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 3 5 7 To be negotiated
Video Description


Tumblast Crawl Apron shot blasting machine



Product Description

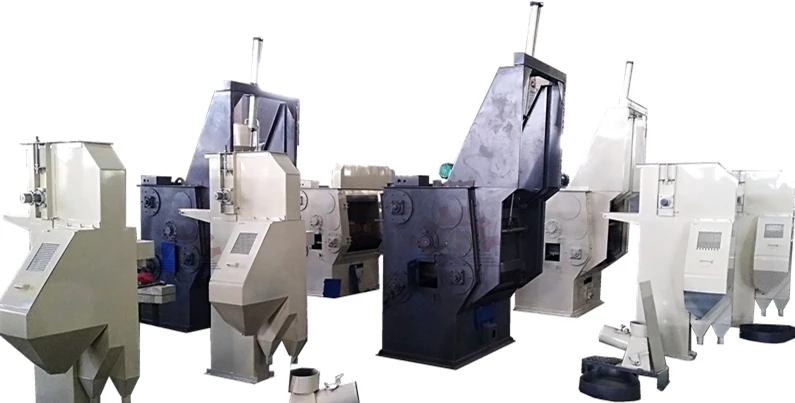

Rubber belt apron / Crawler shot blasting cleaning machine
  • Application:  It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening a wide variety of products.
  • Equipment: Track Loading device (Optional), blast wheel, abrasive recycle system, separator , dust collector, control system.
Tumble Barrel Type Shot Blasting Machine Uses
  • Ferrous and non-ferrous castings
  • Heat treated forgings
  • Small Automotive parts
  • Die castings and much more
  • Lower value parts where part on part impingement is not an issue
  • When production requires dictate batch processing
  • Small to medium size castings, fabrications and heat-treated parts
  • Sand removal or part cleaning


Machine details:

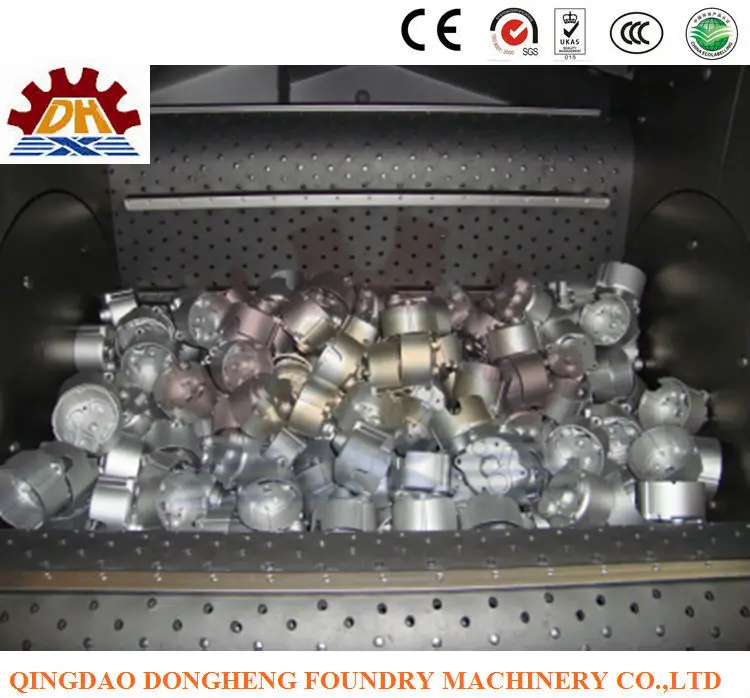

  • Our barrel blast machine are designed to process a variety of parts that can be tumbled.
  • The endless conveyor belt and lateral round place creates a trough in which parts are treated.
  • The number and power of the turbines are chosen according to the requirement production rate.
  • Optional PLC control system, stable quality and easy to get support from local.
  • Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
  • No-pit, easy for install and move and save cost.
  • A high volume of parts can be processed in a small working area.
  • All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
  • 20 years experienced engineers, customized service avaliable.
  • Superior design, quality and rugged construction make our barrel machines more reliable and easier to maintain.
  • After-sale service support will be provided within 24hours.

Technical Parameter



Item Q326Q3210QR3212
Productivitykg/h600-12002500-35008000-10000
Feeding amountkg2006001000
Max. weight of single piece kg153050
Diameter of end diskmm65010001000
Ventilation capacitym3/h250035008000
Power consumptionkw13.4725.0550
Dimension (L*W*H)mm3200*1520*37154290*1900*45006000*3010*5800




Related Products
Contact us

Packaging & Shipping

Plastic wrap - - MDF wooden carton --  container -- ship -- your factory



Company Information



Our Services



FAQ



1,What is the target market for this machine?

The Blaster is designed for customers who require a more sophisticated method than just manual cleaning in preparation for further processing or painting.



2,What type of abrasive media does it use?

The Blaster is designed to use round steel shot. The shot is recycled inside the system and gets smaller and smaller during the blasting process, until it is completely consumed. Approximately two tons are required for start-up, and approximately 20 pounds are consumed per blasting hour. Replenishment is easily done as needed.

 3,What utilities are needed to run the Blaster?

The electrical system runs on three-phase input and a transformer will be provided for your supply voltage if required. Clean and dry compressed air supply is also needed.



4,What does it cost to operate?

The highly efficient turbines require much less power that competitor's shot blast machines. Including abrasive consumption, power consumption and maintenance, the total operating cost averages around $20 per hour in US. When comparing this to your current methods, keep in mind that the Blaster is at least 4 to 5 times as productive as manual cleaning and only one operator is required to load and run the machine while it is working. Labor costs are much lower, plus you will have a huge amount of extra capacity for cleaning.

 5,Are there any special operator skills required for the Shot Blaster?

No, once the machine is installed and adjusted by our technician, running the machine consists of merely switching it on and setting the speed dial for the desired surface finish. Maintenance is simple too.
