used metal water downspout gutter roll forming machine for sale

FOB Reference Price:Get Latest Price
$20,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Tile Forming Machine
Production Capacity:
12-15m/min
Power(W):
4kw
Certification:
CE ISO
Condition:
New
Tile Type:
Other
Use:
Other
Place of Origin:
Jiangsu, China
Brand Name:
BN
Model Number:
YX64-77
Voltage:
380V/50HZ 3Phase(as Customer's Request)
Weight:
7Tons
Roll stations:
16 stations
Rolling thickness:
0.3-0.8mm
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
suitable for ocean
Port
Shanghai
General properties
Maximum production speed
 not less than 12 metres per minute (excluding cutting)
Material
0.3-0.8mm, GI or clor steel
Compositions
3T hydraulic decoiler
1set
Feeding→pre-cutting→forming station→Post cutting system
out table
1set
 Hydraulic station
1set
Control desk
1set
Spare part list
1set
Profile& layout
Material of the profile
 GI or color steel
Height
64±2
Thickness range
0.3-0.8mm
Coil width
255mm
Effective width
77±2mm
Finished product length
 from 500 mm to (at least) 12’000 mm

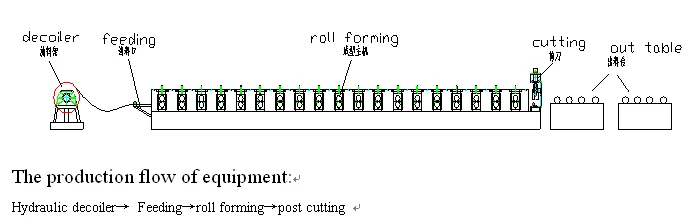

The production flow of equipment
Hydraulic decoiler→ Feeding→roll forming→post cutting
Detailed technology

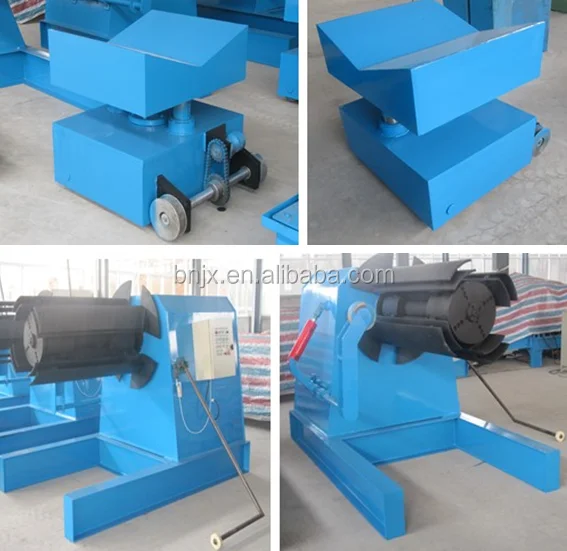

3T hydraulic decoiler
Coil weight (Max)
 3000kg
Inter diameter of coil
420mm-510mm
Working by hydraulic pressure
8-12Mpa with connect with the decoiler hydraulic unit
Working lift journey
Maximal 250mm
Working function
forward and reverse movable
Move journey
 maximal 2 meters
Quantity
1
3T hydraulic decoiler
Coil weight (Max)
3000kg
 Inter diameter
420mm-510mm
Maximal out diameter
1300mm
Oil cylinder dia
100mm
Coil width (Max.)
500mm
Working speed
 0-15m/min adjustable
Main motor power
 4KW AC motor
Hydraulic power
3kw
Frequency converter brand
Yaskawa

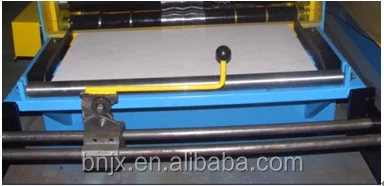

Feeding
Feeding type
adjustable
Feeding width
255mm
 Entrance and guide roller
diameter is ¢76mm, material is SAE1045, HRC48-52° surface with chrome
Quantity
1
Pre-cutting
Cutting type
manual
Function
for coil replacement
Quantity
1
Forming Section
Material of the profile
GI or color steel
Thickness range
 0.3-0.8mm
Main motor power
5.5kw
Machine Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Roll station
about 16 stations
Roller material
ASTM1045 chrome plated surface with chrome,CNC,
Shaft diameter
 ¢65mm material: SAE1045 with quenching and tempering

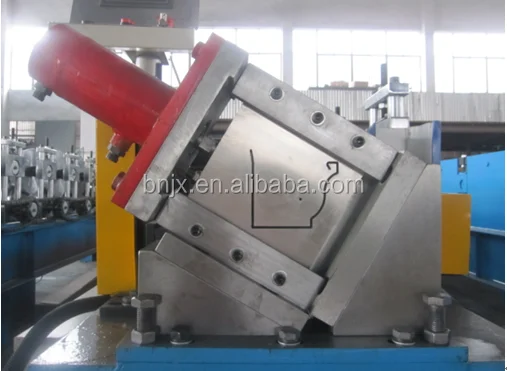

Post cutting system
Cutting after forming
Cut the sheet after roll forming to required length
Material of blade
Cr12, 58-62 HRC hardness
 Cutting power by hydraulic
5.5KW
Working pressure
12Mpa adjustable
Length measuring
Automatic encoder length measuring
Brand
Omron
 Tolerance of length
+/- 1.5mm for each piece end product



out-table
 Size
1.0m long*0.8mwide*0.6-1mhigh
Jointed by 60mm*40mm tube
One out table with two support roller
Hydraulic station
Hydraulic power
 5.5kw
Working pressure
 12Mpa adjustable
Solenoid valve
1 group
Hydraulic oil
46# hydraulic oil
 Quantity
1
Control desk
Operating system language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Control panel
Button-type switch and touch screen
Unit of length
millimeter (switched on the control panel)
PLC brand
Panasonic
 Frequency converter brand
Yaskawa
Touch screen
Taiwan Weinview

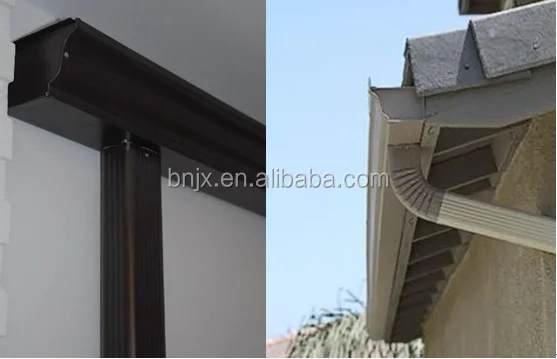

Photo of end product

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

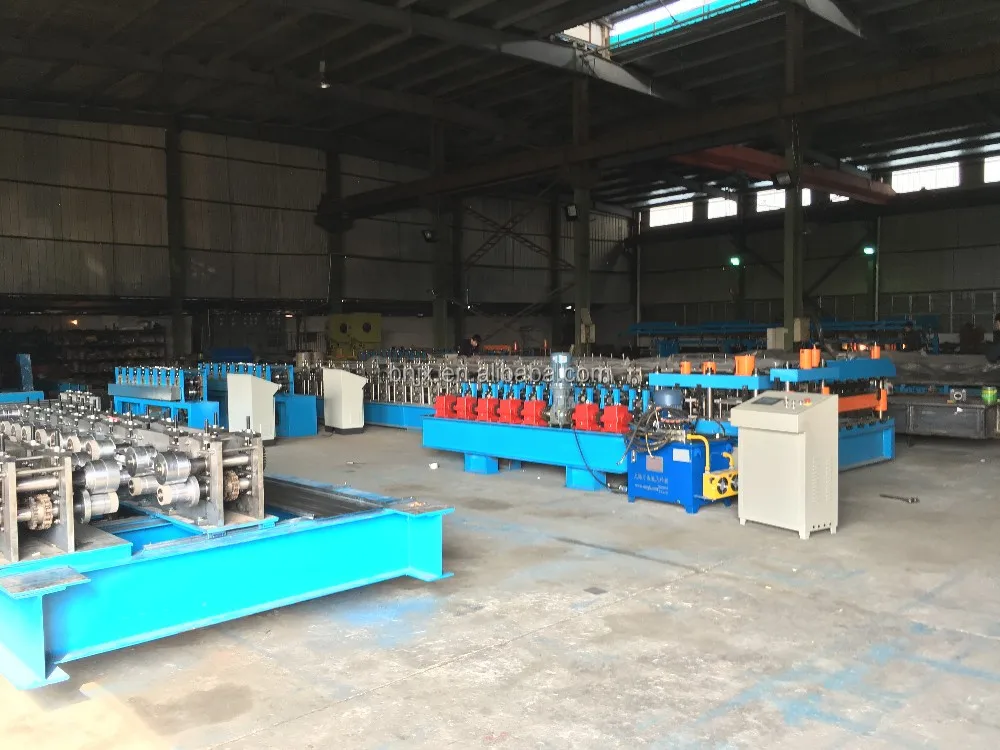

Workshop
Our company

            Jiangyin Bangnuo Machinery Co., Ltd. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings. With economic development, building light steel building applications on the growing popularity of the increasing demand for production equipment, production equipment automation requirements are also increasing, company investment, research and development of various types of color steel pressure plate (W) production line and C, Z-beam (purlin) production equipment, the use of simple, improve productivity, reduce production costs. Various existing models of steel pressure plate (W) C, Z-beam (purlin) automatic control production line are at the leading position at home and abroad, with a compact structure, reasonable design, constantly updated progress and much Strut Builders and products the favor and praise.
         Company specializing in the production of Dagong machines, floor plate machine, guardrail plate machine, corrugated tile machine, shearing machine, sub-board machine, highway guardrail.
