vegetable fruit plastic crate basket injection molding making machine

  • >=1 Sets
    $72,000.00
Clamping Force:
5800KN
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
PP, ABS, PET, PVC, FRPP/PVC, PPR, HDPE, PE, LDPE, HDPE/PP, ABS/PP, PE/PP
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
800 mm
Distance between Tie Bars(Height)(mm):
774 mm
Plasticizing Capacity(g/s):
506
Mold Height(mm):
290 - 810 mm
Ejector Number:
13
Ejector Stroke(mm):
200 mm
Ejector Force(kN):
125 kN
Theoretical Shot Volume(cm³):
2600 cm³
Injection Rate (g/s):
482 g/s
Machine Type:
Hydraulic
Injection Weight (g):
2826 g
Screw Speed (rpm):
1 - 150 rpm
Screw diameter (mm):
84 mm
Screw L/D Ratio:
21.5
Distance between Tie Bars:
800*774
Weight (KG):
21800
Type:
Preform Injection
Place of Origin:
Jiangsu, China
Open Stroke(mm):
760 mm
Model Number:
BST-5800A
Brand Name:
BEST MACHINE
Certification:
CE
Power (kW):
48.5 kW
Warranty:
2 years
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Automatic
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Plastic Type:
Thermoplastic
Automatic:
yes
Clamping Force (kN):
5800 kN
product name:
high quality vegetable fruit plastic crate making machine
Shot size(theoretical):
2480-2600 cm3
Injection pressure:
152 -145 Mpa
Screw speed:
0-150 r.p.m
Nozzle Diameter:
20 Srmm
Ejector tonnage:
125 kn
Mould Thickness:
290-810 mm
Space between tie-bars:
800X774 mm
Machine weight:
21.8T
Machine dimension:
8.75X2.2X2.3 m
Supply Ability
Supply Ability:
30 Set/Sets per Month for vegetable fruit plastic crate making machine
Packaging & Delivery
Packaging Details
wooden case for vegetable fruit plastic crate making machine
Port
Shang Hai for vegetable fruit plastic crate making machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Products Description

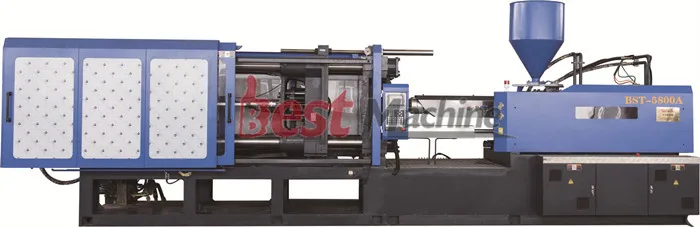

Best Machine BST-5800A Plastic Vegetable Fruit Basket Injection Molding Machine
The injection molding machine can be used to produce plastic vegetable fruit basket according to customers' designs.

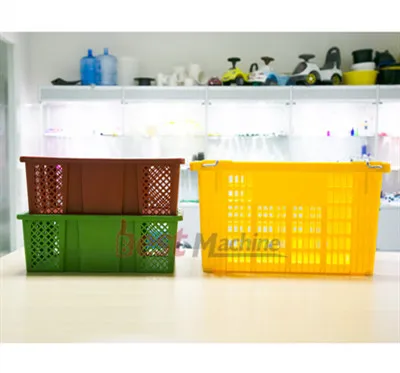

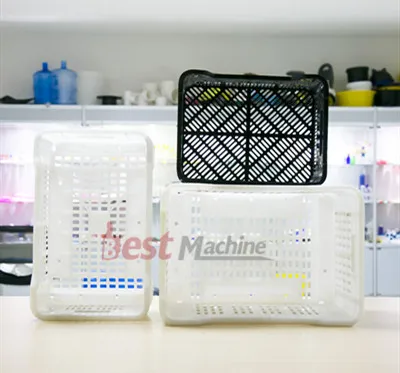

Pictures Of Finished Products Made By Our Machine

Plastic Vegetable Fruit Basket

The specifications are as follows:

- Imported advanced computer systems, Chinese, English, Russian, Spanish, French, Arabic interface.

- Can save 100 sets of mould parameters.

- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.

- Suitable for producing different types of precision small parts.

- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.

- Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)

- Service:We provide free advanced training and maintenance in china factory,and 24 hours on-line or phone service if you request we also can provide installation and training abroad,until customer's satisfaction

- Delivery time: 60 days after advance payment

MODEL
BST-5800A
INJECTION UNIT
A
B
Screw Diameter
mm
84
86
Shot Size(Theoretical)
cm3
2480
2600
Shot Weight
g
2230
2340
Injection Pressure
MPa
152
145
Injection Rate
g/s
482
506
Screw L/D Ratio
L/D
20.6
20
Screw Speed
r.p.m
0-150

Nozzle Diameter
srmm
20

CLAMPING UNIT
Clamp Tonnage
KN
5800
Toggle Stroke
mm
760
Mould Thickness
mm
290-810
Space Between Tie-bars
mm
800*774
Ejector Stroke
mm
200
Ejector Tonnage
KN
125
Ejector Number
Piece
13
Hole Diameter
mm
200
OTHERS
Heat Power
KW
28.1
Max. Pump Pressure
MPa
16
Pump Motor Power
KW
18.5+30
Valve Size
mm
cartridge valve
Machine Dimension
m
8.75*.2*2.3
Machine Weight
T
21.8
Oil Tank Capacity
L
850
Micropcomputer
The machine is controled by  TECHMATION microcomputer, which makes the work reliable and automatic in high level. The advantages are as follows:
1. Large LCD screen
2. Multi-language control interface: Chinese, English, Russian, Spanish, French, Arabic, etc.
3. Can save 100 sets of mould parameter.
4. Automatic alarm, can display problem location, easy for maintenance.
Screw
Using Screw for feeding raw material, allowing processing of various materials. Strong plasticizing ability, high injection speed. Using resistance heating coils to heat the barrel, adopting cold screw protecting device, the screw will not operate until the temperature reaches the setting value.
Safety Door
Adopts electrical and mechanical double safety device. The mould will not clamp when the door is open, which makes the production process safer and reliable.
Clamping Mechanism & Pull Rod
5-point double-elbow clamping mechanism allows a high and stable clamping speed.
Pull rods are made of high-quality steel, chrome-plated, makes the service life longer.
Ejector Device
Multi-point hydraulic ejector device, can choose the suitable number of ejector rod according to the actual working needs. It makes the demolding more even
Mould Adjustment Device
Mould adjustment device is drive by hydraulic controlled gear transmission, which is easy for operation.
Electric Gauge
Imported travel switch or electronic gauge, makes the operation in higher precise.
Packing & Shipping
We take care of our machine packing and loading. Injection machine with anti-rust process, make sure no rust due to ocean shipment. Each package would be fixed stable inside container, make sure no damage or crash during whole shipment. We will take photos of loading, and send to you for reference before shipping.
After Sales Service
1. Free spare parts within warranty period.
2. Field installation, commissioning and training.
3. Field maintenance and repair service.
4. Video technical support.
5. 24 hours online service
Company Profile
Zhangjiagang Best Machinery Co.,Ltd. is located in a beautiful development zone in Tangqiao, Zhangjiagang, Jiangsu Provice, China. Our company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 2000million fixed assets, during the past 10 years, we always force our energy into new areas of plastic packaging machinery,to update the technology, to learn advanced experience, to confirm new theory and new design,we are forming a unique competitive advantage of our owns. The machines from our company carry good quality and effective after-sales service. We hotly export machines to Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, Malaysia, Canada, Algeria, Uzbekistan and many other countries, create good sales performance and well feedback, all to strengthen our position in this field.
Certifications
TUV
CE
FAQ

1. Are you a manufacturer or trading company?

We are a factory for plastic machines and moulds.

2. How to choose injection molding machine?

The injection weight should be about 1.2* product's weight. The tie-bar space should be bigger than the mold dimension. Contact with us for more information.

3. How to pay?

40% deposit T/T in advance, the balance 60% payment by T/T or L/C before delivery.

4. Is it possible to send engineer to install and commission machine, even train our workers?

Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after sales service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, we need you to prepare invitation letter for visa before shipment. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.

5. If we buy your machines, is there any warranty?

Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.

6. What is different with A,B,C screw, What is the price different?

The screw model is designed for different material and requirements, the screw diameter Changes from small, middle and big. There is no price difference in the price for choosing A/B/C screw types.

7. May I visit your company?

Yes, welcome to visit! Our company is near Shanghai, after you arrive Shanghai, you can take a high-speed rail to Wuxi East Station, we will pick you up there. Now the high-speed railway in our city Zhangjiagang is under construction, it will be much more convenient for you to visit our company in future.
