waste paper automatic pulp egg tray moulding machine price by Longkou Sunvo

FOB Reference Price:Get Latest Price
$60,000.00 - $170,000.00 / Set | 1 Set/Sets paper egg tray machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Usage:
Paper Forming Machine
Dimension(L*W*H):
25*4.5*3.2 (M)
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SUNVO
Model Number:
ZMG5-40
Voltage:
380V/220V
Weight:
25T
Automatic Grade:
Automatic
Certification:
CE ISO9001
Power(W):
180Kw
Name:
egg tray machine
Forming Type:
rotary
Processing Material:
Waste paper pulp
Capacity:
6000pcs/h
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Year paper egg tray machine
Packaging & Delivery
Packaging Details
Export Standard Packaging for waste paper automatic pulp egg tray moulding machine price by Longkou Sunvo
Port
QINGDAO
Lead Time :
3 months after receiving the payment
Product Description
Longkou Sunvo Used Egg Tray Machine is controlled by PLC, the degree of the automation is high, and it is easy to learn, service is convenient. Also the scope of the machine is widely. It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing. Four main parts: Paper Pulping system, Forming system, Drying line, Packing system.

Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.
Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.
Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.
Automatic pulp molding production lines can be mass production of various food container, egg tray, lunch boxes and so on.
The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.

Model
ZMG5-40
Production capacity
5000-6000pieces/hour(according to products)
Power
380Vs/220Vs/50Hzs(Three mutually four lines)
Working shop requirement
Length ≥35m,Width≥12m,Height≥6m
Container requirement for transport
4 of 40'HP
Mechanistic Dimensions
L25000*W3000*H3000MM
Net weigh
30000KG
Electricity consumption
221.15KW installed
Material consumption
250~280kg/h
Water consumption
650-1000KG/H
Operator Required
5~6 people/shift,24 hours ,3 shift

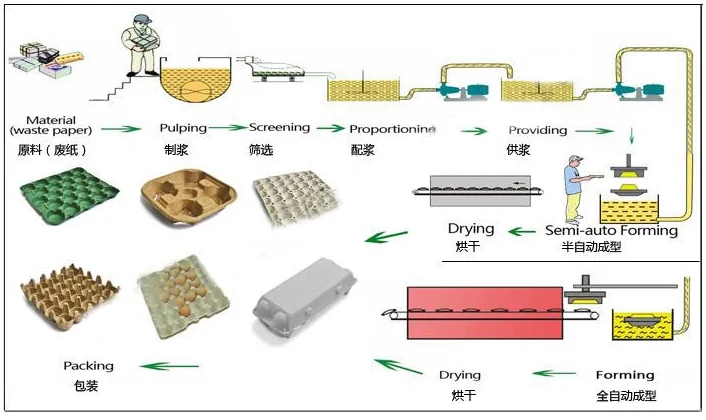

Working Flow Diagram
Applications

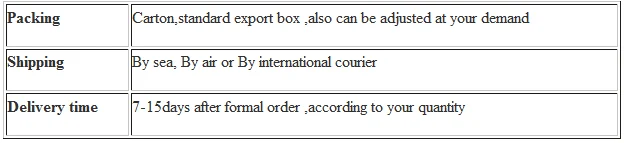

Packing & Delivery

Packaging: Wrapped with corrugated sheets ,then fixed by steel wires in the container.

Shipping  1. Different machine models, different container size.

                  2. We accept any kind of transportation.
                  3. We provide timely logistics information for you.

Certifications
Our Company
Our Service

Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements to make the best egg tray production line design
* cost/benefit analysis
* to support factory layout
* desigh and make egg tray sample (charge, but if you ordering can offset the purchase price)

In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions

After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD

FAQ
(1). What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper, magazines, books, A4 paper etc, and easy to get.

(2). What kind of Fuel can be used for the whole production line?
Coal, natural gas, and diesel oil.

(3). What kind of products can be made by this machine?
All paper package such as paper egg tray, egg carton, egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.

(4). Are you a manufacturer?
Yes, We have been fabricating pulp molding machine since 1984. We are one of the most important pulp molding machine manufacturers in the world, and we are the largest pulp molding machine manufacturer in China, providing high quality and production capacity pulp molding machinery at reasonable prices to the world.

(5). In how many countries have your machines been installed ?
All over the world, including the following countries: Algeria, Nigeria, Malawi, Bolivia, Sudan, Jordan, Egypt, Uzbekistan, Malaysia, Russia, Poland, France, etc.
