wastewater treatment for professional micro roots silo blower supercharger

FOB Reference Price:Get Latest Price
$400.00 - $1,500.00 / Sets | 1 Set/Sets wastewater treatment for professional micro roots silo blower su (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
ZhanEr
Model Number:
WSR50-235
Application:
Air Blower
Type:
Roots Blower
Pressure:
Medium Pressure, 9.8-98Kpa
Power Source:
Electric Blower
Rated Power:
0.75-380kw
Rated Voltage:
220V/380V, other voltage is optional
Product name:
professional micro roots silo blower supercharger
Other name:
three lobe roots blower
Usage:
Aeration
Material:
cast iron
Rotary speed:
650-2130rpm
Weight:
120kg-3700kg
Warranty:
12 months
Discharge bore size:
50-235mm
Standard:
ISO9001, CE
Supply Ability
Supply Ability:
3000 Set/Sets per Year wastewater treatment for professional micro roots silo blower su
Packaging & Delivery
Packaging Details
standard export packing/fumigation-free wooden case
Port
Qingdao port, or any port of China
Lead Time :
in 7days upon receipt of payment
Product Description

wastewater treatment for professional micro roots silo blower supercharger


Model number
WSR50-175
Air Capacity
0.31-177.31m³/min
Casing
high-strength grey cast iron
Pressure
9.8-98Kpa
Gear
20CrMnTi
Power
0.75-380kw
Rotor shaft
high-strength 40Cr steel alloy
Rotary speed
650-2130rpm
Casing wall
high-strength grey cast iron
MOQ
1 Set
Bearing
imported NSK
Application
Aeration

Accessories

1. Inlet silencer (with air filter), discharge silence
2. check valve, pressure relief valve
3. flexible joint, anchor bolt

Detailed Images

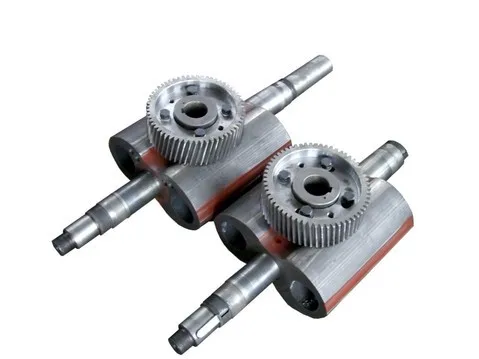

Is the core component of Roots blower impeller, we have world-class impeller machining technology.

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our roots blower

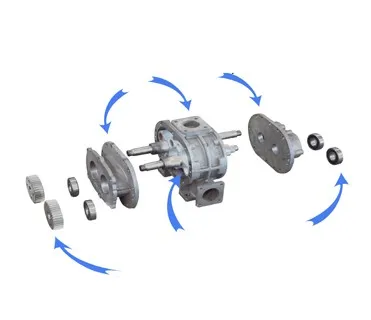

Working Principle: ZhanEr roots blower (dry type roots vacuum pump), are positive displacement machines consisting of a pair of three-lobe rotors machined with high precision, rotating inside an oval shaped casing at the same speed, but in opposite direction. One rotor is driven by external power while the other rotor is driven by synchronous gears. As the rotors rotate, air is drawn into inlet side and forced out the outlet side to achieve functions of air blowing and extracting.
Properties: ZhanEr roots blower (dry type roots vacuum pump) provides substantially constant output rate, i.e. volume of airflow at inlet varies little when pressure increased or vacuum status changed, conveys oil-free air or gas, properties of which normal three-lobe blower possesses as well. However our roots blower owns unique advantage of adopting the most advanced structure of special shaped inlet/outlet port and internal leakback variation, which effectively attenuates leakback-induced noise, resulted in much lower pulsation and noise level.

Our Company

Shandong ZhanEr Machinery Co., Ltd., short as Shandong ZhanEr, located in Zhucheng City, Shandong Province, is a professional manufacturer of roots blower and rotary blower, owns combined capability of design, development, manufacture and sales. Shandong ZhanEr has strong technology research & development capabilities and quality monitor system and owns advanced NC processing equipment and testing instruments. Since established, Shandong ZhanEr is growing so fast that its sales network has covered not only China but also more than 60 countries over the world. Corresponding after-sales service networks being set up, helps meet customer’s needs in the max extent in terms of product quality and after-sales service.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in fumigation-free wooden case. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Our Service


1, in order to ensure the high reliability and advanced products, system of material are selected domestic and international high-quality brand-name products.

2, we will be in accordance with customer requirements to provide relevant technical training and technical data.

3, in the same competition condition, our company not to reduce the technical performance of products, based on the change of product components for the price, sincerely offer you the most preferential prices.

4, we guarantee the phone mail guidance in the shortest time, by your own simple troubleshooting equipment.

5, we provide free technical support and sales of equipment life.

6, product delivery time: as far as possible according to user requirements, if there are special requirements, should be completed in advance, we can organize special production, installation, and strive to meet the needs of users.

Service tenet: quick, decisive, accurate, thoughtful, thorough

Service aim: quality of service to win customer satisfaction

Efficiency: service warranty or warranty period if the equipment failure, the supplier after receiving the notice, the maintenance staff to guide the maintenance within 24 hours.
