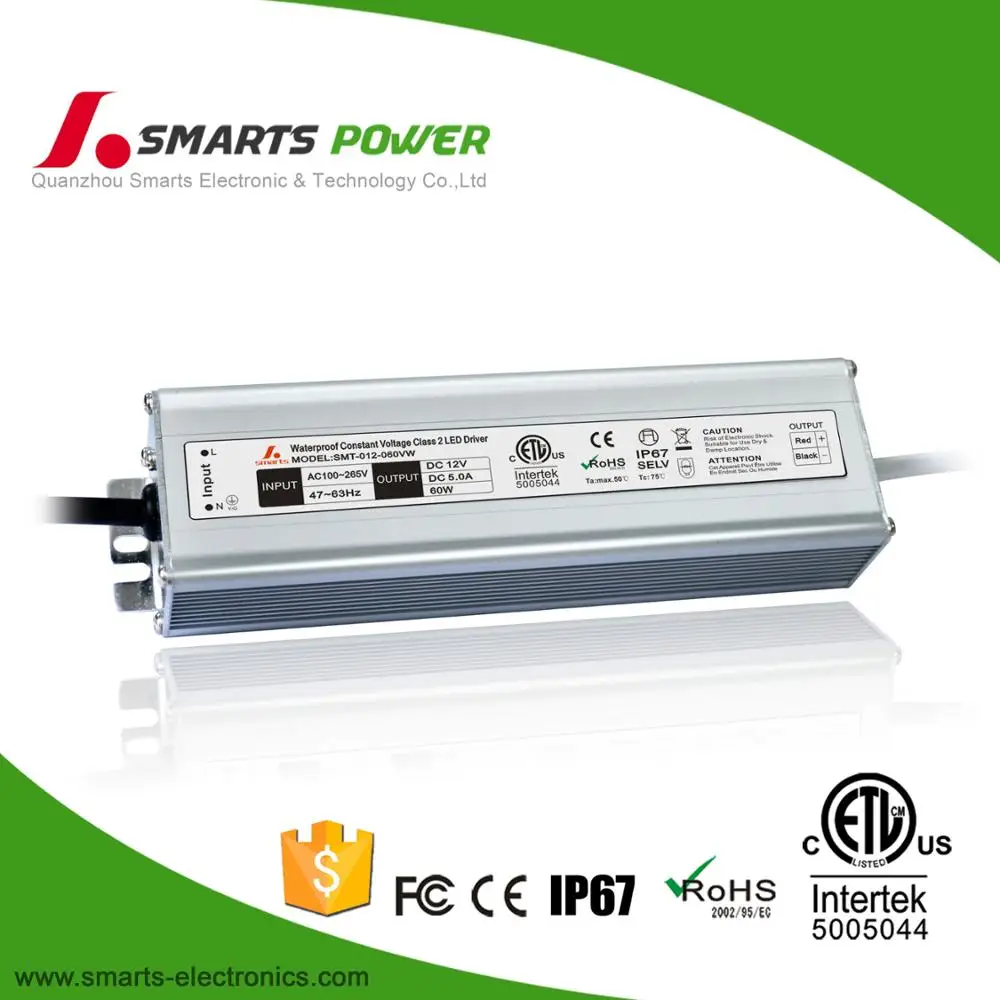

waterproof 60W ac dc power supply 12V 5Amp for outdoor led lights

FOB Reference Price:Get Latest Price
$8.00 - $11.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-012-060VW
Output Power:
60W
Output Type:
Single, Single output
Input Voltage:
100~265vAC
Output Voltage:
12V
Output Frequency:
47-63Hz
Output Current:
5A
outer case:
Aluminum
waterproof rate:
IP67
nput voltage:
100~265vAC
working mode:
constant voltage type
efficiency:
> 82%
warranty:
2 years
size:
190*48*34mm
certificate:
CE, UL/cUL, ETL, CETL, RoHS
12v dc 5amp power supply:
waterproof 60W ac dc power supply 12V 5Amp for led panel light
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month for waterproof 60W ac dc power supply 12V 5Amp for led lamp
Packaging & Delivery
Packaging Details
inner box-white box + outer carton- standard exporting carton
Port
xiamen

waterproof 60W ac dc power supply 12V 5Amp for outdoor led lights

Product Description

Specifications:

1. Input voltage.:100~265vAC

2. Efficiency>82%

3. Warranty: 2 years

4. CE,UL,ROHS approval

5. product size: 190*48*34mm

6. Net weight::550g/pcs

7. Case material:aluminum

8. Waterproof rate:  IP67

9. CE, UL/cUL, ETL, CETL, RoHS approval



Features:

  1. High efficiency,save energy ,protected environment
  2. High stability and low ripple, increase light efficiency and decrease light attenuation
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage
  5. Passed high ,low temperature and waterproof testing.
  6. Integrity protection,over loading, over voltage ,over current
  7. 8Hrs and 100% full load burn-in test.

Environment:



1. Working Temperature : -30 ~ +60°C

 2. Working Humidity : 20 ~ 90% RH non-condensing

 3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

 4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)

 5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes



Safety :



1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved

 2. Withstand Voltage : I/P-O/P: 3000KVAC

 3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

 4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C )



Product parameters:

 Model

Input voltage(AC V)

Working Frequency
(Hz)

Output voltage
(DC V)

Output Current

Output power(DC W)

Working Temp.

Protection grade

SMT-012-060VW

100-265V

47~63HZ

12

5A

60W

-25~50°C

IP67

SMT-024-060VW

100-265V

47~63HZ

24

2.5A

60W

-25~50°C

IP67

SMT-036-060VW

100-265V

47~63HZ

36

1.67A

60W

-25~50°C

IP67



Applications:

Our products are widely used in various industries, such as

  • indoor LED illuminating lights,
  • LED Neon,
  • LED urban Decoration
  • LED Lighting Advertising,
  • LED Display,
  • Safety Protection Apparatus,
  • Telecommunications,
  • Networks,
  • Vehicle Lights, Controller Panels, etc.
  waterproof 60W ac dc power supply 12V 5Amp for led panel light

Hot Products



What kind of LED Driver/Power Supply Smarts Electronics do?

We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.

Packaging & Shipping

inner box-white box + outer carton- standard exporting carton for packing

Company Information

Quanzhou Smarts Electronic & Technology Co.,Ltd



1).  Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.



2).  Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.



3).  We give 2 years warranty



4).  We accept trial orders begining..



5). W have an area of 2000 square meters factory,  about 300-500 production staff. ..



Website:   www.smarts-electronics.com

certifications:

CE, UL/CUL, ETL,FCC, ROHS approval.

our market

Our major markets are in EU & North America,it takes about 70% markets share. view  transaction history





factory & equipments view:



our service

FAQ

FAQ



Q1.             What's type power supply do you have?

Answer:     We specialized in constant voltage & current LED drivers,

                   0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters



Q2.             What's shipping mode can we choose?

Answer:     1.FedEx/DHL/UPS/TNT/Express for samples;

                   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

                   3. Customers specifying freight forwarders or negotiable shipping method



Q3.             What's the MOQ?

Answer:     Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4.             What can you do if the product is broken?

Answer:     We promise to replace new ones to you if there is any defective happen

                   during the warranty period, but we need pictures or video to prove the defective

                   comes from our quality problem



Q5.             How about the protection of product?

Answer:     Most of our products have protection of short-circuit. overload,
                   over voltage, over current and reserve polarity. About the specific product,

                   please consult our salesstuff.



Q6.              How about the transportation?

Answer:      For small order,express will be best.And for bulk order,sea ship way is best but take much time.

                    For urgent orders,we suggest via air to airport plus our ship partner send to your door.

                    We will cooperate with your choice.



Q7.              What's the Payment do you have?

Answer:      To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,

                    WESTERN UNION, PAYPAL. More payment options will be added in the near future!
