wifi antenna booster atheros ar9331 module

FOB Reference Price:Get Latest Price
US $7-13 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oolite
Model Number:
Oolite V1.0
GPIO Numbers:
21
Chipset:
AR9331
Firmware:
OPEN-WRT,WR703N Compatible
RAM:
64M
Interface:
One Lan, One WAN,wifi, One Usb, TTL.
ROM:
4M/8M/16M
Size:
27.5 * 52MM
Antenna:
Print Internal Or IPEX
OEM:
enable
ODM:
enable
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packaging Details: white box or other
Delivery Detail: six work days
Port
shenzhen
Lead Time :
Shipped in 7 days after payment

wifi antenna booster atheros ar9331 moduleule

Oolite V1 is a highly integrated wireless router module. It is not only a wireless module, it is a

complete router, only energized, it can work in a wireless AP module, if coupled with a network

transformer and RJ45 network port, it’s a whole wireless router.

Oolite V1 power is very low, working alone, only 0.4W, suitable for battery products, it has a 150M wireless transmission rate, up to 21 gpios. All can be defined for input or output. it's design for wifi hard disk, WiFi router, remote monitoring, remote video, Industrial control DIY

and so on

Characteristics:

CPU: AR9331 400Mhz MIPS core

RAM: 64M DDR2 RAM

Flash: 16M SPI flash (4/8/32m option)

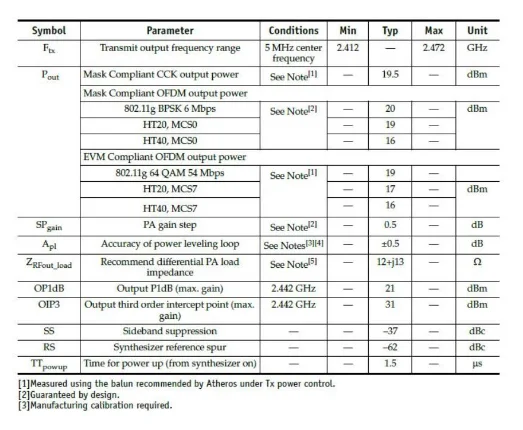

Wireless speed: 135Mbps

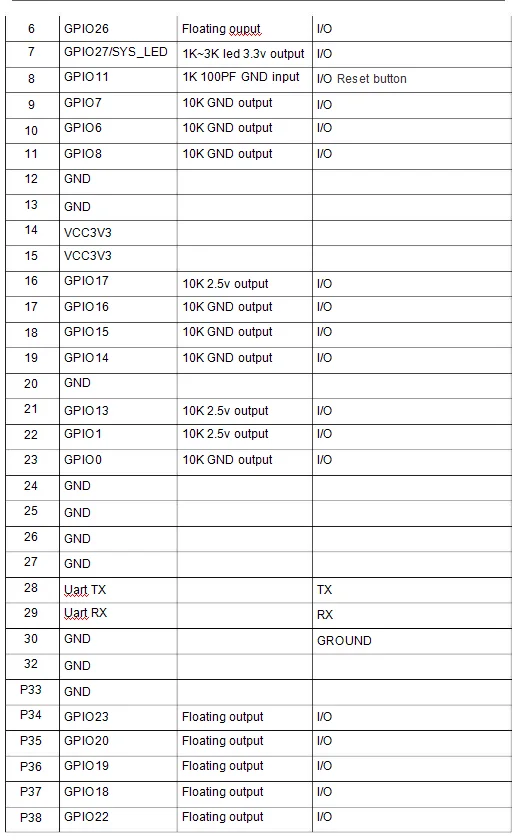

General GPIO: 21 (except TX, RX)

USB: Usb 2.0 master interface, support USB hub extension

Power supply voltage: 3.3V.

Port: 1WAN and 1LAN 10/100Mbps network interface

Antenna: the built-in PCB /IPX external antenna.

Debug: serial debugging interface has been out.

Board Power: 0.36W

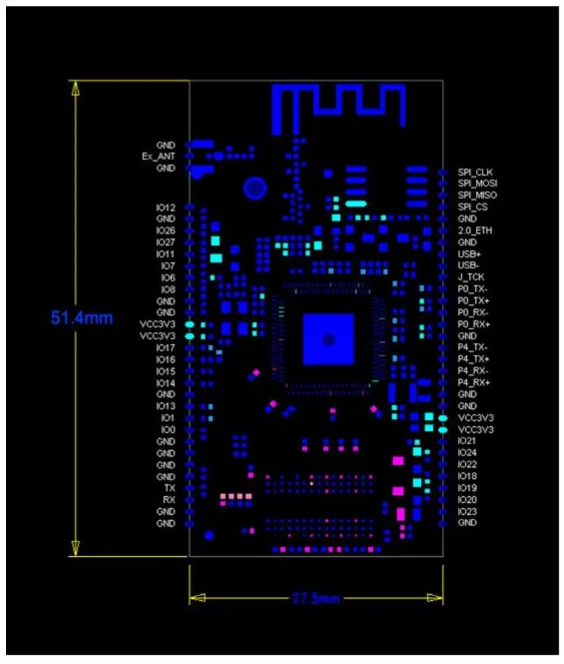

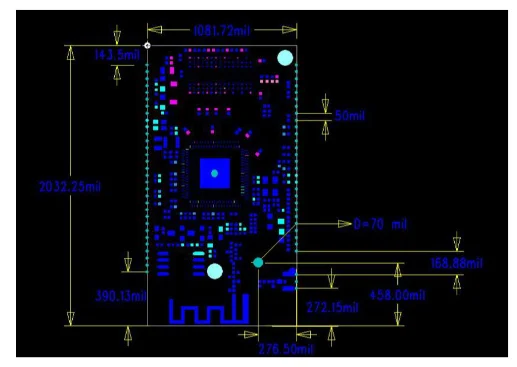

Product size: 27.5 * 51.4MM   +- 0.1mm

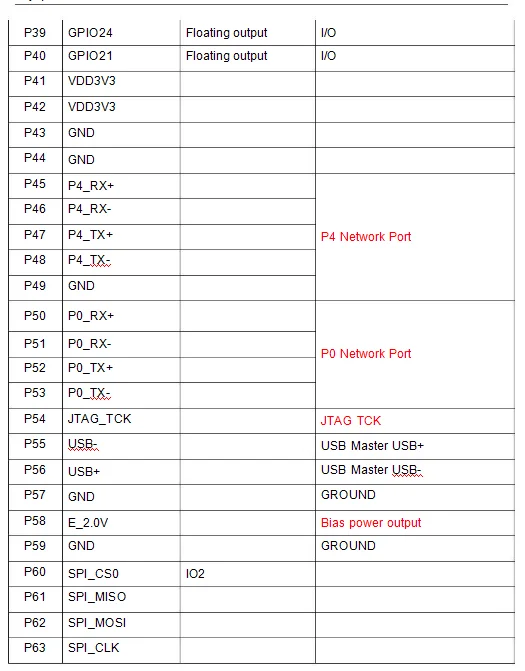

SPI interface pin out.

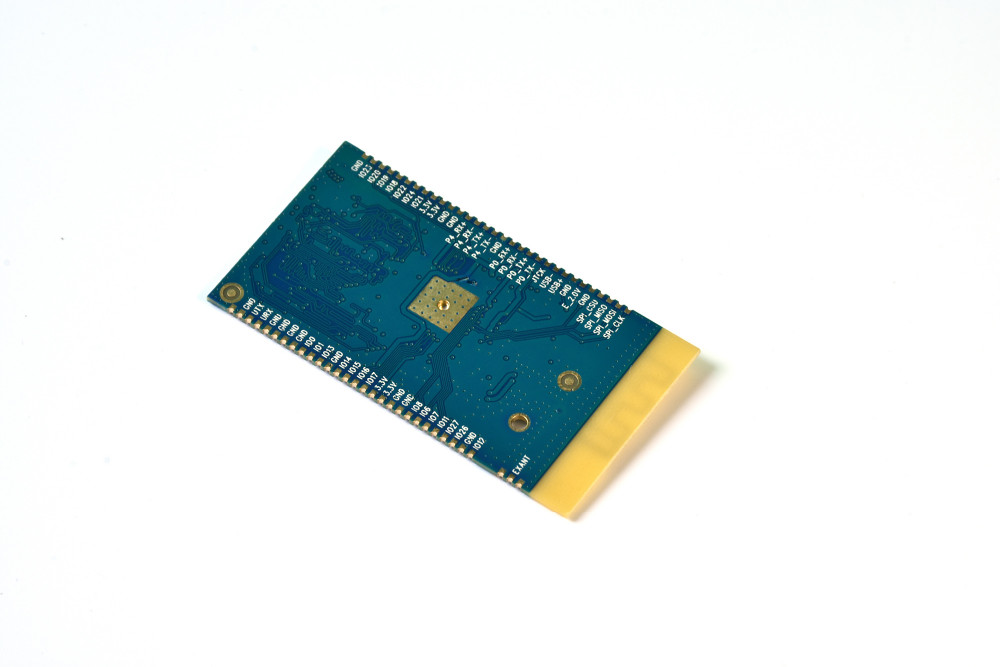

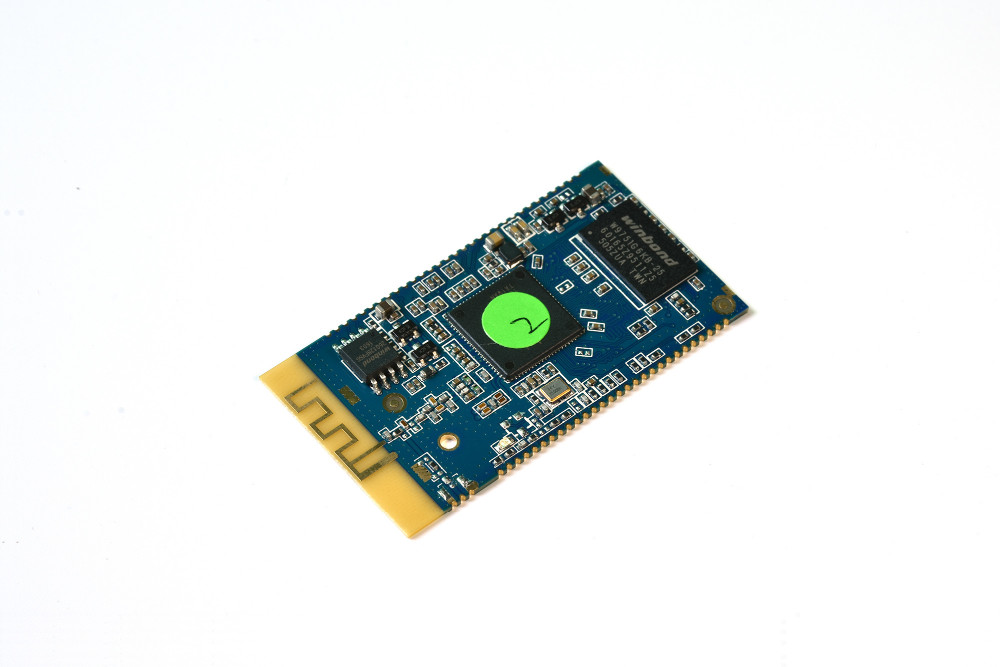

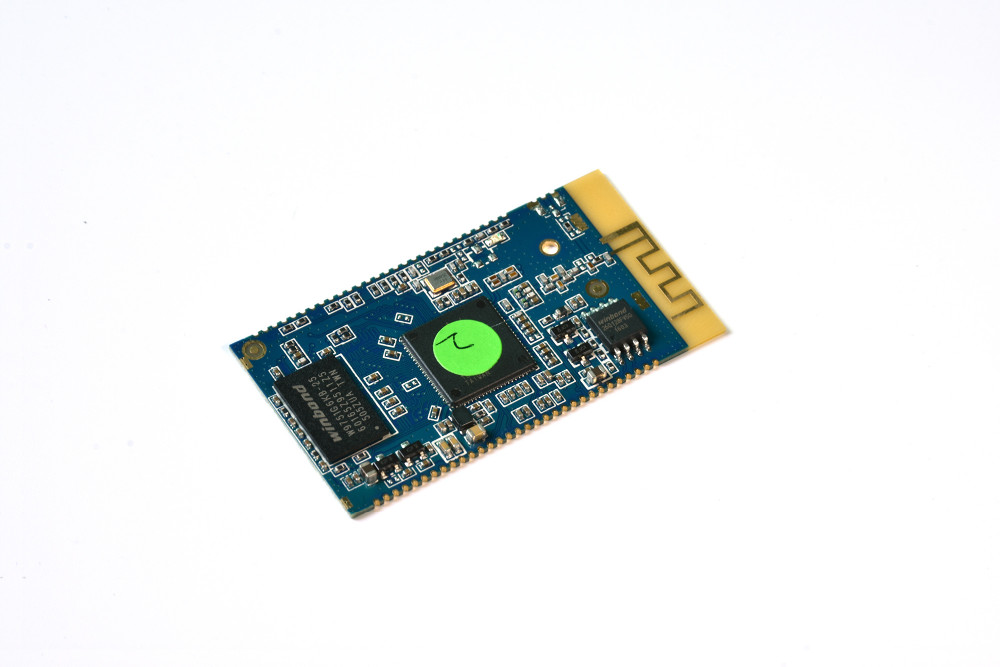

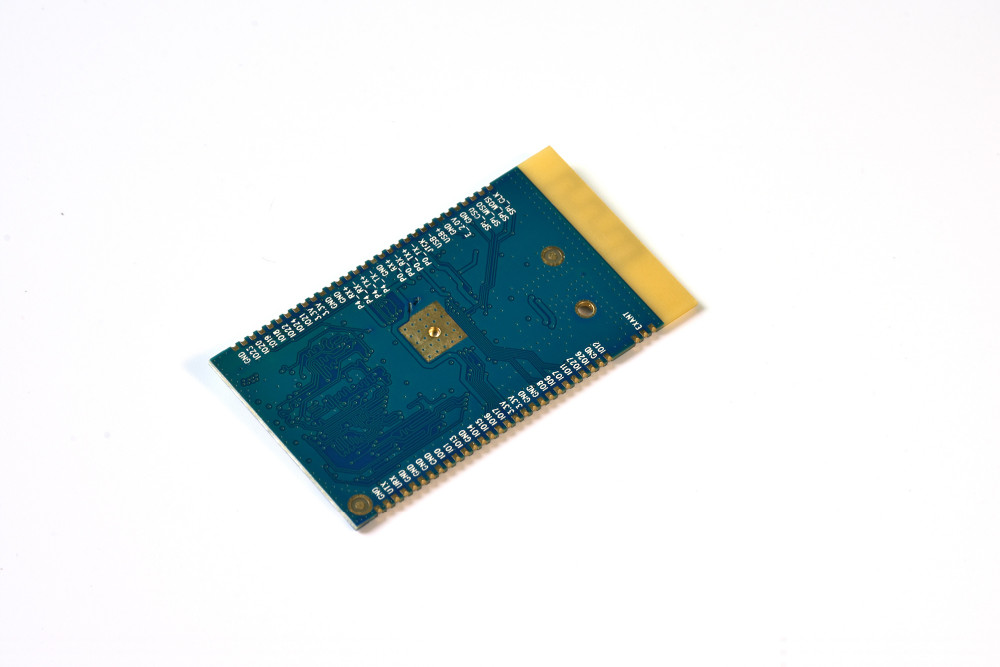

Pictures:




Our Services

It can be OEM, and use custom firmware.

Can make coloried. and welcome to ask FCC,CE,ROHS certs.

Company Information

We have ourself SMD lines(YG200,JUKI KE 2070 and so on). tester  instrument(Litepoint IQFLEX,IQview,IQ201X,IQxel, Agilen spectrum analyzer). assembly lines and so on.

FAQ

 This module sourcecode is open for everyone.  our tech supporter should try our best to help all customers.
