wild application numerical control valve for loading system

  • >=1 Sets
    $400.00
Model Number:
HYCV
Lead Time:
Quantity(Sets) 1 - 1000 >1000
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
HONGYI
Application:
liquid automatic loading system
Material:
Stainless Steel
Temperature of Media:
Low Temperature
Pressure:
High Pressure
Power:
Hydraulic
Media:
Oil
Port Size:
1/8" 1/4" 3/8" 1/2"
Structure:
Safety
installation dimensions:
DN40,DN50,DN80,DN100,DN150
Power Pressure:
AC:220V±10% DC:24V±10%
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
wuhan/shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1000 >1000
Est. Time(days) 30 To be negotiated
Product Description

Product Application

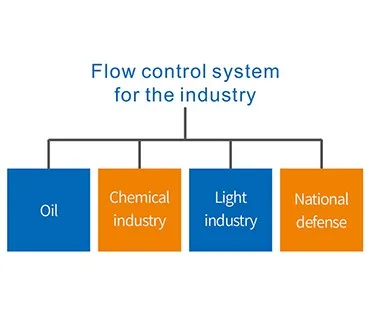

Pneumatic two-stage control valve has very good switching characteristics, which can ensure the measurement accuracy when the fluid trade is transferred. The quick exhaust and throttling functions are used in the actuator to slow the opening and closing of the valve, so that the fluid in the pipeline changes smoothly, and the water hammer caused by the impact will not cause the flammable fluid to explode, nor will it be impacted. It can damage the flowmeter and other instruments in the system, so it is suitable for flow control systems in petroleum, chemical, light industry, national defense and other industries. It is especially suitable for oil storage and transportation systems.

The pneumatic two-stage control valve provides a three-position operation mode of 0°-45°-90° or 0°-90°-180°. The middle position is achieved by the movement of two auxiliary pistons to generate a mechanical brake. This middle position is adjustable, such as the 900 stroke actuator can provide 20°, 30°, 50°, 75° and other intermediate positions.

Working conditions

1.Dry or lubricated working medium or impurities in non-corrosive gas medium Micro material is less than 30um.
2.Air pressure
3.The media environment temperature
4.Standard: -20~80°C Low temperature: -35~80°C High temperature: -15~150°C
5.Stroke adjustment
6.0° and 90° two positions with ±5°
7.Installation occasions
8.Indoor or outdoor installation

1.It can realize multi-position action control functions such as opening and closing of the valve for two sections, opening of the second section of the second section, and opening of the third section of the third section.
2.The speed of the on-off valve is adjustable;
3.The valve is opened and the valve opening degree is adjustable;
4.Automatic and manual control;
5.Safe return (FC/FO) for gas shutoff/de-energization;
6.Meet APl607 fire protection, APl6D anti-static requirements

Solenoid valves S1, S2 use 2-position 5-way solenoid valve, position as above
NSS1: 220VA or 24VDC relay output contact control S1
NSS2: 220VA or 24VDC relay output contact control S2


Electro hydraulic valve structure diagram

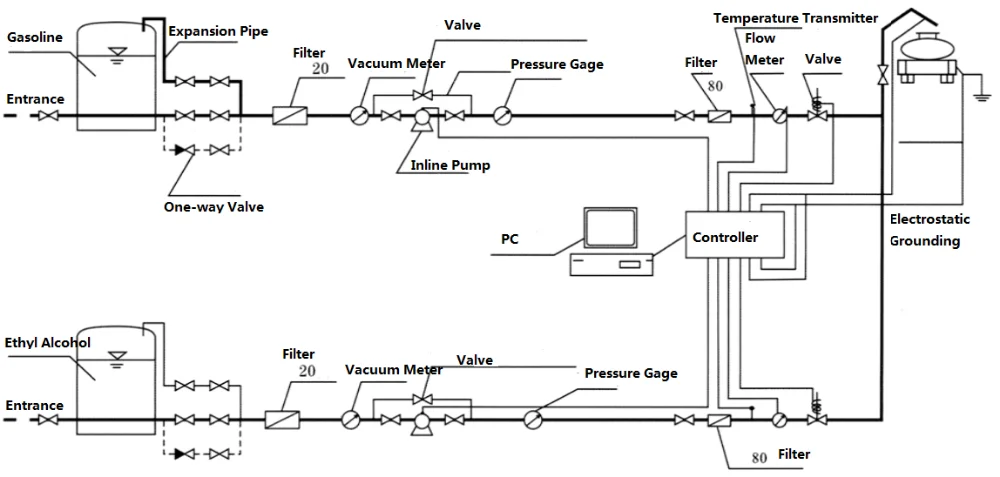

Diagram of oil depot

The action process is as follow

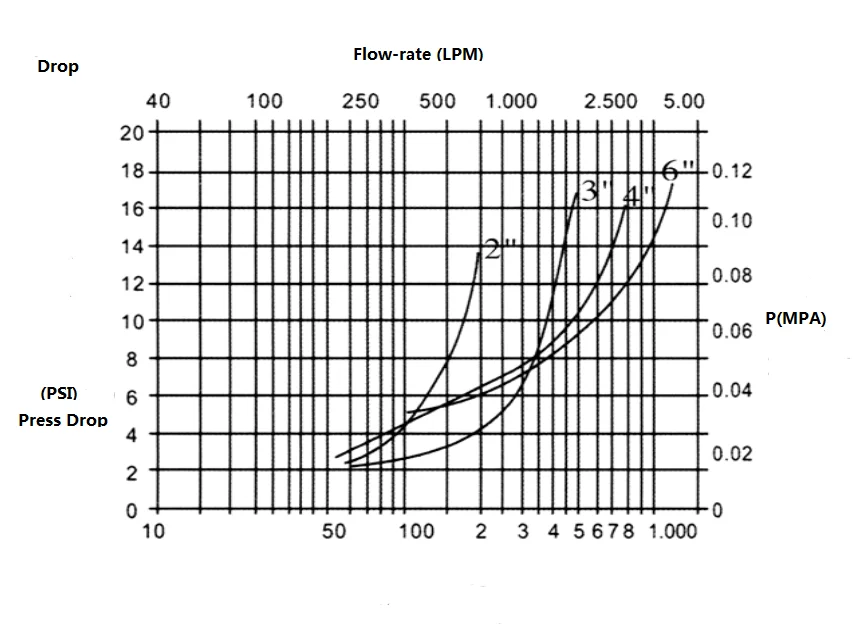

Main technical parameters and configuration, installation dimensions

Diameter Nominal /Standard

L(mm)

A

D

D1

d

Net Wet.(kg)
DN-40
200
160
160
110
4*18
24
DN-50
210
160
165
125
4*18
26
DN-80
280
195
200
160
8*18
36
DN-100
350
220
220
180
8*18
54
DN-150
430
260
280
240
8*22
110
DN-200
560
320
340
295
12*22
140

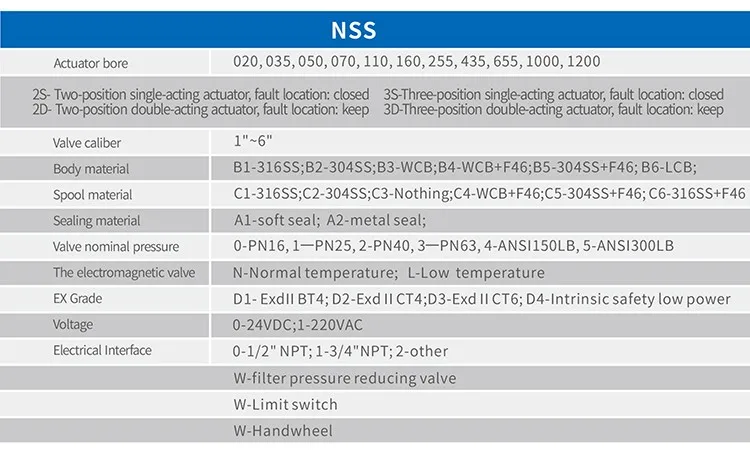

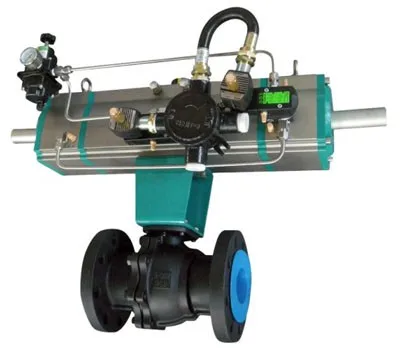

Pneumatic control ball valve selection

Company Information

HUBEI HONGYI ELECTRONIC&TECHNOLOGY CO.,LTD,in 2009,which covers an area of more than 3500 m2,has 4standard plants of over 6000 m2 in area,in which ,the building area of the office building ,R&D center,etc.is about 4500 m2,has more than 100 sets of nc press,nc bending machine,prectreatment system and spraying equipment that are the most advanced in china,a complete set of advanced online flow calibration system as well as a number of instrument and electronics testing equipment.We also lay emphasis on cooperation with the domestic and foreign excellent industrial control manufactures,and have established cooperation relationship with the design institutes of the Ministry of Chemical industry as well as the electronic control institutes of a number of universities.Through these cooperators,by combining our core products,we provide the users with the best system solutions.

Exhibition

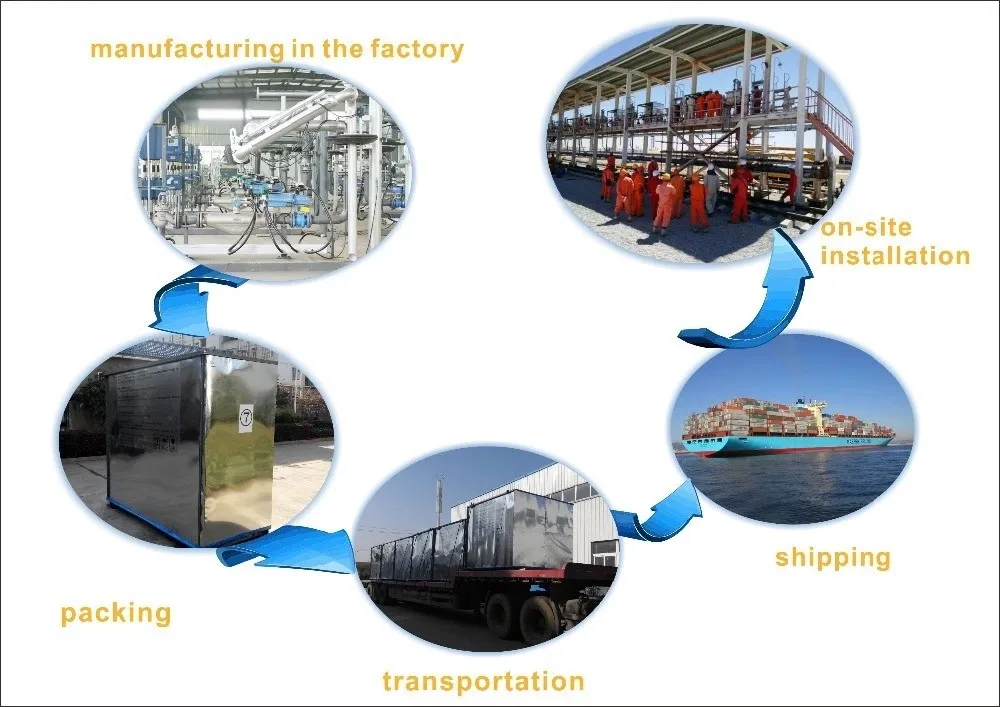

Packing & Delivery
