wood furniture /wood pen 9060 cnc laser cutting/engraving machine with high evaluation

FOB Reference Price:Get Latest Price
$1,700.00 - $3,800.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
LM-9060
Power(W):
60W, 80W, 100W
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2
Cutting Area:
900*600mm
Cutting Speed:
0-60000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Cutting
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Shandong, China
Brand Name:
LM
Certification:
CE, FDA
Condition:
New
CNC or Not:
Yes
Control Software:
RDCAM
Cooling Mode:
Water Cooling
Cutting Thickness:
0-30mm
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Laser Source Brand:
RECI, Yongli, EFR
Key Selling Points:
Long Service Life
Keyword:
Co2 Laser Cuting Machine
Laser tube:
Co2 Sealed Glass Laser Tube
Laser power:
60w/80w/100w/130w/150w
Working table:
blade/honeycomb
transmission:
belt transmission
Function:
Engraving Cutting Nonmetal Materials
motor:
stepper motor
linear rail:
PMI brand
options:
Red Dot/Rotary System/Up-down Table/Color
Product Certification certification
CE Certified.
Valid from 2017-09-13 until 2022-09-13
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy wooden case for 9060 laser machine
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 7 To be negotiated
Video Description
Product Description

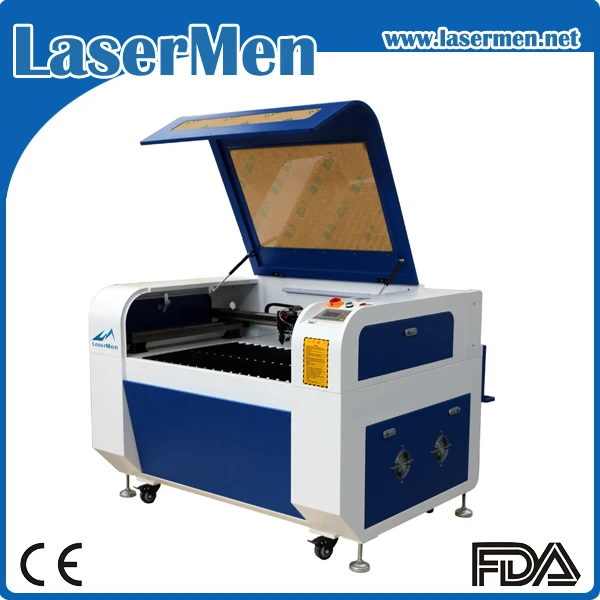

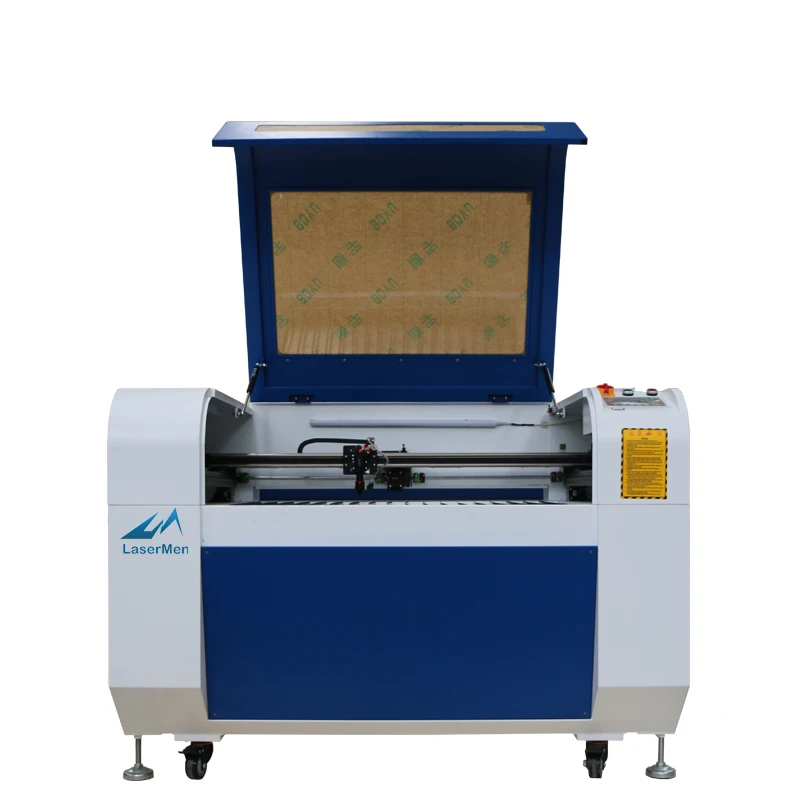

wood furniture /wood pen 9060 cnc laser cutting/engraving machine with high evaluation

Main features

1.Adopting international advanced DSP control technology, it is the pioneer of fast and continuous curve cutting function and shortest processing path optimization function, which greatly increases the working efficiency.

2. YAKO 2/3-phrase motor ,ONK belt and PMI rail, to assure the stability and precision.

3 Reci or Yongli, famous brand CO2 laser tube manufactures in the world, high and stable laser quality.

4 Ruida controlling card, pioneer of fast and continuous curve cutting function and shortest processing path optimization function which greatly increase the working efficiency.

Applicable Materials

Non-metal materials such as acrylic, wood, bamboo, double-color sheets, paper, leather, shells, or horn, resin, ABS, lamp shade, etc.

Applicable Industries

Models (Construction model, wooden toys, etc.), advertising, decoration, arts and crafts,

model
LM-9060
max cutting speed
50000mm/min
max engraving speed
60000mm/min
laser type
sealed co2 glass laser type
working voltage
110v/220v 50-60HZ
cooling system
water cooling

If you want to contact us, please click here

Detailed Images

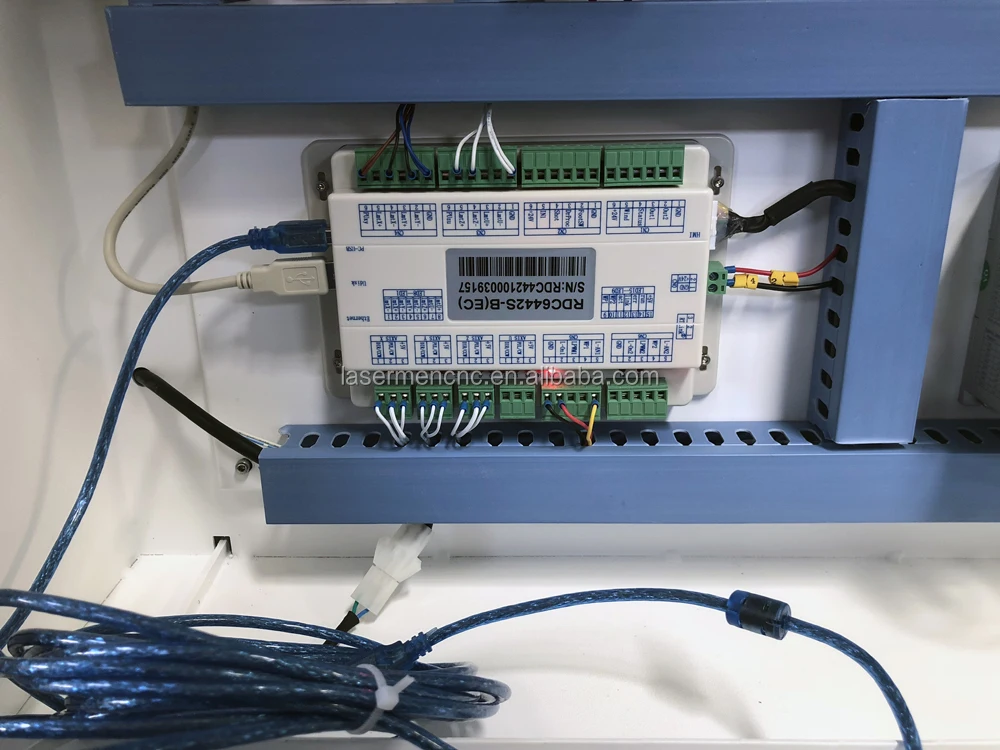

RD control card

Ruida Brand USB control system: Ruida 6442s control board and software in English, machine front operation display can be switched to English, Spanish and Russia, etc. There are labels on each wire in electrical system, you could know each wire's starting and ending, convenient for installation and maintain.

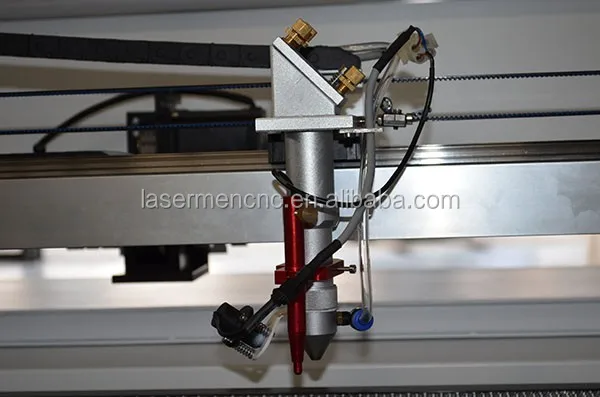

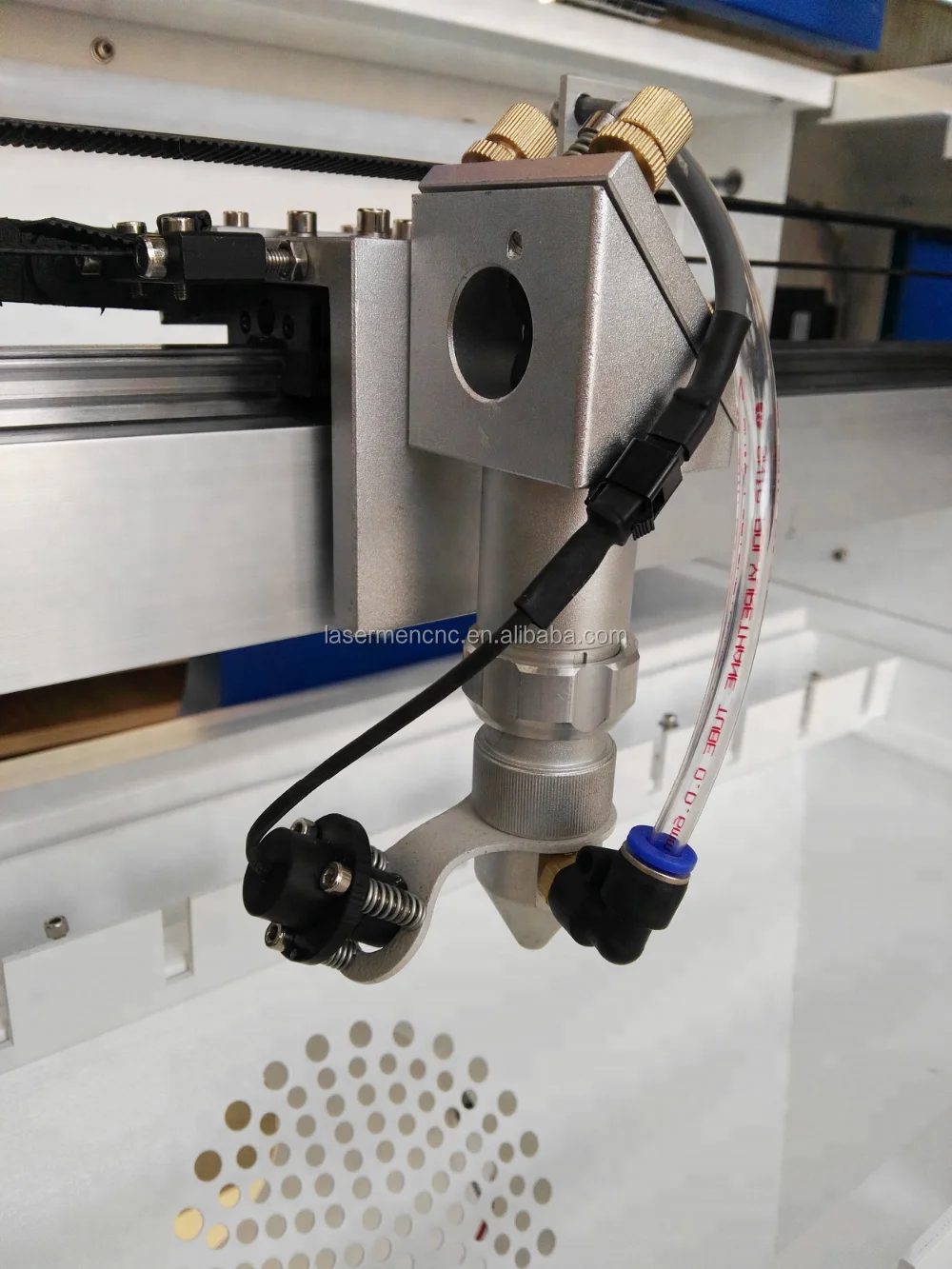

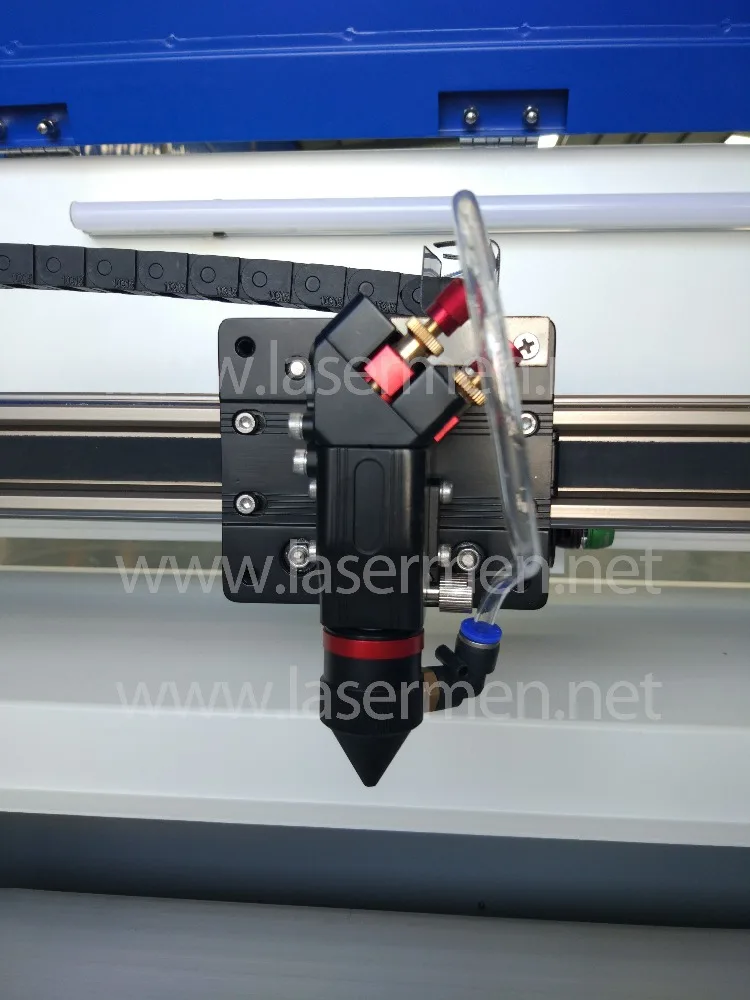

CO2 laser head

High quality, more stable.Stable light speed, good engraving and cutting effect,Blow up auxiliary functions

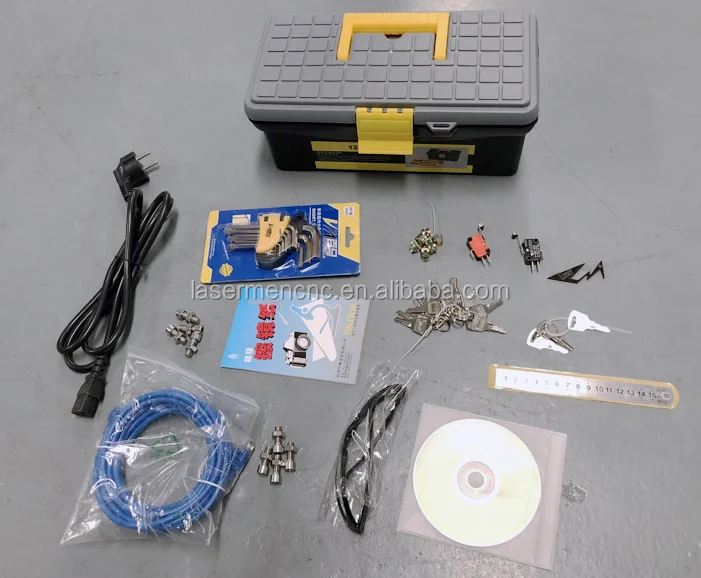

Tool box

All tools and instructions for the machine, software installation CD, and protective glasses, etc

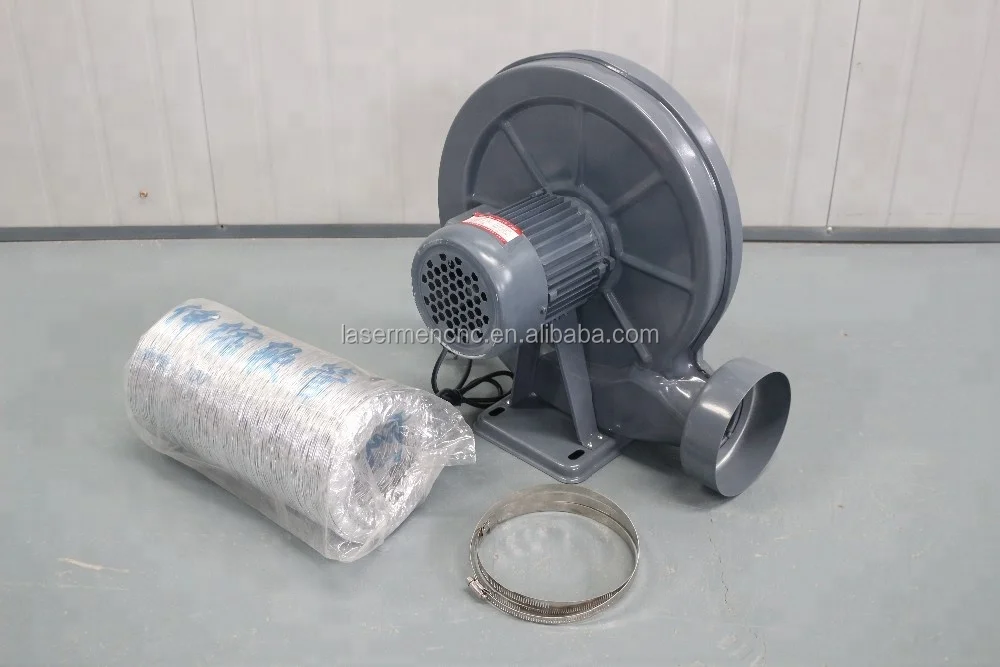

exhaust fan

it can removes dust and smoke to protect the optical parts and the users

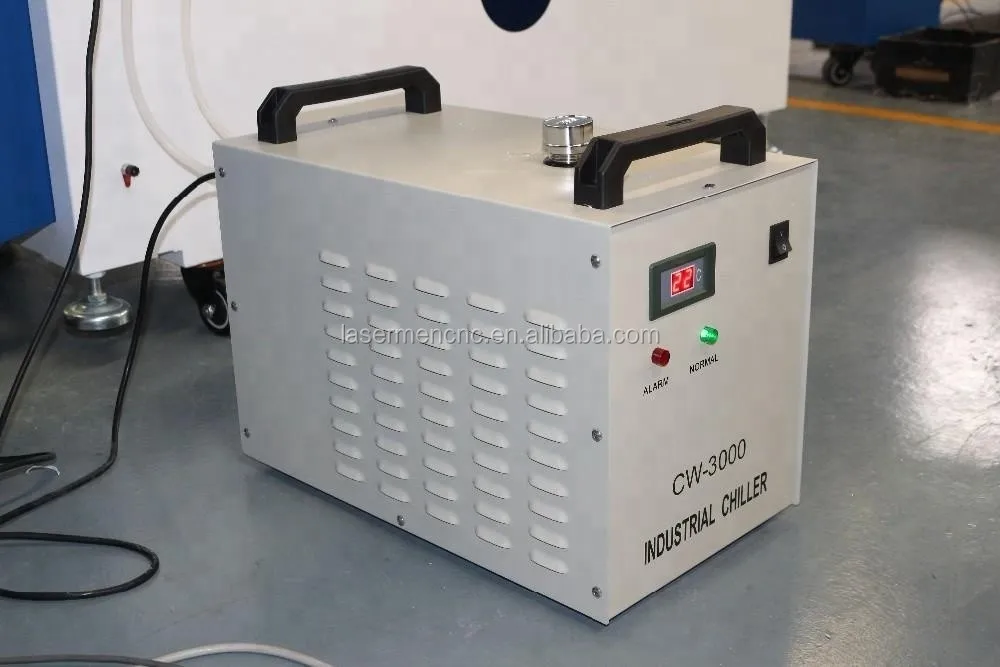

Water chiller.

S&A,best in china,it is used to cool the laser tube

Constant water temperature ensures laser tube a longer service time and high stability.

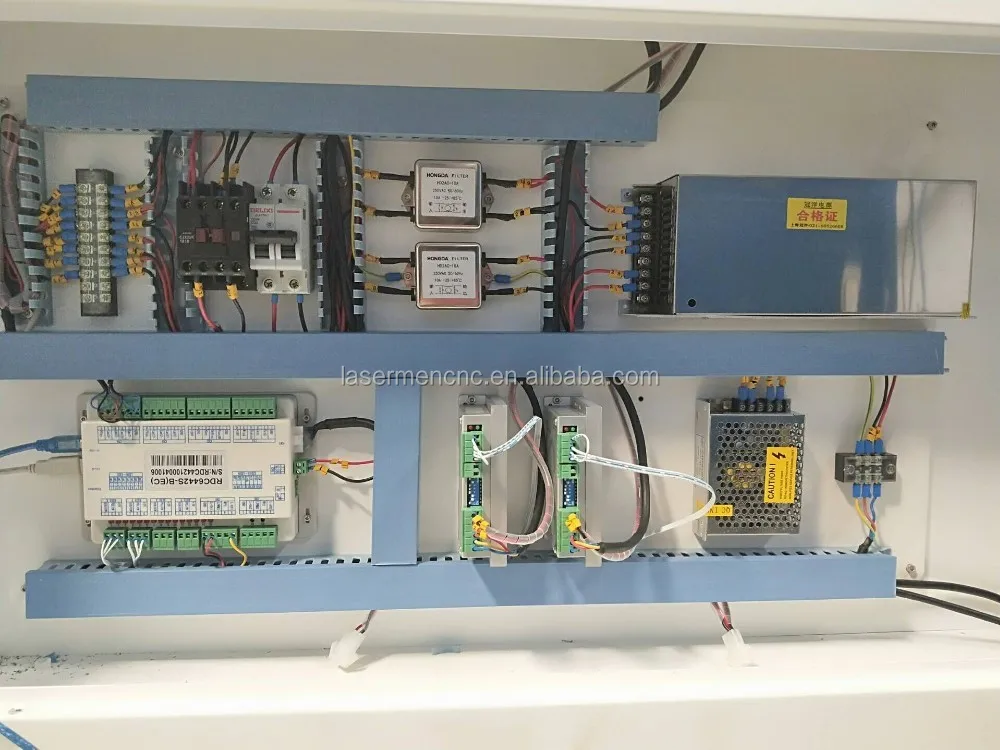

Control box

There are X-axis and Y-axis driving, control card, power supply of driving devices, power supply of control card, etc.

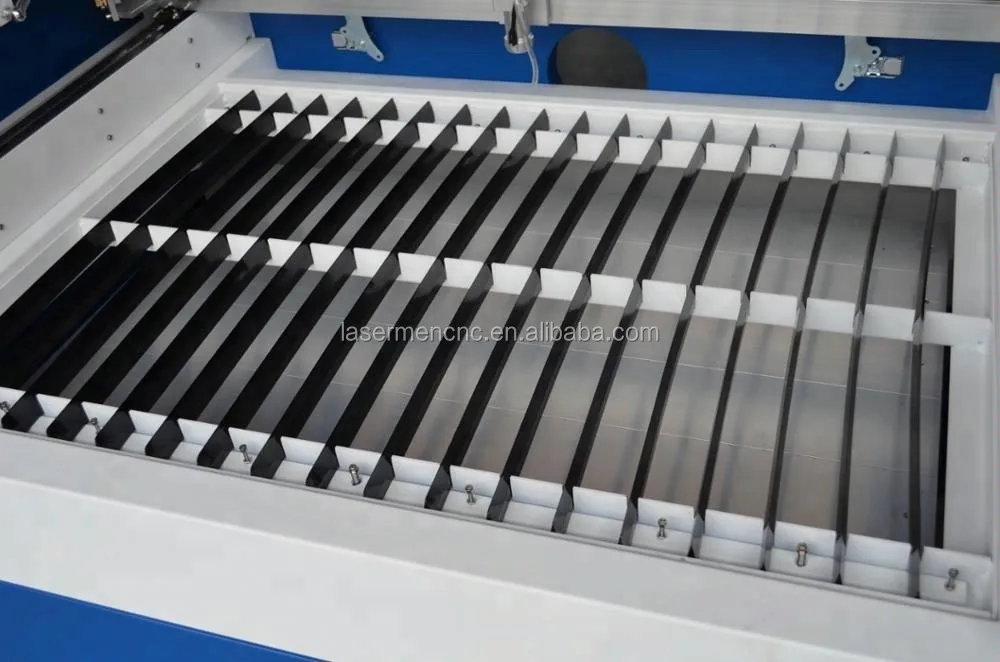

Blade worktable

It is suitable for hard materials, such as acrylic, wood and so on.



Air pump.

Push fumes away from the laser's focal lens to protects the lens from contaminants which could destroy the lens

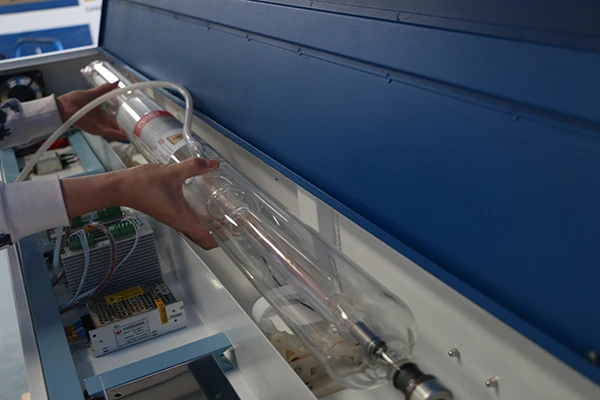

laser tube


China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.


For engraving, 40w and 60w 80W are good choices.
100w and above are mainly for cutting, With different laser power tube, you can choose to cut or engrave according to your need

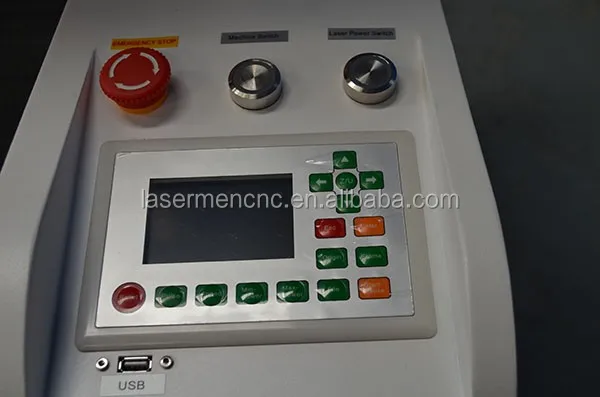

RD controling system

RD controller. USB interface, support online / offline working, English language system, adjustable cutting speed and power. with this part, you can easily operate the machine.

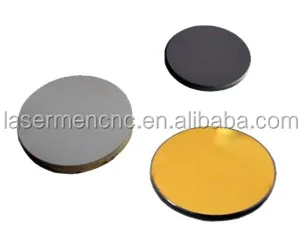

Reflector and Focus lens

Brand: II-VI Origin: US

1 lens and 3 reflectors,Optical path design, small optical path deviation, high stability, with this lens, you can get the best laser beam.and laser beam is very important for the laser cutting and engraving,

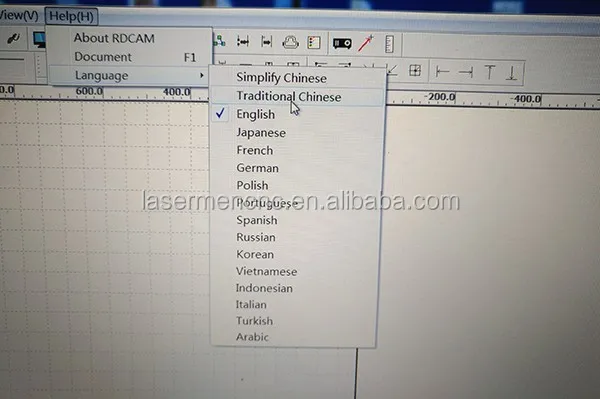

RD language system

the system can support multi language, very convenient for customers. with this system, you can transfer the language into what you are good at



>>Optional>>

1. Red dot

The laser is invisible. Red dot shows the position of the laser on the material. It's more convenient for location.

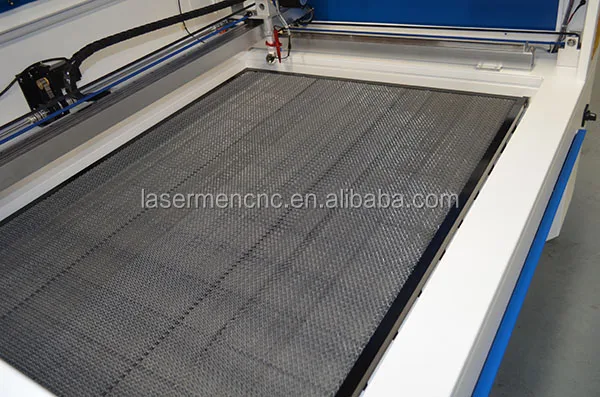

2. Honeycomb or blade table optional

Aluminum blade table is for processing acrylic, wood and other hard materials;

Honeycomb table is for processing cloth, leather and other soft materials.

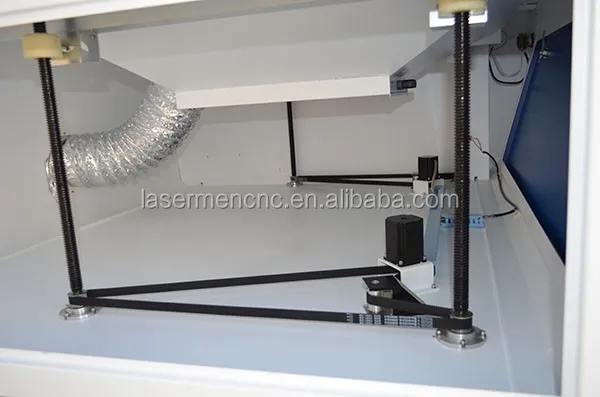

3. Up/down Z-axis

You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.

4. Auto focusing

Auto focusing automatically adjust the focusing distance.

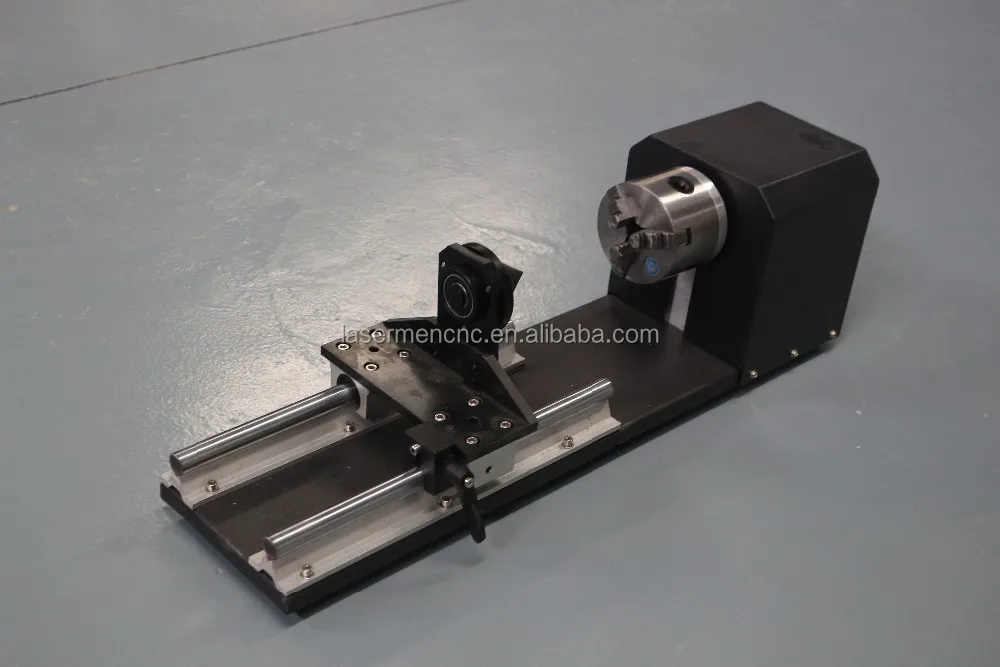

chuck type rotary auxiliary device

it's can be used to engrave cylindrical products, such as bamboo, cups, etc

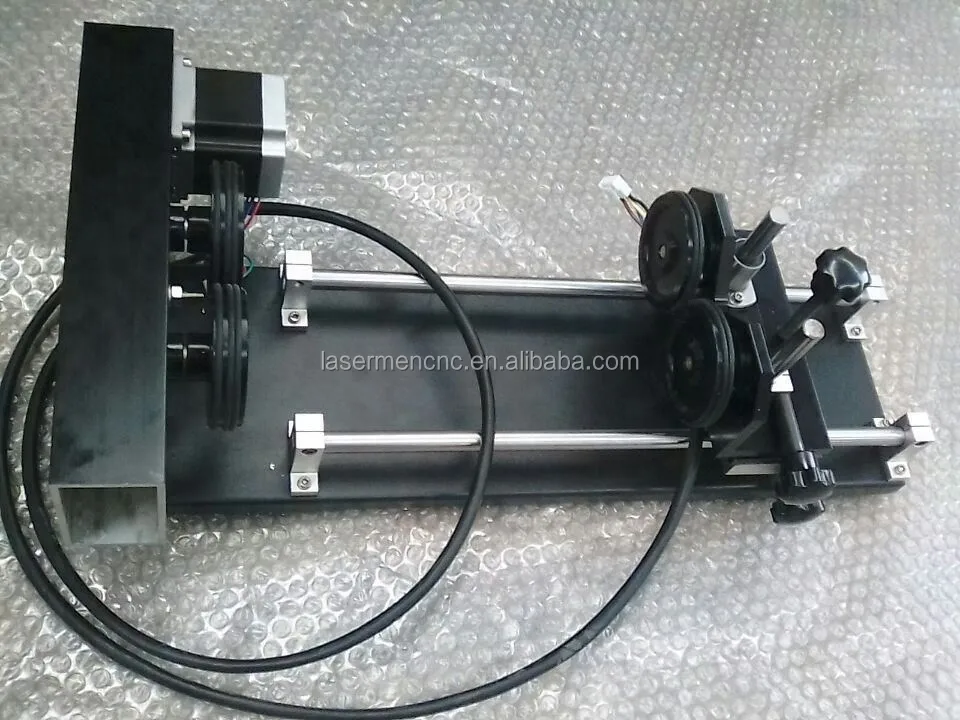

rotary wheel type auxiliary device


it's can be assists fragile and irregular products to engrave, such as wine bottle,etc


If you want to send inquiry, please click here

Related Products
If you want to get more detailed information, please click the picture

Automatic laser cutting machine with 100w laser tube LM-1610 for Foam/PVC laser cutter

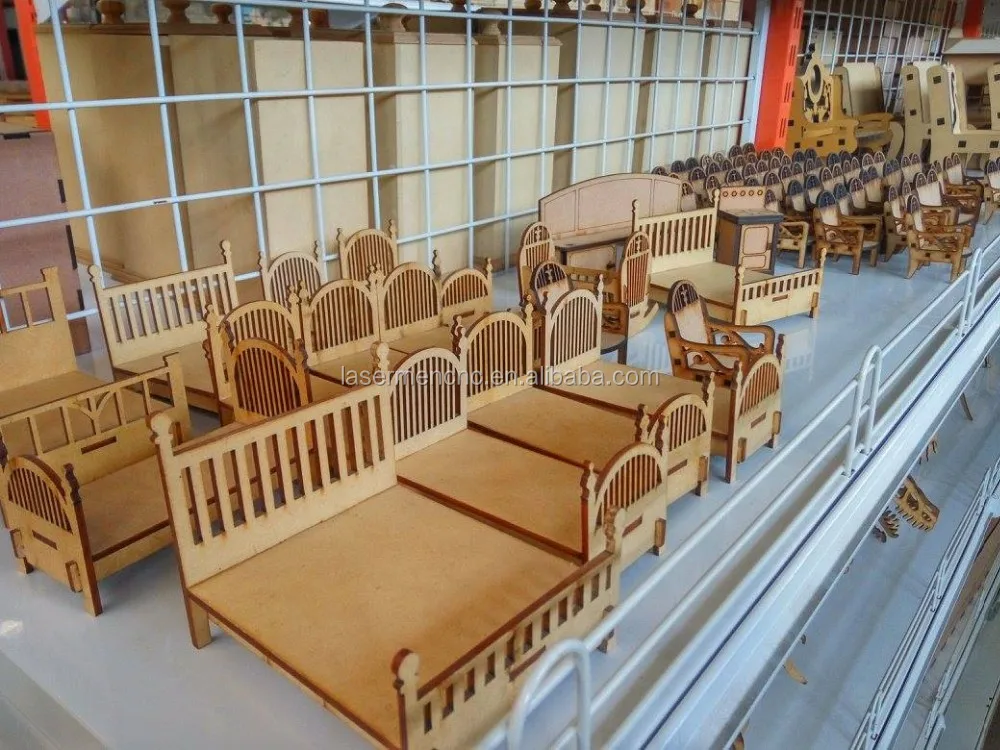

samples
Our Service

Warranty for laser cutting machine

1. One year for the machine, except for consumables.

2. Laser tube warranty:

40W/60W: 3 months

80W: 6 months

100W/150W/180W: 8 months

3. Lens and mirrors are not within warranty scope

Pre-Sales Service for laser cutting machine

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service for laser cutting machine

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

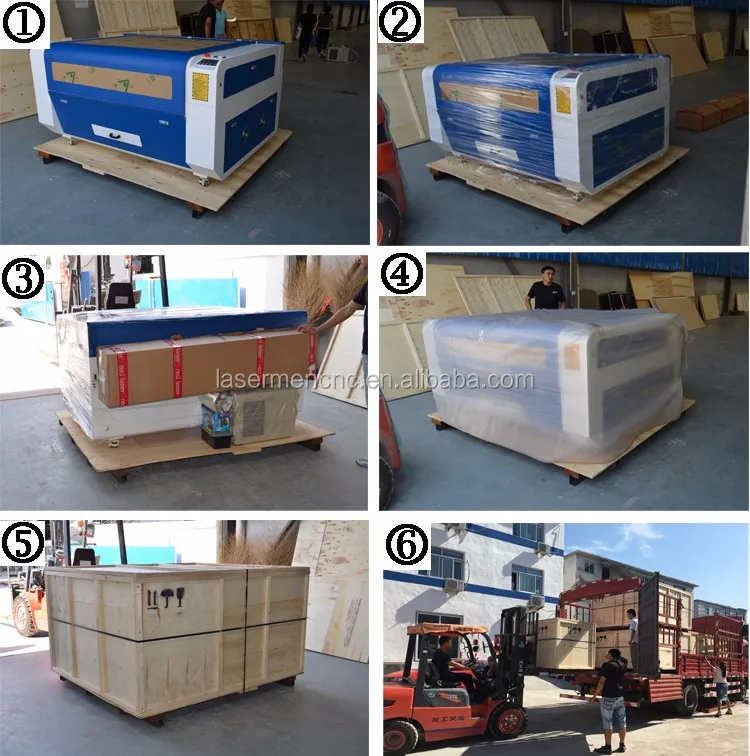

Packing & Delivery
Our Company
FAQ

1.Q:Why should you choose us?

A:If you choose us, you will get best quality,best service,best price,best warranty.


2.Q:I'm not familiar with the machine?

A:You just need to tell us materials, working size and thickness.I will recommend you the right machine.

3.How to operate the machine ?

A:We will deliver English manual and video with the machine to you.If you still need our help,please contact us.

4.Q:How can I get the sample to check you quality ?

A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

5.Q:Do the machine can be customized according my requirements?

A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for me?

A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
