woodworking Hydraulic cold press machinery for Wooden door

$3,700.00 - $6,300.00 / Set | 1 Set (Min. Order)
Model Number:
MH3248*80 MH3248*50 MH3248*100
Type:
Cold Press
Application:
Woodworking Machine
$5,900.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples: $5,900.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $5,900.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Pressure:
80T
Place of Origin:
Shandong, China
Brand Name:
KINGISO plywood cold press
Voltage:
380v/50hz/3phase, 380v/50hz/3phase
Dimension(L*W*H):
305*130*350cm
Certification:
CE&ISO
Warranty:
12 months
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Furniture Factory
After-sales Service Provided:
Engineers available to service machinery overseas, Online support
Press platen dimensions:
1300mm*2500mm
Max total thrust:
80t (2.5kg/cm2)
Press of hydraulic system:
200kg/cm2
Max platen opening:
1300mm
Oil cylinder:
125mm*3pcs
Hydraulic motor power:
5.5kw
Overall dimensions:
305*130*350cm
Net weight:
3500kg
Power(W):
5.5kw
Weight:
3500KG

Packaging & Delivery

Selling Units:
Single item
Single package size:
345X125X220 cm
Single gross weight:
3500.0 kg
Package Type:
Our MH3248*50/MH3248*80/MH3248*100 cole press machine are packed in nude.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 20 >20
Est. Time(days) 15 40 To be negotiated
Video Description
Hot Sale Products


Panel Saw

Dust Collector

Edge Banding Machine

Hinge Boring Machine

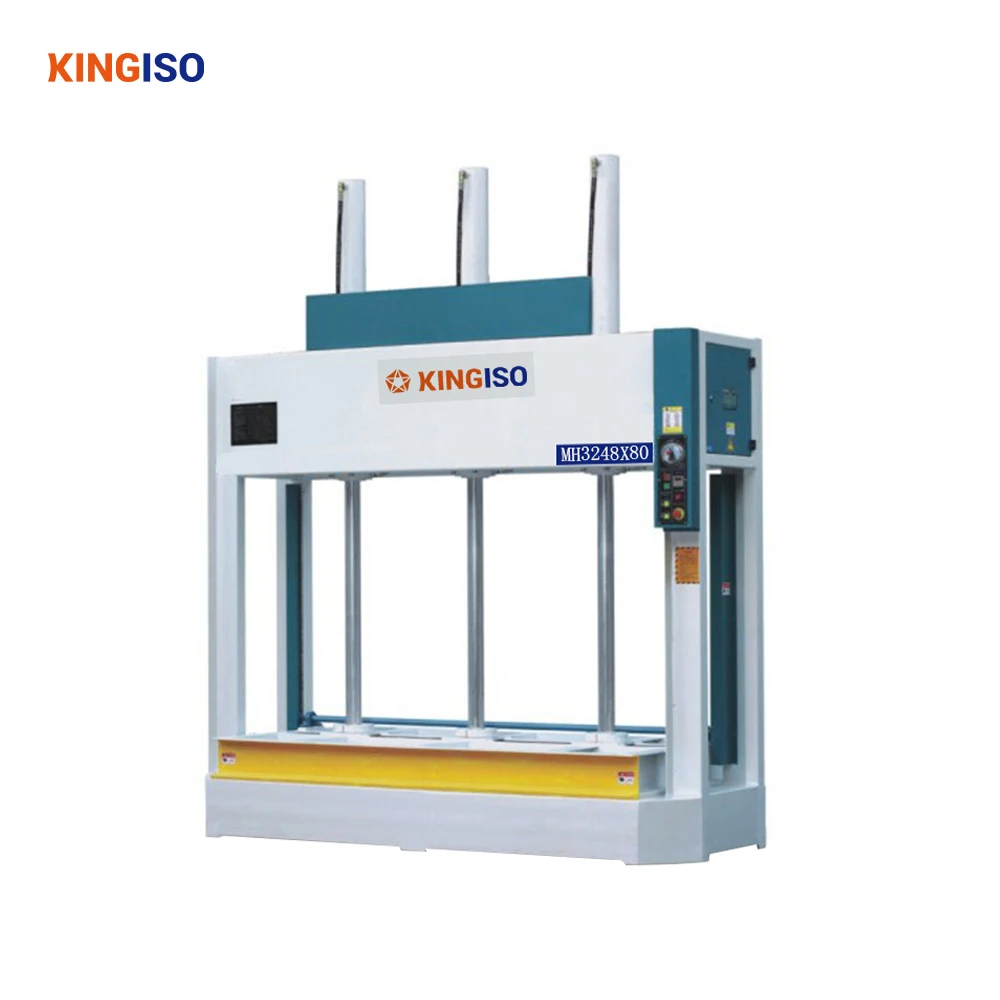

but_home.jpgWoodworking Hydraulic cold press 80T machine for plywood doors

Product Description

plywood cold press machine.jpg

Application

Woodworking hydraulic cold press series models are used to press the furniture plate, wooden doors, all kinds of sheet metal, as well as furniture, leveling, stereotypes can make the bonding between the plate more solid.

Features:

1.Our machine's most of electrical components selection of Schneider or the Siemens, main parts have option has CE authentication products.

2.Our machine's Steel plate are based on the pressure's requires to custom, to achieve our commitment pressure, quality assurance.

3. the upper and lower pliers by the gantry milling finishing, to ensure absolute formation.

4.the use of hydraulic system work, lifting speed, pressure uniformity, high efficiency.

5.with overpressure automatic control circuit and pressure off the oil protection, automatic lift, automatic oil off.

6.Fast and efficient pressing, emergency safety braking, trip limited device.

7.Automatic compression and unloading pressure function.

8.workbench height convenient worker operation.



Advantage:

1.The hydraulic cold press work noise is small, fast lifting speed, strong pressure stability, low maintenance rate.

2.the whole structure is compact, beautiful atmosphere, stable performance, durable.

3.Because foreign voltage different our country's voltage, most domestic manufacturers only change the motor, do not care about other electrical components, when clients using cold presser machine in his factory , the electrical components easy to have fever phenomenon , at last to burn down. Our cold presser will not happen.

4.Working quality to be good, pressing fast and efficient.

5.Easy to operate, reasonable design, stable performance.

Technical parameters:

Model

MH3248*50

MH3248*80

MH3248*100

Press platen dimensions

1250mm*2500mm

1300mm*2500mm

1300mm*2500mm

Max total thrust

50t(1.6kg/cm2)

80t (2.5kg/cm2)

100t (2.2kg/cm²)

Press of hydraulic system

210kg/cm2

200kg/cm2

200kg/cm²

Max platen opening

1000mm

1300mm

1300mm

Oil cylinder

110mm*2 pcs

125mm*3pcs

125mm*4pcs

Hydraulic motor power

3.7kw

5.5kw

5.5kw

Overall dimensions

294*125*300cm

305*130*350cm

305*130*350cm

Net weight

2300kgs

3500kg

4200kg

Voltage

220v/60hz/3phase

380v/50hz/3phase

380v/50hz/3phase



Detailed Images

Finished Products

Packing&Service


1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we do not deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months.Within 12 months under normal using and maintenance, if the machine has something problem, you will get spare part for free. More than 12 months, you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
