xk7130 cnc milling machine SP2213 cnc milling machine 3 axis

FOB Reference Price:Get Latest Price
$3,000.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Sumore Machinery
Model Number:
SP2213
Type:
Vertical
CNC or Not:
CNC
Voltage:
Customer Requirement
Dimension(L*W*H):
570 x 650 x 660 mm
Certification:
CE SGS
Max. drilling capacity:
10mm
Table effective size:
400x145mm
Throat:
150mm
T-slot size:
8mm
No. of slots on table:
3
Positioning accuracy:
0.01mm
Spindle taper:
MT3
Minimum speed:
100r/min
Maximum speed:
7000r/min
Shipping dimension:
760 x 750 x 785 mm
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
500w
Weight:
120/150kg
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 set/polywood case (aluminum strips strengthen)
Port
Shanghai Port
Lead Time :
Shipped in 25 days after payment





Product Description


xk7130 cnc milling machine SP2213 cnc milling machine 3 axis  specially designed for machining samll size parts, smaller CNC machine with linear guie-way, but concentrated all of functions as normal vertical machine center. Tools can be changed automatically with high speed and high efficiency.

xk7130 cnc milling machine SP2213 cnc milling machine 3 axis  concentrates all common functions of normal vertical milling maachines, but also makes mass and accurate production come true. not to mention that we have all necessary certificate athoriztions, CE & SGS & Chinese national standards, and maintains in a full safe and considerable safety design to certianly prevents all potential hazards applications.


Features

  • MACH & GSK & SIEMENS & FANUC Programming Systems
  • High precision ball screw
  • Powerful Brushless Motor & variable speed available
  • 20 degree cutting guide plate, chip material can be expoted outside directly
  • 4 axis CNC control system, can be single-stage operation or continuous operation
  • High-speed pretreatment processing, stable processing
  • Power off memory function coordinates
  • Perfect alarm system to facilitate tracking problem
  • Have the function of processing arbitrarily designated line
Technical Data



ModelSP2213
Drilling Capacity10 mm
Effective Table Size400 x 145 mm
X Axis Table Travel260 mm
Y Axis Table Travel110 mm
Z Axis Head Travel180 mm
Motor Torque of X Axis1.35 N·m
Motor Torque of Y Axis1.35 N·m
Motor Torque of Z Axis2.20 N·m
Throat Depth150 mm
T-slot Width8 mm
T-slot Amount3
Positioning Accuracy0.01 mm
Spindle TaperMT2
Spindle Speed Range100 - 7,000 rpm
Motor Power500 w
Voltage and FrequencyCustomerized
Overall Dimension (LxWxH)570 x 650 x 660 mm
Net Weight120 kg
Packing Size (LxWxH)760 x 750 x 785 mm
Gross Weight150 kg



Accessories





Standard AccessoriesOptional Accessories
Mill ChuckRotary Worktable (4th Axis) Package
ViceClamping Kit
Coolant PumpQuick Vice / Angle Adjustable Vice
Oil TrayHandwheel
Wrench SetDrill Chuck
Operating Manual Instruction and Parts ListBoring Cutter with Arbor
 Metric 2 Flute HSS End Mill Set (6 or 7 pcs)
 Engraving Tool Set
 Vice (Quick Vice / Adjustable Vice Available)
 Base Stand
 Computer Stand and Frame
 PCMCIA Parallel Card




Packaging & Shipping



Package

1 set/polywood case  (aluminum strips strengthen)

Minimum Order Quantity (MOQ)1 sets
Full Container Loading Quantity (FCL)42 sets/20’GP  (unitary; customerized packing available)
Delivery Time25 calendar days after receiving of advance / full payment

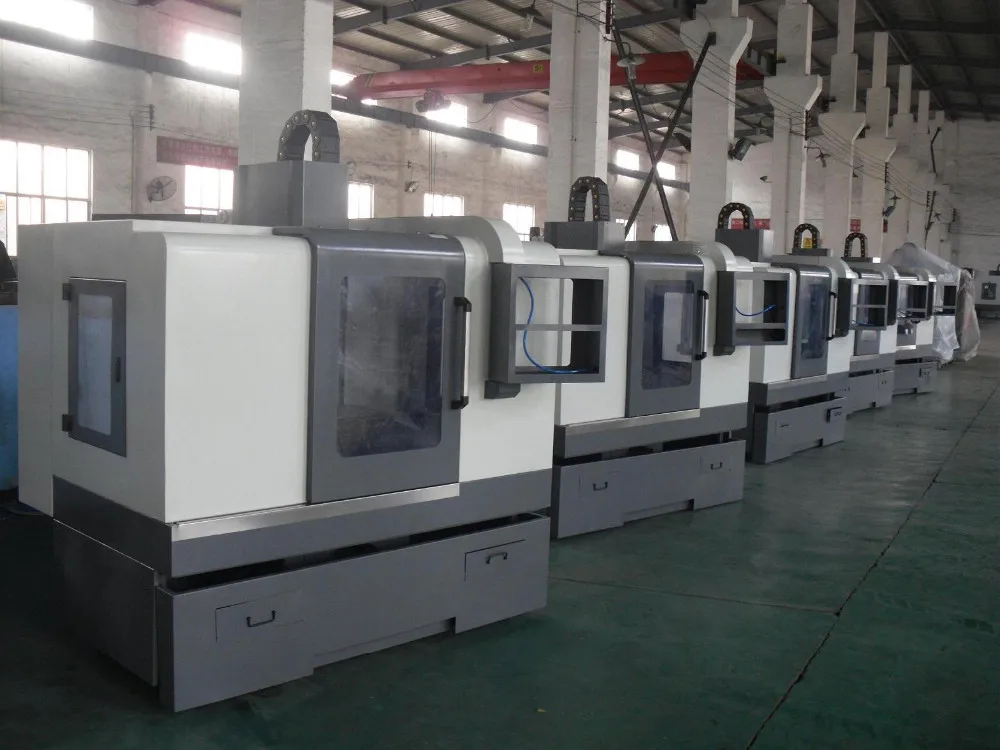

Illustrative Image Only

Certificates





Company Information



Shanghai Sumore Industrial Co., Ltd. (Sumore Machinery) was established back into year

2001. The core business of Sumore Machinery was focused on full machinery business chain,

which involves research and development, fabrication and production, foreign trading and

domestic sales on a wild range of products, such as power tools, woodworking equipments,

metal-processing machines and all related accessories.



Contact Us



--Please do not hesitate to contact us for more details or data sheets, all other questions would

be fully welcomed too.

-- Latest MACHINERY CATALOGUES are available now! Download them on our official website or

directly contact us.

-- Sumore Machinery always insist on the concept of providing our customers the most

enjoyable metal working experiences. Every need or request would be answered at our

best considering customer’s greatest interests.

-- Sumore Machinery values each relationship among our worldwide customers and hopes

every unique requirement of our customers could be satisfied.
