xxtx coal/mining/gravel hopper bucket elevator hoisting equipment

  • 1 - 4 Sets
    $3,600.00
  • 5 - 9 Sets
    $3,500.00
  • >=10 Sets
    $3,400.00
Model Number:
TB
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical Conveyor
Material:
carbon steel, or as request
Material Feature:
durable
Structure:
Conveyor System
Load Capacity:
20-565 m3/h
Place of Origin:
Henan, China
Brand Name:
PK
Voltage:
380,400,600 V or others
Power(W):
Customized
Dimension(L*W*H):
Customized
Certification:
ISO9001:2008, CE,SGS,BV,TUV
Model:
TB250,TB315,TB400,TB500,TB630,TB800,TB1000
Max. Particle Size:
60-150
Bucket type:
J or T
Bucket volume:
4.7-232L
Bucket speed:
0.5m/s
Plate chain pitch:
125-315mm
Max. lifting height:
50-30m
Bucket material:
carbon steel, stainless steel
Color:
blue, black, white, cyan or customized
Motor brand:
ABB, SEW or customized
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.container
2.nude pack or bulk pack
3.standard packing for elevator bucket
4.as request
Port
Qingdao,Tianjin, Shanghai port or other
Product Description

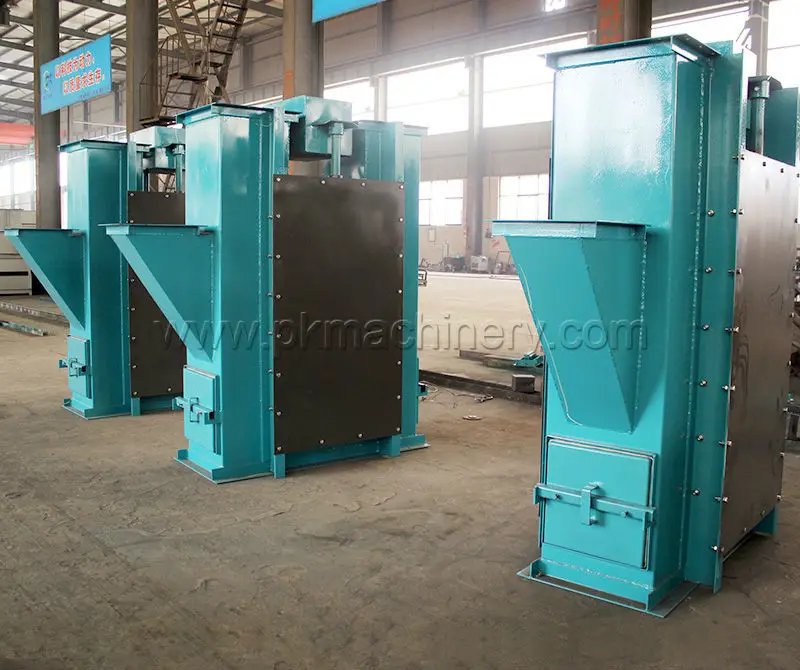

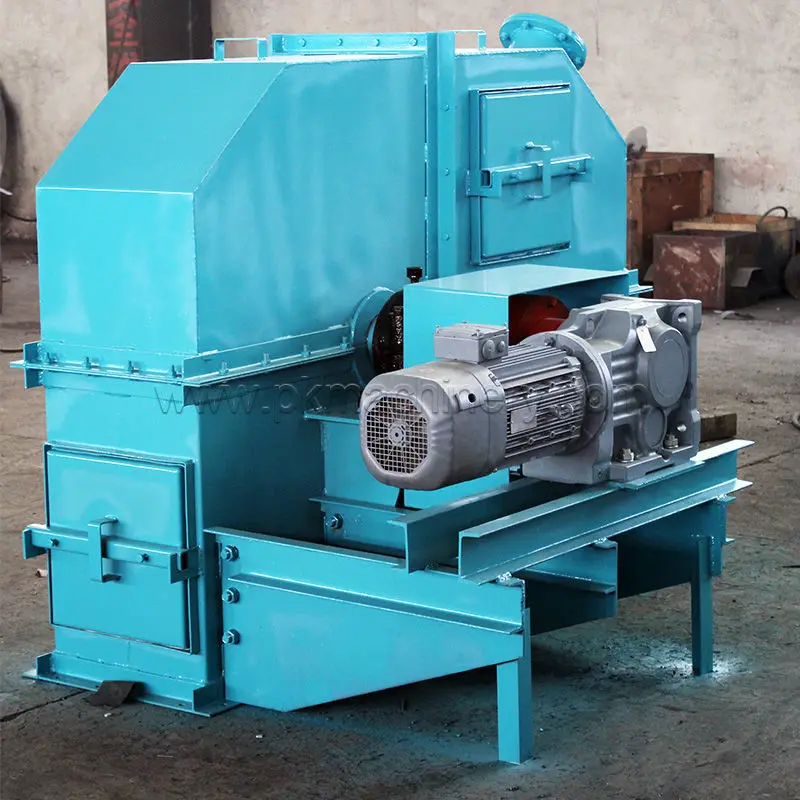

TB bucket elevator

TB bucket elevator has an opening bin below for storing material, when the motor driving the endless chain (chain or belt) through the chute, the hopper fixed in the chain of plate (chain or belt) bring the material to the discharging opening, in this way it continuously convey the material.
It adopts plate sleeve roller chain as the traction components , gravity type discharge material. Apply to middle, big block etc grinding material, which density is less than 2t/m3. Material temperature is less than 250℃ , capacity can reach 395m3/h , lifting height is approx. 5~50m . Vertical bucket elevator are highly resistant to wear and can be placed indoor as well as outdoor.
1.Bucket elevator machine applys to powder, granular, lump material, the density is less than 1.5t/m3
2.Material temperature is less than 60 ℃, if adopt heat-resistance rubber belt, the material temperature is less than 200 ℃
3.Driven device configuration could save much space, light weight, with backstop, low noise, running steady.
4.4 kinds bucket type could meet different particle sizes material. 5.Customized lifting height.

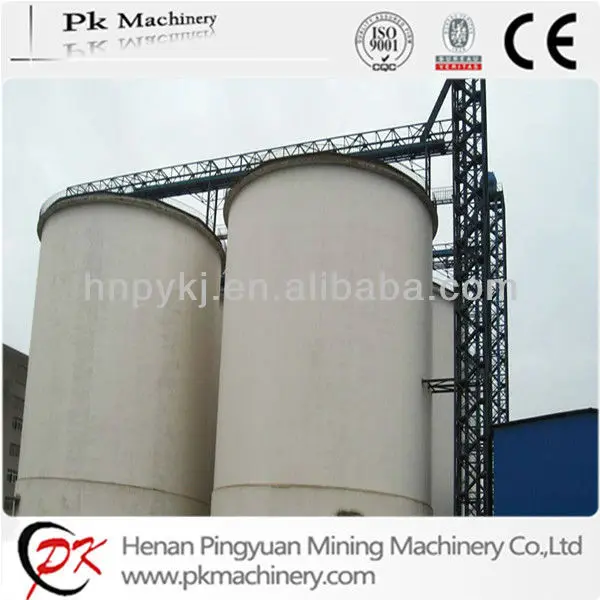

Application:

TB bucket elevator is constructed using buckets attached to a plate chain. It is widely used to transport limestone, clinker, cement, coal, dry clay, etc.
1,Application widely, not only lifting the common powder, granular and block material, but also lifting the high grinding material;
2,Low driving power, low energy consumption, energy conservation;
3,For lifting same material, energy consumption is 1/3~1/2 compared with the link chain bucket elevator;
4,The whole machine with full sealed design, no dust pollution while running;
5,The machine housing case adopt embossing structure, better stiffness, high precision, good-looking appearance;
Working Principle:

Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chain, on which above or below is a drive sprocket and a divert sprocket. Continuous Chain or Belt Bucket Elevator for Cement are generally equipped with chassis to prevent the dust flying into the bucket elevator.



Packaging & Shipping

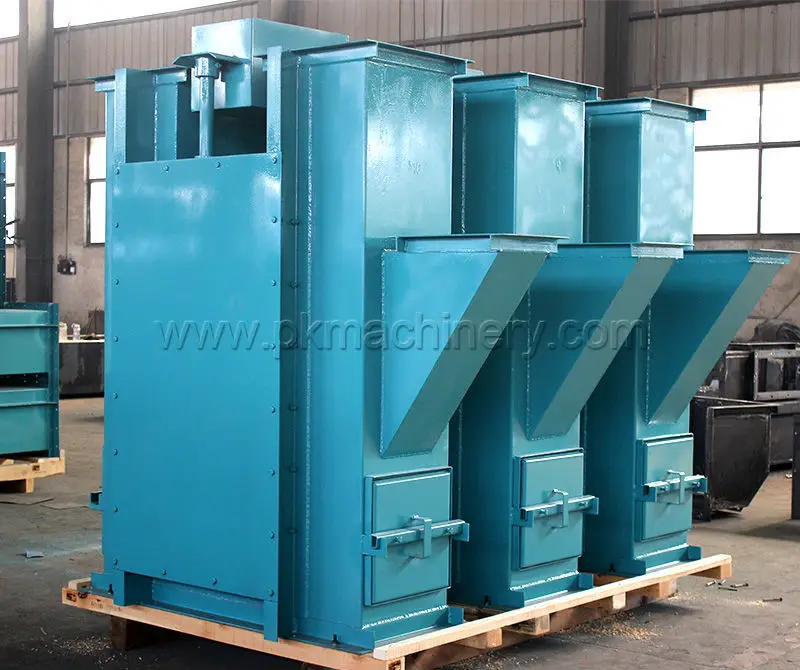

Product Show

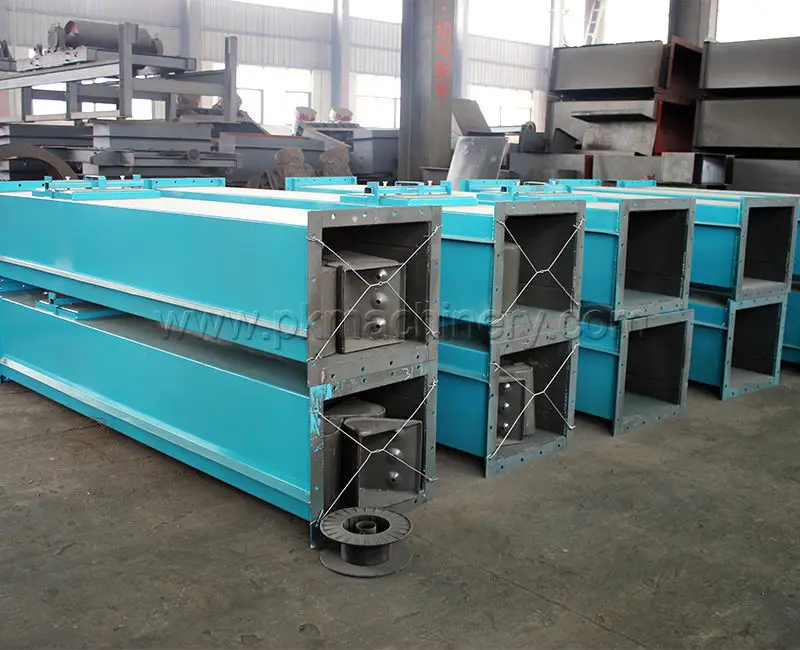

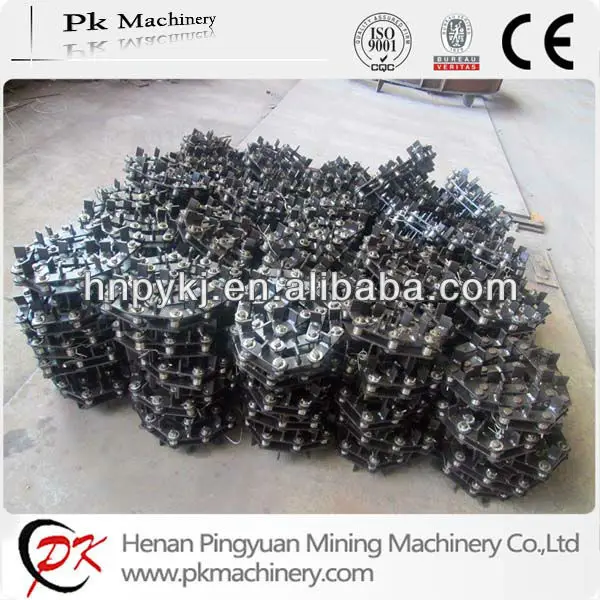

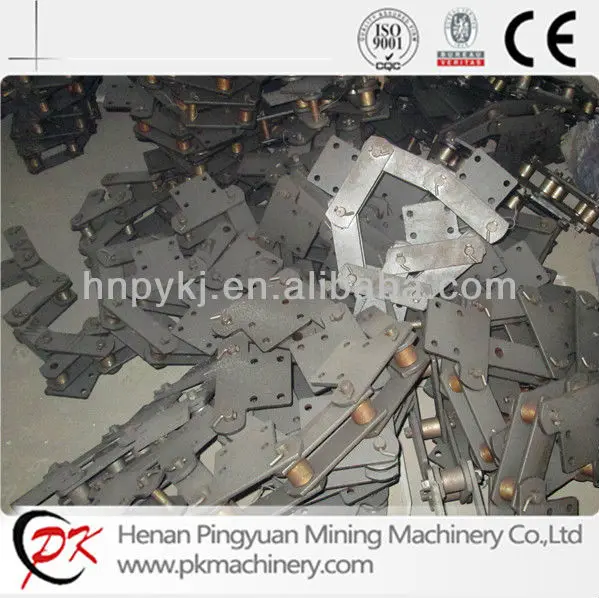

Detail Pictures
Technical Parameters
ModelTB250TB315TB400TB500TB630TB800TB1000
Capacity (m3/h)20~2951~7285~121135~191207~294281~398398~565
Max. Particle Size606080100125125150
Bucket TypeJTTTTTT
Bucket Volume (L)4.711.825.35096130232
Bucket Speed (m/s)0.50.50.50.50.50.50.5
Plate Chain Pitch (mm)125125160200250250315
Max. Lifting Height (m)50404040403030
Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation
1. What is the conveying material and its physical characteristics? such as bulk density, feeding size, temperature, mositure content etc.
2. What is the processing capacity of the elevator?
3. What is the lifting height of the elevator (distance between inlet and outlet)?



Latest Export News
Conveyors Designed for Pakistan Soda Ash Plant were Finished Production
Project name: Dense ash plant expansion project Equipment name ,model and quantity:11 units of MS320 scraper conveyor,3 units of TB250 Bucket elevator,4 units of LS315 screw conveyor.
After three months’ production, scraper conveyor, bucket elevator and screw conveyor designed for Pakistan soda ash plant finally have been finished.
