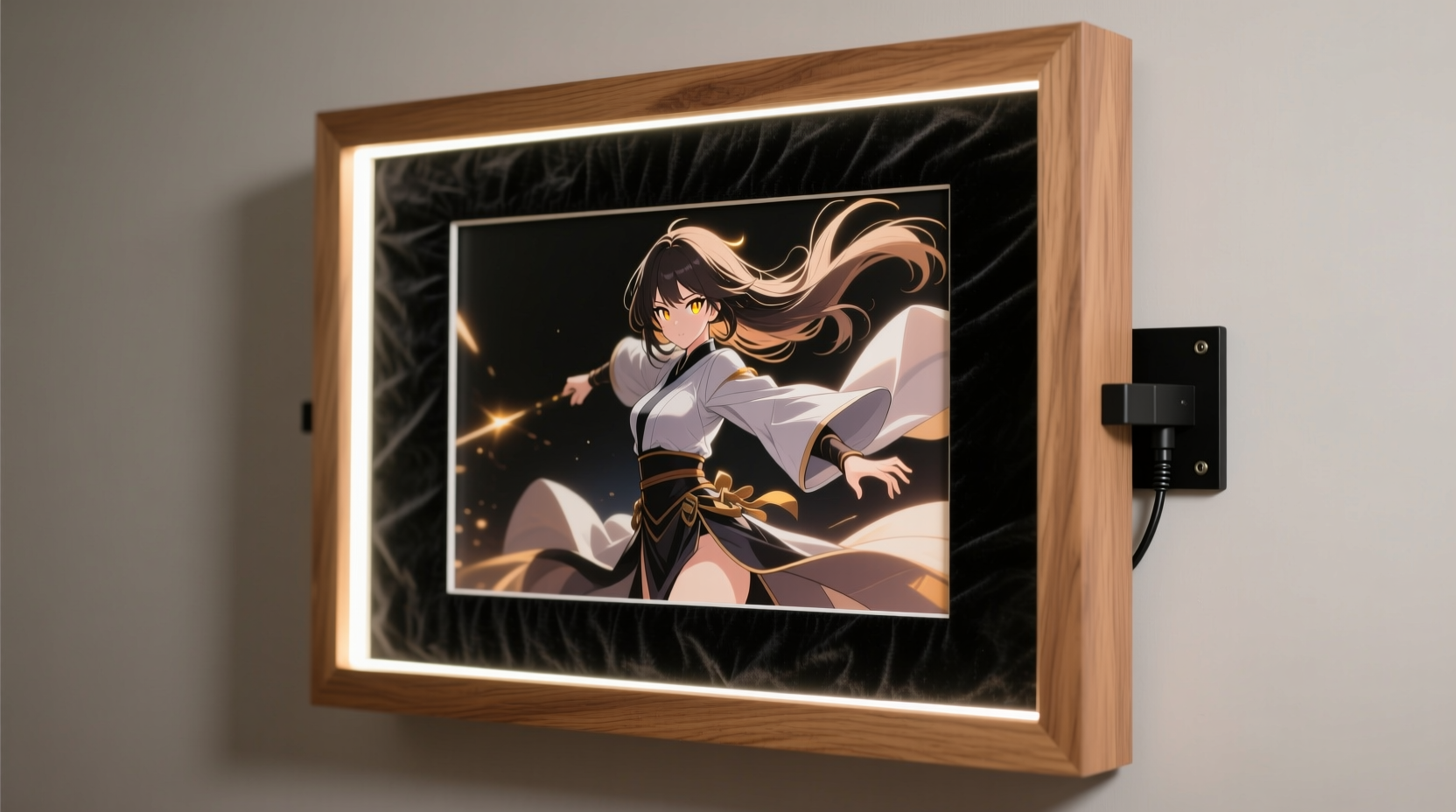

How To Make A Homemade Anime Poster Frame With LED Backlighting

Displaying your favorite anime art doesn’t have to be limited to standard frames. A custom-built, backlit frame adds depth, drama, and a professional gallery-like glow that elevates any print. With the right materials and careful assembly, you can create a stunning LED-backlit anime poster frame at home—no advanced engineering skills required. This guide walks through every step, from selecting components to final mounting, ensuring your artwork shines exactly how it should: bright, vibrant, and impossible to ignore.

Selecting the Right Materials

The foundation of a successful DIY backlit frame lies in choosing compatible, high-quality materials. Unlike traditional framing, this project requires layered construction: a front face, a light-diffusing layer, LEDs, and a sealed backing. Each component plays a role in both aesthetics and functionality.

Start with the frame itself. While pre-made shadow boxes work, building a custom wooden or MDF frame gives more control over depth and internal structure. Aim for a depth of at least 1.5 inches to accommodate LED strips and diffusion layers. The outer dimensions should match your poster size—common choices include A3 (11.7 x 16.5 inches) or 24x36 inches for larger displays.

For lighting, addressable or non-addressable LED strips are ideal. Non-addressable 12V warm white or color temperature-tunable strips are easier to install and provide even illumination. Look for high CRI (Color Rendering Index >90) LEDs to ensure accurate color representation—critical when showcasing detailed anime artwork.

Diffusion is just as important as the light source. Without proper diffusion, individual LEDs will appear as bright dots rather than a smooth glow. Use translucent acrylic (also known as opal or milky white acrylic) cut to fit inside the frame. Alternatively, frosted polycarbonate sheets or even multiple layers of tracing paper can work in a pinch.

Tip: Always test your LED strip on a small surface before full installation to check for hotspots or uneven brightness.

Step-by-Step Assembly Process

Building a backlit frame is a sequential process. Rushing any stage can lead to shadows, glare, or electrical issues. Follow these steps carefully for optimal results.

1. Measure and prepare the frame base. Cut your wood or MDF to the desired outer dimensions. If building from scratch, use wood glue and corner clamps to assemble a box with rabbeted edges to hold the front panel.
2. Install the backing panel. Attach a thin sheet of black-painted MDF or foam board to the rear. This absorbs stray light and increases contrast. Pre-drill holes for wire exit points near one corner.
3. Mount the LED strips. Plan the layout: position strips along the inner edges of the frame, facing inward and slightly downward to prevent direct visibility. Avoid placing LEDs directly behind the artwork—side lighting ensures even spread.
4. Wire the LEDs. Connect the strips in parallel if using multiple runs. Solder connections for durability and insulate with heat shrink tubing. Route all wires to the exit hole and connect to a low-voltage power supply (12V DC).
5. Add the diffuser layer. Cut the translucent acrylic to fit snugly between the LEDs and the poster. Secure it with small brackets or adhesive tape—never glue directly, as disassembly may be needed later.
6. Insert the poster. Place your anime print face-down on a clean surface, then lay a clear protective sheet (like anti-reflective acrylic or glass) over it. Flip the entire stack into the frame.
7. Seal the front. Use clips or a removable front bezel to hold everything in place. Ensure no dust enters during assembly.
8. Test and adjust. Power on the LEDs and observe the glow. Adjust strip placement or add secondary diffusion (e.g., tissue paper layer) if brightness varies.

Allow at least two dry-fitting sessions before final assembly. This helps identify gaps, wiring stress points, or alignment issues.

Essential Tools and Components Checklist

To complete this project efficiently, gather the following items beforehand:

• Wood or MDF (for frame construction)
• Measuring tape and precision saw (jigsaw or table saw)
• Screwdriver, drill, and wood screws
• 12V LED strip (preferably with adhesive backing)
• 12V DC power supply with barrel connector
• Translucent acrylic sheet (diffuser)
• Clear acrylic or glass (front protection)
• Black spray paint (for internal surfaces)
• Wire cutters, soldering iron, and heat shrink tubing
• Clamps and sandpaper
• Anime poster (printed on high-quality matte paper)

Tip: Use a dimmable LED controller to adjust brightness based on room lighting—especially useful in bedrooms or gaming setups.

Do’s and Don’ts: Avoiding Common Pitfalls

Even experienced DIYers can misjudge lighting balance or structural integrity. Refer to this comparison table to avoid frequent mistakes.

Do’s	Don’ts
Paint the interior black to reduce light bleed	Use white or reflective backing—it creates glare
Use high-CRI LEDs for true color accuracy	Choose cheap, low-CRI strips that distort colors
Secure wires with cable ties to prevent strain	Leave loose wiring that could disconnect over time
Double-layer diffusion if hotspots appear	Assume one layer is always enough
Allow ventilation space behind LEDs to prevent overheating	Enclose LEDs in an airtight space without airflow

One often-overlooked issue is voltage drop across long LED runs. If your frame exceeds 6 feet in total strip length, consider feeding power from both ends or using a higher-gauge wire to maintain consistent brightness.

Real Example: Building a Neon Genesis Evangelion Display

A fan in Osaka, Japan, built a backlit frame for a rare lithograph of the *Neon Genesis Evangelion* Unit-01. He used a 24x36 inch MDF frame painted matte black internally. Instead of edge-lit LEDs, he opted for a grid layout with spaced-out micro-LEDs behind a thick opal acrylic sheet. After initial testing, he noticed dark corners and added corner reflectors made from aluminum foil to redirect light. The final result? A museum-grade display that glowed evenly across the entire image, enhancing the mechanical details of the Eva unit without washing out the deep reds and shadows.

This case highlights the importance of iterative testing. Even with precise planning, real-world lighting behavior can differ from expectations. Small adjustments make a dramatic difference in visual quality.

“Backlighting isn’t just about brightness—it’s about creating atmosphere. The right glow makes static art feel alive.” — Lena Torres, Custom Lighting Designer & Exhibit Technician

Power Management and Safety Considerations

While 12V systems are low-risk, improper wiring can still pose fire hazards or damage components. Always fuse your power supply close to the source. For larger installations, use a 2A or 3A inline fuse depending on total LED wattage.

Calculate power needs: most LED strips draw 4.8W per foot at full white. A 10-foot strip consumes about 48W, requiring a 12V 4A power supply minimum. Oversizing by 20% ensures headroom and cooler operation.

Never daisy-chain more than 16 feet of non-amplified 12V LED strip. Beyond that, voltage drops cause dimming at the far end. Use a star topology—run separate lines from the power supply—or inject power mid-run.

Keep all connections insulated and away from conductive surfaces. Silicone-based sealants can protect solder joints in humid environments.

Frequently Asked Questions

Can I use battery power for a portable backlit frame?

Yes, but only for small frames. A 12V lithium-ion battery pack (like those used in cordless tools) can power a 2–3 foot LED strip for several hours. Include a switch and over-discharge protection for safety. Note: battery life decreases significantly with longer strips or brighter settings.

Will the LEDs damage my anime poster over time?

Properly installed LED strips produce minimal heat and emit no UV radiation, making them safe for long-term display. However, avoid direct contact between LEDs and paper. Maintain at least a 0.5-inch gap, and use diffusion layers to spread heat evenly. In tests, posters exposed to LED backlighting for 18 months showed no fading or warping when kept in climate-controlled rooms.

How do I clean the frame without damaging the lights?

Power off and unplug the frame. Wipe the exterior and front glass with a microfiber cloth dampened with water or screen cleaner. Never spray liquid directly onto the frame. For internal cleaning, open the back panel only when necessary and use compressed air to remove dust from LED strips and diffusers.

Final Touches and Mounting

Once assembled and tested, secure all panels permanently if satisfied with performance. Apply rubber bumpers to the back to protect walls and allow airflow. For hanging, use D-rings and aircraft cable rated for at least twice the frame’s weight. Wall-mount using anchors appropriate for your wall type—drywall, brick, or plaster require different fasteners.

Consider adding a smart plug or motion sensor for automated lighting. Some fans integrate voice-controlled dimming via Alexa or Google Home, turning their anime display into an interactive part of their room setup.

Conclusion

Creating a homemade anime poster frame with LED backlighting blends craftsmanship with personal expression. It transforms a simple print into a luminous centerpiece that captures attention and enhances your space. By selecting quality materials, following a structured build process, and refining the lighting for even glow, you achieve a professional result on a DIY budget. Whether you’re honoring a classic series or spotlighting new artwork, this project offers lasting satisfaction. Build one today, and let your favorite characters shine as they were meant to—bright, bold, and unforgettable.
