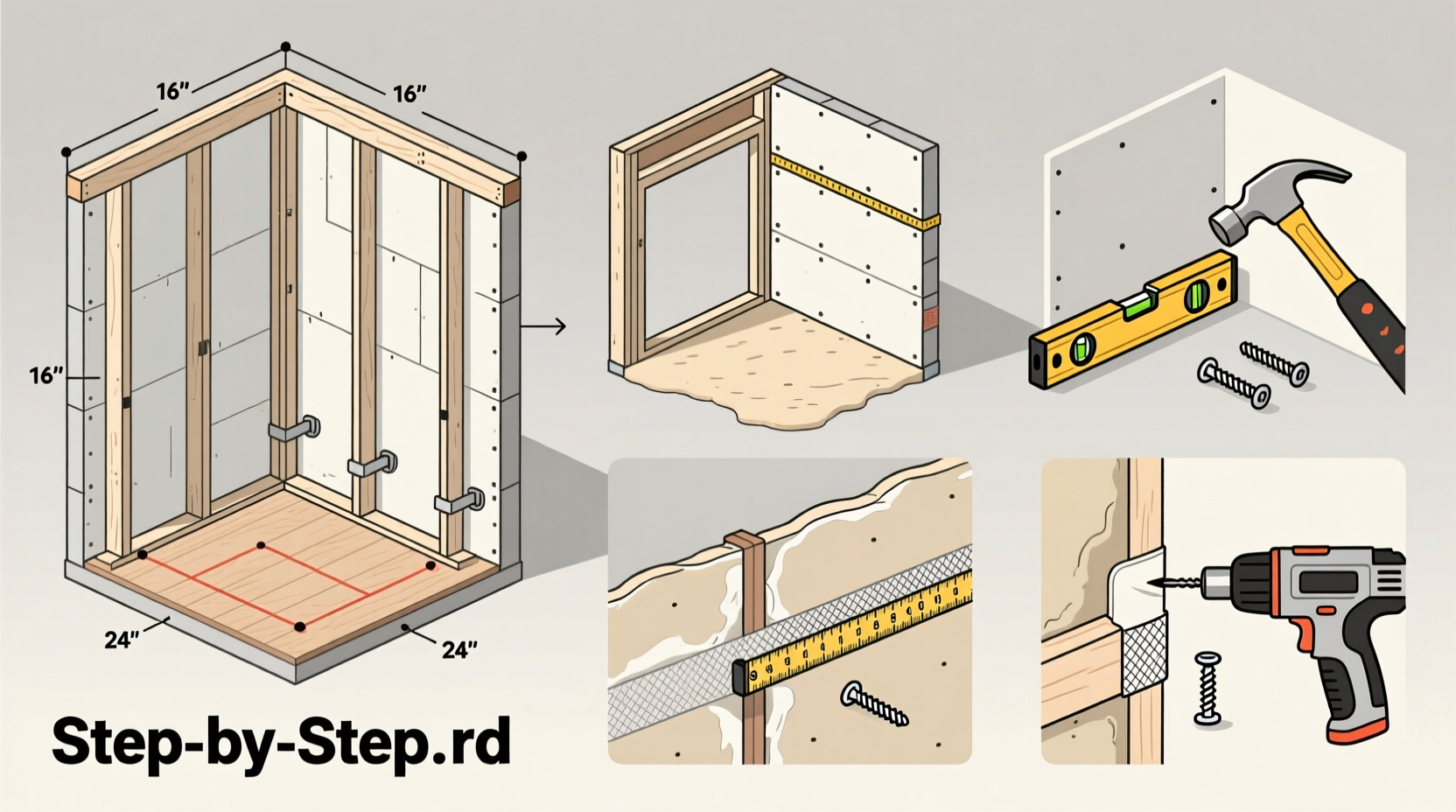

Mastering Wall Construction A Step By Step Guide To Building Framing And Finishing Walls

Building a wall is more than stacking materials—it’s about precision, structural integrity, and attention to detail. Whether you're framing an interior partition or constructing an exterior load-bearing wall, understanding the full process from layout to finish ensures durability, safety, and a polished result. This comprehensive guide walks through every phase of wall construction, offering practical insights for DIYers and aspiring contractors alike.

Planning and Layout: The Foundation of Success

Before any hammer swings, accurate planning sets the stage. Begin by reviewing blueprints or sketches to confirm dimensions, door and window placements, and whether the wall is load-bearing. For interior non-load-bearing partitions, 2x4 lumber on 16-inch centers is standard. Exterior walls typically use 2x6 studs for added insulation space and strength.

Mark the wall location on both floor and ceiling using a chalk line. Use a laser level or plumb bob to transfer points vertically when working across multiple floors. Always verify squareness by measuring diagonally—both corners should match. If they don’t, adjust the layout until they do.

Tip: Double-check all measurements before cutting materials. A single error in layout can compound throughout construction.

Framing the Wall: Building the Skeleton

The frame is the wall’s backbone. Constructing it properly ensures stability and provides attachment points for sheathing, drywall, and finishes.

1. Prepare the components: Cut top and bottom plates to length from pressure-treated wood (for bottom plate on concrete) or standard dimensional lumber. Mark stud locations every 16 inches on center along the plates.
2. Assemble the frame: Lay the plates flat and attach vertical studs between them using 16d nails or structural screws. Reinforce corners and intersections with additional studs for drywall backing.
3. Add headers and trimmers: For windows and doors, install king studs, jack studs, and a header beam sized according to span and load requirements. Prefabricated LVL (laminated veneer lumber) headers offer consistent strength.
4. Upright and secure: Tilt the frame into position, align it with layout lines, and fasten it to the floor and ceiling with nails or anchor bolts. Use temporary braces to keep it plumb until secured.

Component	Purpose	Material	Spacing/Notes
Top & Bottom Plates	Anchors for studs; connects wall to structure	2x4 or 2x6 SPF	Full length; doubled on top for load-bearing
Studs	Vertical support; backing for finishes	2x4 or 2x6	16\" or 24\" on center
Headers	Supports load above openings	LVL, solid lumber, or engineered	Size based on span tables
Cripple Studs	Fills space above/below openings	Same as main studs	Cut to fit; spaced regularly

“Framing isn’t just about holding up a wall—it’s about creating a system that integrates structure, insulation, and utilities seamlessly.” — Carlos Mendez, Residential Construction Supervisor

Insulation and Sheathing: Enhancing Performance

Exterior walls require sheathing and insulation to meet energy codes and resist lateral forces. Interior walls may skip sheathing but still benefit from soundproofing insulation.

• Sheathing: Apply plywood or OSB (oriented strand board) starting from the bottom, leaving a 1/8-inch gap between sheets to prevent buckling due to moisture expansion. Fasten with ring-shank nails or screws every 6 inches along edges and 12 inches in the field.
• Weather barrier: Install housewrap (e.g., Tyvek) over sheathing, overlapped shingle-style (bottom over top), and taped at seams to shed water while allowing vapor escape.
• Insulation: Fit fiberglass batts or spray foam between studs. Ensure full coverage without gaps or compression. For sound control in interior walls, consider resilient channels or specialized acoustic batts.

Tip: Avoid \"thermal bridging\" by ensuring insulation makes continuous contact with sheathing and doesn’t leave voids around electrical boxes or pipes.

Drywall Installation and Finishing: Achieving a Smooth Surface

Drywall transforms a rough frame into a finished surface ready for paint or texture. Proper installation prevents cracks and ensures a professional look.

1. Hanging: Start from the top, securing 4x8 sheets horizontally or vertically depending on stud spacing. Use drywall screws every 6–8 inches along studs, sinking them just below the surface without tearing the paper.
2. Taping and mudding: Apply joint tape over seams, then embed it with joint compound (\"mud\") using a 6-inch knife. Apply three coats: first for embedding, second for leveling, third for smoothing.
3. Sanding: Once dry, sand lightly with 120-grit paper to remove ridges. Wipe dust away before priming.
4. Corner beads: Use metal or plastic corner guards on outside edges for durability and crisp lines.

For curved walls or archways, specialty flexible drywall or thin veneer plaster systems are available, though they require advanced technique.

Common Drywall Mistakes to Avoid

• Over-sanding and thinning the paper layer
• Skipping primer before painting
• Using too much mud in one pass, leading to shrinkage cracks
• Ignoring screw dimples or nail pops

Real-World Example: Renovating a Basement Partition

Jamal, a homeowner in Portland, decided to convert his basement into a home office. He framed a new 12-foot interior wall using 2x4 studs on 16-inch centers. After running electrical conduit through bored holes in the studs, he installed R-13 insulation to reduce noise from the adjacent laundry room.

He chose 5/8-inch fire-rated drywall for improved sound isolation. By applying green glue damping compound between layers, he achieved STC (Sound Transmission Class) 55—effective enough to mask washing machine noise. Three taping passes and careful sanding resulted in a smooth surface that accepted paint evenly. The final wall was straight, quiet, and indistinguishable from professionally built ones.

Frequently Asked Questions

Can I frame a wall directly on carpet?

No. Carpet compresses and lacks structural support. Remove flooring to anchor the bottom plate securely to the subfloor or concrete slab using Tapcon screws or powder-actuated fasteners.

How do I hang heavy items on a newly finished wall?

Always locate studs using a stud finder. Mount heavy shelves, TVs, or cabinets directly into studs with appropriate lag screws. For drywall-only anchors, choose toggle bolts rated for the load.

What’s the difference between a load-bearing and non-load-bearing wall?

A load-bearing wall supports weight from above—such as floors, roofs, or other walls. Removing or altering one without proper reinforcement compromises structural integrity. Non-load-bearing (partition) walls only carry their own weight and can be relocated more freely.

Final Checklist: Key Steps in Wall Construction

1. Verify design and obtain permits if required
2. Mark layout accurately with chalk line and level
3. Cut and assemble frame with proper stud spacing
4. Install and secure frame plumb and aligned
5. Add sheathing and weather barrier (exterior)
6. Install insulation without gaps or compression
7. Run electrical or plumbing before closing in
8. Hang drywall with correct screw pattern
9. Tape, mud, and sand joints in progressive layers
10. Prime and finish with paint or texture

Mastery Begins with Practice

Wall construction combines engineering principles with craftsmanship. Each stage—from precise layout to seamless finishing—builds upon the last. While tools and materials matter, success ultimately comes from patience, accuracy, and adherence to best practices. Whether you’re expanding your home or refining your trade skills, mastering wall construction empowers you to create spaces that are not only functional but built to last.
