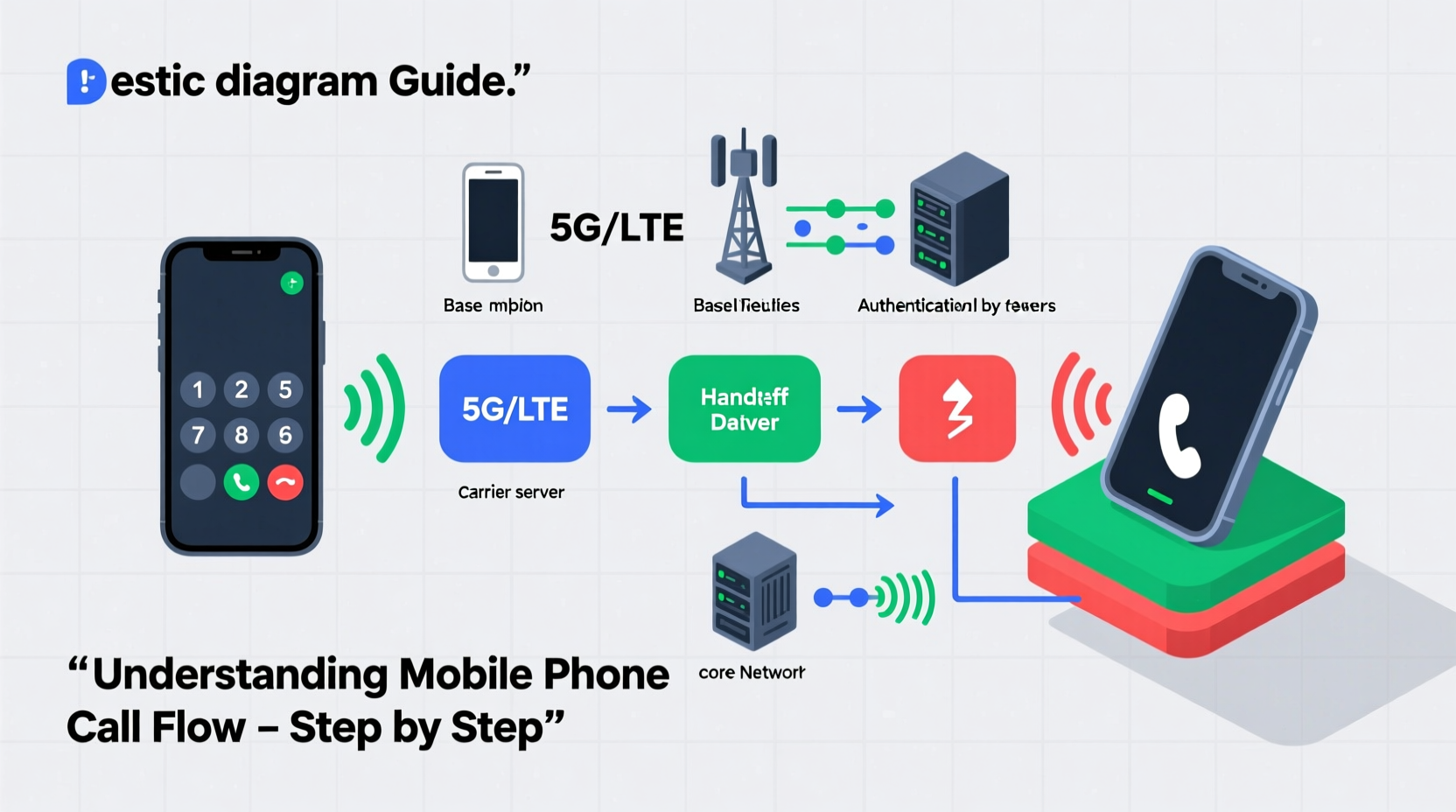

Understanding Mobile Phone Call Flow A Step By Step Diagram Guide

When you press call on your mobile phone, a complex chain of events unfolds behind the scenes—within milliseconds. While it feels instantaneous, every voice call traverses a carefully orchestrated network involving radio signals, base stations, core networks, and signaling protocols. Understanding this process demystifies the technology we use daily and empowers users, developers, and telecom professionals alike with deeper insight into mobile communication.

This guide breaks down the mobile phone call flow into logical stages, explaining each phase in plain terms while highlighting the infrastructure and protocols involved. No diagrams are needed—just a clear, text-based walkthrough that maps the journey of a call from initiation to termination.

1. Initiating the Call: From Keypad to Radio Signal

The process begins the moment you enter a number and tap “Call.” Your smartphone activates its radio frequency (RF) module to establish a connection with the nearest cellular tower, also known as a Base Transceiver Station (BTS). This initial handshake is critical and happens almost instantly.

First, your device checks signal strength and available frequency bands. It then sends a channel request via the control channel—a dedicated frequency used for signaling, not voice. The BTS acknowledges the request and assigns a traffic channel for the upcoming call.

Tip: Weak signal areas increase call setup time because the phone may need to scan multiple towers or retry requests.

Authentication follows immediately. The network verifies your SIM card using encryption keys stored in the Authentication Center (AuC). This prevents unauthorized access and ensures only legitimate devices can initiate calls.

“Modern mobile networks perform authentication in under 300 milliseconds, making security seamless to the user.” — Dr. Rajiv Mehta, Telecommunications Engineer at Nordic Networks

2. Routing the Call Through the Network Core

Once authenticated, the Mobile Switching Center (MSC) takes over. Think of the MSC as the central brain of circuit-switched voice calls. It determines whether the destination number is local, on another carrier, or international.

If the recipient is on the same network, routing is internal. If not, the MSC forwards the call request to a Gateway MSC, which interfaces with other carriers through standardized SS7 (Signaling System No. 7) protocols. These protocols handle call setup, teardown, and number translation without transmitting voice data.

During this phase, the system performs a Location Area Update if the caller has moved since last connecting. This ensures accurate routing and efficient resource allocation across cells.

Network Component	Function	Timing (Approx.)
BTS (Base Station)	Handles RF communication with mobile device	0–150 ms
BSC (Base Station Controller)	Manages multiple BTS units and allocates channels	50–200 ms
MSC (Mobile Switching Center)	Routes call and manages handoffs	100–300 ms
HLR/VLR (Home/Visitor Location Register)	Stores subscriber location and service profile	Varies based on roaming status

3. Reaching the Recipient: Paging and Alerting

Now that the originating side is ready, the network must locate and alert the recipient. Using information from the HLR (Home Location Register), the system identifies which MSC currently serves the recipient’s device.

The target MSC broadcasts a paging message across all cells within the current Location Area. Each nearby BTS transmits this signal, asking the recipient phone to respond. Once the correct device replies, the network assigns it a traffic channel and begins ringing.

Ringback tone—the sound you hear—is generated locally by your own phone or MSC, not streamed from the recipient’s end. This reduces latency and bandwidth usage. Meanwhile, the recipient’s phone plays an incoming call alert, typically managed by the ringtone settings on their device.

Tip: If a phone doesn’t respond to paging after several attempts, the network returns a “Subscriber Unreachable” error.

4. Establishing the Voice Path: Handshake Complete

When the recipient answers, both ends confirm readiness. A two-way voice path is established using Time Division Multiple Access (TDMA) in GSM or Code Division Multiple Access (CDMA) in older CDMA networks. In LTE and 5G NR, voice is carried over IP (VoLTE or VoNR), but the signaling logic remains similar.

Voice data is digitized at around 8,000 samples per second, compressed using codecs like AMR (Adaptive Multi-Rate), and segmented into packets. These travel bidirectionally through the BSC, MSC, and potentially inter-carrier gateways. Echo cancellation and noise suppression algorithms run in real-time to enhance clarity.

Throughout the conversation, the network continuously monitors signal quality. If the caller moves between cells, a handover (or handoff) occurs. The BSC coordinates this transition seamlessly—ideally without dropping the call. There are two types:

• Hard Handover: Break-before-make; common in GSM, where the connection briefly drops before re-establishing.
• Soft Handover: Make-before-break; used in CDMA and modern systems, allowing simultaneous connections to multiple towers during transition.

Mini Case Study: Urban Commuter Call

Alice starts a call from her apartment in downtown Chicago using T-Mobile’s LTE network. As she walks to the subway, her phone connects to three different cell towers within five minutes. Thanks to soft handovers enabled by VoLTE and robust backhaul links, the call remains stable despite changing signal conditions. However, once underground, the signal fades. After 10 seconds of poor quality, the network detects packet loss exceeding thresholds and gracefully terminates the call, sending a release message to both devices.

This scenario illustrates how dynamic environments challenge call continuity—and why modern networks prioritize fast handovers and adaptive bitrate codecs.

5. Ending the Call: Signaling Teardown

When either party presses “End Call,” a disconnect signal is sent via the control channel. The originating device notifies the BTS, which forwards the command to the MSC. The MSC then sends a release message to the other party’s network, instructing it to free up the allocated voice channel and terminate billing records.

Both devices receive confirmation, and the physical connection is dismantled. Resources such as time slots, memory buffers, and radio frequencies are released back into the pool for reuse. The entire teardown process usually completes within 200–500 milliseconds.

Call detail records (CDRs) are generated at this stage for billing, diagnostics, and regulatory compliance. These logs include timestamps, source/destination numbers, duration, and cell IDs involved.

“Even a 30-second call generates over 20 separate signaling messages across the network.” — Lena Park, Senior Network Analyst at TelcoInsight Inc.

Checklist: Key Stages in Mobile Call Flow

To reinforce understanding, here’s a concise checklist summarizing the full lifecycle of a mobile call:

1. Caller dials number → Phone sends channel request to nearest BTS
2. BTS assigns control channel → Authentication via SIM and AuC
<3>MSC validates subscriber and checks recipient availability
3. HLR lookup → Paging initiated in recipient’s location area
4. Recipient device responds → Traffic channel assigned, ringback begins
5. Answer detected → Bidirectional voice path established
6. Call in progress → Ongoing monitoring, handovers if needed
7. One party disconnects → Release signal sent, resources freed
8. CDR logged → Session officially closed

Frequently Asked Questions

Why does my call sometimes drop when entering a building?

Buildings made of concrete or metal attenuate radio signals significantly. If the indoor signal falls below the receiver sensitivity threshold and no nearby small cell or repeater exists, the connection fails. Modern phones attempt rapid reselection, but delays can cause drops.

What’s the difference between VoIP calls and traditional mobile calls?

Traditional calls use circuit-switched networks managed by carriers, reserving a dedicated path. VoIP (Voice over IP) uses packet-switched internet connections, breaking voice into data packets routed dynamically. Apps like WhatsApp or FaceTime Audio use VoIP, while standard “phone app” calls may still rely on legacy systems unless VoLTE is active.

Can two people make calls at the same time on one tower?

Absolutely. Cellular towers support hundreds of simultaneous calls using frequency division, time slots, and spatial separation (via directional antennas). Capacity depends on generation (2G vs 5G), bandwidth, and modulation techniques.

Final Thoughts: Empowerment Through Knowledge

Understanding the mobile call flow isn’t just technical trivia—it reveals the sophistication embedded in everyday tools. From split-second authentications to intelligent handovers, millions of operations ensure your voice reaches its destination clearly and securely.

Whether you're troubleshooting dropped calls, designing apps that interface with telephony APIs, or simply curious about how your phone works, this knowledge builds confidence and informed decision-making. The next time you make a call, remember: you’re engaging with one of humanity’s most widespread and reliable engineering achievements.
