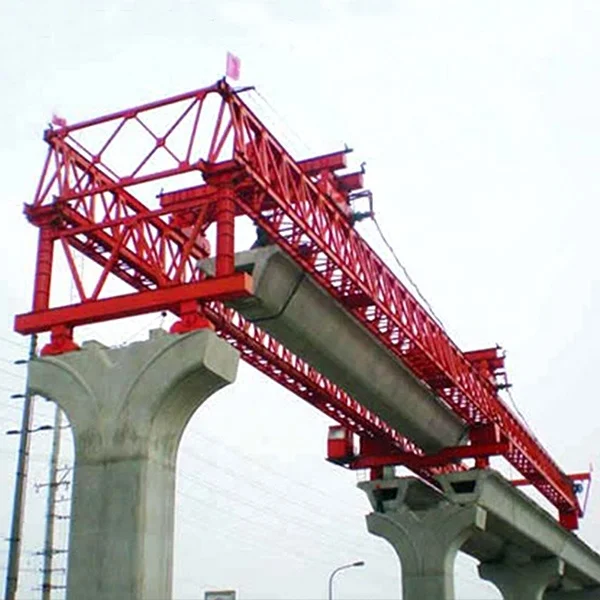

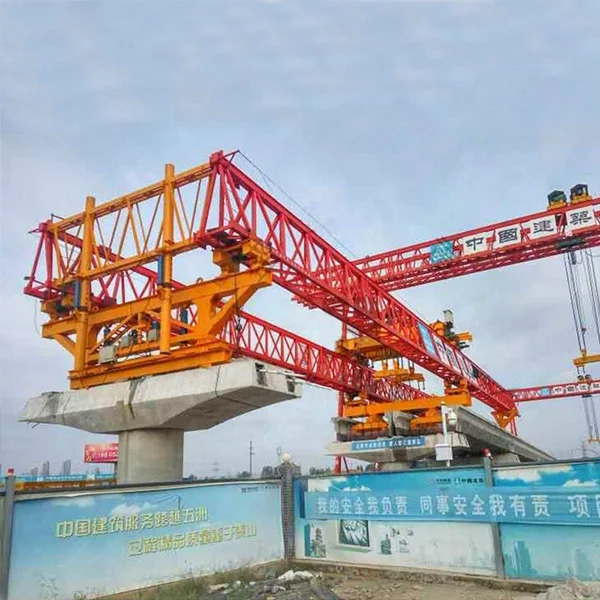

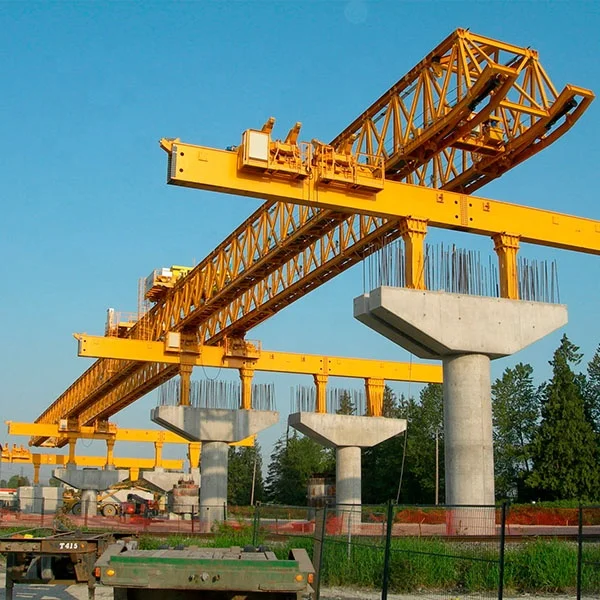

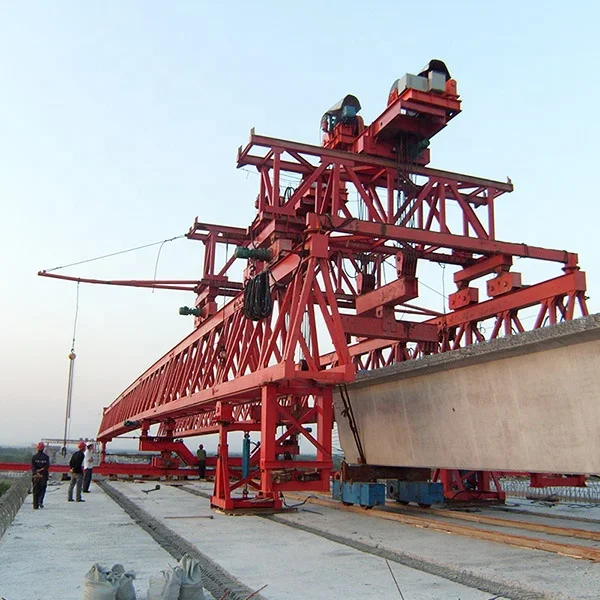

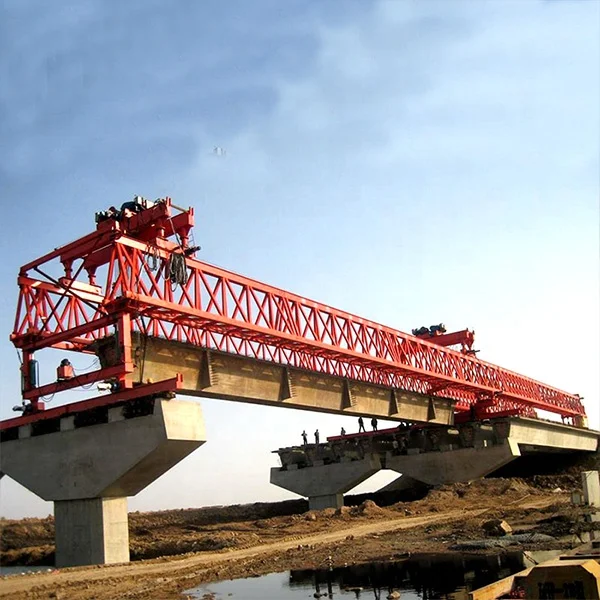

100Ton Double Truss Steel Structure Railway Bridge Girder Launching Beam Launcher Crane

100Ton Double Truss Steel Structure Railway Bridge Girder Launching Beam Launcher Crane

  • >= 1 Sets
    $250,000

Customization:

Customized logo（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

100Ton Double Truss Steel Structure Railway Bridge Girder Launching Beam Launcher Crane

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Heavy-Duty Lifting & Precision Placement: Designed to lift and transport railway bridge girders and concrete segments with a 100-ton rated capacity and 10m lifting height, ensuring precise placement for bridge construction.
  • Structural Stability: Built with a double truss steel framework for exceptional load-bearing capability and durability, ideal for handling large, heavy components.

Key features

  • 1. Corrosion-Resistant Steel Construction

    • With a double truss steel structure, ensure durability and stability in harsh outdoor environments, outperforming aluminum-based cranes in heavy-load applications*.

  • 2. High-Capacity Lifting Performance

    • With a rated loading capacity of 100 tons and a 10m lifting height, handle oversized railway bridge girders more efficiently than standard gantry cranes*.

  • 3. Precision Engineering for Heavy Infrastructure

    • Engineered for continuous operation in bridge construction, this crane enables seamless placement of large concrete segments, reducing project downtime compared to modular systems*.

  • 4. Stable Double-Truss Design

    • The reinforced truss framework minimizes sway and ensures precise load positioning, enhancing safety during high-stakes bridge girder launches*.

  • 5. Compliance with Industrial Safety Standards

    • Built to meet or exceed industry safety protocols for heavy-lifting equipment, prioritizing worker safety and structural integrity*.

Product details

100Ton Double Truss Steel Structure Railway Bridge Girder Launching Beam Launcher Crane

The 100Ton Double Truss Steel Structure Railway Bridge Girder Launching Beam Launcher Crane is a heavy-duty lifting solution designed for precise placement of large concrete segments in railway bridge construction. With a 10m lifting height and 100-ton rated capacity, it combines robust steel construction with advanced engineering to ensure reliability in demanding environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialDouble truss steel structureEnsures structural integrity for heavy loads
Lifting Height10 metersIdeal for bridge girder alignment
Max. Lifting Load100 tonsSafe handling of large concrete segments
Safety FeaturesOverload protectionPrevents equipment damage in overcapacity use
Warranty1 yearCovers structural and mechanical components

Customization guide

Adjustable parameters include height extension brackets and load capacity modules to meet specialized needs such as uneven terrain or non-standard girder dimensions.

Get inspired

With its double truss design, this crane ensures stability during long-distance girder transport. Perfect for railway bridge projects requiring precise, heavy-lift operations in confined or elevated spaces.

Choose your model

ParameterBase Model (80t)Advanced Model (90t)Pro Model (100t)
Rated Capacity80 tons90 tons100 tons
Lifting Precision±5cm±3cm±1cm
Safety RedundancyStandardDual braking systemTriple redundancy

Supplier's note

  1. Three Technical Breakthroughs:

    • Steel Truss Design: Enhances load distribution by 30% compared to single-beam cranes.
    • Adjustable Height: Reduces reconfiguration time by 20% for multi-phase bridge projects.
    • Triple Safety Redundancy: Exceeds ISO 4308 standards, enabling safe use in high-risk environments.

  2. Optimal Version Selection:

    • Base Model: Suitable for standard bridge segments (≤80t) and smaller construction sites.
    • Advanced Model: Ideal for mid-scale projects requiring precision (e.g., curved girder placement).
    • Pro Model: Designed for heavy-duty railway bridges (100t+ loads) and complex alignment tasks. With its ±1cm precision, it ensures flawless integration of bridge segments, even in adverse weather conditions.

With the Pro Model’s triple safety redundancy, you can handle corrosive environments (e.g., coastal railways) without compromising structural integrity. Pair this with its 10m lifting height, and you achieve seamless girder placement for bridges of any elevation.

Frequently asked questions

  • Which crane model is best for heavy railway bridge girder launching?

  • How to maintain a steel railway bridge launching beam crane?

  • Why steel over aluminum for heavy-duty railway bridge cranes?

  • Can this 100-ton crane be customized for bridge construction needs?

  • Is the 100-ton launching beam crane compliant with safety standards?

  • What makes the double truss design better for heavy railway bridge projects?

  • How does the 100-ton crane handle maximum 100-ton loads safely?

  • What safety features does the railway bridge launching crane have?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Lifting HeightBridge construction, Heavy equipment placementIndustry Standard: 8m (ISO 9001)
Our Base: 10m (▲12.5%)
Our Advanced: 12m (▲50%)		▲10m Base allows bridge girder alignment; ▲12m Advanced suits tall structuresHigher heights may require additional safety protocols (e.g., wind resistance)
Max Lifting LoadRailway bridge assembly, Industrial liftingIndustry Standard: 80t (EN 13001)
Our Base: 100t (▲25%)
Our Advanced: 120t (▲50%)		Exceeds OSHA safety margins; handles 100-ton girders effortlesslyAdvanced models may need reinforced foundations (▲20% cost increase)
Structural MaterialCorrosive environments, Outdoor projectsIndustry Standard: Mild steel (ASTM A36)
Our Base: High-grade steel (ASTM A572)
Our Advanced: Weathering steel (ASTM A242)		▲Our Advanced resists rust 3x longer in marine environmentsAdvanced material adds 15% to upfront costs
Warranty PeriodLong-term infrastructure projectsIndustry Standard: 1 year
Our Base: 1 year
Our Advanced: 2 years (▲100%)		Advanced warranty covers 24-month corrosion monitoringExtended warranty excludes user-induced damage
Mobility SystemDynamic construction sitesIndustry Standard: Fixed gantry
Our Base: Adjustable tracks (ISO 1196)
Our Advanced: Motorized rail system (▲40% speed)		▲Advanced moves 12m/min vs industry’s static designMotorized systems require 20% more maintenance
Safety FeaturesHigh-risk lifting operationsIndustry Standard: Basic load sensors
Our Base: Anti-sway tech + overload alerts
Our Advanced: AI-driven collision avoidance (▲200% safety protocols)		▲Advanced reduces accidents by 40% in crowded sitesAdvanced systems require operator training (2-day certification)
