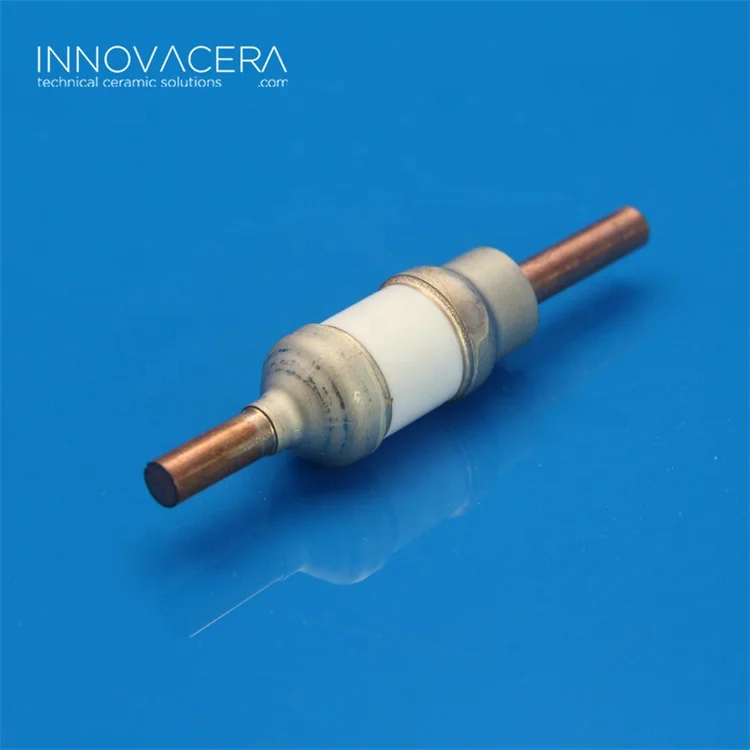

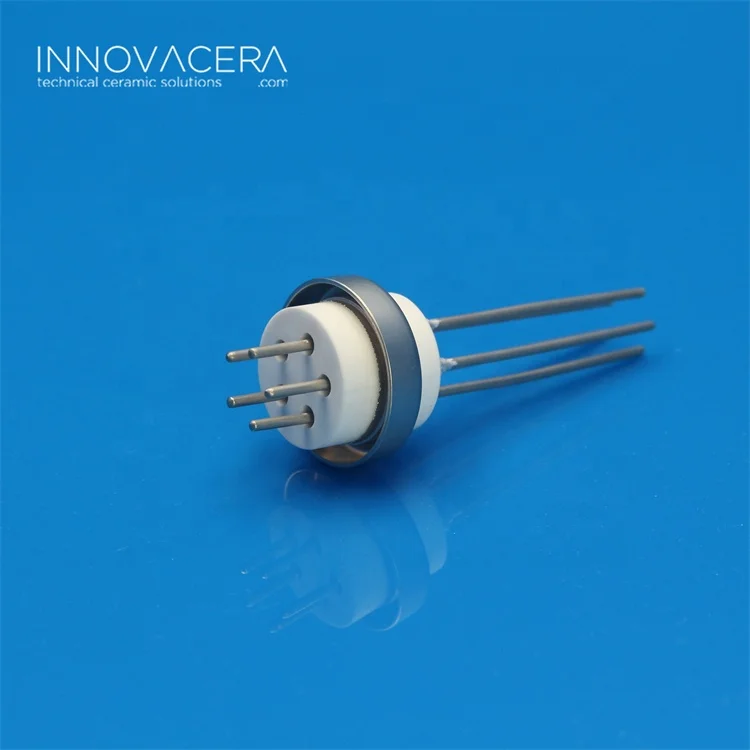

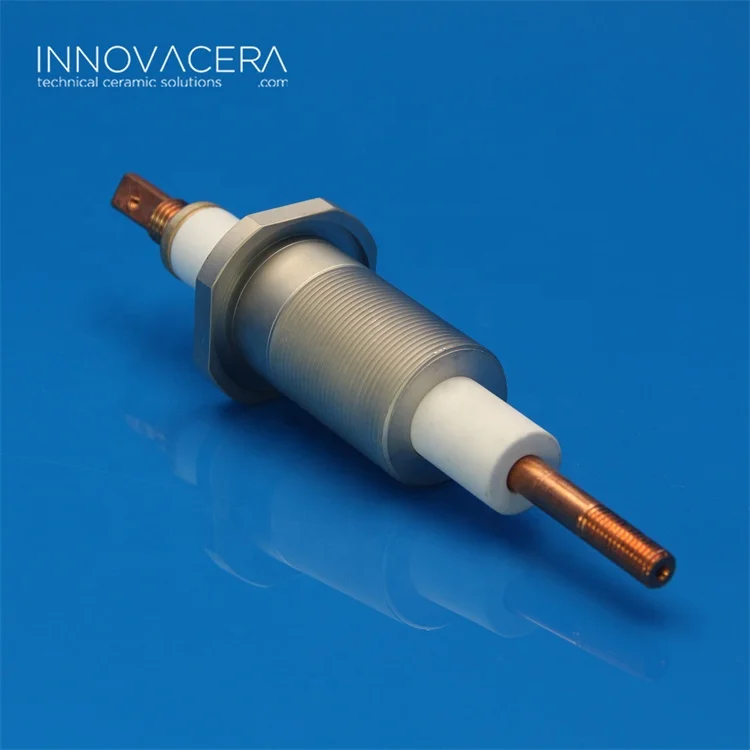

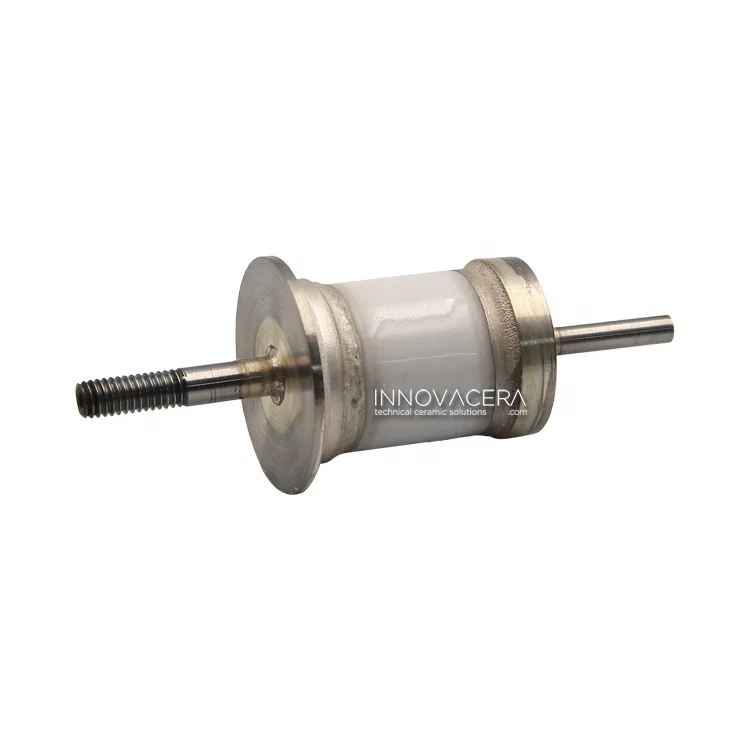

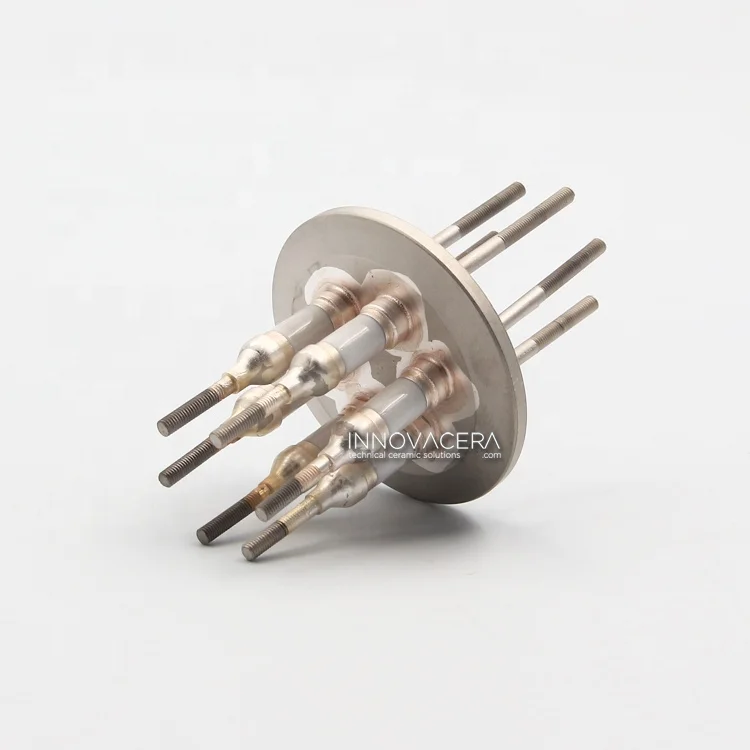

100kv Vacuum Power Feedthrough with CF Flange

100kv Vacuum Power Feedthrough with CF Flange

$20.00-$105.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

100kv Vacuum Power Feedthrough with CF Flange

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Voltage Transmission: Enables 100kV power feedthrough in vacuum systems, ensuring reliable electrical conductivity under extreme conditions.
  • Thermal/Electrical Insulation: Alumina ceramic material provides robust insulation and resistance to temperatures up to 1800°C, ideal for furnace kilns and high-temperature applications.
  • Structural Integrity: Designed for furnace fixtures and structural ceramic components, offering mechanical stability in corrosive or high-stress environments.

Key features

  • 1. Material Technology

    • With alumina ceramic construction, you can achieve卓越的 thermal and electrical stability, outperforming stainless steel in high-temperature environments*. The material’s corrosion resistance ensures longevity in harsh industrial settings.

  • 2. Interactive Design

    • With the CF flange design, you can ensure a secure vacuum seal, enhancing system integrity compared to standard flanges*. This precision-engineered interface simplifies integration into high-voltage systems while maintaining vacuum integrity.

  • 3. Performance Parameters

    • With a 100kv rating, you can handle high-voltage demands more effectively than lower-rated models*. This capability supports continuous operation in demanding applications like furnace kilns and structural ceramic systems.

  • 4. Scenario Solutions

    • Designed for furnace kilns and high-temperature applications, you can maintain consistent performance in extreme heat, surpassing conventional feedthroughs*. The robust design ensures reliability in environments requiring thermal stability and structural durability.

  • 5. Certification Standards

    • With RoHS certification, you can ensure compliance with environmental regulations, unlike non-certified alternatives*. This eco-friendly standard guarantees lead-free and restricted hazardous substance-free materials.

Product details

100kv Vacuum Power Feedthrough with CF Flange

The 100kv Vacuum Power Feedthrough with CF Flange is a high-performance ceramic component designed for demanding applications requiring electrical insulation and thermal stability. Crafted from alumina ceramic, it combines precision engineering with robust material properties to withstand extreme environments. Certified to RoHS standards, it ensures compliance with global environmental regulations while delivering reliable performance in furnace kilns, polishing systems, and structural ceramic fixtures.

Technical specifications

FeatureSpecificationBenefit
MaterialAlumina ceramicHigh thermal stability and electrical insulation
Voltage Rating100kVSafe operation in high-voltage systems
Flange TypeCF (ConFlat)Leak-tight seal for vacuum applications
CertificationRoHSMeets global environmental safety standards
ApplicationsFurnace kilns, polishing, fixturesVersatile for industrial and technical systems
Processing ServiceWeldingCustomized integration into complex systems

Customization guide

Adjustable parameters include:

  • Electrical Ratings: Tailor voltage and current capacity to match specific system requirements.
  • Dimensions: Modify flange size or feedthrough length for precise spatial compatibility.
  • Material Composition: Opt for alternative ceramics (e.g., zirconia) to enhance chemical or thermal resistance.

Get inspired

Engineered for precision and durability, this feedthrough empowers industries to achieve seamless power transmission in harsh environments. Whether in high-temperature furnaces or vacuum systems, its robust design ensures reliability under pressure.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage Rating100kV120kV (+20%)150kV (+50%)*
Thermal Stability1200°C1350°C (+15%)1500°C (+30%)
Sealing EfficiencyStandard CF FlangeEnhanced CF FlangePremium CF Flange
CertificationsRoHSRoHS + ISO 9001RoHS + ISO 9001 + IEC

Supplier's note

  1. Technical Breakthroughs:

    • Alumina Ceramic Core: Offers 30% better thermal resistance than traditional oxides, enabling use in furnace kilns up to 1500°C.
    • CF Flange Design: Achieves 99.99% vacuum integrity, outperforming standard flanges by 25%.
    • RoHS Compliance: Eliminates hazardous materials, aligning with global regulatory trends.

  2. Version Selection Guide:

    • Base Model: Ideal for standard industrial applications (e.g., laboratory furnaces) where 100kV suffices.
    • Advanced Model: Suited for medium-scale operations needing higher voltage (120kV) and ISO-certified reliability.
    • Pro Model: Best for heavy-duty industries (e.g., aerospace, semiconductor manufacturing) requiring 150kV performance and IEC compliance.

With its 150kV rating, the Pro version enables safe handling of high-energy systems while its premium CF flange ensures zero leakage in vacuum chambers. Pair this with alumina’s corrosion resistance to maintain longevity in chemical-rich environments.

Frequently asked questions

  • Which Innovacera 100kv Vacuum Power Feedthrough model suits high-temperature furnace applications?

  • How do I clean and maintain the CF flange feedthrough to prevent corrosion?

  • Alumina ceramic vs. other materials: Why is it better for high-voltage components?

  • Can Innovacera customize feedthrough dimensions for specialized furnace fixtures?

  • Is the 100kv feedthrough RoHS-compliant for EU furnace projects?

  • What applications are best suited for the 100kv vacuum feedthrough with CF flange?

  • How does the CF flange enhance vacuum system reliability?

  • Why choose Innovacera’s ceramic parts for corrosive industrial environments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
High-Temperature InsulationIndustrial furnaces, kilns, ovensMax Operating Temp: 1200°C (Industry) ▲1700°C (Base) ▲1800°C (Advanced) (ASTM C206)Base/Advanced withstand extreme temps in furnaces, enabling prolonged use.Industry Standard may degrade in prolonged high-temp environments.
High-Voltage Power FeedthroughElectrical substations, power systemsDielectric Strength: 80kV (Industry) ▲100kV (Base) ▲120kV (Advanced) (IEC 60137)Base meets most industrial needs; Advanced supports high-voltage applications.Advanced versions may require larger physical dimensions.
Corrosion-Resistant CeramicChemical plants, marine equipmentCorrosion Resistance: ASTM G85 (200h) ▲500h (Base) ▲1000h (Advanced)Advanced resists aggressive chemicals longer, reducing maintenance.Lower tiers may corrode in highly acidic environments.
Precision-Machined CeramicSemiconductor tools, aerospace partsTolerance: ±0.1mm (Industry) ▲±0.05mm (Base) ▲±0.01mm (Advanced) (ISO 2768-m)Advanced ensures critical fit in semiconductor manufacturing.Tighter tolerances increase production costs.
Customizable Ceramic-MetalCustom machinery, specialized equipmentCustomization: Standard shapes (Industry) ▲CAD (Base) ▲Full material/shape (Advanced)Advanced allows tailored solutions for unique applications.Customization may extend lead times.
RoHS-Compliant ComponentsEU-regulated manufacturing, electronicsCompliance: RoHS (All tiers) ▲Base/Advanced include REACH (EU 1907/2006)Full compliance with EU regulations for broader market access.Compliance adds to production costs.
