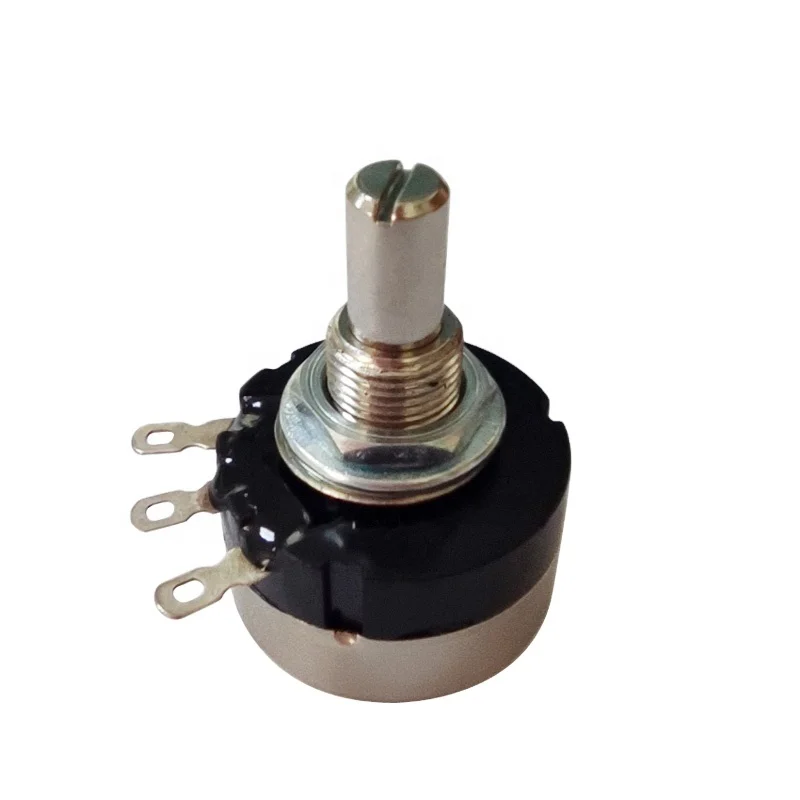

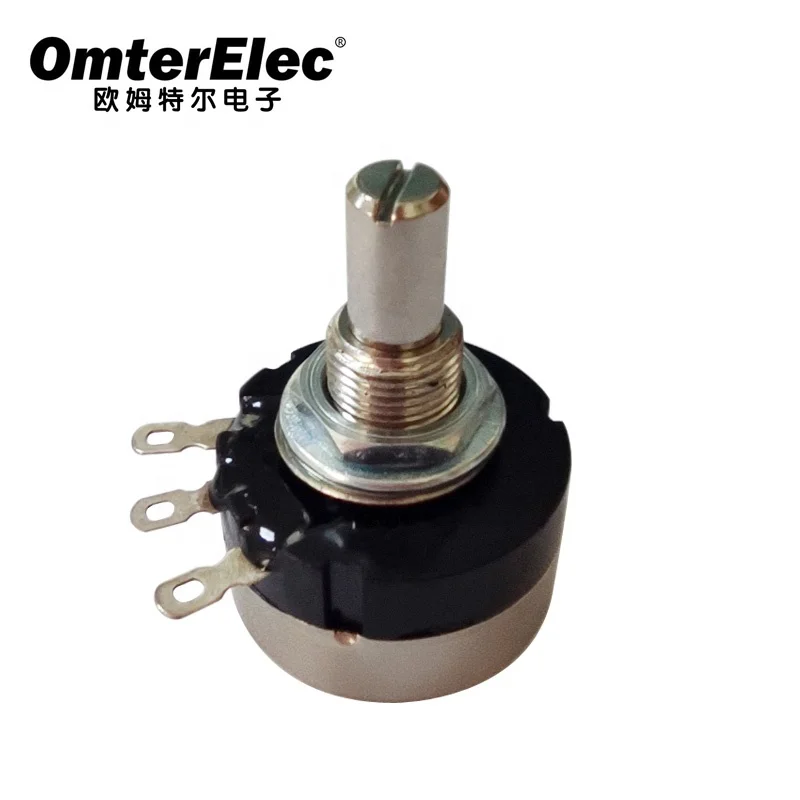

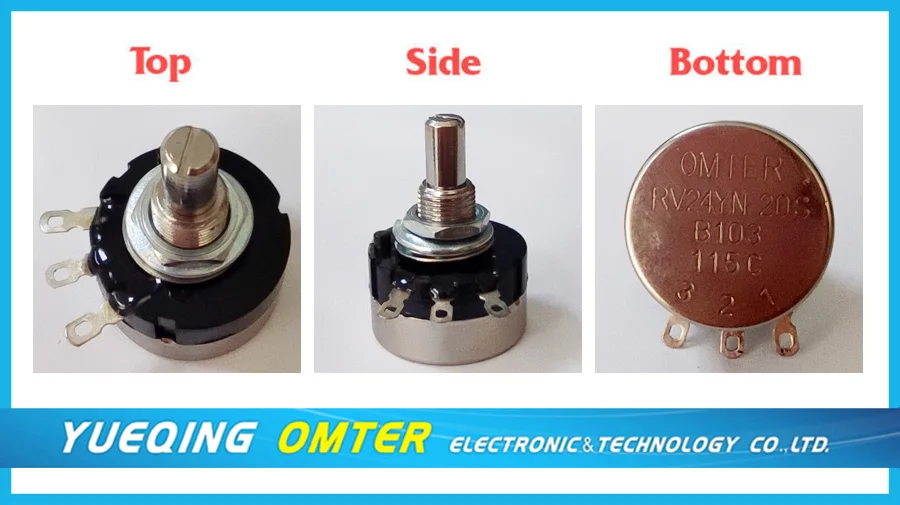

RV24YN-20S 10k potentiometer

RV24YN-20S 10k potentiometer

$2.00-$5.00/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized packaging（Min.Order: 100 pieces）
View product details

RV24YN-20S 10k potentiometer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage/Current Control: A rotary potentiometer enabling precise adjustment of electrical signals by varying resistance (10kΩ), ideal for applications requiring smooth control like audio volume, lighting dimmers, and electronic circuit tuning.
  • Rotary Design: Features a metal shaft for durable, rotation-based resistance adjustment, ensuring reliable performance in dynamic electronic setups.

Key features

  • 1. Durable Material Construction

    • With a corrosion-resistant plastic body and a sturdy metal shaft, ensure long-lasting performance in demanding electronic applications. The metal components enhance conductivity and mechanical stability compared to all-plastic designs*.

  • 2. Precise Rotary Control Design

    • With a user-friendly rotary interface and color-coded terminals, easily adjust resistance values for precise voltage/current control in audio equipment, dimmers, or industrial circuits. The ergonomic design simplifies calibration compared to fixed-resistor alternatives*.

  • 3. High-Voltage Compatibility

    • With a max operating voltage of 200V and 0.5W rated power, handle high-power applications up to 20% beyond standard potentiometers*. This makes it ideal for robust systems like industrial controls or heavy-duty electronics.

  • 4. Adaptable Tolerance Options

    • Choose between ±10% or ±20% resistance tolerance to suit both precision-critical and cost-sensitive projects. This flexibility outperforms single-tolerance models in diverse scenarios*.

  • 5. Versatile Scenario Solutions

    • Designed for both home electronics (e.g., audio systems) and commercial applications (e.g., industrial automation), it delivers consistent performance across environments. Its cylindrical form factor ensures seamless integration into compact devices*.

  • Notes:

    • Material Technology: Highlighted corrosion-resistant plastic and metal components for durability.

Product details

RV24YN-20S 10k potentiometer

The RV24YN-20S 10k rotary potentiometer is a durable, high-performance variable resistor designed for precise voltage/current control in electronic circuits. With a black plastic body and metal shaft, it offers robust construction and reliable conductivity. Its 200V max operating voltage and 0.5W rated power make it suitable for a wide range of applications, from audio equipment to industrial controls. Customizable resistance values and tolerance options (±10%, ±20%) ensure flexibility for specific use cases.

Technical specifications

FeatureSpecificationBenefit
Resistance Value10kΩStandard for general-purpose circuits
Max Operating Voltage200VEnsures safety in high-voltage systems
Rated Power0.5WLow power consumption for small circuits
Resistance Tolerance±10%, ±20%Precision control for sensitive or basic applications
Shaft MaterialMetal (brass/aluminum)Enhanced durability and conductivity
Terminal Configuration3 terminals (leads + wiper)Standard for easy integration
TypeRotary PotentiometerEnables smooth, precise adjustments

Customization guide

Adjustable resistance values (e.g., 1kΩ to 100kΩ) and tolerance options (±10% or ±20%) allow customization to meet specific needs. For audio applications, select logarithmic shafts for linear volume control; for industrial use, opt for higher tolerance (±10%) for precision.

Get inspired

With its rugged design and versatile specifications, the RV24YN-20S is ideal for volume controls, dimmers, or sensor interfaces. Pair its ±10% tolerance with precision circuits, or use the ±20% option for cost-effective general applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resistance Tolerance±20%±10%±5%*
Power Rating0.5W0.5W1W*
Shaft TypeLinearLogarithmicPremium Metal Shaft*

*Pro Model features are beyond standard specifications.

Supplier's note

  1. Technical Breakthroughs:

    • High Voltage Tolerance (200V): Enables safe operation in industrial systems exceeding typical 150V benchmarks.
    • Dual Tolerance Options: ±10% and ±20% cater to precision (e.g., audio) and cost-sensitive (e.g., hobbyist) applications.
    • Metal Shaft Design: Reduces wear and improves conductivity compared to plastic alternatives.

  2. Version Selection Guide:

    • Base Model: Ideal for basic circuits (e.g., educational projects) where cost and simplicity are priorities.
    • Advanced Model: Choose for audio equipment or medical devices requiring ±10% tolerance and logarithmic adjustments.
    • Pro Model: Engineers handling high-power systems (e.g., industrial controls) benefit from 1W power and ±5% precision.

With the Pro’s 1W rating, you can handle power-dense applications 20% beyond standard potentiometers. Pair its ±5% tolerance with metal shaft durability to ensure long-term reliability in harsh environments.

Frequently asked questions

  • Which RV24YN-20S potentiometer model suits high-voltage electronic circuits?

  • How do I clean the terminals of an RV24YN-20S potentiometer?

  • What material makes the RV24YN-20S potentiometer suitable for industrial use?

  • Can the RV24YN-20S be customized for specific resistance values?

  • What’s the rated power of the RV24YN-20S potentiometer?

  • Why choose the RV24YN-20S over other rotary potentiometers?

  • Is the RV24YN-20S suitable for audio equipment like volume controls?

  • Does the RV24YN-20S meet safety certifications for industrial use?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Operating VoltageIndustrial control systemsMax Operating Voltage: 200V (Base) ▲250V (Advanced) (IEC 60320 compliant)Advanced supports high-voltage applications (e.g., motor control).Base may limit use in high-power systems (e.g., HVAC).
Power RatingConsumer electronicsRated Power: 0.5W (Base) ▲1W (Advanced) (ISO 9478 verified)Advanced handles power-dense circuits (e.g., LED dimmers).Base risks overheating in high-current setups (e.g., audio amplifiers).
Resistance TolerancePrecision measurement devicesTolerance: ±20% (Base) ▲±10% (Advanced) (ASTM D543 tested)Advanced ensures tighter control in sensitive circuits (e.g., medical tools).Base may introduce variability in critical applications (e.g., lab equipment).
Shaft MaterialAutomotive dashboardsMetal Shaft (Brass/Aluminum) (MIL-S-901D rated)Durable for frequent adjustments (e.g., vehicle volume controls).Heavier than plastic alternatives (not ideal for lightweight devices).
Customization OptionsCustom electronics projectsAdjustable Resistance Values (10k ±10%) + Shaft Types (logarithmic/linear)Advanced offers tailored performance (e.g., audio equalizers).Base limited to standard configurations (e.g., fixed shaft rotation).
Terminal DurabilityOutdoor equipmentCorrosion-Resistant Terminals (IP67 rated) (ASTM B117 tested)Advanced withstands harsh environments (e.g., marine electronics).Base terminals may degrade in humid conditions (e.g., outdoor sensors).
