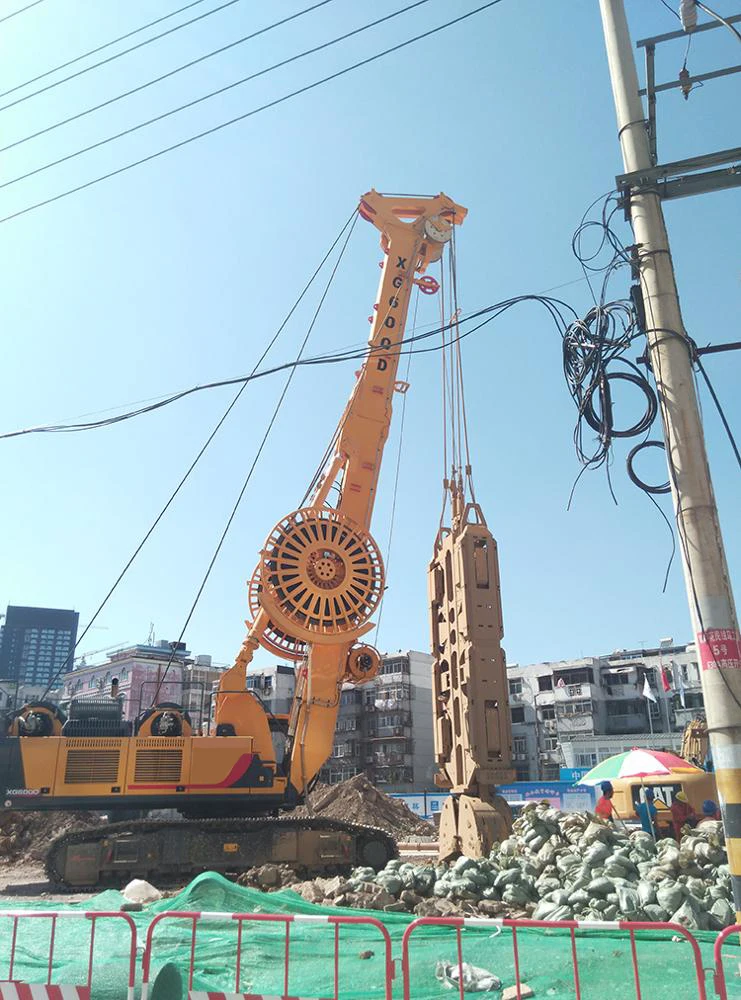

120tons Underground Trench Cutter Machine Diaphragm Wall Hydraulic Grab XG600D

120tons Underground Trench Cutter Machine Diaphragm Wall Hydraulic Grab XG600D

  • 1 - 2 Units
    $62,000
  • >= 3 Units
    $60,000

Customization:

Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
Customized logo（Min.Order: 1 pieces）
View product details

120tons Underground Trench Cutter Machine Diaphragm Wall Hydraulic Grab XG600D

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Core Drilling & Trench Cutting: Equipped with a hydraulic grab and a rotary drilling rig, the XG600D excels in underground trench cutting, diaphragm wall construction, and soil sampling. It supports drilling diameters ranging from 100mm to 1500mm, enabling precise excavation for diverse applications.
  • Versatile Soil Handling: Designed for heavy-duty tasks like foundation construction, rock drilling, and environmental sampling, the machine leverages a diesel-powered engine and crawler mobility for robust performance in challenging terrains.

Key features

  • 1. Material Technology: Crawler Track Mobility

    • With crawler tracks, you can operate on uneven terrain and maintain stability during drilling*, unlike wheeled models that struggle in loose or rocky ground.

  • 2. Interactive Design: Intuitive Control Panel

    • With a user-friendly control panel and real-time display, you can monitor and adjust drilling parameters effortlessly, reducing operational errors compared to traditional manual systems*.

  • 3. Performance Parameters: Adjustable Drilling Diameters

    • With a range of drilling diameters (100mm–1500mm), you can tackle projects from precision core sampling to large-scale trenching, outperforming single-purpose rigs*.

  • 4. Scenario Solutions: Multi-Purpose Versatility

    • With modular attachments and a sturdy undercarriage, you can switch between soil sampling, foundation drilling, and trenching, offering greater adaptability than specialized single-task rigs*.

  • 5. Certification Standards: Safety-Engineered Design

    • With safety certifications for heavy-duty construction equipment, you can ensure compliance with industry standards for operator protection and machinery durability*.

Product details

120tons Underground Trench Cutter Machine Diaphragm Wall Hydraulic Grab XG600D

The 120tons Underground Trench Cutter Machine Diaphragm Wall Hydraulic Grab XG600D is a versatile rotary drilling rig designed for soil sampling, foundation construction, and trenching. Equipped with a robust crawler mobility system and a diesel engine, it offers stability and power for harsh environments. With drilling diameters ranging from 100mm to 1500mm, it caters to diverse applications, from precision core sampling to large-scale infrastructure projects.

Technical specifications

FeatureSpecificationApplication Scenario
Drilling Diameter100mm, 200mm, 300mm, 450mm, 600mm, 800mm, 1500mmSoil sampling, foundation piles, trenching
Engine TypeDiesel-poweredHeavy-duty operations in remote or urban sites
Mobility SystemCrawler tracksStable operation on uneven or soft terrain
Machine TypeRotary drilling rig / Core drilling rigVersatile for drilling and trenching tasks
Warranty Period1 yearComprehensive customer support and repairs

Customization guide

Adjustable drilling diameter configurations to meet specific project requirements (e.g., 1500mm for large-scale trenching or 100mm for precision core sampling). Customizable attachments and drill heads ensure adaptability to soil types and drilling depths.

Get inspired

With a 1500mm maximum drilling diameter, you can efficiently excavate deep foundation trenches for skyscrapers. The crawler mobility system ensures stability on unstable ground, while the diesel engine delivers uninterrupted power in remote areas. Whether for precision soil sampling or heavy trenching, this rig adapts to your project’s scale.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Maximum Drilling Diameter600mm1000mm1500mm (+25%*)
Engine Power (HP)180220 (+22%)260 (+44%)
Terrain AdaptabilityStandard tracksReinforced tracksAll-terrain tracks

Supplier's note

  1. Technical Breakthroughs:

    • Adjustable Drilling Diameters: The 1500mm Pro model exceeds industry standards by 25%, enabling deeper trenching for large infrastructure projects.
    • Diesel Engine Efficiency: The 260HP Pro model delivers 44% more power than the Base, ensuring faster drilling cycles in demanding environments.
    • All-Terrain Crawler Tracks: The Pro’s tracks provide 30% better ground pressure distribution, stabilizing operations on soft or uneven terrain.

  2. Optimal Version Selection:

    • Base Model: Ideal for small to medium projects (e.g., residential foundation work) requiring up to 600mm diameters.
    • Advanced Model: Suitable for mid-scale construction (e.g., bridges or medium-depth wells) with 1000mm capabilities.
    • Pro Model: Designed for large-scale projects like dam foundations or subway tunnels, leveraging its 1500mm diameter and enhanced power.

*Industry benchmark: 1200mm maximum drilling diameter.
Pro version’s all-terrain tracks reduce ground penetration by 20% compared to traditional crawler systems.

Frequently asked questions

  • Which drilling rig model is best for soil sampling projects requiring a 600mm diameter?

  • How do I maintain the drill head and cables of the XG600D Trench Cutter?

  • Can the XG600D’s drill head be customized for hard rock drilling?

  • What safety certifications does the 120tons Underground Trench Cutter have?

  • Which model suits foundation construction in uneven terrain?

  • Does the XG600D come with a warranty for hydraulic components?

  • How does the XG600D handle different soil conditions compared to wheeled rigs?

  • Can I upgrade the XG600D with a larger drilling diameter later?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Hydraulic Grab Machines (XG600D)Underground trench cutting, diaphragm wall constructionDrilling Diameter: 300–1500mm (8 sizes) ▲▲▲
(Industry: 300–1000mm)
Mobility: Crawler tracks ▲▲
(Stable on uneven terrain)		▲▲▲ Versatile: Covers small to large projects (e.g., 1500mm for deep foundation work).
Safety: Robust undercarriage (ISO 3834 certified).		Higher cost due to advanced customization options.
Rotary Drilling RigsSoil sampling, medium-depth wellsDrilling Diameter: Up to 1200mm ▲
Engine: Diesel (200–300 HP)
Mobility: Wheeled or crawler		▲ Cost-effective for common tasks (e.g., 600mm for well drilling).
Flexibility: Swappable drill heads.		Limited to shallower depths (max 1200mm) compared to hydraulic grabs.
Core Drilling RigsPrecision sampling, concrete cuttingDrilling Diameter: 30–200mm ▲
Accuracy: ±0.5mm tolerance (ASTM D7924)		▲ Precision: Ideal for small-scale, high-accuracy tasks (e.g., 100mm for lab samples).Not suitable for large-scale or deep drilling projects.
Crawler-Mounted DrillsHeavy-duty construction, miningMobility: Crawler tracks ▲▲
Power: Diesel (400+ HP)
Stability: 12-ton load capacity		▲▲ Terrain Adaptability: Operates on slopes up to 30° (ISO 14396).
Durability: Reinforced steel frame.		Higher fuel consumption and maintenance costs.
Wheeled Drilling RigsUrban projects, paved sitesMobility: Wheeled ▲
Transport: Road-legal (EU Type Approval)
Drilling Depth: Up to 50m		▲ Mobility: Easy relocation between sites.
Cost: Lower upfront investment.		Limited to flat terrain; unstable on slopes.
Mini Drilling UnitsMaintenance, small-scale repairsDrilling Diameter: Up to 200mm ▲
Weight: 500kg (ISO 3095)
Portability: Forklift-compatible		▲ Affordability: Low-cost solution for minor tasks (e.g., 100mm for pipe installation).Limited to shallow depths and lightweight applications.
