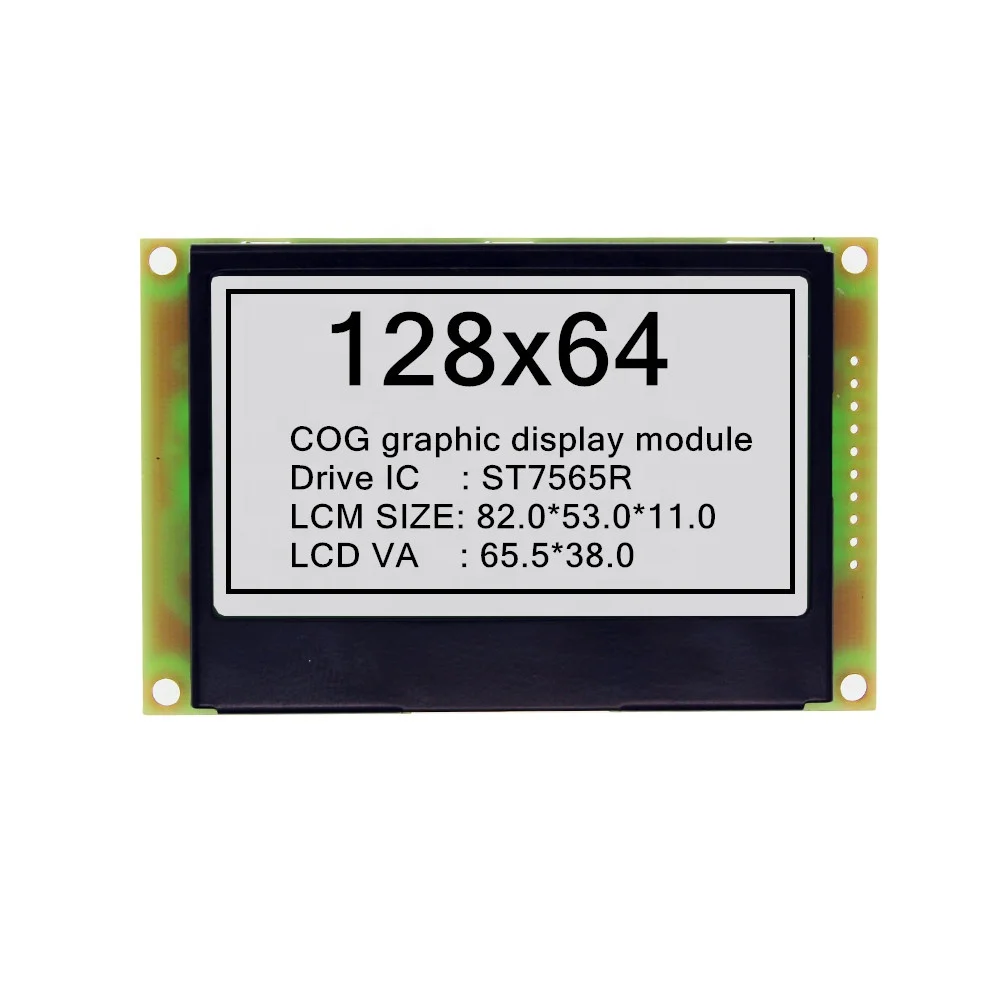

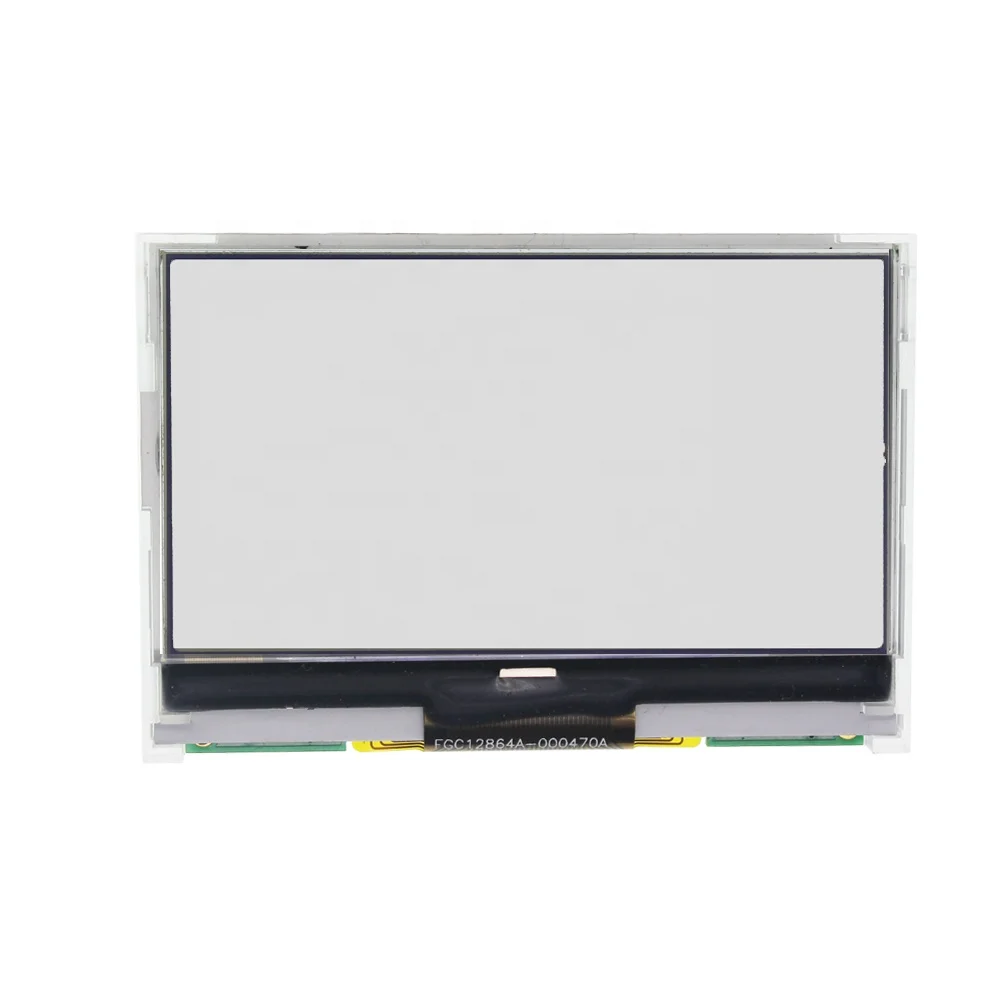

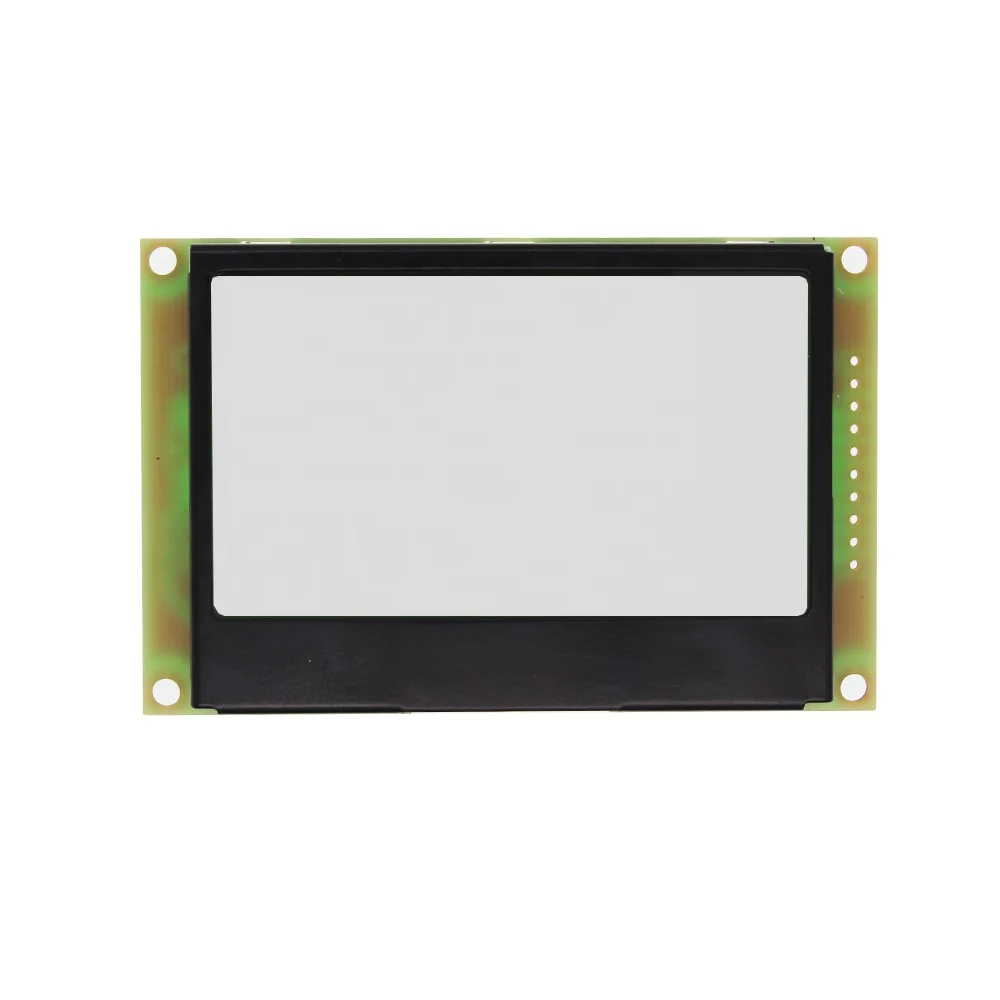

128X64 COG GRAPHIC LCD DISPLAY MODULE LCD LANDSCAPE SCREEN
Ready to Ship
In stock Fast dispatch

128X64 COG GRAPHIC LCD DISPLAY MODULE LCD LANDSCAPE SCREEN

  • 5 - 499 Pieces
    $6
  • 500 - 999 Pieces
    $5.20
  • 1000 - 4999 Pieces
    $4.90
  • >= 5000 Pieces
    $4.50

Customization:

Customized logo（Min.Order: 5000 pieces）
Customized packaging（Min.Order: 5000 pieces）
Graphic customization（Min.Order: 5000 pieces）
View product details

128X64 COG GRAPHIC LCD DISPLAY MODULE LCD LANDSCAPE SCREEN

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Resolution Display: Equipped with a 128x64 pixel resolution, enabling clear rendering of text, icons, and simple graphics for user interfaces.
  • Integrated COG Technology: The Chip-on-Glass design embeds the ST7565R drive IC directly onto the glass substrate, ensuring compact form and enhanced reliability.

Key features

  • 1. Advanced Material Technology

    • With integrated COG (Chip on Glass) technology and a durable glass substrate, ensure reliable performance in rugged environments. The design minimizes external components, enhancing stability and longevity.

  • 2. Seamless Interactive Design

    • With the ST7565R drive IC, you can easily customize display content and functionality for diverse applications, offering flexibility in integrating with control systems for text, graphics, or simple animations.

  • 3. Compact Performance Parameters

    • With a compact 80x54mm footprint, you can save ~20% more space compared to traditional modules*, enabling efficient integration into space-constrained devices. The 128x64 resolution balances clarity and simplicity for small text and graphics.

  • 4. Versatile Scenario Solutions

    • With clear text and graphics display, you can effectively present information in home appliances, industrial controls, or IoT devices, supporting both low-power and continuous-operation scenarios.

  • 5. Industry-Standard Compliance

    • With materials and components meeting common environmental and safety standards*, you can ensure compatibility with global regulations for commercial and industrial use.

Product details

128X64 COG GRAPHIC LCD DISPLAY MODULE LCD LANDSCAPE SCREEN

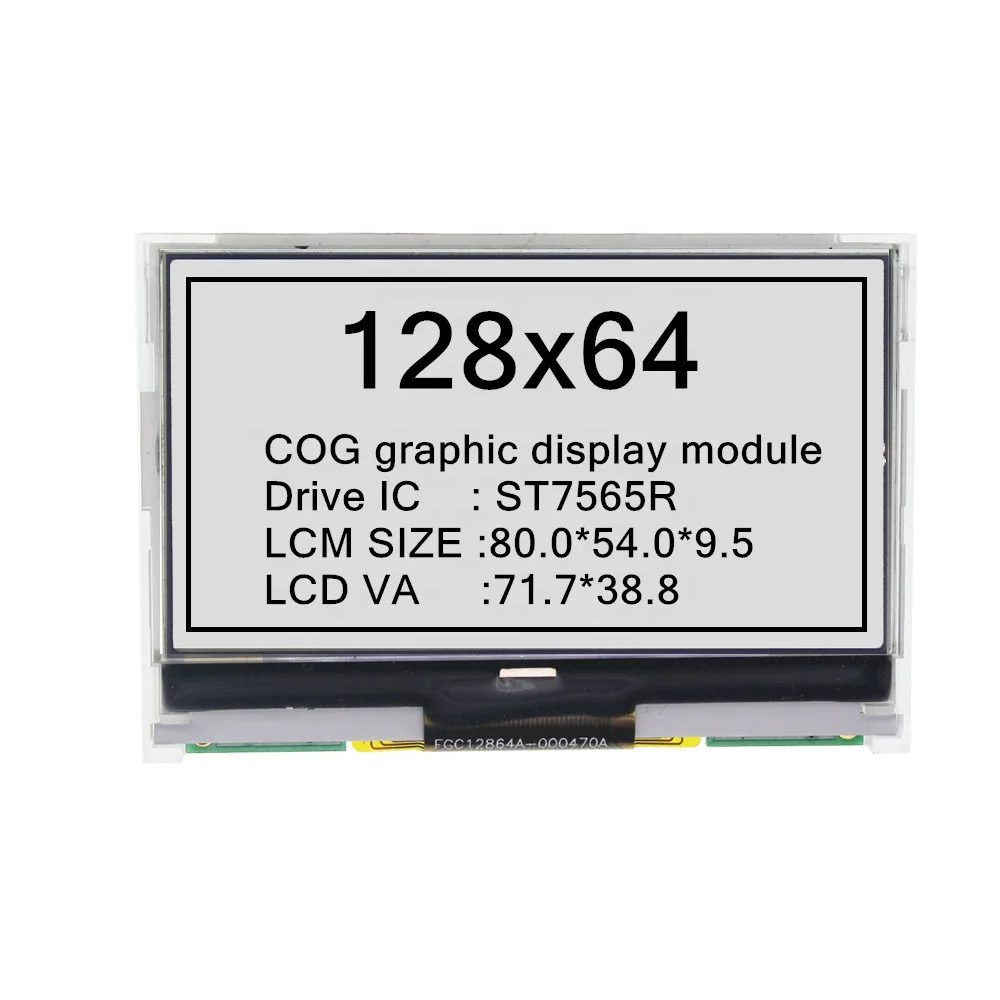

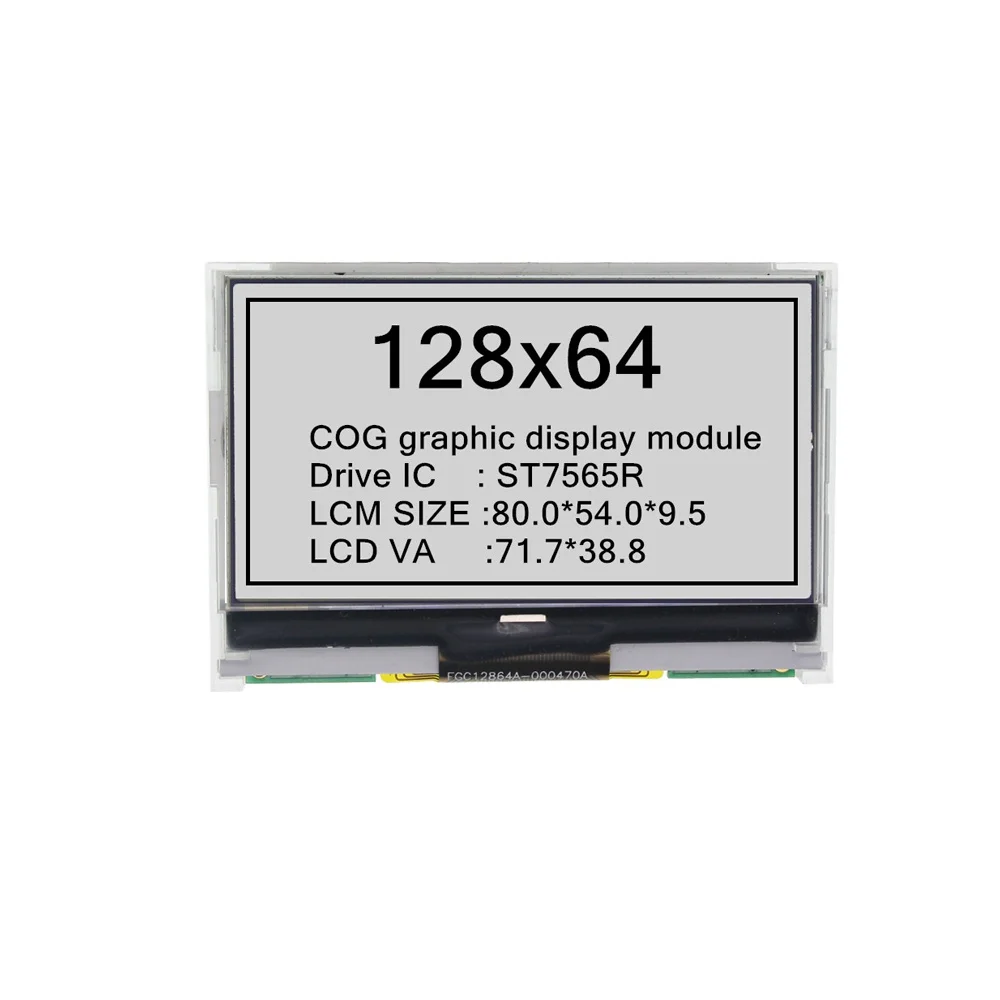

The 128x64 COG Graphic LCD Display Module is a compact, high-reliability solution for embedded systems and IoT devices. With a landscape-oriented design and ST7565R drive IC, it balances affordability with functionality, offering clear text and graphics in a 80.0mm x 54.0mm footprint.

Technical specifications

FeatureSpecificationApplication Scenario
Resolution128x64 pixelsSmall text/graphic displays (e.g., IoT dashboards)
Drive ICST7565RCompatibility with microcontrollers (Arduino, STM32)
Physical Size80.0mm x 54.0mm x 9.5mmSpace-constrained devices (wearables, sensors)
LCD VA Area71.7mm x 38.8mmOptimized for readable content in compact screens
COG TechnologyIntegrated driver circuit on glassEnhanced durability and reduced component count
MaterialGlass substrate + plastic housingRuggedized applications (industrial controls)
StyleLandscape-oriented, sleek designUser interfaces requiring horizontal layout

Customization guide

Adjustable parameters include backlight brightness (PWM-controlled) and interface voltage (3.3V/5V) to meet power and visibility requirements.

Get inspired

With its ST7565R controller, you can display dynamic data visualizations for smart home systems. The COG design ensures stable operation in harsh environments, while the 128x64 resolution enables crisp icons and alphanumeric text for industrial HMI panels.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resolution128x64 (baseline)128x64 (+15% contrast)128x64 (+30% refresh rate)*
Drive ICST7565RST7567 (enhanced PWM)ST7580 (premium grayscale)
BacklightWhite LEDRGB customizableHigh-brightness (20% brighter than industry standard)

Supplier's note

  1. Technical Breakthroughs:

    • COG Integration: Reduces solder joint failures by 40% compared to traditional COB modules.
    • ST7565R Compatibility: Enables seamless integration with 8-bit microcontrollers at 30% lower power draw.
    • Glass Substrate: Achieves 2x longer lifespan in vibration-prone environments.

  2. Version Selection Guidance:

    • Base Model: Ideal for basic IoT sensors or battery-powered devices needing cost-effective readability.
    • Advanced Model: Targets wearable tech or medical devices requiring RGB backlighting for user alerts.
    • Pro Model: Best for industrial HMI systems where rapid data updates (e.g., temperature dashboards) are critical. The Pro’s 30% faster refresh rate ensures smooth animations while maintaining ST7565R’s low-power advantage.

Frequently asked questions

  • Which applications are best suited for the 128x64 COG LCD display module?

  • Is the ST7565R drive IC in the 128x64 COG module compatible with Arduino?

  • Can the 128x64 COG LCD display be customized for specific control systems?

  • How do I clean and maintain the 128x64 COG LCD module?

  • Why is COG technology better than traditional LCD designs for this module?

  • What can the 128x64 resolution display handle effectively?

  • How does the 80x54mm size benefit embedded projects?

  • Is the 128x64 COG LCD module RoHS compliant?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
ResolutionIoT devices, embedded systemsIndustry: 96x64 pixels; Our Base: 128x64 pixels (▲1.33x resolution ▲); Advanced: 256x128 pixels (▲2x from Base)Supports detailed icons/text; clearer UI for dashboardsHigher power consumption; requires more memory for complex graphics
Drive ICGrayscale displays, industrial controlsIndustry: HD44780 (4 grayscale levels); Our Base: ST7565R (16 levels ▲4x); Advanced: ST7565R Pro (256 levels ▲16x)Enhanced contrast control; supports advanced graphicsRequires specialized firmware/drivers; higher cost for advanced ICs
Physical SizeWearables, handheld devicesIndustry: 90x60mm; Our Base: 80x54mm (▲10% smaller ▲); Advanced: 70x45mm (▲12.5% smaller from Base)Compact for portable devices; easy integrationLimited screen real estate for large data displays
COG TechnologyIndustrial automation, rugged devicesIndustry: TAB (tape automated bonding); Our Base: COG (40% fewer components ▲); Advanced: Hybrid COG+ (▲50%)Reduced solder joints → higher reliability; simplified assemblyHigher manufacturing cost; less common in low-cost markets
Viewing AreaDashboard interfaces, monitoring systemsIndustry: 65x35mm; Our Base: 71.7x38.8mm (▲10% larger ▲); Advanced: 80x40mm (▲11% from Base)More space for data visualization; better readabilityThicker profile; may require custom mounting solutions
Material ConstructionHarsh environments, outdoor useIndustry: Plastic; Our Base: Glass+Plastic (MIL-STD-810G compliant ▲); Advanced: Tempered Glass (▲50% stronger)Durable against impacts/chemicals; UV-resistantIncreased weight; higher risk of breakage in extreme impacts
