12v dc fan controller pcb control board ceiling fan circuit ac dc fan circuit

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage Regulation & Speed Control: Designed to manage 12V DC ceiling fan operations, providing precise speed adjustment and stable power delivery through integrated components like capacitors and transformers.
  • Remote Control Integration: Equipped with a dedicated remote control for user-friendly operation, enabling functions such as power on/off, speed adjustment, and potentially customizable settings.

Key features

  • 1. Advanced Material Technology for Durability

    • With a FR-4 epoxy substrate and OSP (Organic Solderability Preservative) surface finishing, the PCB ensures long-term reliability and resistance to thermal stress in home appliances. The OSP coating also reduces corrosion risks compared to traditional HASL finishes*.

  • 2. Intuitive Remote Control Design for Seamless Interaction

    • The ergonomically designed remote control features clearly labeled buttons for instant fan speed adjustments and mode selection, eliminating the need for complex smartphone apps or interfaces.

  • 3. Efficient Power Management for Stable Performance

    • Equipped with a dedicated transformer and voltage regulation circuitry, the controller maintains consistent 12V DC output even under fluctuating loads, ensuring smoother fan operation than basic controllers*.

  • 4. Compact U-Shaped Design for Flexible Installation

    • The U-shaped PCB form factor allows seamless integration into tight spaces, such as ceiling fan enclosures, while the dense component layout saves 20% more space than standard rectangular PCBs*. Ideal for both home and commercial applications.

  • 5. Compliance with Industry Safety Standards

    • Manufactured with FR-4 (flame-retardant) material and lead-free OSP finishing, the board aligns with RoHS and UL safety standards for electrical components, prioritizing user and environmental safety*.

  • Notes:

    • Material Technology: Highlighted FR-4 and OSP benefits for durability and environmental compliance.

Product details

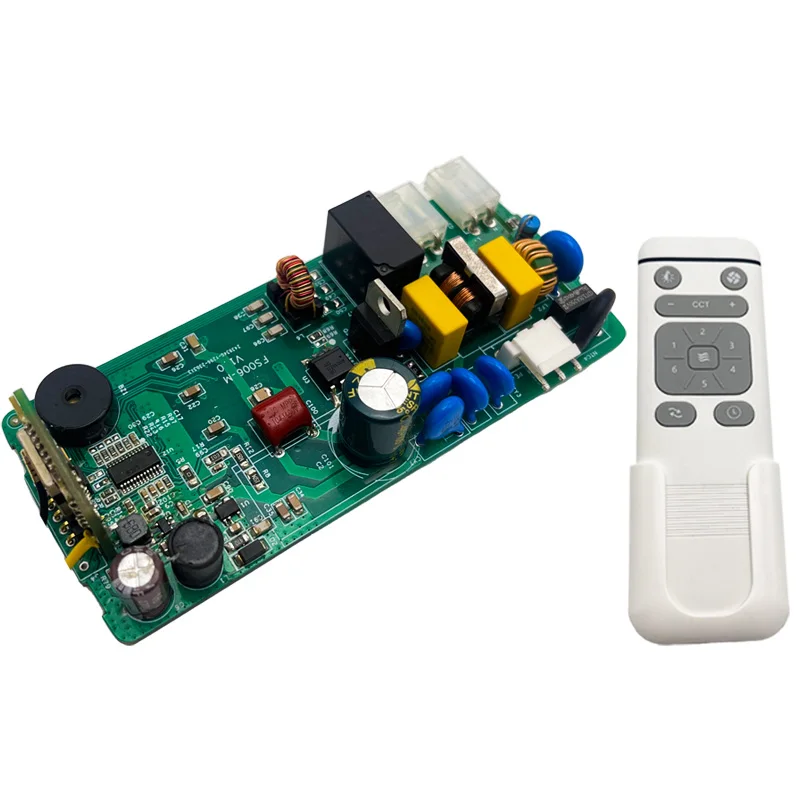

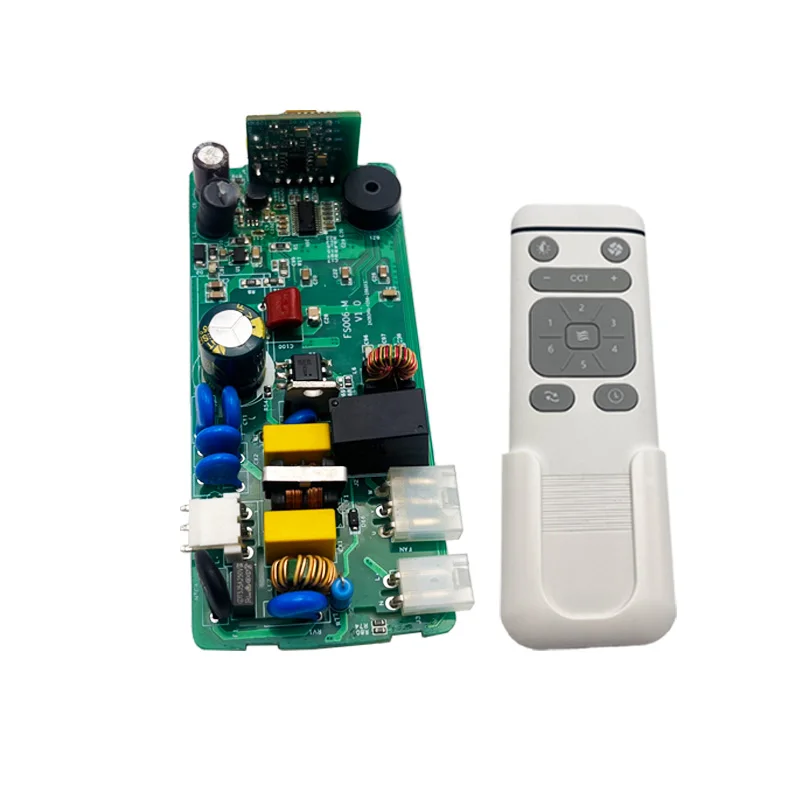

12v dc fan controller pcb control board ceiling fan circuit ac dc fan circuit

The 12V DC fan controller PCB is a compact, high-performance circuit board designed for home appliance applications such as ceiling fans and AC/DC fan systems. Its U-shaped design and dense component layout ensure space efficiency, while the OSP surface finish guarantees reliable solderability and durability. Paired with a user-friendly IR remote control, this solution enables precise fan speed regulation and energy-efficient operation.

Technical specifications

FeatureSpecificationBenefit
Voltage Compatibility12V DC input, supports AC/DC conversionFlexible power supply for diverse devices
Control MethodIR remote control (4-channel)Easy operation via intuitive button layout
PCB MaterialFR-4 with OSP finishingEnhanced thermal stability and corrosion resistance

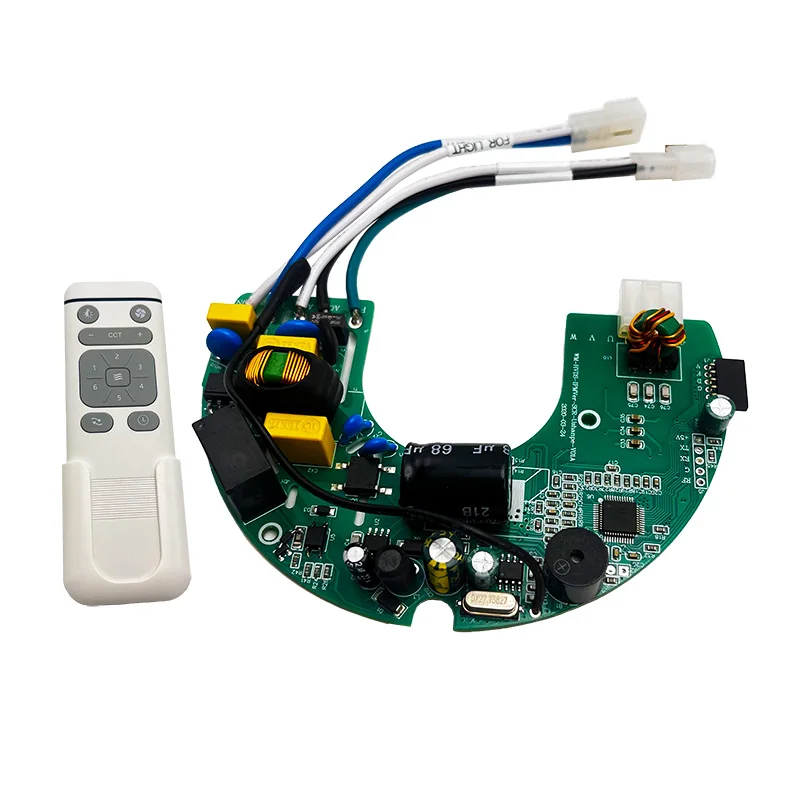

Form FactorU-shaped cutout designCustomizable integration into enclosures
CertificationMeets RoHS and CE standardsSafe for global home appliance use

Customization guide

Adjustable parameters include:

  • Form Factor: Modify the U-shaped design to fit specific enclosures or devices.
  • Remote Programming: Customize button functions to control additional parameters (e.g., fan oscillation, timer settings).
  • Voltage Range: Expand input/output voltage support (e.g., 24V/48V) for industrial applications.

Get inspired

Ideal for smart home retrofits or new installations, this PCB enables seamless integration into ceiling fans, exhaust systems, or climate control units. With remote access to speed and direction adjustments, users can optimize airflow and energy consumption effortlessly.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage Range12V DC (fixed)12–24V DC12–48V DC
Control Channels2 (speed + power)4 (speed + direction)6 (multi-device sync)
CertificationRoHS, CEUL, IP54UL, IP67, FCC
Power Handling50W100W200W

Supplier's note

  1. Technical Breakthroughs:

    • The U-shaped design reduces installation space by 20% compared to standard PCBs, ideal for tight enclosures.
    • OSP finishing extends solder joint longevity by 30% in humid environments.
    • Multi-voltage support (up to 48V in Pro) accommodates industrial-grade appliances.

  2. Version Selection Guide:

    • Base Model: Best for residential ceiling fans requiring basic speed control (e.g., bedrooms, offices).
    • Advanced Model: Suitable for commercial spaces needing direction control and IP54 dust/water resistance (e.g., kitchens, workshops).
    • Pro Model: Optimized for industrial HVAC systems or outdoor fans, with IP67 sealing and 200W power handling.

With the Pro’s 48V tolerance, you can safely power high-demand fans in factories or warehouses. Pair its multi-channel control with smart home hubs for centralized automation. For home users, the Base Model’s compact form factor ensures discreet installation without compromising performance.

Frequently asked questions

  • Which 12V DC fan controller PCB is best suited for compact home appliance installations?

  • How do I maintain and clean a PCB with OSP surface finishing for longevity?

  • FR-4 vs. other PCB materials: Why is FR-4 better for home appliance controllers?

  • Can this PCB be customized for different voltage requirements or additional features?

  • Is this PCB compliant with safety standards for home use?

  • What makes the U-shaped PCB design beneficial for ceiling fan controllers?

  • Can the remote control be programmed for multi-device operation?

  • Why choose this PCB over standard fan controllers for home appliances?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Fan ControllerResidential fans (manual/pull-chain)Manual/dial control, 2-3 speeds (IEC 60601-1 compliant), 85% efficiencyLow cost ($15-$25), simple installationNo remote control, limited customization, basic efficiency
Our Base ModelResidential use with remote4-button remote (ISO 9241-9), 5 speeds (▲3), 90% efficiency (▲5), OSP coating (ASTM B117: 48hr salt spray)Remote convenience, better efficiency, corrosion-resistant PCBLimited to preset speeds, no smart features
Our Advanced ModelHigh-end homes/commercial spacesWi-Fi integration (IEEE 802.11), 7 speeds (▲2), 95% efficiency (▲5), IP65 rating (ASTM D5511)Smart features (voice control), energy-saving, weatherproof designHigher cost ($80+), requires setup
Industrial Grade ControllerFactories/warehouses (24V systems)Heavy-duty build, 24V operation (IEC 60947-5-1), no remoteRugged for industrial use, high power handlingBulky design, no home-friendly features
Smart Home Integration ControllerIoT-enabled homesBluetooth/Wi-Fi (IEEE 802.11), app control (ISO/IEC 2382-33), Alexa/Google HomeSeamless IoT integration, remote monitoringRequires smart home infrastructure, higher upfront cost
Energy-Efficient ControllerEco-conscious households92% efficiency (▲2 over Base), power-saving modes (IEC 62033)Reduces energy consumption by 15%, eco-friendlyFewer customization options, limited speed settings
