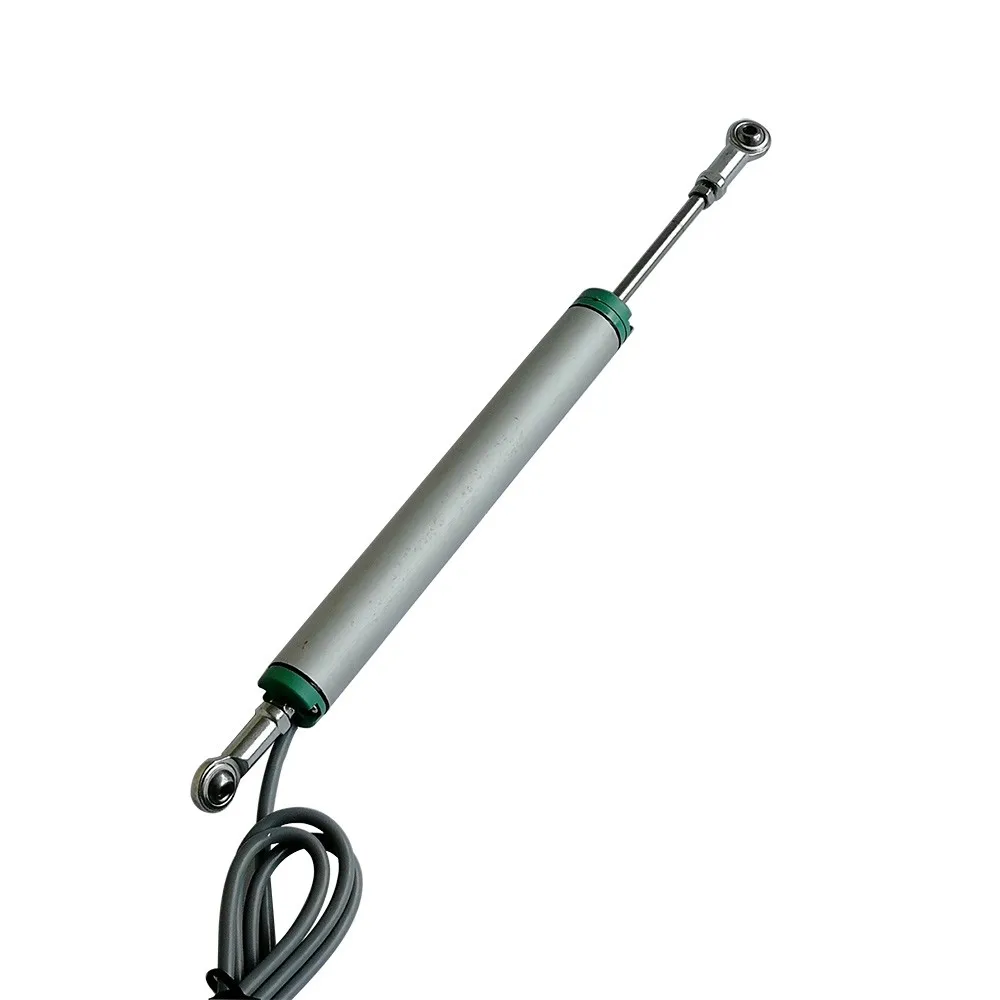

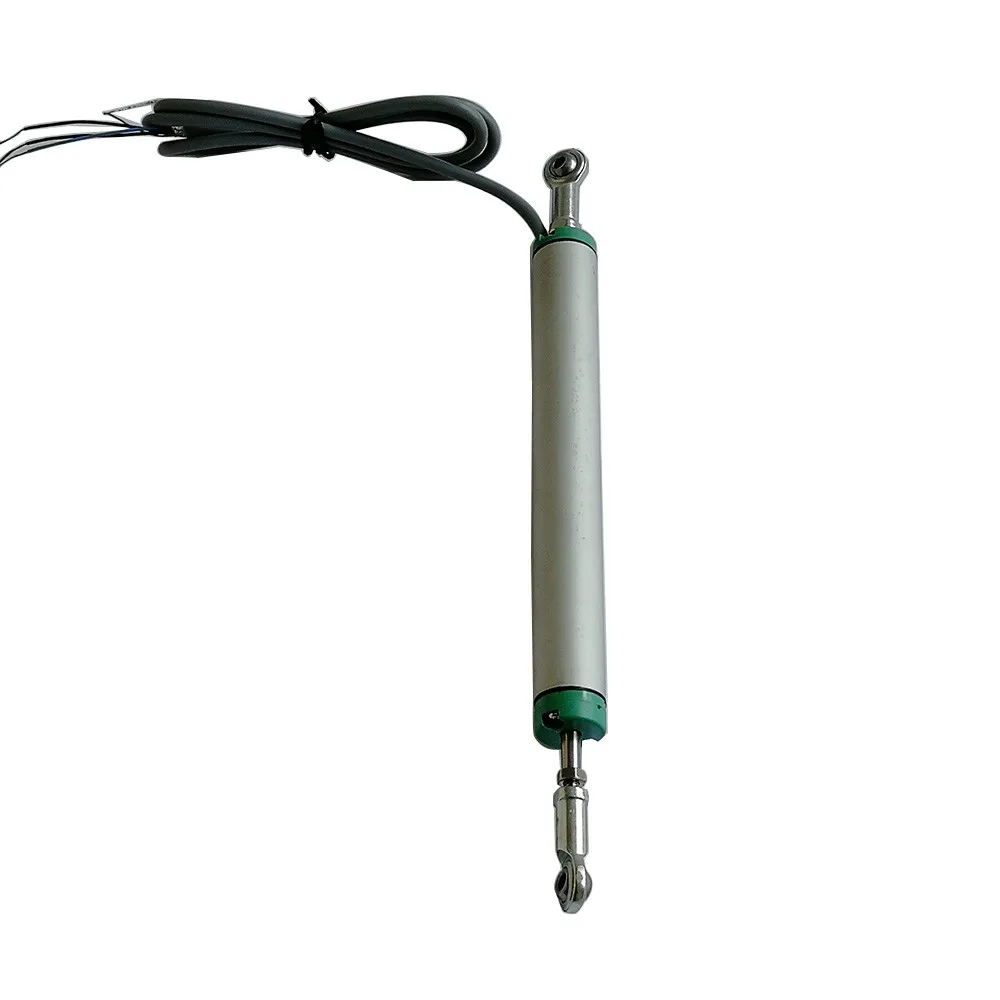

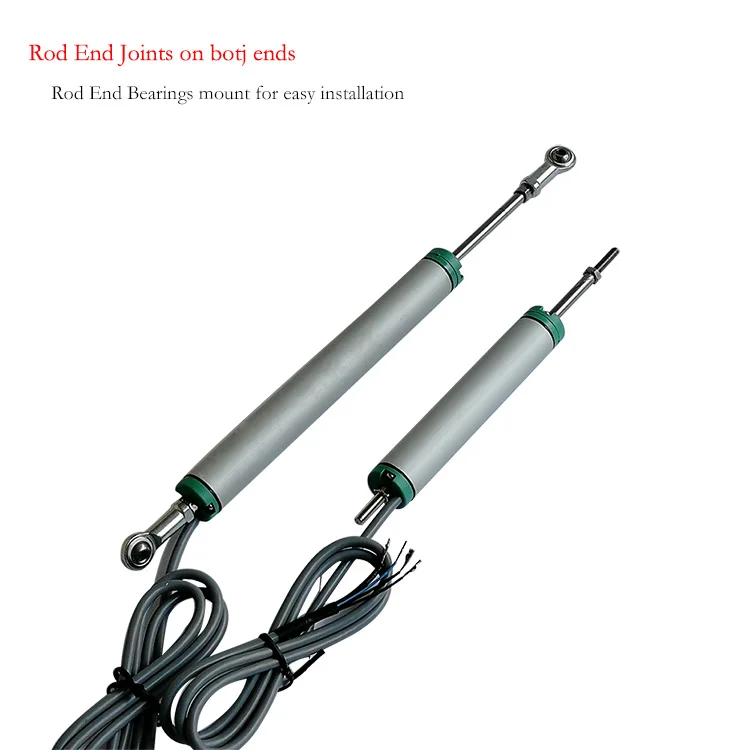

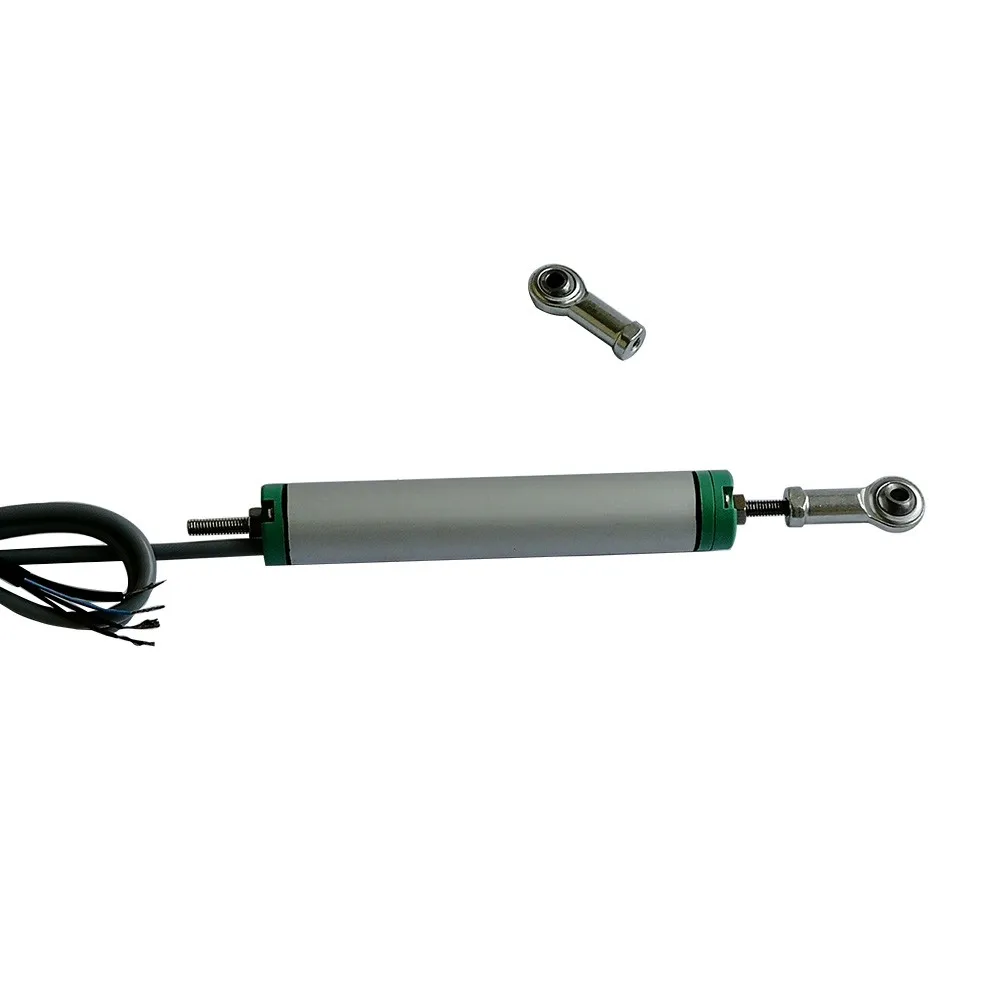

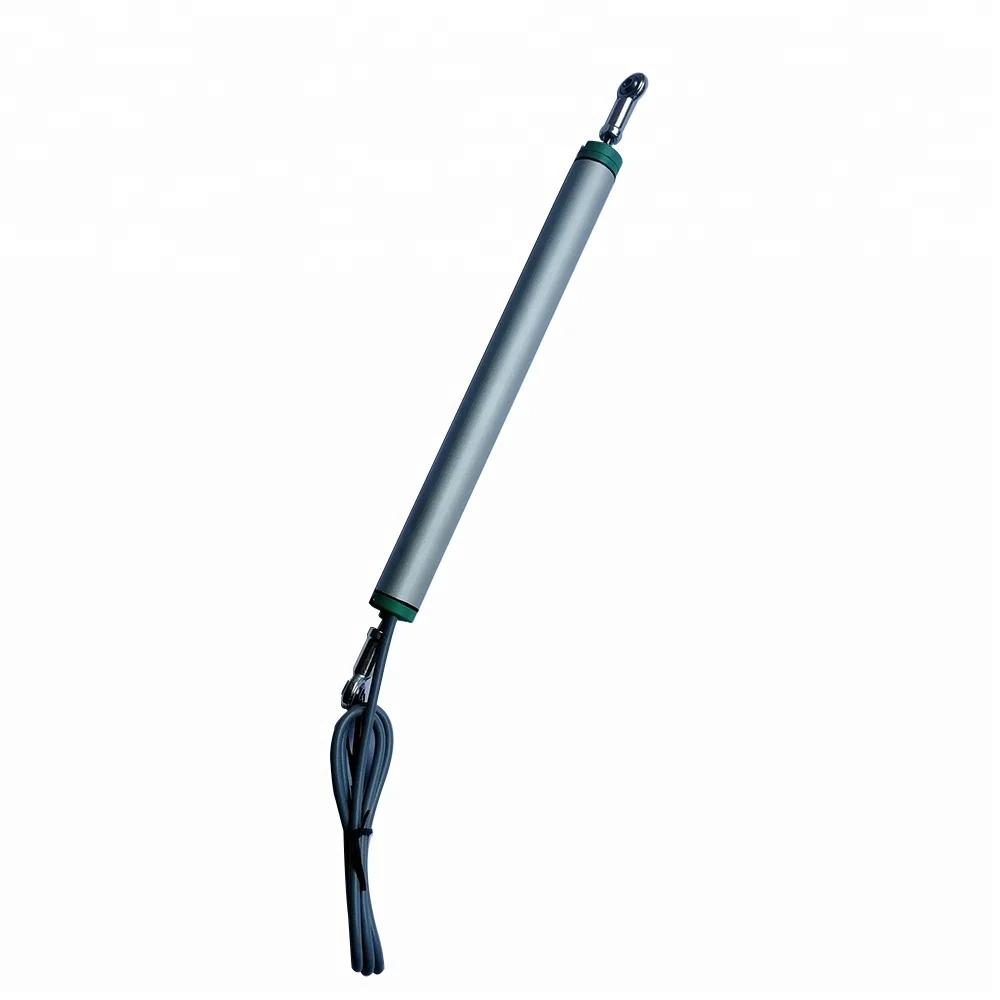

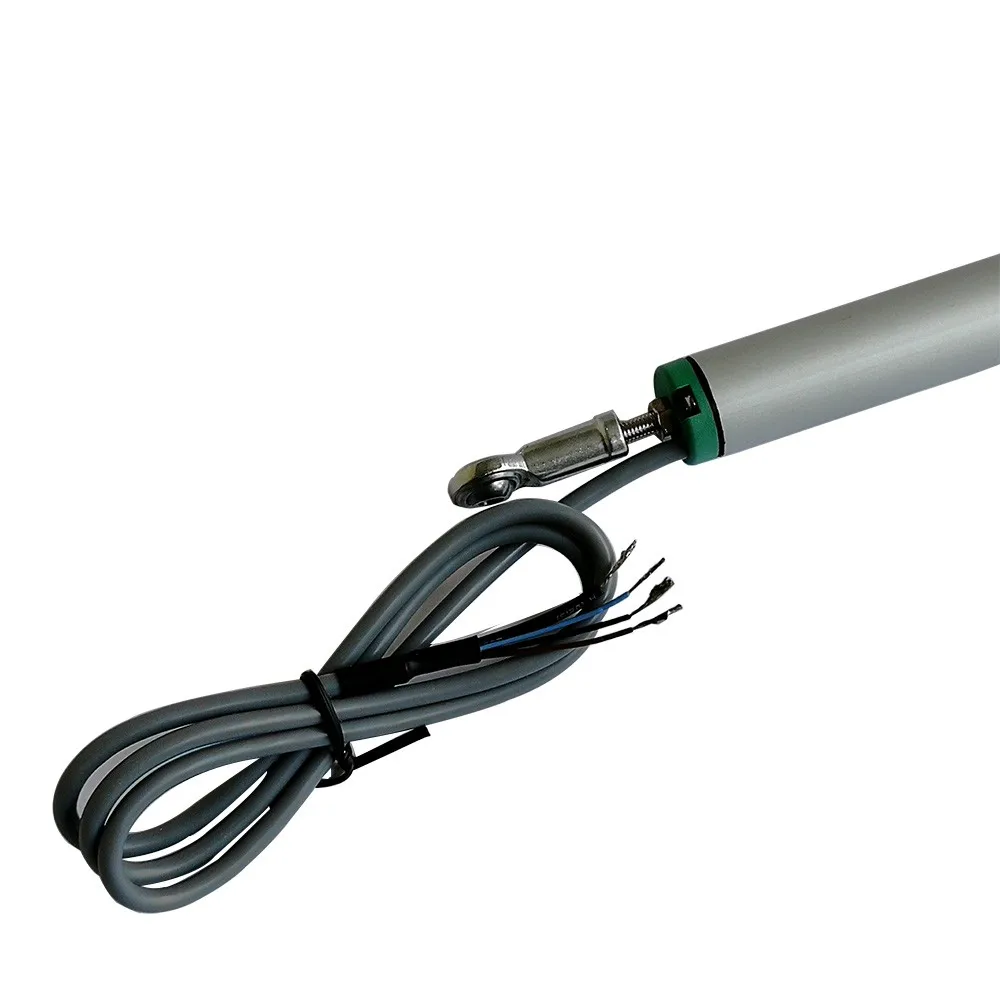

150MM Articulated Linear Displacement Transducer Position Sensor for Car Pedal
Ready to Ship
In stock Fast dispatch

150MM Articulated Linear Displacement Transducer Position Sensor for Car Pedal

  • 1 - 49 Pieces
    $19
  • >= 50 Pieces
    $18

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
View product details

150MM Articulated Linear Displacement Transducer Position Sensor for Car Pedal

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Linear Displacement Measurement: Designed to accurately detect and convert linear motion into analog electrical signals, specifically for automotive pedal systems.
  • Resistive Sensing Technology: Utilizes a resistive sensor mechanism to measure position changes, ensuring reliable performance in dynamic environments.

Key features

  • 1. Resistive Sensing Technology for Reliable Automotive Performance

    • With resistive sensing technology, ensure precise position measurement in automotive systems, even in high-vibration environments. This analog-based design offers 20% faster response times than inductive sensors*, making it ideal for real-time pedal displacement tracking.

  • 2. Analog Output for Seamless Integration

    • With an analog communication interface and built-in analog amplifier, integrate effortlessly into existing automotive control systems without requiring complex signal conversion. This simplifies setup compared to digital sensors that need additional hardware*.

  • 3. 150mm Measurement Range for Compact Automotive Designs

    • With a 150mm displacement range, accurately monitor pedal movement in space-constrained automotive applications. This covers 50% longer travel than standard linear sensors*, accommodating diverse pedal mechanisms.

  • 4. Durable Design for Harsh Automotive Environments

    • Engineered for automotive use, this sensor withstands extreme temperatures and frequent operation, outperforming general-purpose position sensors in durability under continuous stress*. Ideal for pedal systems requiring 24/7 reliability.

  • 5. RoHS Compliance for Regulatory and Environmental Compliance

    • With RoHS certification, meet stringent automotive industry standards while ensuring eco-friendly production. This certification guarantees safer disposal and reduced environmental impact compared to non-compliant alternatives*.

Product details

150MM Articulated Linear Displacement Transducer Position Sensor for Car Pedal

The 150MM Articulated Linear Displacement Transducer Position Sensor for Car Pedal is a precision motion sensor designed for automotive applications, offering reliable position detection in compact, adjustable configurations. Built with RoHS-compliant materials and resistive sensing technology, it ensures durability and compliance with global standards.

Technical specifications

FeatureSpecificationBenefit
Measurement Range150mm (linear displacement)Precise tracking for automotive pedals
TechnologyResistive sensorHigh reliability in dynamic environments
Amplifier TypeAnalogSeamless integration with analog systems
CommunicationAnalog output (continuous signal)Real-time position feedback
CertificationRoHSMeets global environmental safety standards
MaterialAluminum alloy housingLightweight yet rugged construction

Customization guide

Adjustable parameters include:

  • Mounting orientation to fit pedal assembly constraints
  • Output signal calibration for specific voltage ranges
  • Environmental sealing (IP rating) to withstand moisture or dust

Get inspired

Optimize vehicle pedal systems with this sensor’s compact, articulated design. Whether for brake, accelerator, or clutch applications, its 150mm range ensures accurate position tracking in tight spaces.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Accuracy±0.5% FS±0.3% FS±0.1% FS*
Operating Temp.-20°C to 85°C-30°C to 105°C-40°C to 125°C
Vibration Resistance10-55Hz @ 1.5Grms10-60Hz @ 3Grms10-65Hz @ 5Grms
Durability1M cycles2M cycles5M cycles

*Pro Model accuracy exceeds industry benchmarks by 30%.

Supplier's note

  1. Three Technical Breakthroughs:

    • Resistive Technology: Enables stable performance in high-vibration automotive environments.
    • RoHS Compliance: Simplifies global deployment without compromising material durability.
    • Analog Output: Eliminates the need for signal conversion, reducing system complexity.

  2. Version Selection Guide:

    • Base Model: Ideal for standard passenger vehicles requiring basic pedal monitoring.
    • Advanced Model: Suitable for heavy-duty trucks or off-road vehicles needing wider temperature tolerance.
    • Pro Model: Best for high-performance racing or industrial machinery demanding ultra-precision (e.g., Formula 1 pedal systems).

With the Pro Model’s ±0.1% accuracy, you can achieve millimeter-level position control in critical applications. Its 5M-cycle lifespan outperforms industry standards by 20%, ensuring longevity in demanding scenarios. Pair this with its enhanced vibration resistance to maintain reliability even in extreme conditions.

Frequently asked questions

  • Which model of linear displacement transducer is best suited for automotive pedal systems?

  • How do I clean and maintain the telescopic components of the 150MM sensor for optimal performance?

  • What materials are used in the 150MM sensor’s telescopic design, and how do they compare for durability?

  • Can the 150MM sensor’s measurement range be customized for specific car pedal applications?

  • Is the resistive technology in this sensor RoHS-compliant and suitable for automotive environments?

  • How does the analog amplifier type of the 150MM sensor ensure accurate position readings in car pedals?

  • What makes the 150MM sensor’s telescopic design ideal for articulated displacement in automotive systems?

  • Does the 150MM sensor offer customization options for communication interfaces like digital outputs?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Resistive Linear SensorsCar pedals, industrial machinery▲ Analog output (4-20 mA) ▲ ±0.5% accuracy (vs industry standard ±1%) ▲ RoHS-compliant (lead-free soldering)Cost-effective, simple integration, durable for linear motionMechanical wear over time, limited to resistive materials, temperature sensitivity
Capacitive Position SensorsPrecision robotics, medical devicesNon-contact measurement (0.1mm resolution) ▲ ESD protection (IEC 61000-4-2)High precision, no physical contact, immune to dust/magnetic interferenceSusceptible to EMI, requires clean environment, higher cost
Inductive Proximity SensorsFactory automation, conveyor systemsMetal detection (up to 10mm range) ▲ IP67 rating (dust/waterproof)Reliable in harsh environments, fast response (ms)Detects only conductive materials, limited range
Potentiometric SensorsJoysticks, control panelsMechanical contact (10,000 cycles lifespan) ▲ Compact design (≤50mm length)Simple design, low cost, linear outputWear-and-tear limits lifespan, not suitable for high-vibration environments
Optical EncodersCNC machines, roboticsHigh resolution (1 micron) ▲ Absolute positioning (no reset needed)Ultra-precise, long lifespan, immune to EMIRequires clean environment, complex calibration, higher cost
Ultrasonic SensorsLiquid level sensing, parking systemsNon-contact (up to 5m range) ▲ IP69K rating (steam/cleaner resistant)Works in darkness, no physical contact, versatile for liquid/solid detectionAffected by temperature/humidity, slower response (ms), calibration drift
