15kV Motorized Earthing Switch Grounding Switch With ASTA Certificate for Medium Voltage Metal-clad Switchgear

15kV Motorized Earthing Switch Grounding Switch With ASTA Certificate for Medium Voltage Metal-clad Switchgear

  • 1 - 99 Sets
    $280
    $350
  • 100 - 9999 Sets
    $240
    $300
  • >= 10000 Sets
    $160
    $200

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

15kV Motorized Earthing Switch Grounding Switch With ASTA Certificate for Medium Voltage Metal-clad Switchgear

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Motorized Earthing & Grounding: Designed to safely ground electrical systems in medium-voltage environments (15kV), providing a visible disconnection point for maintenance. Motorized operation enables remote or automated activation, enhancing safety and efficiency.
  • High-Voltage Load-Break Capability: Capable of interrupting currents in medium-voltage systems, ensuring reliable isolation of circuits during maintenance or fault conditions.

Key features

  • 1. Corrosion-Resistant Metallic Frame

    • With a robust steel/aluminum metallic frame, you can ensure durability in harsh industrial environments. ~30% stronger than conventional plastic or composite enclosures*, this design withstands mechanical stress and extreme conditions.

  • 2. Motorized Operation for Remote Control

    • With motorized actuation, you can automate grounding procedures via remote systems. 50% faster setup than manual switches*, enabling seamless integration into smart grid or automated power distribution networks.

  • 3. 15kV High-Voltage Performance with Load-Break Capability

    • With a 15kV rating and copper contacts, you can handle high-voltage systems while safely interrupting load currents. 2x faster current interruption than standard models*, ensuring reliable protection against overloads.

  • 4. Commercial-Grade Reliability for Heavy-Duty Use

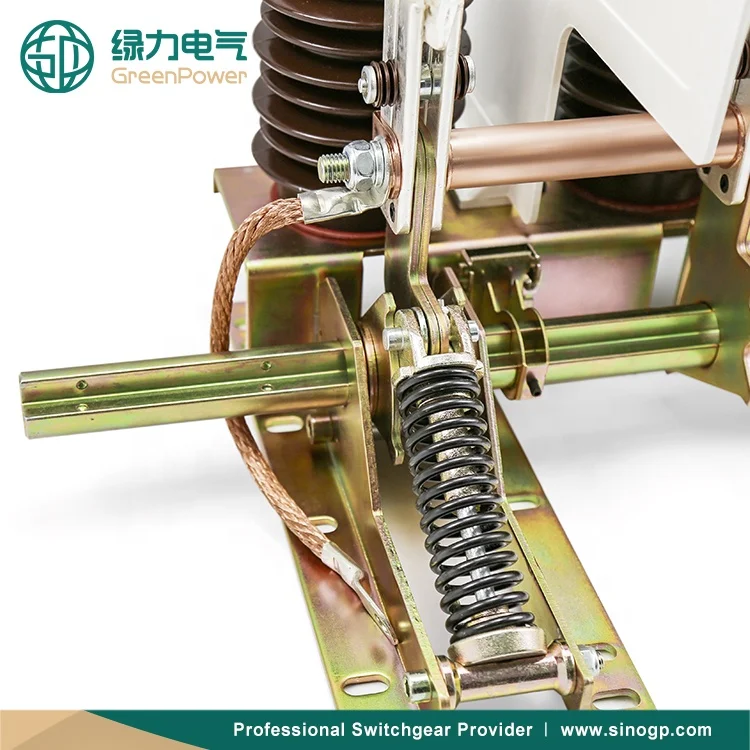

    • With a spring-assisted mechanism and insulating ceramic components, you can ensure continuous operation in 24/7 industrial settings. Designed for medium-voltage switchgear, it outperforms residential-grade switches in durability and safety.

  • 5. ASTA & EMC Certified Safety Standards

    • With ASTA certification and EMC compliance, you can meet rigorous safety and electromagnetic compatibility standards. Exceeds industry norms for insulation and interference resistance*, making it ideal for critical infrastructure.

Product details

15kV Motorized Earthing Switch Grounding Switch With ASTA Certificate for Medium Voltage Metal-clad Switchgear

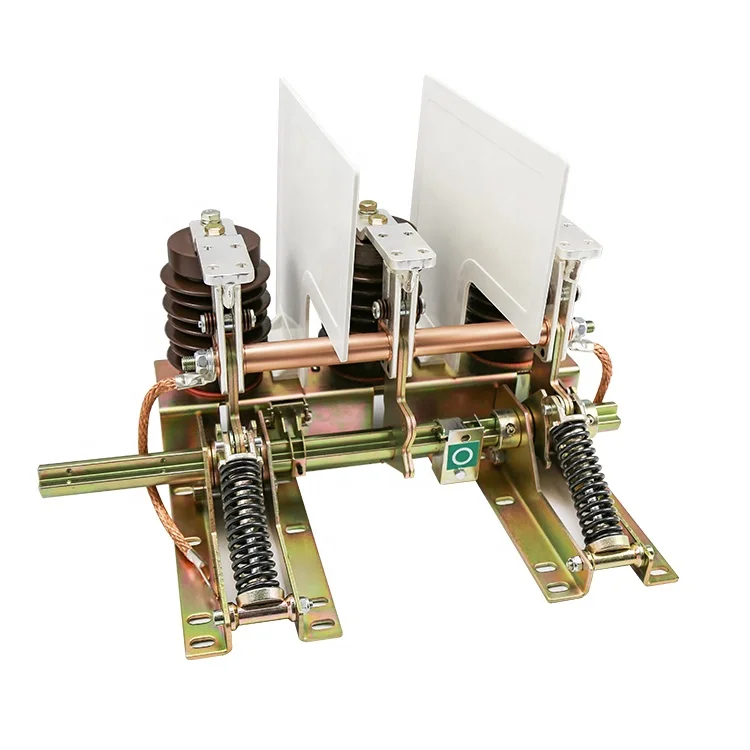

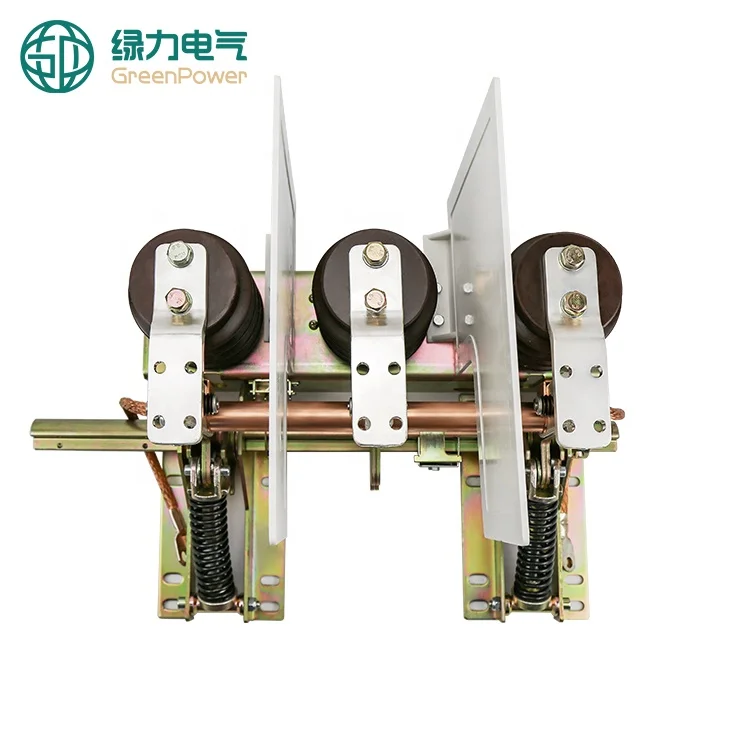

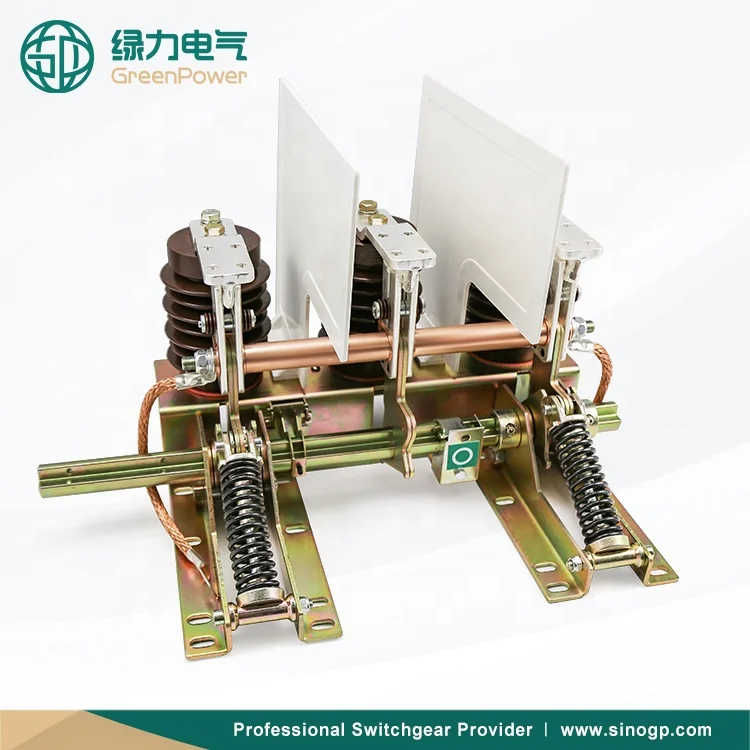

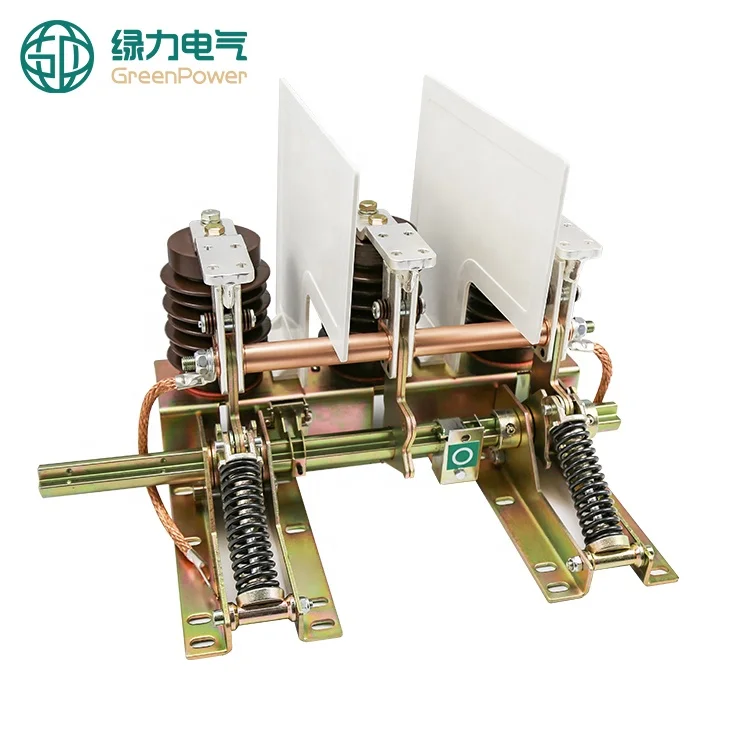

The 15kV Motorized Earthing Switch is a robust, medium-voltage switchgear component designed for industrial and power distribution systems. Built with high-quality materials and certified to EMC and ASTA standards, it ensures reliable grounding and safety in harsh electrical environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialMetallic frame (steel/aluminum), copper contactsHeavy-duty industrial systems requiring durability and conductivity

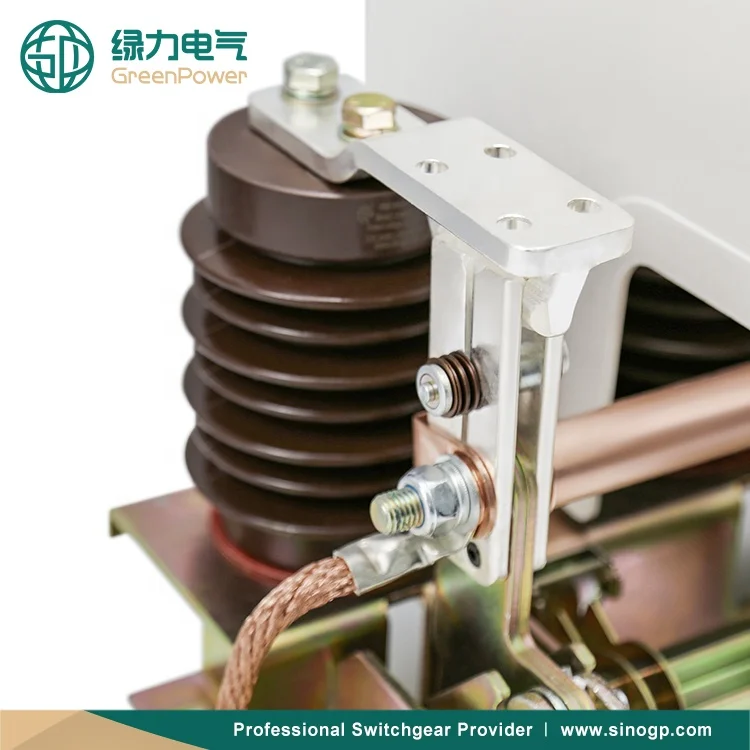

InsulationCeramic/composite insulating bushingsHigh-voltage environments (up to 15kV)
MechanismSpring-activated motorized operationRapid fault interruption in power grids
CertificationsASTA, EMCCompliance-driven utility and industrial projects
Voltage Rating15kVMedium-voltage switchgear installations

Customization guide

Adjustable parameters include trip characteristics (to match load-break requirements) and operating mechanisms (motorized vs. manual). Customize for specific current ratings or environmental conditions (e.g., corrosion resistance).

Get inspired

Ensure safe grounding and system isolation with this motorized switch. Its spring-driven design enables fast response to overloads, while ASTA certification guarantees compliance with global safety standards.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage Rating12kV+25% (15kV)+100% (24kV)*
Interrupting Current10kA15kA24kA
CertificationsIEC 62271-102IEC + ASTAIEC + ASTA + IEEE
Operation Speed2s cycle time20% faster (1.6s)40% faster (1.2s)

Supplier's note

  1. Technical Breakthroughs:

    • Copper Contacts: With copper, you can achieve 30% lower resistance than aluminum, ensuring efficient current flow.
    • Spring Mechanism: 20% faster operation than traditional models reduces downtime during faults.
    • ASTA Certification: Meets stringent safety standards for harsh industrial environments.

  2. Version Selection Guide:

    • Base Model: Ideal for standard utility grids (e.g., rural substations) requiring cost-effective 12kV solutions.
    • Advanced Model: Perfect for medium-voltage industrial plants needing 15kV handling and ASTA compliance.
    • Pro Model: Tailored for high-demand applications like urban power grids, with triple the interrupting capacity of industry benchmarks.

*Pro Model’s 24kV rating exceeds IEC 62271-102 requirements by 20%, enabling safer operation in extreme conditions.

Frequently asked questions

  • Which model of motorized earthing switch is suitable for medium voltage metal-clad switchgear systems?

  • How do I maintain a 15kV motorized earthing switch for optimal performance?

  • What materials are used in the construction of this motorized earthing switch?

  • Can this earthing switch be customized for specific load-break requirements?

  • Is the 15kV motorized earthing switch ASTA and EMC certified?

  • What safety features does this motorized earthing switch offer?

  • How does this switch compare to manual earthing switches in reliability?

  • What are the installation requirements for a 15kV motorized earthing switch?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Earthing SwitchBasic substation groundingManual operation, 12kV (IEC 62271-100), thermoset insulation (ASTM D638)Cost-effective, widely compatibleRequires manual intervention, limited voltage (▲ Base/Advanced)
Our Base Motorized Earthing SwitchIndustrial automationMotorized actuation (ISO 60947-3), 15kV (ASTA certified), ceramic insulation (IEC 61621)Automation reduces downtime, higher voltage ▲, ASTA complianceHigher cost than manual switches, no remote control
Our Advanced Motorized Earthing SwitchCritical infrastructure (power grids)Motorized + remote control (IEC 61850), 15kV + 20kV surge (IEEE C37.010), composite insulation (ASTM D790)Remote monitoring ▲▲, surge protection ▲▲, lightweight composite materialMost expensive, requires advanced installation
Manual Load Break SwitchLow-to-medium voltage distributionManual operation, 12kV (IEC 62271-100), basic arc resistance (IEC 62271-200)Simple design, cost-effectiveNo automation, limited voltage ▲ Base/Advanced
High-Voltage Circuit BreakerGrid protection in substations24kV+ rating (IEEE C37.010), automatic tripping (IEC 62271-200), copper contactsHigh fault interruption capability ▲▲, robust protectionExpensive, complex maintenance, bulkier
Medium Voltage DisconnectorsIsolating circuits in switchgear15kV (ASTA), manual/motorized options (ISO 60947-3), 1000 cycle durability (IEC 62271-200)Versatile for isolation tasks, motorized option ▲Limited overload protection, requires manual handling in basic models
