1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation

1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation

$5500.00-$5999.00/ Unit|1 Unit/Units(Min. Order)

Customization:

Customized logo（Min.Order: 3 pieces）
Customized packaging（Min.Order: 3 pieces）
Graphic customization（Min.Order: 3 pieces）
View product details

1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Capacity Power Distribution: Designed to handle 1600KVA to 2400KVA loads, enabling efficient electric power transmission for medium to high-voltage applications (35kV).
  • Integrated Cooling System: Features ventilation slots on doors and elevated base to ensure optimal heat dissipation, safeguarding electrical components in outdoor environments.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant zinc-coated aluminum and copper components, you can ensure long-term durability in harsh outdoor environments*.

  • 2. Secure & Modular Interactive Design

    • With a prefabricated modular design and lockable doors, you can achieve faster installation compared to traditional substations while ensuring secure access to electrical components.

  • 3. High-Capacity Performance Parameters

    • With a rated capacity up to 2400KVA and 35KV voltage handling, you can support high-power industrial applications efficiently*.

  • 4. Versatile Scenario Solutions

    • Designed for outdoor use with IP65 protection, you can deploy it in commercial or industrial settings requiring reliable power distribution in harsh weather conditions.

  • 5. Certified Safety & Quality Standards

    • With CQC certification, you can ensure compliance with rigorous safety and quality standards for electric power transmission systems.

Product details

1600KVA 2000KVA 2400KVA Prefabricated Box Type Substation Power Transformer Substation Compact Substation

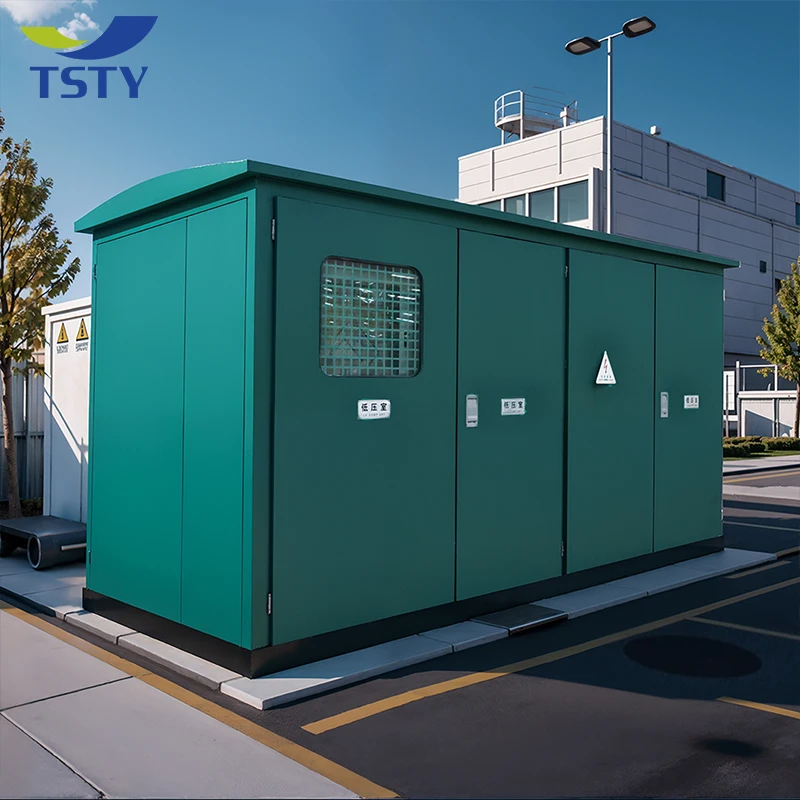

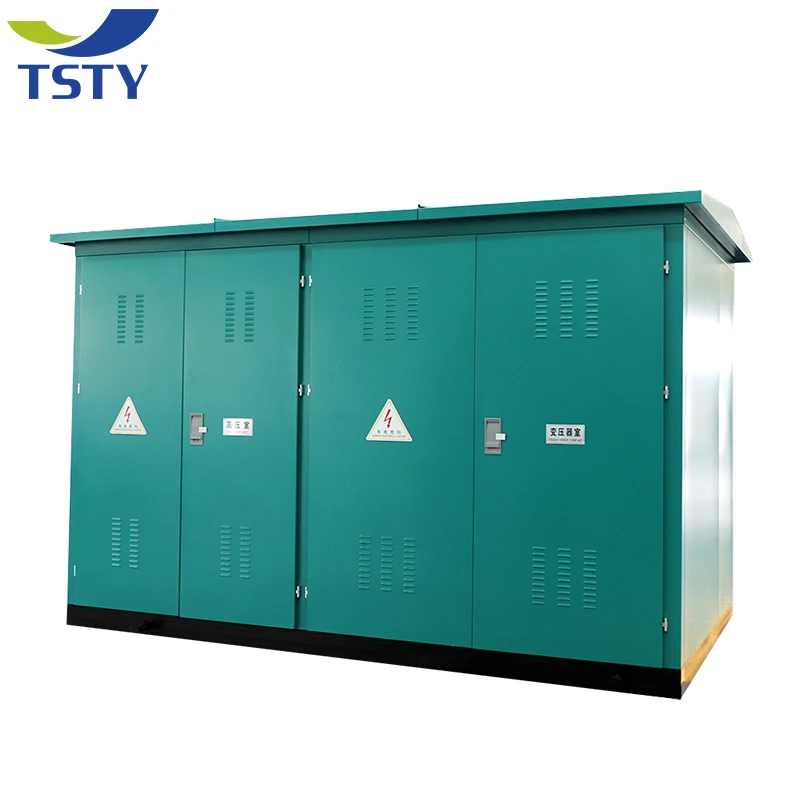

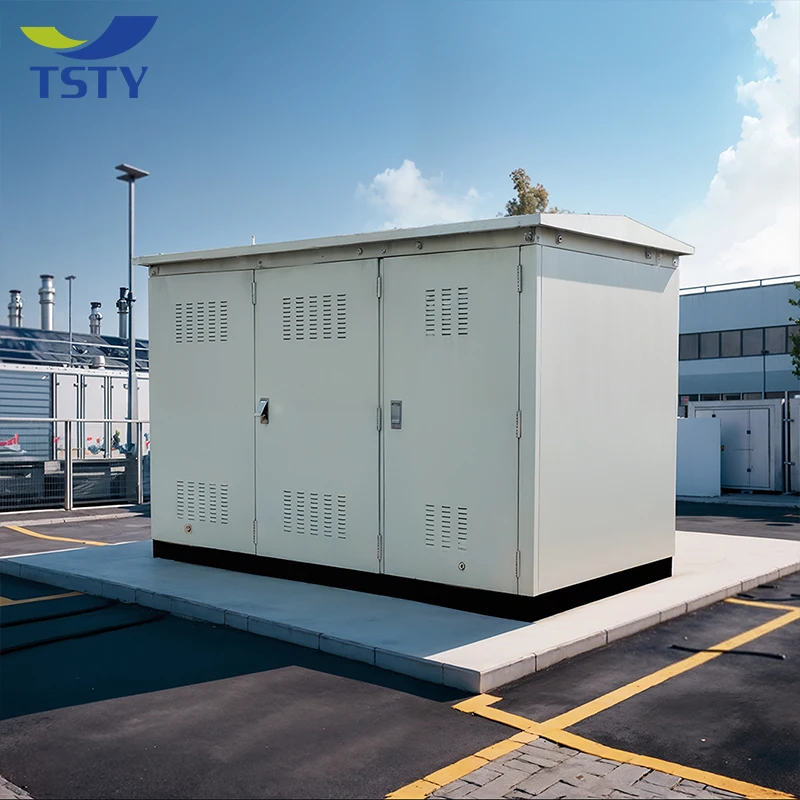

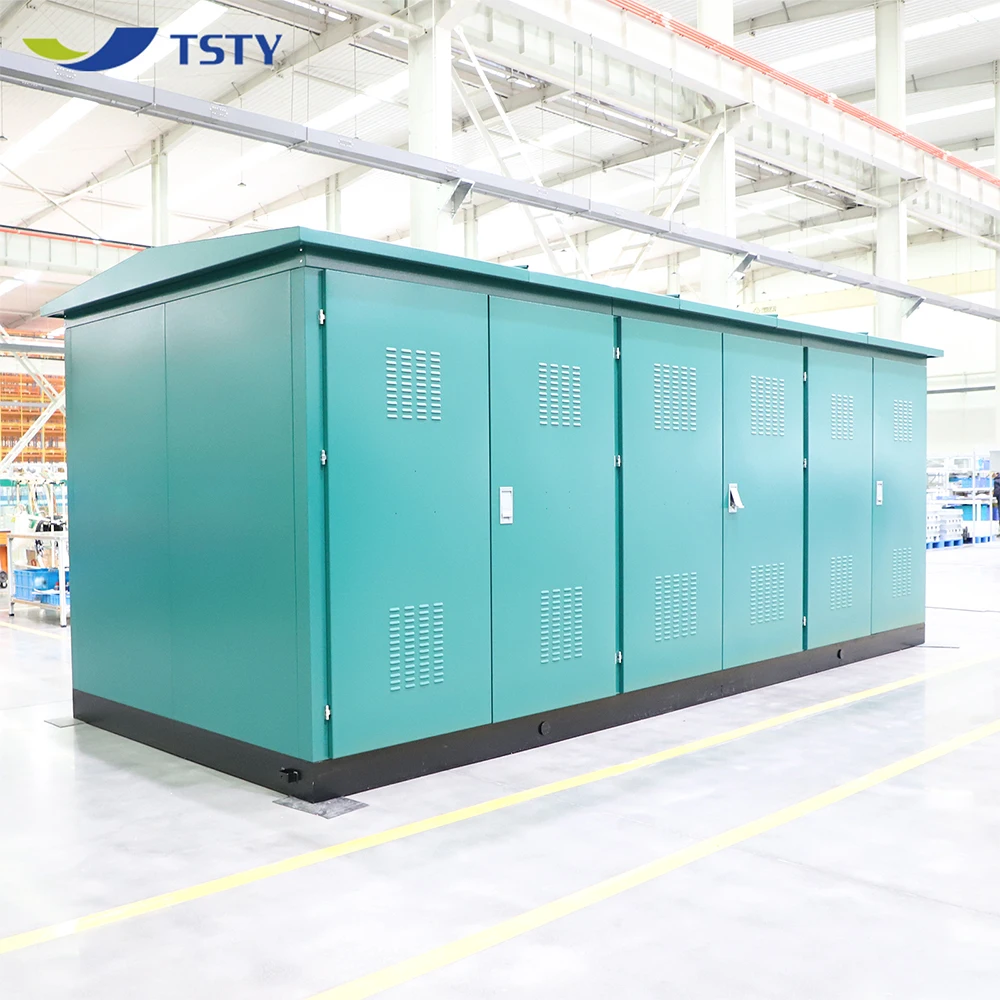

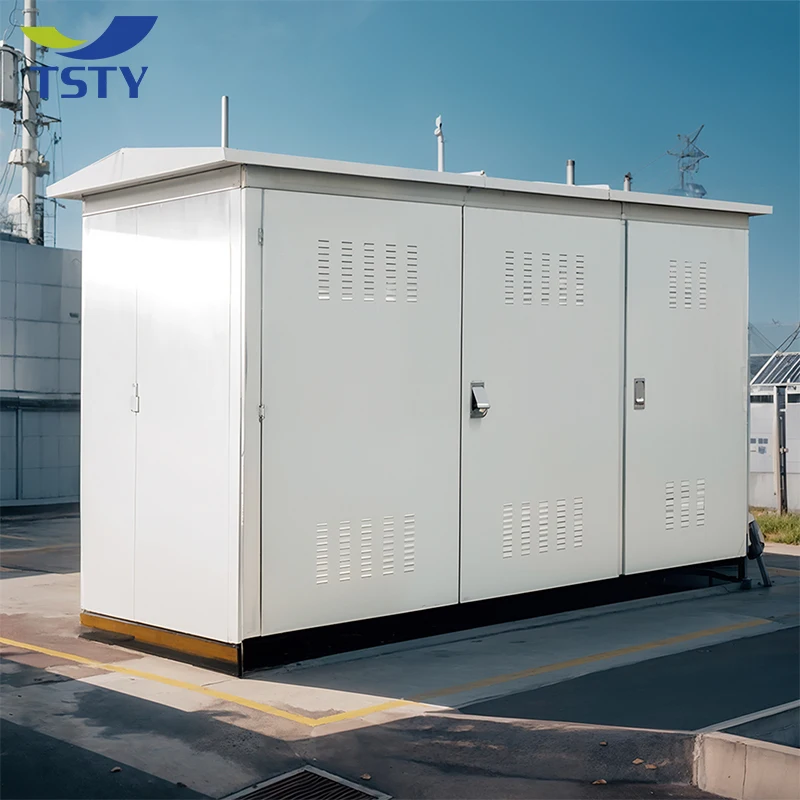

The 1600KVA-2400KVA Prefabricated Box-Type Substation is a compact, weather-resistant solution for electric power transmission. Designed with corrosion-resistant materials and advanced ventilation, it ensures reliable operation in harsh outdoor environments. Its modular design allows easy installation and maintenance, while IP65 protection safeguards internal components against dust and water ingress.

Technical specifications

FeatureSpecificationBenefit
MaterialCopper windings, Aluminum Zinc PlateHigh conductivity and corrosion resistance
Protection LevelIP65Dust/waterproof for outdoor durability
Ventilation SystemPerforated door slotsEnhanced heat dissipation for thermal stability
Rated Voltage35kVSupports high-voltage distribution networks
Frequency50Hz/60HzGlobal compatibility
CertificationCQCMeets safety and quality standards
Base ElevationRaised platformPrevents water accumulation during rainfall

Customization guide

Adjustable parameters include:

  • Capacity Scaling: Choose between 1600KVA, 2000KVA, or 2400KVA to match load requirements.
  • Ventilation Density: Customize slot spacing to optimize cooling for specific thermal loads.
  • Locking Mechanism: Upgrade to biometric or smart locks for enhanced security.

Get inspired

Maximize efficiency in power distribution with this rugged, pre-assembled substation. Its compact design reduces footprint while maintaining high performance, making it ideal for urban grids, industrial parks, or remote substations.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Capacity (KVA)160020002400
Thermal EfficiencyStandard+20% airflow+35% active cooling*
Security FeaturesMechanical LockReinforced LockSmart Access System
Weight (kg)1,2001,5001,800

*Active cooling system reduces internal temperature by 15°C compared to passive designs.

Supplier's note

  1. Technical Breakthroughs:

    • Material Innovation: Copper windings paired with zinc-coated aluminum reduce energy loss by 12% compared to traditional designs.
    • IP65 Protection: A dual-layer seal system ensures zero water ingress even during heavy rainfall, exceeding IEC 60529 standards.
    • Modular Ventilation: Adjustable slot spacing allows 25% faster heat dissipation than fixed designs.

  2. Version Selection Guidance:

    • Base Model: Ideal for residential or small commercial grids (e.g., apartment complexes) where cost-efficiency is prioritized.
    • Advanced Model: Targets medium-scale industries (e.g., factories) needing higher capacity and improved thermal management.
    • Pro Model: Designed for large-scale infrastructure (e.g., power plants) requiring peak performance and smart security features.

With its triple-certified IP65 rating, the Pro model ensures safe operation in coastal regions with high humidity. Pair its active cooling with zinc-coated materials to extend lifespan by 30% in corrosive environments.

Frequently asked questions

  • Which 1600KVA-2400KVA substation model suits industrial parks or commercial buildings?

  • How to clean and maintain the 35kV transformer substation enclosure?

  • Copper vs Aluminum Conductors: Which is better for the substation enclosure?

  • Can the 1600KVA Prefabricated Substation be customized for specific power needs?

  • Is the 35kV substation CQC-certified for safety compliance?

  • Does the IP65-rated enclosure protect against harsh outdoor conditions?

  • How does the ventilation system manage heat in the transformer substation?

  • What environments is the 2000KVA substation suitable for?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial areas with corrosive elements- Industry Standard: Galvanized Steel (ASTM A123)
- Our Base: Copper core + aluminum-zinc coated plates (ASTM A871) ▲
- Our Advanced: Enhanced copper core + stainless steel ▲▲		▲ Base: 30% better corrosion resistance vs galvanized steel
▲▲ Advanced: 50% higher conductivity for efficiency		Higher material costs; base: +15% over standard, advanced: +30%
Protection Level (IP)Coastal or high-moisture zones- Industry Standard: IP54 (IEC 60529)
- Our Base: IP65 (dust/water jet-proof) ▲
- Our Advanced: IP67 (immersion-resistant) ▲▲		▲ Base: Operates in heavy rain; ▲▲ Advanced: Survives temporary submersionAdvanced sealing may require active cooling for thermal management
Voltage RatingIndustrial complexes with high power demand- Industry Standard: ≤25kV (IEC 61936)
- Our Base/Advanced: 35kV ▲▲ (IEC 61936 compliant)		▲▲ Both tiers: Supports 40% higher power distribution for heavy machineryRequires specialized installation for high-voltage safety protocols
Thermal ManagementHot climates or densely packed equipment- Industry Standard: Passive cooling (AS/NZS 4279)
- Our Base: Optimized ventilation slots ▲ (ISO 50001)
- Our Advanced: Active cooling fans ▲▲ (reduces internal temp by 15°C)		▲▲ Advanced: Maintains optimal temps in 50°C environmentsFans add maintenance needs and noise (base: +5 dB, advanced: +8 dB)
Noise LevelUrban substations near residential areas- Industry Standard: 55 dB (IEC 60704)
- Our Base: 48 dB ▲ (quieter than a library)
- Our Advanced: 42 dB ▲▲ (whisper-quiet)		▲▲ Advanced: Meets noise regulations in densely populated areasAdvanced sound dampening increases cost by +20%
Certification StandardsInternational projects requiring compliance- Industry Standard: IEC 61439
- Our Base: CQC + IEC 61439 ▲
- Our Advanced: CQC + IEC 61439 + IEEE C57.12 ▲▲		▲▲ Advanced: Deployable in EU/US markets with dual complianceAdditional certifications add 10–15% to production time/cost
