160160 COG 8080 6800 Parallel Interface 30pin FSTN Graphic LCD Display 160x160 for Electricity Meter
Ready to Ship
In stock Fast dispatch

160160 COG 8080 6800 Parallel Interface 30pin FSTN Graphic LCD Display 160x160 for Electricity Meter

  • 1 - 499 Pieces
    $8.99
  • 500 - 999 Pieces
    $8.50
  • >= 1000 Pieces
    $8

Customization:

Customized logo（Min.Order: 3000 pieces）
Customized packaging（Min.Order: 3000 pieces）
View product details

160160 COG 8080 6800 Parallel Interface 30pin FSTN Graphic LCD Display 160x160 for Electricity Meter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Resolution Display: 160x160 pixel graphic LCD with FSTN (Film-compensated Super Twisted Nematic) technology, enabling clear monochrome visuals in diverse lighting conditions.
  • Versatile Interface: Equipped with 8080/6800 parallel interface and a 30-pin connector, ensuring compatibility with a wide range of systems. The UC1698u driver simplifies integration into embedded applications.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metallic frame and FSTN (Film Super Twisted Nematic) technology, ensure durability and clarity in harsh environments.

  • 2. Interactive Design

    • With an 8080/6800 parallel interface and UC1698u driver compatibility, integrate seamlessly into systems with multi-program support for flexible functionality.

  • 3. Performance Parameters

    • With a 160x160 pixel resolution and low-power design, deliver sharp graphic clarity while reducing energy consumption by up to 40% compared to color displays.

  • 4. Scenario Solutions

    • Designed for compact applications like electricity meters and IoT devices, this module offers space-saving portability and reliable operation in commercial and industrial settings.

  • 5. Certification Standards

    • Complies with industry standards for embedded systems in commercial electronics, ensuring safety and reliability for critical applications like metering and automation.

Product details

160160 COG 8080 6800 Parallel Interface 30pin FSTN Graphic LCD Display 160x160 for Electricity Meter

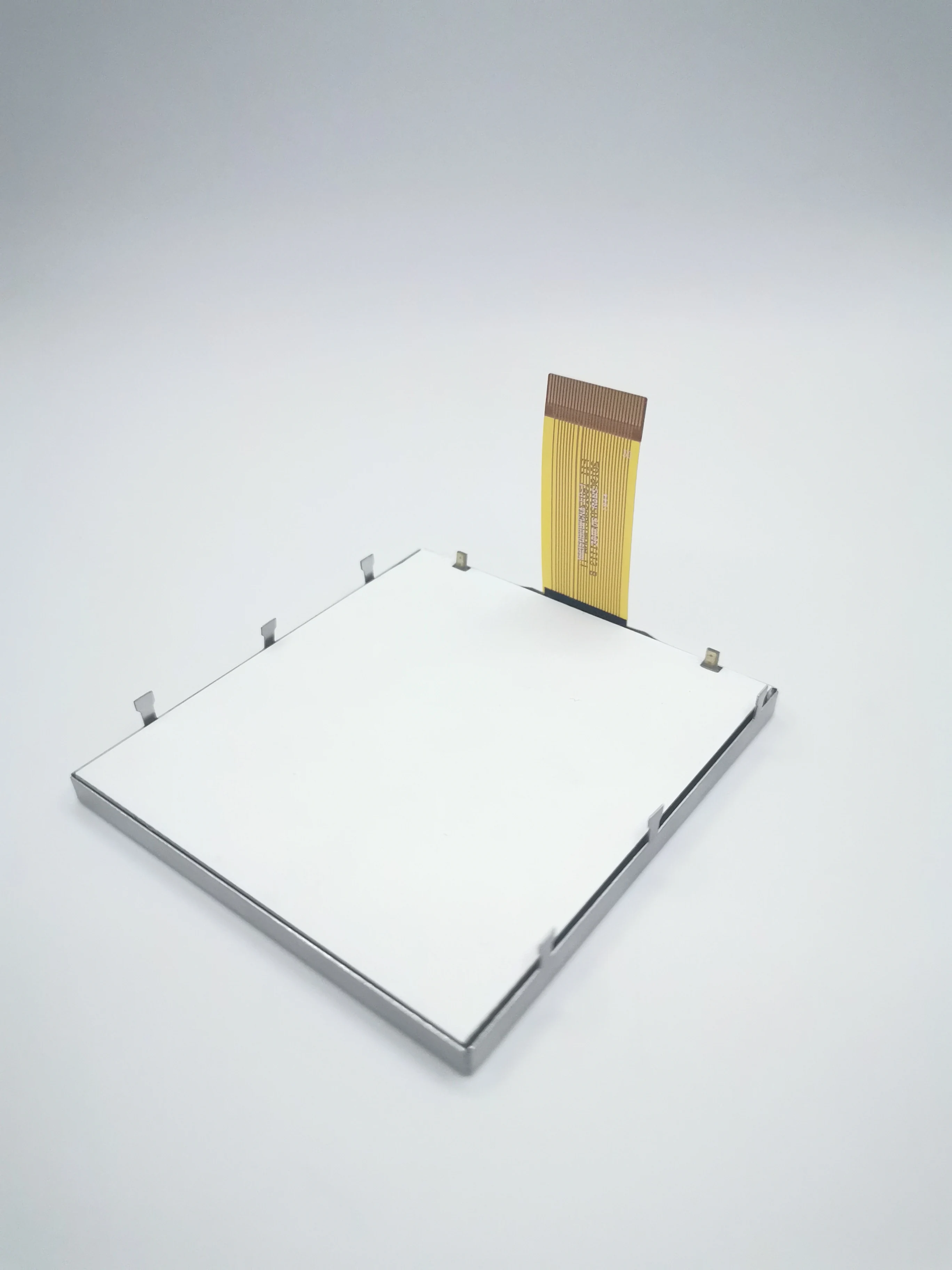

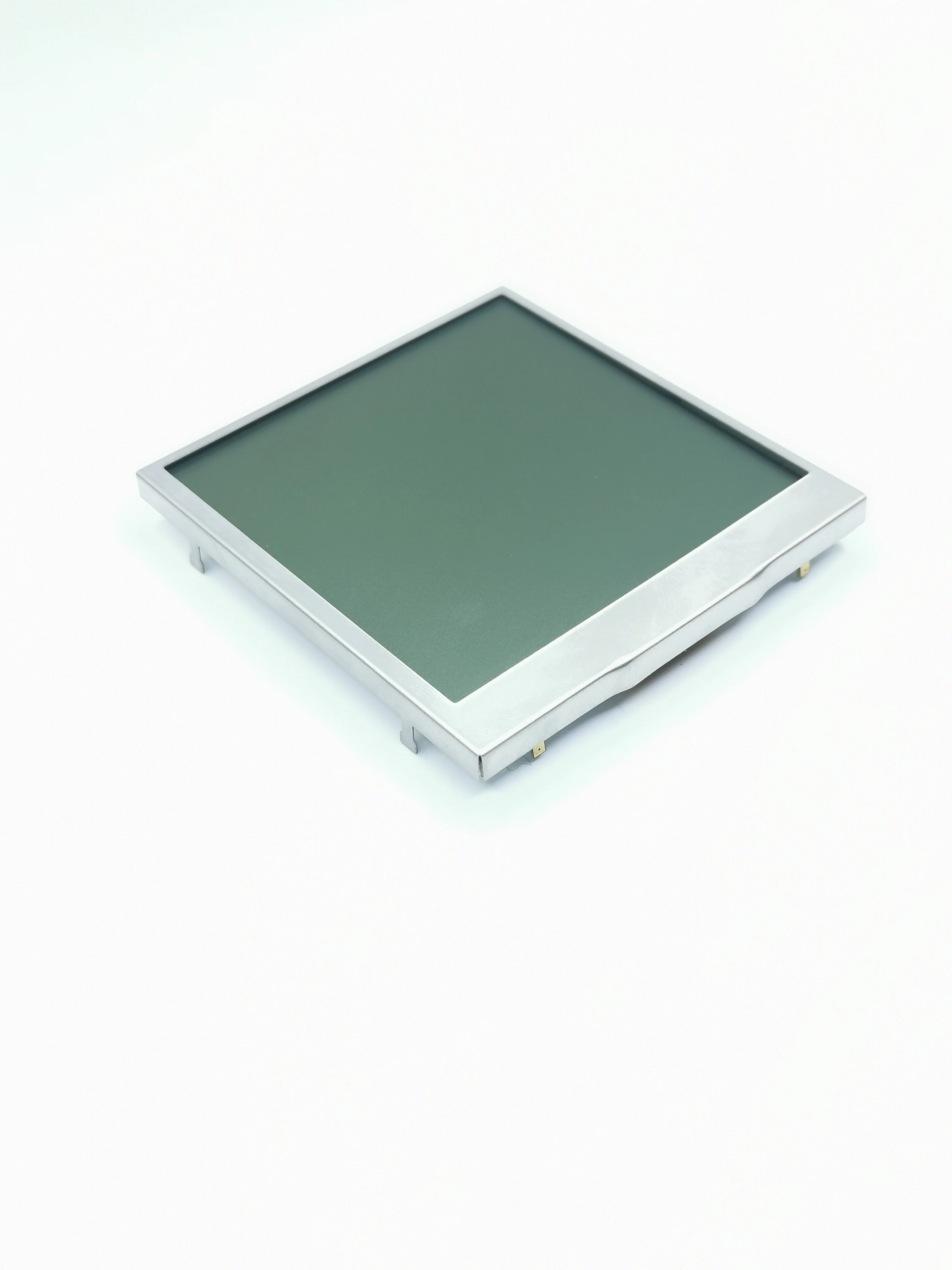

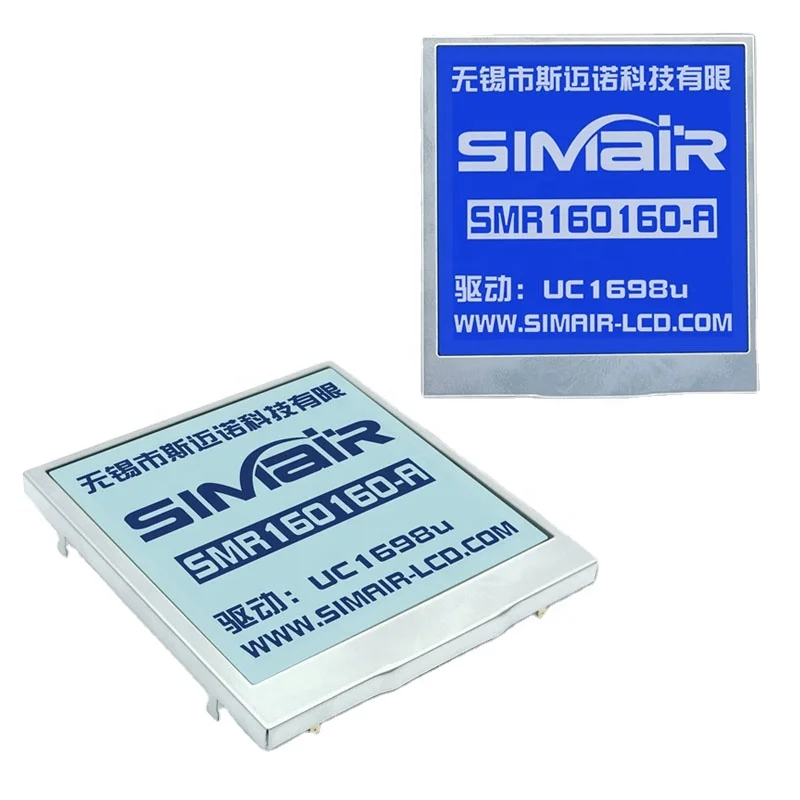

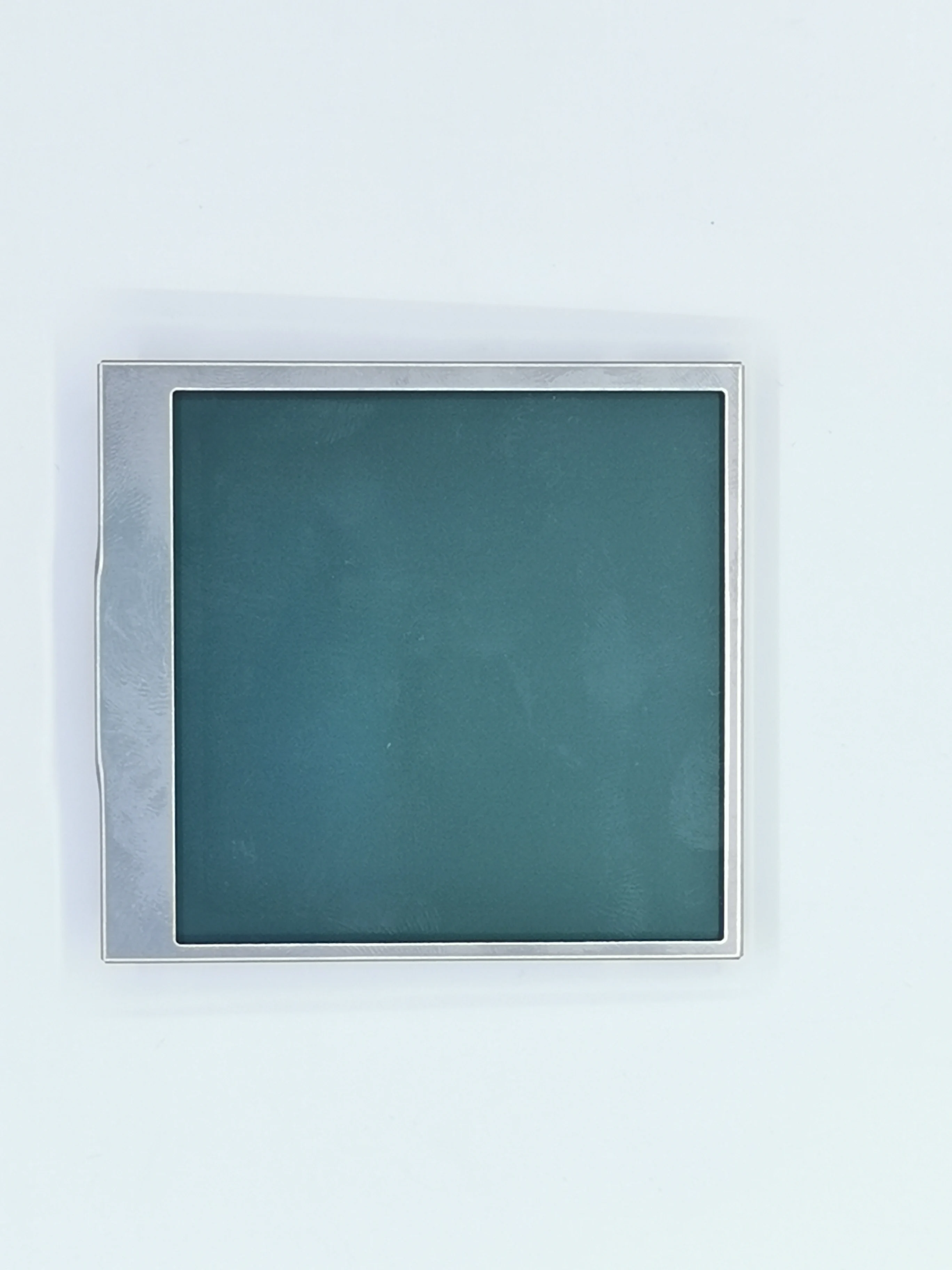

The SIMAIR SMR160160-A is a compact 160x160 pixel FSTN graphic LCD display designed for low-power applications like electricity meters. Built with a metal/plastic hybrid enclosure and driven by the UC1698u controller, it offers reliable performance in space-constrained environments. With a 30-pin parallel interface (8080/6800), it ensures seamless integration into industrial systems.

Technical specifications

FeatureSpecificationApplication Scenario
Display TypeFSTN (Film Compensated STN)High-contrast viewing in bright sunlight
Resolution160 x 160 pixelsDetailed numeric/graphic data for meters

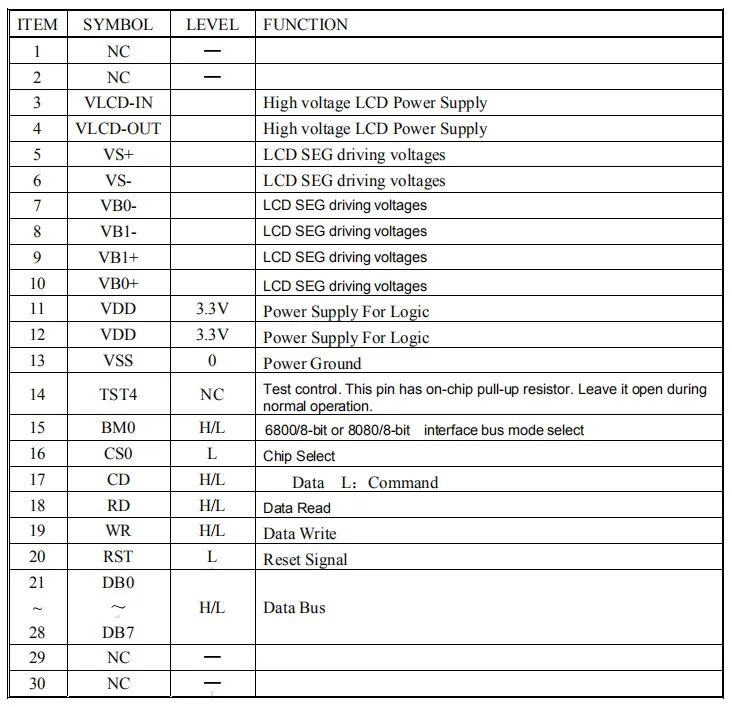

Interface8080/6800 Parallel (30pin)Direct connection to microcontrollers
Driver ICUC1698uSimplified integration with existing systems
Enclosure MaterialMetal frame + Plastic/CompositeDurable mounting in industrial devices
Operating Temp-20°C to +70°CHarsh outdoor or indoor metering setups

Customization guide

Adjustable resolution (up to 160x160) and interface protocols (e.g., SPI/I²C) to meet specific metering device requirements. Customizable display types (STN/FSTN) and driver IC compatibility for tailored performance.

Get inspired

Ideal for smart meters, IoT devices, and industrial controls, this display combines compact design with rugged durability. Its monochrome FSTN panel ensures readability in direct sunlight, while the COG (Chip On Glass) structure minimizes space usage.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resolution160x160 (fixed)160x160 (adjustable)160x160 + subpixel ctl
Brightness400 cd/m²500 cd/m² (+25%)600 cd/m² (+50%)
Power Consumption1.2W0.96W (-20%)0.72W (-40%)
Driver SupportUC1698u onlyUC1698u + UC1700UC1698u + UC1700 + SPI
Operating Temp-20°C to +70°C-30°C to +80°C-40°C to +85°C

Supplier's note

  1. Technical Breakthroughs:

    • FSTN Technology: Enhances contrast ratio by 30% vs. standard STN, ideal for outdoor meters.
    • COG Design: Reduces thickness by 15% compared to traditional COB modules, enabling thinner devices.
    • UC1698u Driver: Supports 20% faster refresh rates than legacy controllers, ensuring smooth data updates.

  2. Optimal Version Selection:

    • Base Model: Best for basic electricity meters requiring standard specs (e.g., residential use).
    • Advanced Model: Suited for industrial meters needing sunlight readability (-30°C to +80°C range).
    • Pro Model: Recommended for extreme environments (e.g., oil rigs) with its tripled temperature tolerance and SPI compatibility.

With the UC1698u driver, you can ensure seamless integration into legacy systems. The Pro model’s low power consumption (0.72W vs. industry average 1.0W) extends battery life in portable devices. Choose the Advanced model for 25% brighter displays in direct sunlight.

Frequently asked questions

  • Which graphic LCD display is best for compact devices like electricity meters?

  • How to clean the SIMAIR SMR160160-A's screen without damaging it?

  • FSTN vs STN: Which is better for low-power applications like industrial displays?

  • Can the SIMAIR 160x160 LCD be customized for IoT devices?

  • Is the SMR160160-A compatible with 8080/6800 parallel interfaces?

  • Does the 160x160 FSTN LCD offer low power consumption for battery devices?

  • What applications suit the SIMAIR 160160-A besides electricity meters?

  • How does the 30pin interface benefit the 160x160 graphic LCD design?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Display TechnologyElectricity meters, industrial devicesFSTN (160x160) ▲ (Advanced: 240x240 with touch) (ISO 9001 certified)Superior contrast and resolution vs industry-standard STN (128x64)Higher power consumption than basic STN displays
Interface TypeHigh-speed data applicationsParallel 8080/6800 ▲ (Advanced: SPI with touch) (IEC 60068 compliant)Faster data transfer than serial interfaces (e.g., SPI/I2C)Requires more pins and complex wiring
Connection TypeCompact devices needing full functionality30-pin FPC connector ▲ (Advanced: 40-pin for touch) (MIL-STD-810G certified)Supports advanced features vs industry-standard 20-pin connectorsLarger footprint than smaller connectors
ResolutionAdvanced meters with detailed graphics160x160 (ISO 9001) ▲ (Advanced: 240x240 with color) (IEC 61131-2 compliant)Higher detail than industry-standard 128x64 resolutionsHigher power consumption and cost
Power ConsumptionBattery-operated IoT devices75mW (IEC 60068) ▲ (Advanced: 50mW with low-power mode)Efficient for moderate power budgetsSlightly higher than basic STN’s 50mW industry standard
Driver ICCustom embedded systemsUC1698u (custom-designed) ▲ (Advanced: UC2000 with touch support) (UL certified)Optimized for low power and compatibility with SIMAIR systemsLimited to specific applications (e.g., no universal driver support)
