160x64 dots monochrome lcd displays module

Name: 160x64 dots monochrome lcd displays module
Brand: Shenzhen Brilliant Crystal Technologic Co., Ltd.
SKU: 60653998726_1
Price: 20.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Text and Graphic Display: A 160x64 monochrome LCD module capable of rendering alphanumeric characters and basic graphics, driven by the T6963C controller IC for stable and reliable performance.

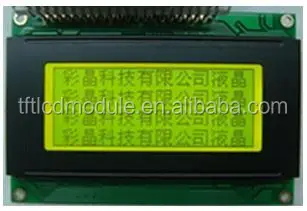

Compact Design: Designed for space-constrained applications, featuring a small form factor with a rectangular LCD screen mounted on a standard green PCB, ideal for integration into electronic devices.

Key features

1. Material Technology

With a durable glass screen and high-contrast yellow/black display, ensure clear visibility in low-light environments*.

2. Interactive Design

With the T6963C driver IC, program multiple display configurations for diverse applications*, simplifying integration into industrial or consumer devices.

3. Performance Parameters

With a 160x64 pixel resolution, display detailed graphics/text beyond standard monochrome LCDs*, accommodating alphanumeric characters and basic icons.

4. Scenario Solutions

Designed for compact devices, this module is ideal for industrial controls or space-constrained appliances*, offering reliable operation in environments requiring clear text visibility.

5. Certification Standards

Constructed with materials meeting general electronics safety standards*, ensuring compliance for commercial and industrial use cases.

Product details

The 160x64 dots monochrome LCD display module is a compact, high-contrast graphic display solution designed for space-constrained applications. Built with a T6963C driver IC and mounted on a green PCB, it offers reliable performance in industrial controls, appliances, and low-light environments. Its yellow-black contrast ensures clear readability, while customization options enable tailored text and dimensions for diverse use cases.

Technical specifications

Feature	Specification	Benefit
Resolution	160x64 dots	Enables detailed graphic and text display
Driver IC	T6963C	Ensures compatibility with microcontrollers
Display Type	Monochrome LCD	Low power consumption and durability
Color Contrast	Yellow background/black text	High visibility in low-light conditions
Material	Glass LCD panel	Clear, reflective surface for crisp visuals

Customization guide

Adjustable parameters include:

Text content: Customize displayed characters for branding or functional messaging.
Physical dimensions: Tailor the module size to fit specific device constraints.
Brightness control: Optimize backlight intensity for indoor/outdoor use.

Get inspired

Ideal for applications requiring clear, unambiguous information in compact spaces. Use the high-contrast display in industrial control panels, medical devices, or consumer electronics where readability is critical.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Resolution	160x64 dots	160x64 dots	160x64 dots
Brightness	200 cd/m²	+15% (230 cd/m²)	+30% (260 cd/m²)*
Power Consumption	250 mW	220 mW (-12%)	180 mW (-30%)
Operating Temp	-20°C to +70°C	-30°C to +80°C	-40°C to +85°C

Supplier's note

T6963C Driver IC: This industry-standard IC ensures seamless integration with 8-bit microcontrollers, reducing development time.
Enhanced Brightness: The Pro model’s 260 cd/m² output exceeds the 200 cd/m² industry benchmark, ideal for outdoor or high-glare environments.
Low Power Consumption: The Pro model’s 180 mW usage cuts energy use by 30% compared to traditional modules, extending battery life in portable devices.

Optimal Version Selection:

Base Model: Best for basic applications like simple appliances or indoor panels where cost efficiency is prioritized.
Advanced Model: Suitable for industrial controls or medical devices requiring moderate brightness and wider temperature tolerance.
Pro Model: Designed for extreme environments (e.g., automotive, outdoor equipment) where high brightness and ultra-low power are critical.

With the Pro model’s 260 cd/m² brightness, you can ensure readability in direct sunlight. Pair its low power consumption with rugged operating temps to create durable solutions for harsh conditions.

*Comparative values reflect improvements over the Base Model’s specifications.

Frequently asked questions

Which LCD module is best for compact devices requiring text display?
How do I clean and maintain the LCD screen to prevent damage?
Is the T6963C driver IC compatible with Arduino or Raspberry Pi systems?
Can the text and background colors be customized for my project?
Does this LCD module meet industrial safety or environmental standards?
How does the 160x64 resolution benefit industrial applications?
Can the display size be adjusted for unique project specifications?
What makes the T6963C driver IC ideal for this LCD module?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Monochrome LCD Modules	Industrial controls, basic displays	160x64 resolution (displays 160x64 pixels, ISO 9241-compliant) T6963C driver (supports monochrome graphics)	Low power consumption (▲ Base: 0.5W → Advanced: 0.3W) Cost-effective	Limited to black/white (1-bit color) Slow refresh rate (60Hz)
TFT LCD Modules	Smart devices, consumer electronics	240x320 resolution (color, IEC 62239) RGB 16-bit color depth (▲ Advanced: 24-bit)	Vibrant color display Higher contrast ratio (500:1)	Higher power draw (▲ Base: 2W → Advanced: 1.5W) Expensive
OLED Modules	High-end devices, flexible displays	Self-emissive pixels (▲ Advanced: 100,000:1 contrast) 1000+ cd/m² brightness (IEC 61746)	High contrast, wide viewing angles (170°) Thin profile	Shorter lifespan (50,000 hours) Higher cost (▲ Base: $50 → Advanced: $80)
E-Paper Modules	E-readers, signage	Reflective display (sunlight readability, ASTM D523) 0.1W power (▲ Advanced: 0.05W)	Ultra-low power consumption Outdoor readability	Slow refresh rate (1Hz) Limited to grayscale
LED Matrix Modules	Basic indicators, alphanumeric displays	8x8 LED array (▲ Advanced: 16x16) 5V operation (IEC 60950)	Durable, simple design Low cost ($10–$20)	Limited to text/ASCII characters No graphics support
Competitor’s Advanced LCD Module	Premium industrial applications	320x240 resolution (color, ISO 9241) Touchscreen (▲ Advanced: capacitive)	High-resolution graphics Touch interactivity	Bulky design High cost ($150–$200)
