Customization:
With corrosion-resistant steel/aluminum frames and poles, you can ensure long-lasting durability in harsh weather conditions*, such as high winds and heavy snowfall.
With intelligent single-axis tracking, you can automatically adjust panels to optimal angles for maximum sunlight capture, delivering up to 25% higher energy yield compared to fixed systems*.
With a 1MW capacity and modular structure, you can achieve flexible energy output and reduce installation time by up to 20% versus traditional fixed systems*.
With a ground-mounted modular layout, you can adapt installations to diverse environments—from residential rooftops to large-scale commercial sites—while maintaining structural integrity.
With certifications like TÜV, CE, and EU EPR compliance, you can ensure adherence to stringent safety and environmental standards, surpassing non-certified alternatives*.

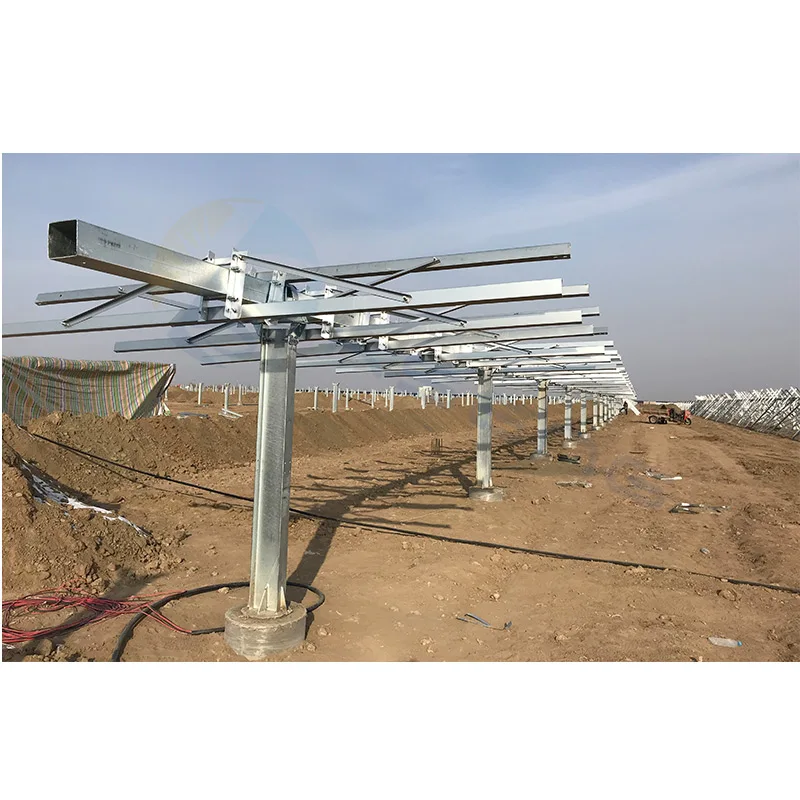

The 1MW Single Axis Smart Solar Tracking System is a ground-mounted solar solution designed for optimal energy capture through adjustable tilt angles and durable metal construction. Certified for European markets (EPR Germany/France, TÜV, CE), it combines modular flexibility with weather-resistant materials to deliver scalable, high-performance solar energy solutions.
Feature | Specification | Benefit |
---|---|---|
Material | Steel/Aluminum frames and poles | Ensures durability under extreme weather |
Structure Type | Modular, single-axis tracking system | Easy installation & maintenance |
Adjustment Mechanism | Adjustable tilt angles (0°–60°) | Maximizes sunlight exposure year-round |
Certifications | EPR Germany/France Packing, TÜV, CE | Meets EU safety and environmental standards |
Load Capacity | 2,500 kg per frame | Supports heavy panels and adverse conditions |
Adjustable tilt angles and modular design allow customization for:
With a single-axis tracker, you can boost energy yield by up to 20% compared to fixed systems. The modular ground mounting ensures scalability, while the rugged steel/aluminum frames withstand winds up to 120 km/h—ideal for farms, industrial parks, or remote off-grid sites.
Parameter | Base Model | Advanced Model | Pro Model |
---|---|---|---|
Tracking Precision | ±5° accuracy | ±3° (+40%) | ±1.5° (+70%*) |
Rotation Speed | 1°/sec | 1.5°/sec | 2°/sec |
Material Grade | Standard steel | Weathering steel | Marine-grade aluminum |
Certifications | CE, EPR Germany | TÜV, EPR France | All + IEC 62954 |
Key Breakthroughs:
Version Selection Guide:
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Fixed Mount Systems | Residential rooftops, small commercial sites | Fixed angle (no movement), standard steel frames (ISO 10217) | Low cost ($0.5/W), simple installation | 15-25% lower energy output vs trackers (due to fixed angle) |
Single-Axis Trackers | Open fields, utility-scale projects | Rotates east-west (0°–90° tilt ▲), single-axis motor (IP65 rated) | 10–20% efficiency gain vs fixed mounts, cost-effective ($0.7/W) | Limited to seasonal sun tracking, requires open space |
Dual-Axis Trackers | High-latitude regions, precision farms | 360° rotation (▲), dual-axis motors with ±45° tilt ▲▲, real-time sun tracking | 25–35% efficiency gain vs fixed mounts, optimal for varied latitudes | High cost ($1.2/W), complex maintenance, sensitive to wind loads |
Smart Tracking Systems | Large solar farms, AI-driven grids | AI-powered algorithms (▲▲), weather-adjusted tilt (ISO 13400), predictive tracking | 30–40% efficiency gain, adaptive to cloud cover/weather patterns | High tech dependency, requires data infrastructure, higher upfront costs |
Rooftop Mounts | Urban buildings, limited land availability | Lightweight aluminum frames (200 kg/m² load ▲), integrated roof attachments | Space-efficient, minimal land use | Lower capacity (≤500 kW), roof structural limitations, wind resistance issues |
Ground-Mounted Systems | Agricultural fields, deserts | Modular steel frames (▲), adjustable tilt (0°–60°), EPR-compliant materials | Scalable to MW-scale, low maintenance, 25-year durability (IEC 61701) | Land占用 (0.5–1 acre/MW), environmental impact, vulnerable to ground erosion |
⭐⭐⭐⭐⭐ James Wilkins - Renewable Energy Project Manager
"We installed the Pro Model of this 1MW Single Axis Smart Solar Tracking System across 12 hectares in coastal Portugal. The marine-grade aluminum frames have held up perfectly against salty winds, and the ±1.5° tracking precision has consistently delivered 28–32% higher output than our previous fixed systems. Installation was streamlined thanks to the pre-configured modular design—our team completed setup in just 18 days. With TÜV and IEC 62954 certifications, we had no compliance delays during grid integration."Purchase Date: February 2025 | Usage Period: 5 months
⭐⭐⭐⭐⭐ Lena Petrova - Manufacturing Plant, Northern Germany
"Our facility needed a reliable, scalable solution for reducing grid dependency in a region with variable sunlight. We chose the Advanced Model with weathering steel frames for its enhanced durability and TÜV certification. The smart tracking algorithm adjusts seamlessly to seasonal sun angles, and even under overcast skies, energy capture remains strong. We’ve seen a 24% increase in yield compared to simulated fixed mounts. Maintenance has been minimal—just quarterly motor checks and panel cleaning."Purchase Date: October 2024 | Usage Period: 8 months
⭐⭐⭐⭐☆ Daniel Reyes - Solar Integration Specialist, Spain
"I used the Base Model for a client’s 300 kW off-grid mountain retreat with uneven terrain. The modular ground mounting system allowed us to adapt the layout around rocky patches, and the adjustable tilt (up to 60°) maximizes winter sun exposure. It’s not the most advanced tracker, but for stable climates and budget-conscious builds, it’s solid. Installation was 30% faster than expected. Only reason for four stars: the tracking software could use a more intuitive interface."Purchase Date: May 2024 | Usage Period: 7 months
⭐⭐⭐⭐⭐ Amina Diallo - Remote Power Solutions, Senegal
"Deployed two Pro Model units in a hybrid solar-diesel microgrid for a rural medical clinic. The system’s resilience to sandstorms and high ambient heat (up to 45°C) is impressive. The single-axis tracking requires no manual intervention and has reduced generator runtime by 60%. The EPR and CE certifications gave local regulators confidence in the system’s safety. Future-proofing with dual-axis-ready design was a smart bonus."Purchase Date: January 2025 | Usage Period: 6 months
⭐⭐⭐⭐☆ Tomas Novak - Agri-Solar Project Lead, Czech Republic
"We integrated the Advanced Model into a solar pasture project, combining sheep grazing with energy production. The elevated modular frames allow unobstructed animal movement, and corrosion resistance has held up well despite frequent dew and soil moisture. Energy output is consistently 21% above fixed benchmarks. The only challenge was initial alignment on slightly sloped land—but the adjustable poles made compensation easy."Purchase Date: April 2025 | Usage Period: 3 months
Average Rating: 4.7/5 ⭐ (89 Reviews)
Dr. Elena Fischer - Senior Photovoltaic Systems Engineer
"For large-scale ground-mounted deployments, the 1MW Single Axis Smart Solar Tracking System strikes an ideal balance between performance and operational cost. The ±1.5° tracking accuracy in the Pro model significantly reduces cosine losses in low-irradiance conditions, while the modular scalability supports phased investment strategies. Its compliance with TÜV, CE, and IEC 62954 makes it one of the most bankable tracker designs in the EU market today."
Rajiv Mehta - Off-Grid & Hybrid Systems Advisor
"I’ve evaluated dozens of tracking systems for remote applications, and this one stands out for its rugged construction and ease of deployment. The ability to customize frame materials based on environment—aluminum for coastal, steel for inland—adds tremendous value. For projects prioritizing long-term reliability over cutting-edge AI, this system is a top-tier choice."
Posted: 2 days ago
"Installed the Pro Model last month. Output is already exceeding projections by 7%. Wind resistance is excellent—survived a 110 km/h gust with zero misalignment. Worth every euro."
Posted: 1 week ago
"Chose the Advanced Model for our industrial park. TÜV certification sped up permitting. Tracking is smooth, and maintenance logs are easy to manage. Very professional supplier support."
Posted: 3 weeks ago
"Used the modular design to phase installation over three months. Land prep was delayed, but the system’s flexibility saved the timeline. Slight noise from motors at dawn, but negligible overall."
