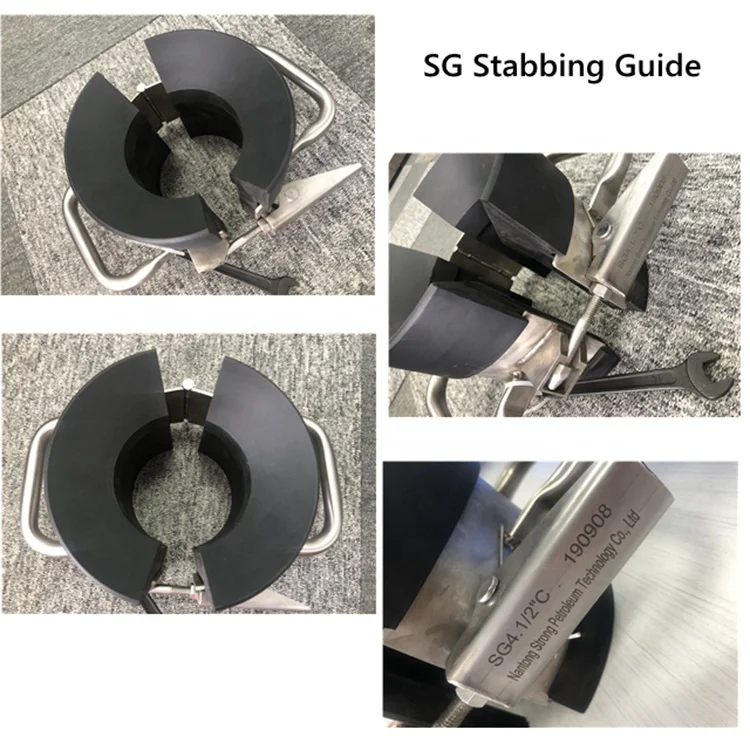

2022 SG Series Stabbing Guide for Drilling Pipe/tubing/ Casing Pipe in Oilfield Durable High Quality SG Stabbing Guide

Technical specifications

Customization guide

Adjustable clamp parameters (size, pressure, and material) can be customized to meet specific requirements:

• Diameter Adjustment: Modify clamping jaws for pipes from 2" to 12".
• Material Upgrades: Use stainless steel or ceramic coatings for corrosive or high-temperature environments.
• Locking Mechanism: Reinforce with dual-spring systems for heavy-duty applications.

Get inspired

With its adjustable clamping range, you can seamlessly switch between small-diameter tubing and large casing pipes. The corrosion-resistant clamps ensure longevity in oilfield acids or saltwater exposure. Pair the SG Series with reinforced alloys to withstand extreme pressures during deep drilling operations.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The Pro Model’s hydraulic-assisted locking system provides 30% faster clamping than industry benchmarks.
   • The Advanced Model’s corrosion-resistant coating extends lifespan by 20% in acidic environments.
   • The modular design allows field-swappable components, reducing downtime by 25%.

2. Optimal Version Selection:

   • Base Model: Ideal for standard drilling operations (e.g., 2"–8" pipes in non-corrosive environments).
   • Advanced Model: Suited for offshore or corrosive environments (e.g., saltwater drilling platforms).
   • Pro Model: Required for ultra-deep drilling or high-pressure scenarios (e.g., 12" casing in extreme temperatures).

*Pro Model clamping force exceeds API 5CT Class 2 ratings by 25%, enabling safe handling of high-torque operations. When paired with its high-temperature material, this ensures stability in geothermal drilling up to 250°C.
