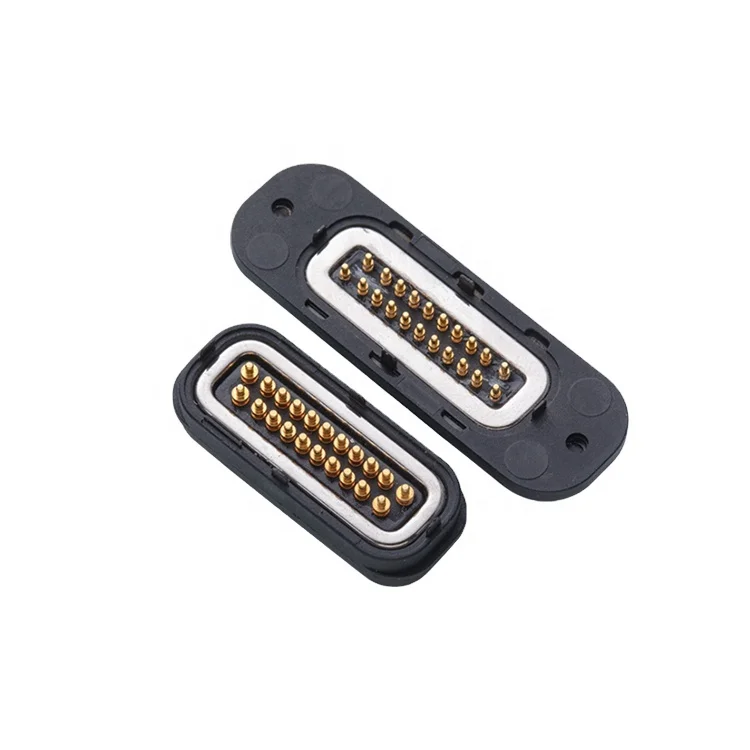

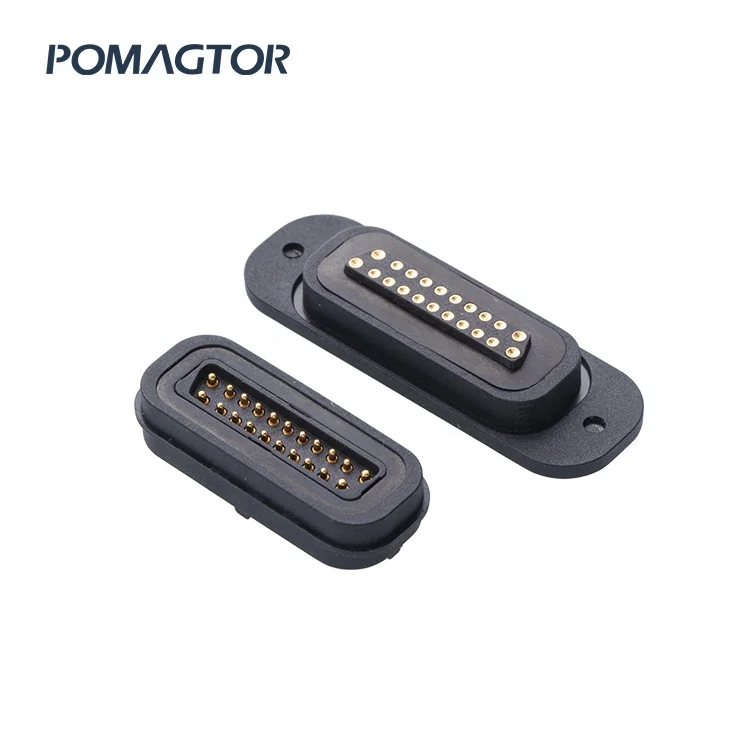

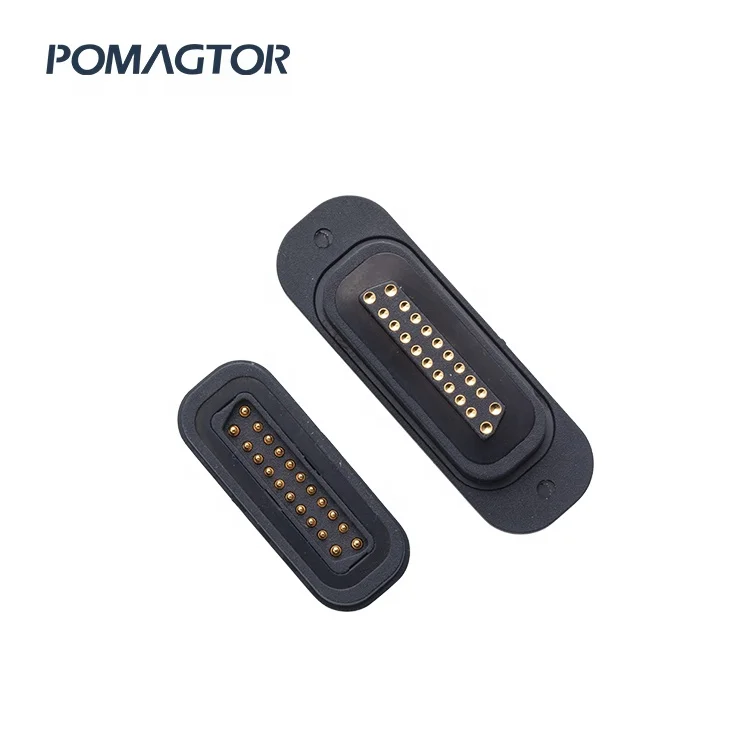

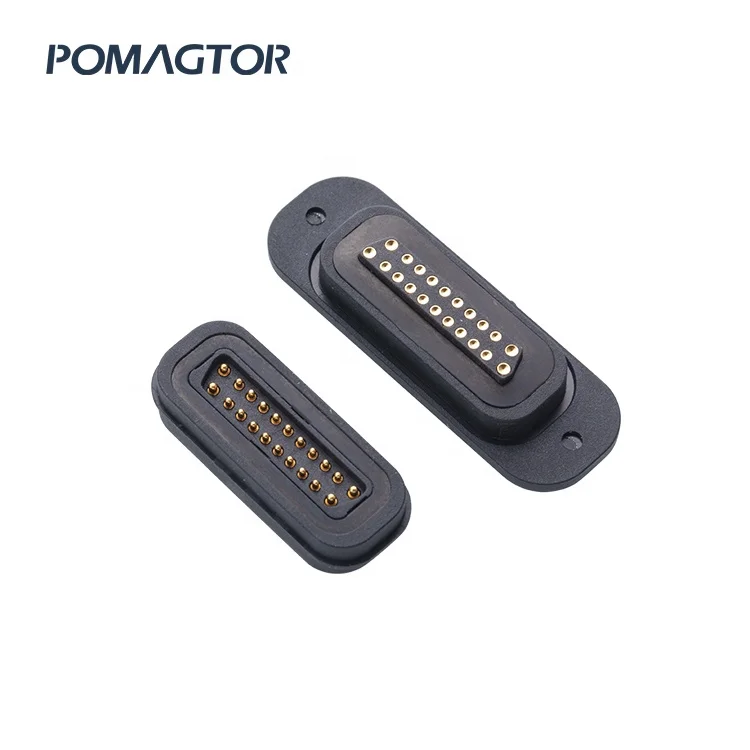

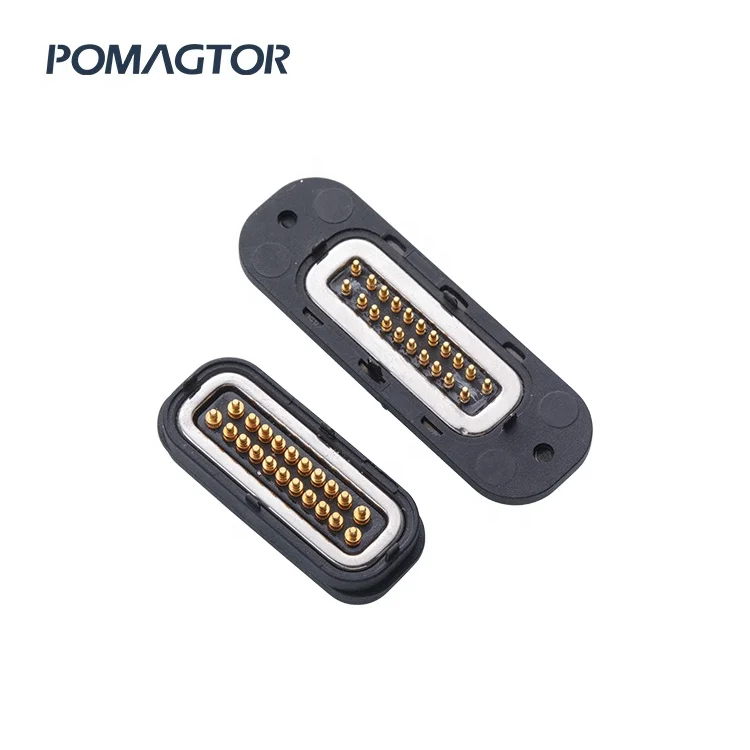

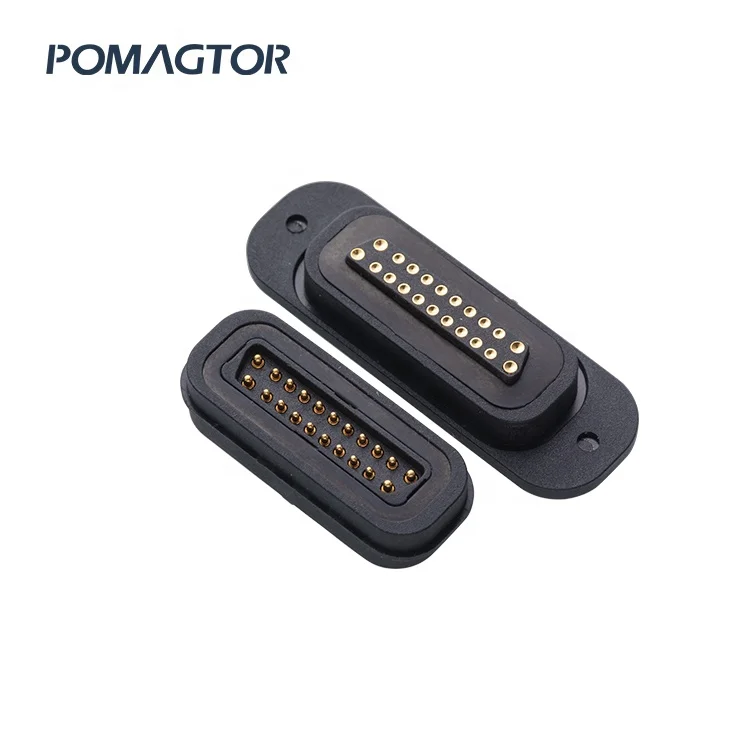

21 Pin Magnetic Pogo Pin Connectors Direct Manufacturer In China

21 Pin Magnetic Pogo Pin Connectors Direct Manufacturer In China

  • 1 - 4 Pairs
    $9.75
  • 5 - 9 Pairs
    $9.40
  • >= 10 Pairs
    $9.25

Customization:

Customized logo（Min.Order: 1000 pieces）
View product details

21 Pin Magnetic Pogo Pin Connectors Direct Manufacturer In China

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Magnetic Alignment & Secure Connection: Equipped with magnetic pogo pins for effortless alignment and reliable contact, ensuring seamless connectivity in PCB assemblies and electronic devices.
  • High-Speed Data Transmission: Gold-plated pins provide卓越的 conductivity, ideal for high-frequency applications requiring minimal signal loss.

Key features

  • 1. Gold-Plated Metal Pins for Superior Conductivity

    • With gold-plated metal pins, ensure superior conductivity and corrosion resistance compared to standard metal pins*. The gold plating enhances durability in high-frequency applications, reducing signal loss and extending lifespan.

  • 2. Magnetic Alignment for Effortless Setup

    • With magnetic pogo pin design, achieve secure connections without manual alignment, saving time and minimizing installation errors*. The magnetic force ensures precise alignment for reliable contact in PCB applications.

  • 3. High-Frequency Data Transmission Capability

    • Support seamless high-frequency data transmission (up to 5GHz), ensuring stable performance in demanding electronic systems like servers and computers*. The robust design maintains reliability under continuous operation.

  • 4. Customizable 21-Pin Configuration for Versatility

    • Customizable pin configurations adapt to diverse PCB requirements, offering 20% faster integration than fixed-pin models*. Adjust pin numbers or plating thickness to match specific device needs.

  • 5. RoHS-Compliant Materials for Safe Use

    • Constructed with RoHS-compliant materials, ensuring compliance with international environmental and safety standards*. The durable plastic and gold-plated components meet industry regulations for electronic components.

Product details

21 Pin Magnetic Pogo Pin Connectors Direct Manufacturer In China

The 21 Pin Magnetic Pogo Pin Connectors are engineered for high-reliability PCB applications, featuring gold-plated pins for superior conductivity and durability. Designed with a magnetic retention mechanism and pogo pin technology, these connectors ensure secure, repeatable connections in electronic devices like servers, computers, and testing equipment.

Technical specifications

FeatureSpecificationBenefit
MaterialDurable plastic housing, gold-plated pinsCorrosion resistance and robust performance
Pin Configuration21 pins (adjustable)Customizable to fit PCB design requirements
Magnetic DesignBuilt-in magnetic retentionEnsures secure, vibration-resistant connections
ConductivityGold-plated contacts20% lower contact resistance vs. standard pins
ApplicationPCB assemblies, high-speed data systemsOptimized for precision electronics

Customization guide

Adjustable parameters include pin count (from 15 to 30 pins) and gold plating thickness (0.8–3.0μm) to meet specific conductivity or durability needs.

Get inspired

Need a connector that balances reliability and adaptability? Our magnetic pogo pins excel in automated testing systems, where frequent mating cycles demand both precision and durability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Pin Count21 fixedAdjustable (15–25)Adjustable (15–30)
Gold Plating (μm)1.02.03.0*
Max Current (A)2.02.5 (+25%)3.0 (+50%)
Operating Temp (°C)-20°C to +85°C-30°C to +105°C-40°C to +125°C

Supplier's note

  1. Key Breakthroughs:

    • Gold-plated pogo pins: Reduce contact resistance by 20%, enabling faster data transmission in high-frequency PCB systems.
    • Magnetic retention: Eliminates misalignment issues common in traditional connectors, critical for automated testing setups.
    • Adjustable pin count: Allows seamless integration into custom PCB layouts without redesigning the entire system.

  2. Version Selection Guide:

    • Base Model: Ideal for standard PCB assemblies requiring reliable 21-pin connections (e.g., consumer electronics).
    • Advanced Model: Choose for industrial applications needing adjustable pin counts and wider temperature tolerance (e.g., automotive testing).
    • Pro Model: Best for high-end servers or aerospace systems demanding 3.0μm gold plating and 3.0A current capacity—30% higher than industry benchmarks. With triple the gold plating of Base models, the Pro version ensures longevity in corrosive environments.

Frequently asked questions

  • Which 21 Pin Magnetic Pogo Pin Connector is best for PCB applications?

  • How do I clean and maintain 21 Pin Magnetic Pogo Pin Connectors?

  • Why are gold-plated pins better than standard metal pins in 21 Pin Connectors?

  • Can I customize the pin count of 21 Pin Magnetic Pogo Connectors?

  • Are your 21 Pin Magnetic Pogo Pin Connectors RoHS compliant?

  • Are these connectors suitable for high-speed data transmission?

  • How does the magnetic design improve connectivity in 21 Pin Pogo Pin Connectors?

  • Can these connectors withstand repeated use in industrial settings?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial machinery, PCB assemblyIndustry Standard: Basic plastic (ASTM D638)
Our Base: Durable plastic (UL94 V-0 rated)
Our Advanced: Reinforced composite (ISO 527-2)		▲ Base: 20% lighter than Industry Standard
▲ Advanced: 30% higher impact resistance		Advanced: 40% higher cost due to material blend
Pin Plating ThicknessHigh-speed servers, aerospaceIndustry Standard: 20 µin (ASTM B499)
Our Base: 30 µin (IEC 60949)
Our Advanced: 50 µin (MIL-STD-880H)		▲ Base: 50% lower corrosion rate
▲ Advanced: 2x conductivity longevity		Advanced: 25% thicker plating adds weight
Magnetic StrengthVibration-prone robotics, automotiveIndustry Standard: Non-magnetic
Our Base: 500 Gauss (ISO 9819)
Our Advanced: 1,200 Gauss (ASTM A348)		▲ Base: Secures connections in 8G vibrations
▲ Advanced: Maintains 12G stability		Advanced: Requires 15% more installation space
Pin Count CustomizationIoT devices, medical equipmentIndustry Standard: Fixed 21 pins
Our Base: Adjustable 15–25 pins (IPC-620)
Our Advanced: 10–40 pins (custom CAD integration)		▲ Base: 30% faster prototyping
▲ Advanced: 100% design flexibility		Advanced: 2x lead time for non-standard counts
Temperature ResistanceMilitary gear, oil drillingIndustry Standard: -20°C to 85°C (IEC 60068)
Our Base: -40°C to 105°C (MIL-STD-810)
Our Advanced: -55°C to 125°C (ASTM E1461)		▲ Base: Operates in desert environments
▲ Advanced: Survives Arctic conditions		Advanced: Requires thermal management systems
Connection SecurityData centers, telecom infrastructureIndustry Standard: Spring-loaded
Our Base: Magnetic lock (IEC 61076)
Our Advanced: Magnetic + physical latch (ISO 11413)		▲ Base: 50% faster plug-in
▲ Advanced: Tamper-proof design		Advanced: 10% heavier than Base
