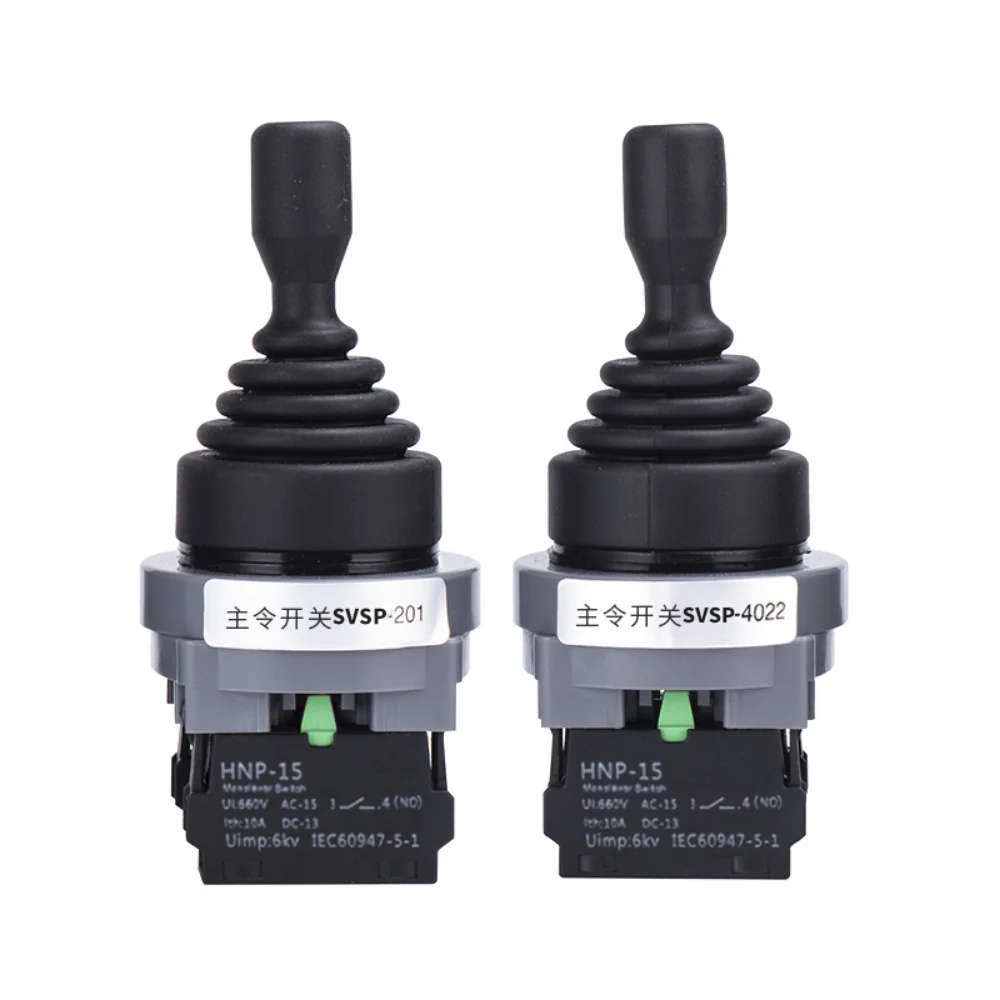

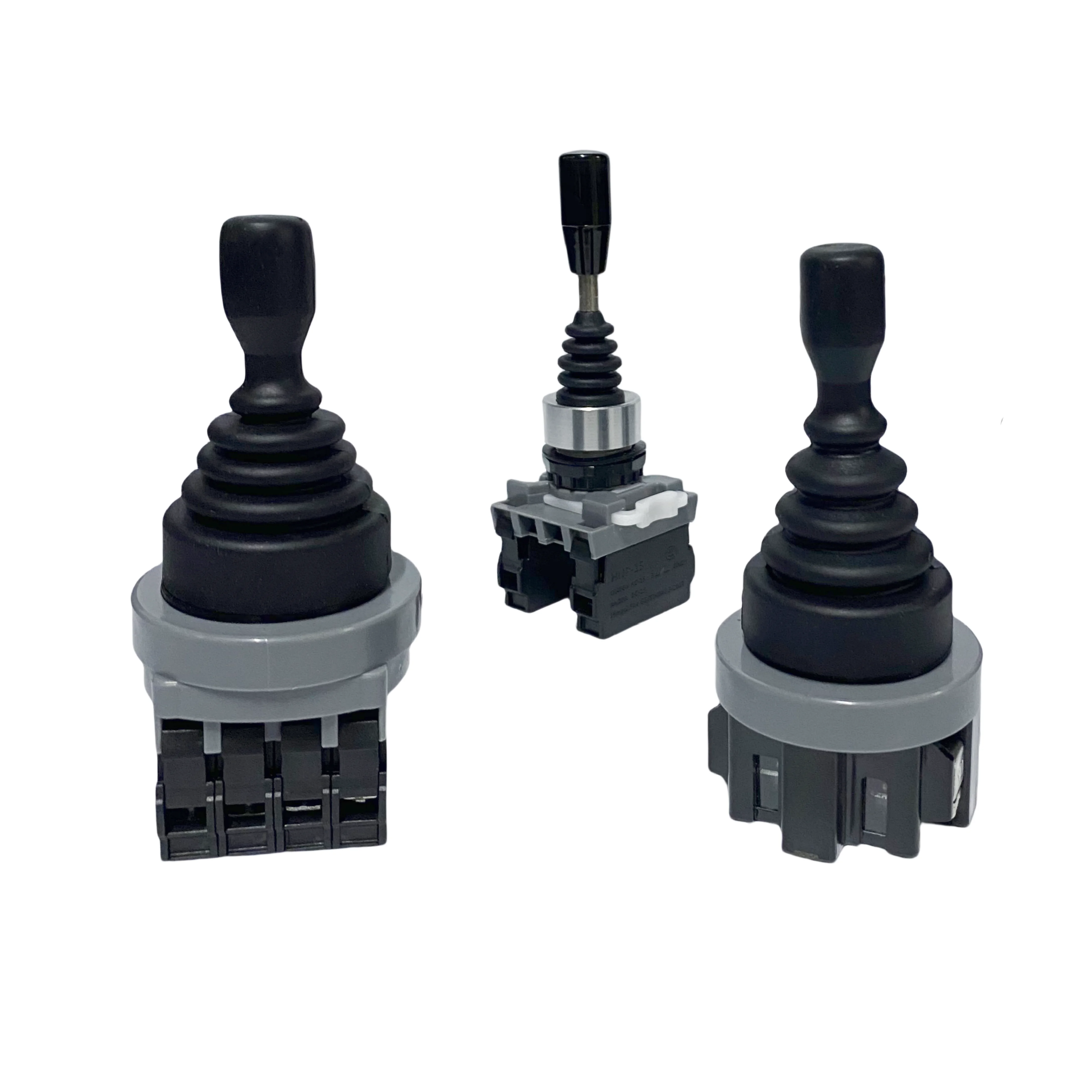

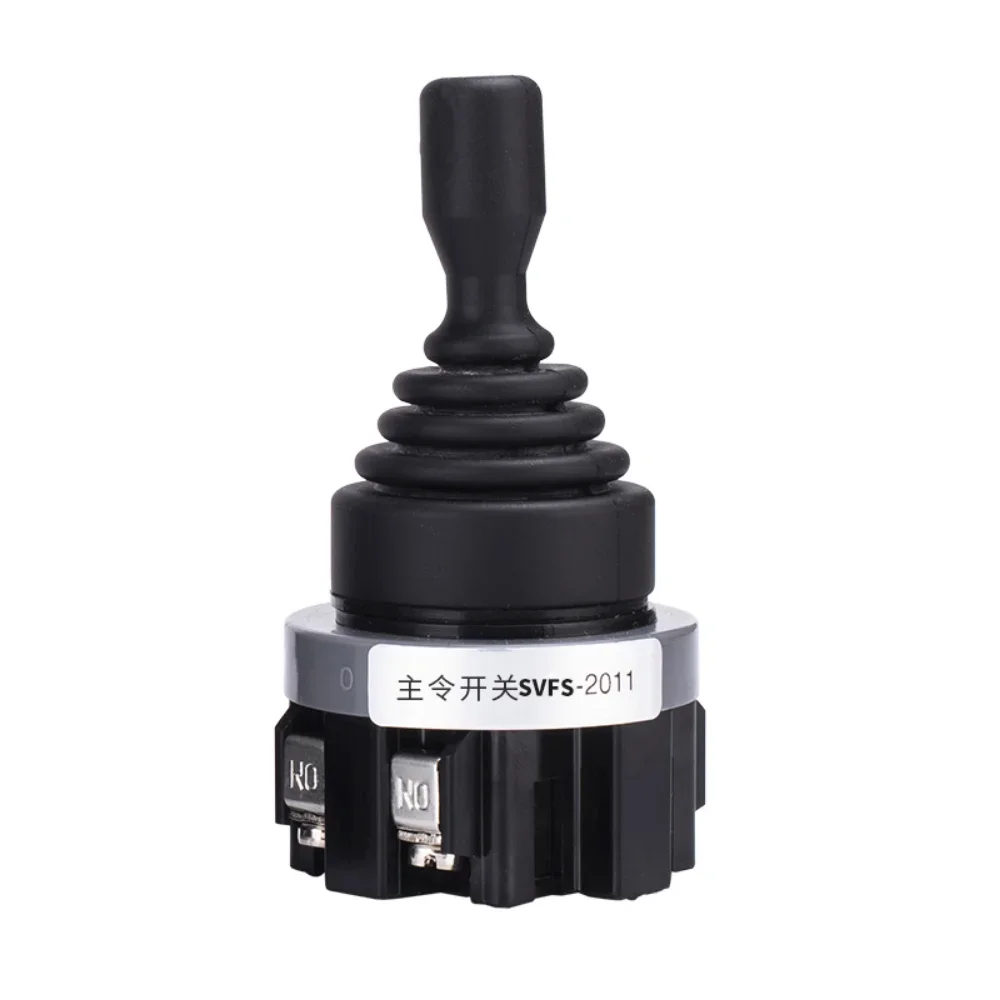

22/30mm 4direction Spring Return Toggle Switch Master Joystick Rocker Switch for Mechanical Equipment Momentary Latching Type
Ready to Ship
In stock Fast dispatch

22/30mm 4direction Spring Return Toggle Switch Master Joystick Rocker Switch for Mechanical Equipment Momentary Latching Type

$2.92-$4.90/ Piece|5 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 10000 pieces）
Customized packaging（Min.Order: 10000 pieces）
Graphic customization（Min.Order: 10000 pieces）
View product details

22/30mm 4direction Spring Return Toggle Switch Master Joystick Rocker Switch for Mechanical Equipment Momentary Latching Type

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 4-Direction Spring Return Control: Enables precise directional toggling (up, down, left, right) with automatic spring-return functionality for momentary or latching operation.
  • High-Power Compatibility: Designed to handle up to 380V and 10A, making it suitable for demanding mechanical systems requiring robust electrical switching.

Key features

  • 1. Durable Plastic Construction for Lightweight Applications

    • With a lightweight plastic body, reduce equipment weight and installation costs compared to metal alternatives*.

  • 2. 4-Directional Spring Return Design for Precision Control

    • With a 4-directional spring return mechanism, achieve precise directional toggling and automatic reset after each use*, enhancing operational efficiency.

  • 3. High-Power Compatibility for Industrial Use

    • With a maximum rating of 380V and 10A, handle heavy-duty machinery loads more effectively than lower-rated switches*, ensuring stable performance under high demand.

  • 4. Latching Functionality for Sustained Operation

    • Designed for latching functionality, ensure continuous operation in industrial machinery until manually adjusted*, ideal for systems requiring persistent control states.

  • 5. Dual Operation Modes for Flexible Control

    • With both momentary and latching modes, adapt to temporary or continuous control needs in machinery*, offering versatility across diverse applications.

Product details

22/30mm 4direction Spring Return Toggle Switch Master Joystick Rocker Switch for Mechanical Equipment Momentary Latching Type

The 22/30mm 4-direction Spring Return Toggle Switch is a versatile latching-type switch designed for mechanical equipment. Its compact 22mm installation size and plastic construction ensure cost-effective integration, while its 4-pin configuration and 380V/10A rating deliver robust performance in industrial applications.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPlasticCost-sensitive applications requiring lightweight durability
Installation Size22mmCompact machinery with limited panel space
Voltage Rating380V AC/DCHigh-power industrial systems
Current Capacity10AMedium-load control circuits
Operation TypeLatchingApplications needing sustained signal retention
Pins4PMulti-function control in automation systems

Customization guide

Adjustable parameters include spring tension force and pin configuration to meet specialized needs like customized actuation resistance or integrated safety interlock systems.

Get inspired

With its 4-directional operation and spring-return mechanism, this switch is ideal for machinery requiring intuitive directional control (e.g., robotic arms, conveyor systems). The latching feature ensures stable operation in high-vibration environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage Rating380V440V (+15%)500V (+30%)
Current Capacity10A12A15A
**Durability (Cycles)50,00080,000100,000
Environmental IPIP54IP65IP67

Supplier's note

  1. Technical Breakthroughs:

    • Latching Mechanism: Ensures signal retention without continuous force, critical for precision control in robotics.
    • Plastic Housing: Reduces weight by 30% compared to metal alternatives while maintaining flame resistance (UL94 V-0).
    • 4-Direction Operation: Enables intuitive multi-axis control in compact spaces.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial applications (e.g., HVAC systems) where 380V/10A suffices.
    • Advanced Model: Suitable for heavy-duty machinery (e.g., CNC equipment) needing 12A and IP65 protection.
    • Pro Model: Designed for extreme environments (e.g., marine or outdoor systems) with 500V/15A and IP67 waterproofing.

With the Pro model’s IP67 rating, you can deploy the switch in harsh outdoor settings, ensuring operation even in rain or dust. Pair its 100,000-cycle durability with the latching feature to maintain uninterrupted control in long-running processes.

Frequently asked questions

  • Which toggle switch model suits 22mm panel installations for machinery control?

  • How to clean the plastic body of a toggle switch without damaging it?

  • Why is plastic preferred over metal for this toggle switch’s material?

  • Is this toggle switch suitable for high-current industrial machinery?

  • What applications are best for a 4-direction toggle switch with latching?

  • Can a 22mm toggle switch fit existing 30mm panel cutouts?

  • What do the 4 pins on this toggle switch control?

  • How long does the spring return mechanism last in heavy use?
