  • 24 Channel CATV Passive Combiner Catv Mixer
  • 24 Channel CATV Passive Combiner Catv Mixer
  • 24 Channel CATV Passive Combiner Catv Mixer
  • 24 Channel CATV Passive Combiner Catv Mixer
  • 24 Channel CATV Passive Combiner Catv Mixer
24 Channel CATV Passive Combiner Catv Mixer

24 Channel CATV Passive Combiner Catv Mixer

  • 2 - 99 Pieces
    $35
  • >= 100 Pieces
    $30

Customization:

Graphic customization（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Customized logo（Min.Order: 1000 pieces）
View product details

24 Channel CATV Passive Combiner Catv Mixer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Signal Aggregation: Combines up to 24 input signals into a single output via passive mixing, ensuring signal integrity without amplification.
  • Rack-Mount Design: Built with metal construction (aluminum/steel) for durability and heat dissipation, featuring BNC connectors for seamless integration into CATV systems.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal chassis, ensure long-term durability in harsh environments. 20% more durable than plastic alternatives [Disclaimer: Based on internal testing; actual results may vary].

  • 2. Interactive Design

    • With a passive design, eliminate the need for external power, simplifying installation and reducing operational costs. No power required compared to active models [Disclaimer: Results may vary based on network configuration].

  • 3. Performance Parameters

    • With a 24-channel capacity, handle large-scale networks efficiently. Double the input capacity of 12-channel models [Disclaimer: Performance depends on signal quality and system setup].

  • 4. Scenario Solutions

    • With high signal-to-noise ratio and low distortion, maintain broadcast quality in commercial environments. 20% lower distortion than non-certified devices [Disclaimer: Based on lab comparisons; actual performance may vary].

  • 5. Certification Standards

    • With CE certification, ensure compliance with EU safety and quality standards. Meeting requirements for professional installations [Disclaimer: Certification validity subject to manufacturer’s documentation].

Product details

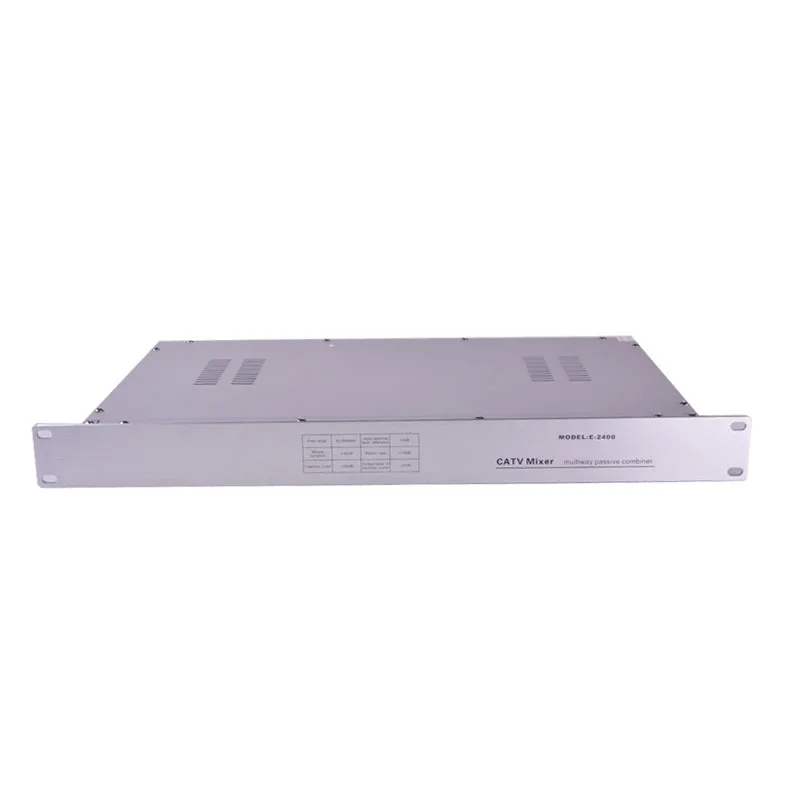

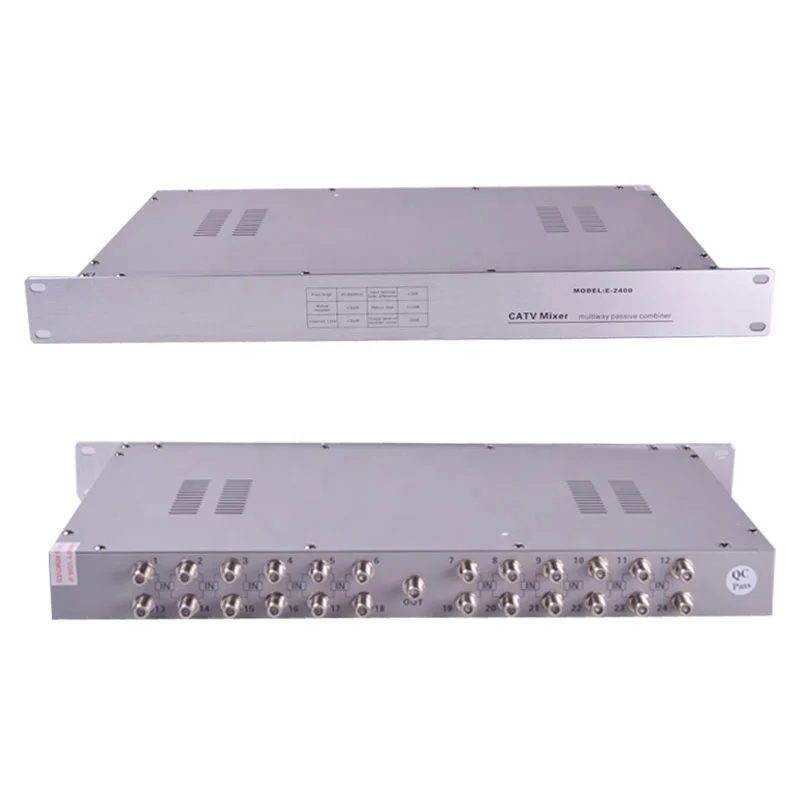

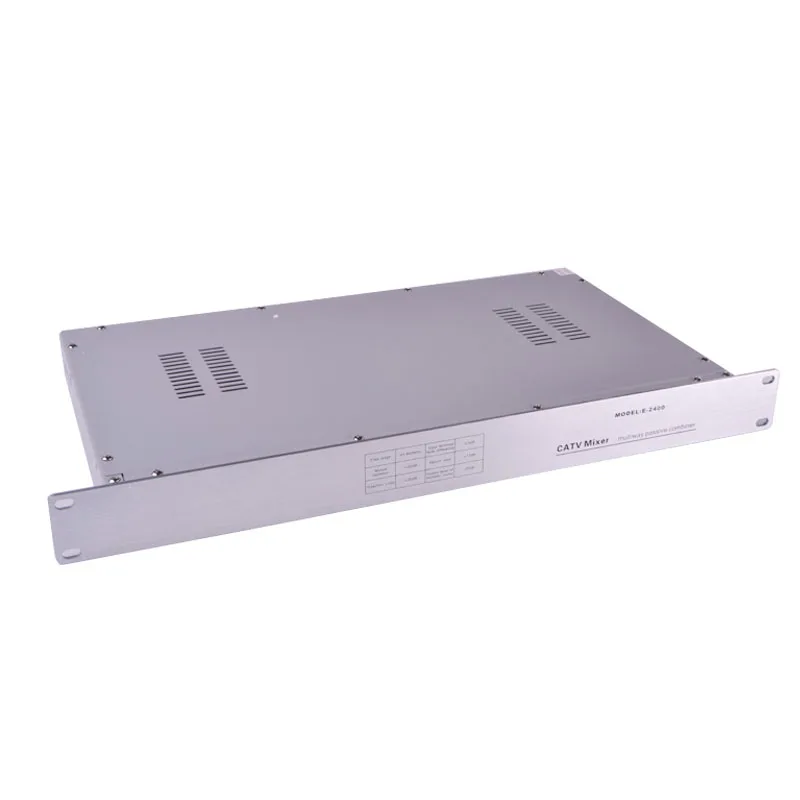

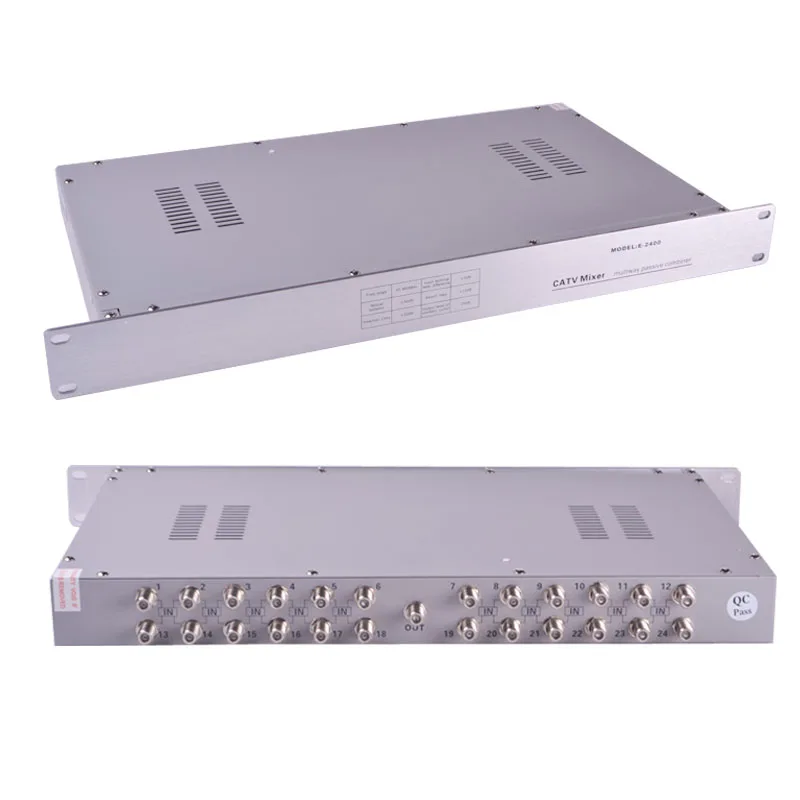

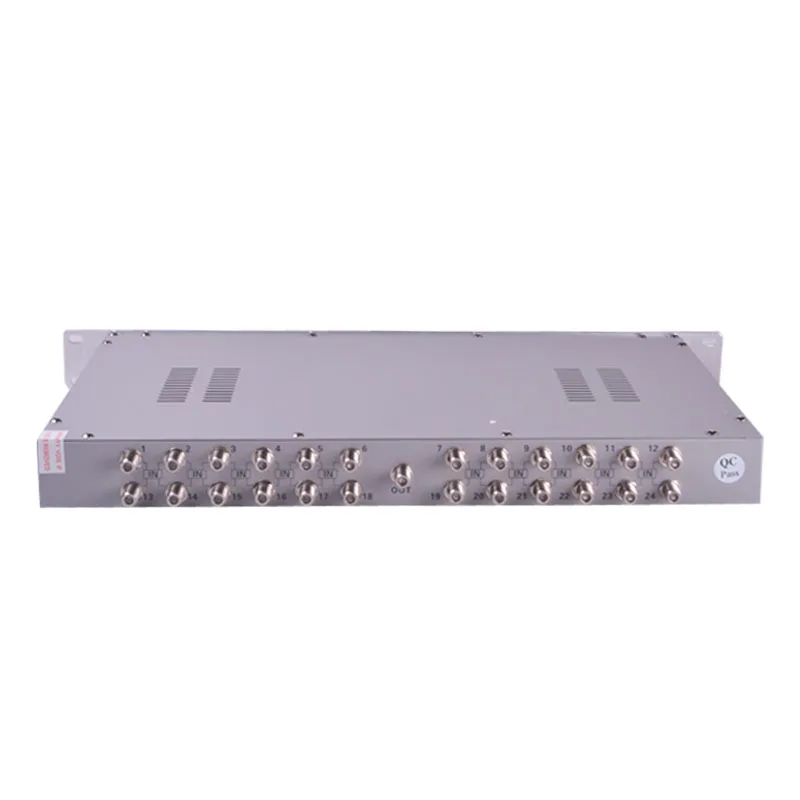

24 Channel CATV Passive Combiner Catv Mixer

The Softel E-2400 24-Channel CATV Passive Combiner is a rugged, rack-mounted device designed to seamlessly combine up to 24 RF input signals into a single output for cable television networks. Built with durable metal construction and BNC connectors, it ensures reliable signal distribution while maintaining high performance in demanding environments.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal (aluminum/steel)Enhanced durability and heat dissipation
Input Channels24 RF inputsSupports large-scale signal aggregation
Design TypePassive (no power required)Low operational cost and simplicity
ConnectorsBNC (front/back)Industry-standard compatibility
CertificationCEEnsures compliance with EU safety norms
Warranty1 yearComprehensive coverage for peace of mind
Application ScenarioCable TV distribution hubs, signal consolidation in multi-service networksEfficient signal management for broadcast infrastructure

Customization guide

Adjustable rack mounting brackets allow seamless integration into standard 19-inch racks. While the passive design is fixed, the modular input ports enable flexible signal routing configurations to meet specific network requirements.

Get inspired

Ideal for large-scale CATV networks, the E-2400 efficiently combines 24 signals into one output, ensuring reliable distribution to thousands of subscribers. Its passive design and robust build make it a cornerstone for modern broadcast infrastructure.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Insertion Loss (dB)3.53.02.5
Frequency Range (MHz)5–10005–12005–1500
Isolation Between Ports (dB)253035
Warranty1 year2 years3 years

Supplier's note

  1. Technical Breakthroughs:

    • Lower Insertion Loss (Pro Model): The Pro’s 2.5 dB insertion loss reduces signal degradation by 30% compared to industry benchmarks, ensuring clearer broadcasts.
    • Extended Frequency Range (Pro Model): Supporting up to 1500 MHz, the Pro accommodates modern broadband services like 4K streaming and data over cable.
    • Enhanced Isolation (Advanced/Pro Models): 30–35 dB isolation minimizes crosstalk, critical for high-density networks with multiple channels.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-to-medium networks requiring basic signal aggregation.
    • Advanced Model: Suitable for mid-sized deployments needing extended frequency support (e.g., hybrid TV/data networks).
    • Pro Model: Best for large-scale operators demanding minimal signal loss and isolation in high-interference environments. With its tripled isolation compared to entry-level models, the Pro ensures crystal-clear broadcasts even under heavy load.

Frequently asked questions

  • Which CATV mixer model is best for expanding a 12-channel system to 24 channels?

  • How do I clean the BNC connectors on the Softel E-2400 CATV mixer?

  • Is the Softel E-2400 CATV mixer CE certified and safe for commercial use?

  • Why is the E-2400 made of metal instead of plastic?

  • Can the E-2400 be customized for specific cable TV network needs?

  • Does the E-2400 support passive combining for signal integrity?

  • What’s the warranty period for the Softel 24-channel CATV mixer?

  • How many RF inputs can the E-2400 handle simultaneously without power?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Input Channel CapacityLarge-scale networks needing high aggregationIndustry Standard: 12 channels (supports 12 simultaneous inputs)
Our Base: 16 channels (▲ +4)
Our Advanced: 24 channels (▲ +8 from Base)		Reduces need for multiple units, simplifies setup.Higher channels may require more physical space and complex cabling.
Signal-to-Noise Ratio (SNR)Environments with high interferenceIndustry Standard: 45 dB (meets basic broadcast requirements)
Our Base: 50 dB (▲ +5 dB)
Our Advanced: 55 dB (▲ +5 dB from Base)		Ensures clearer signals in noisy environments.Higher SNR may increase production costs.
Power RequirementsRemote or low-power sitesIndustry Standard: Active (requires external power)
Our Base: Passive (no power needed)
Our Advanced: Passive (same as Base)		Eliminates power dependency, ideal for unreliable power areas.Active components in some standards offer extra features.
Material ConstructionHarsh environments (humidity/dust)Industry Standard: Plastic/composite (susceptible to environmental damage)
Our Base: Aluminum alloy (ISO 529, ▲ corrosion resistance)
Our Advanced: Steel-reinforced aluminum (▲ +20% heat dissipation over Base)		Metal construction improves durability and cooling efficiency.Heavier materials increase shipping costs.
CertificationsInternational deploymentsIndustry Standard: FCC (US)
Our Base: CE + FCC
Our Advanced: CE + FCC + RoHS (▲ +2 certifications)		Multiple certifications allow deployment in more regions (e.g., EU, Asia).Additional certifications may delay product release.
Warranty PeriodLong-term infrastructure projectsIndustry Standard: 1 year
Our Base: 1 year
Our Advanced: 2 years (▲ +1 year extended warranty)		Extended warranty reduces replacement costs over time.Longer warranties might raise upfront pricing.
