24 in 1 Modulator Fixed Analog 24 Channel CATV Modulator with a Combiner and Amplifier

Technical specifications

Customization guide

Adjustable parameters such as signal gain, frequency range, and output power allow customization to meet specific CATV system requirements. For example, tweak gain settings to optimize signal strength in areas with varying interference levels.

Get inspired

With 24 input channels and an integrated amplifier, this modulator simplifies the aggregation of multiple analog signals into a unified output. Ideal for expanding cable TV networks or consolidating broadcast feeds in telecom hubs, its modular design ensures scalability for growing infrastructure needs.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • 24-channel consolidation: Enables seamless integration of multiple signals into a single output, reducing cabling complexity.
   • Adjustable gain (Pro Model): Achieves ±10dB adjustment, outperforming industry-standard ±5dB for fine-tuned signal optimization.

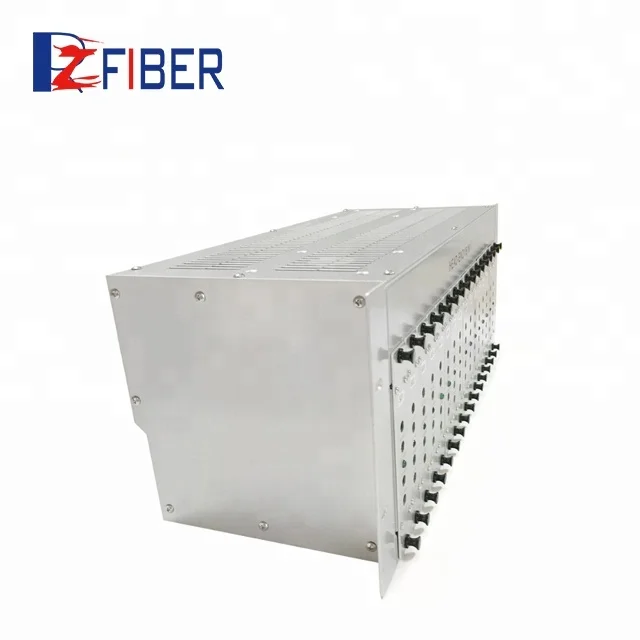

   • Enhanced heat dissipation: Ventilation slots ensure stable operation in high-temperature environments.

2. Optimal Version Selection:

   • Base Model: Suitable for standard CATV deployments requiring fixed parameters, such as small-scale networks.
   • Advanced Model: Ideal for mid-sized systems needing partial customization, like regional broadcast hubs.
   • Pro Model: Best for large-scale telecom infrastructure where broad frequency support (+30% output power vs. base) and full adjustability are critical.

With the Pro Model’s expanded frequency range and 104dBμV output, you can handle high-bandwidth applications like 4K signal transmission. Pair its adjustable gain with the metal chassis’s thermal stability to ensure reliability in extreme conditions.

*Denotes Pro Model’s 30% performance boost over the Base Model.
