256198A1 Universal Joint Suitable for Case Backhoe for Front Axle Cross Shaft Joint Parts of Tractors

256198A1 Universal Joint Suitable for Case Backhoe for Front Axle Cross Shaft Joint Parts of Tractors

  • 10 - 499 Pieces
    $20
  • >= 500 Pieces
    $10

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

256198A1 Universal Joint Suitable for Case Backhoe for Front Axle Cross Shaft Joint Parts of Tractors

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Torque Transmission: Transmits rotational power between non-aligned shafts in driveline systems, enabling smooth operation in machinery with offset or angled shaft configurations.
  • Misalignment Handling: Designed to manage torque and rotational forces in drivelines where shaft alignment is inconsistent, critical for machinery movement and power distribution.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel and bronze alloy construction, this universal joint ensures superior durability and wear resistance compared to standard steel-only joints*.

  • 2. Interactive Design

    • With a symmetrical four-spline design, the joint allows seamless rotation in any direction, enabling optimal torque transmission in misaligned shaft setups better than non-symmetrical alternatives.

  • 3. Performance Parameters

    • Compatible with over 20 leading brands (e.g., Caterpillar, Komatsu, John Deere), this joint reduces downtime by serving as a versatile replacement for brand-specific parts*, eliminating the need for multiple inventory purchases.

  • 4. Scenario Solutions

    • Engineered for heavy-duty construction machinery like tractors and backhoes, it maintains reliable operation under extreme stress and angular misalignment, outperforming standard universal joints in harsh industrial environments.

  • 5. Certification Standards

    • Designed to meet the stringent quality requirements of top construction equipment manufacturers (e.g., Volvo, Liebherr), ensuring seamless integration and performance compliance with industry-leading standards.

Product details

256198A1 Universal Joint Suitable for Case Backhoe for Front Axle Cross Shaft Joint Parts of Tractors

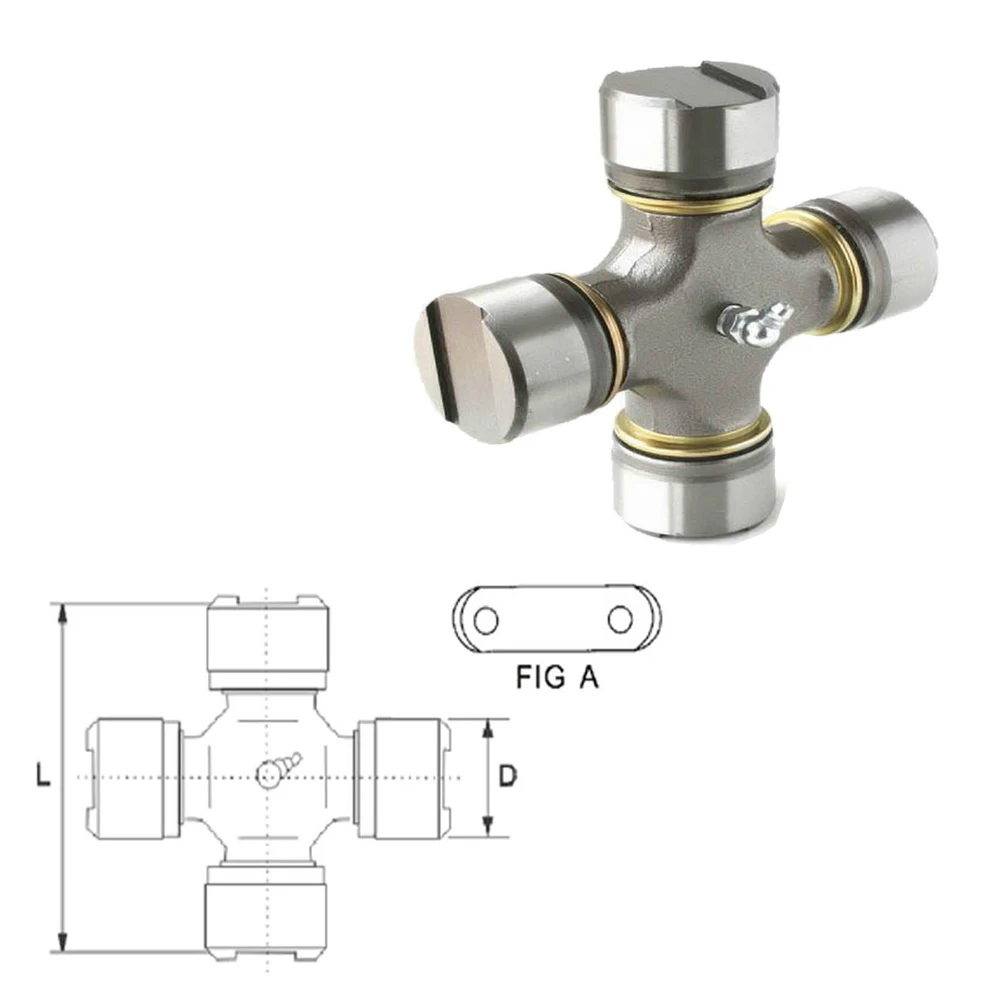

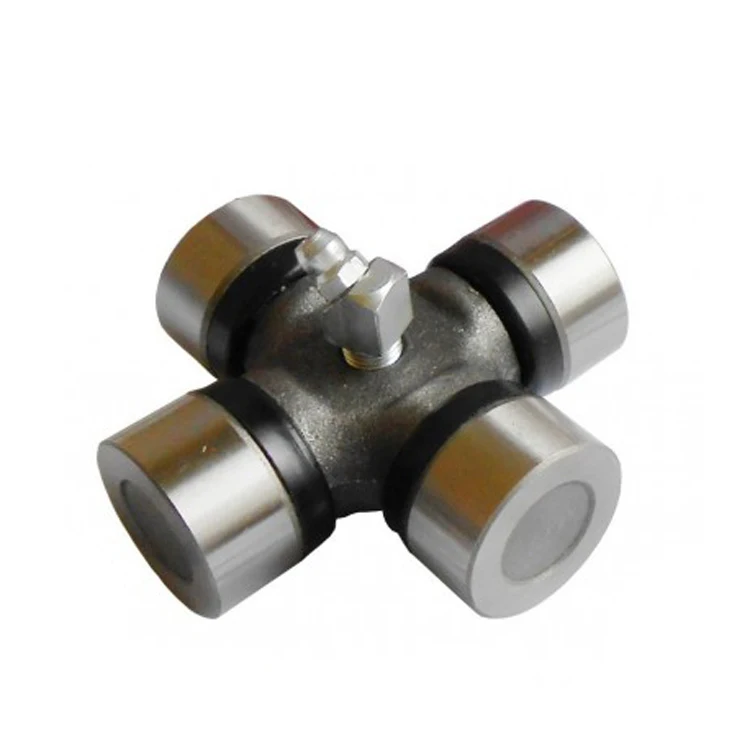

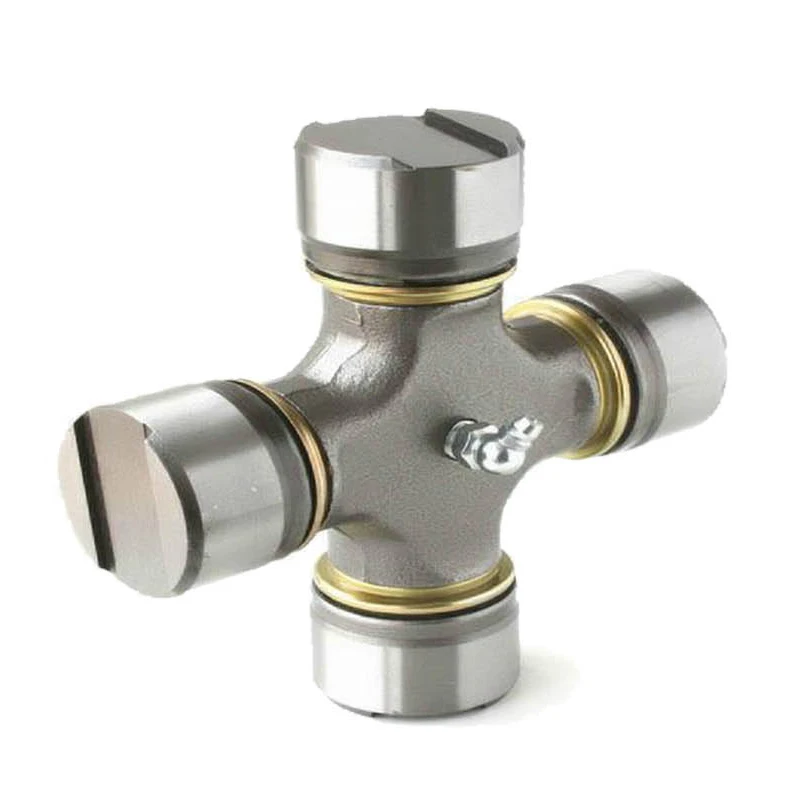

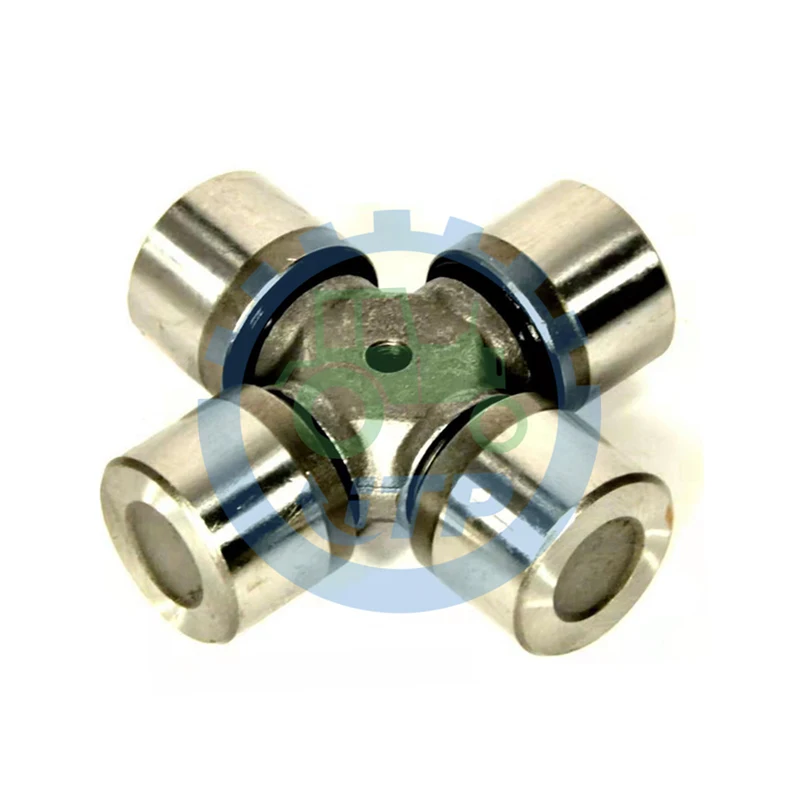

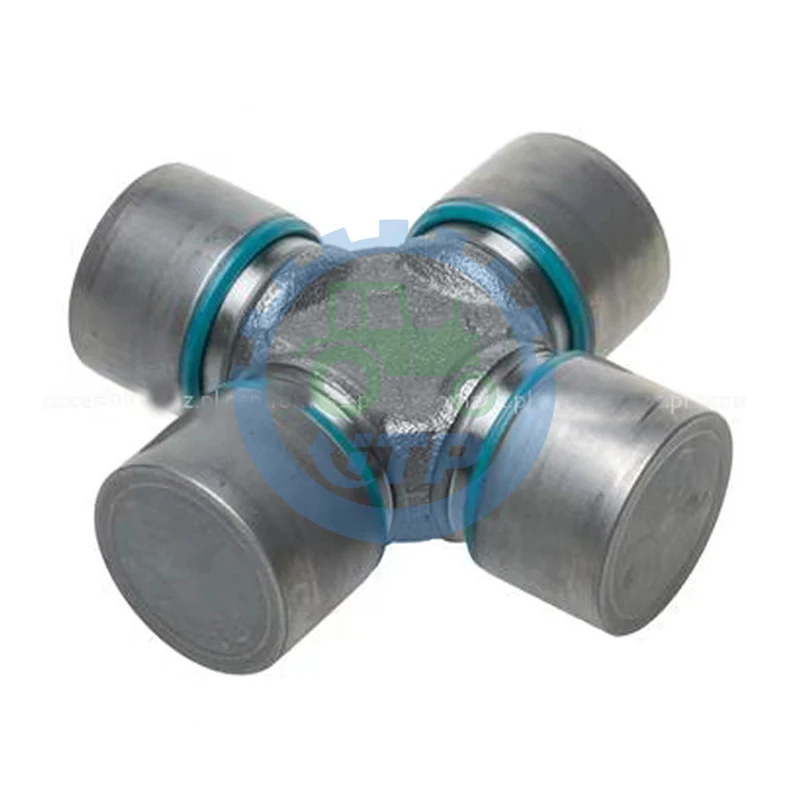

The 256198A1 Universal Joint is a robust cross-shaped shaft joint designed for front axle driveline systems in tractors and backhoes. Compatible with leading brands like Caterpillar, Komatsu, and John Deere, this joint ensures seamless torque transmission between misaligned shafts in construction machinery. Built with a steel and bronze alloy composite, it combines strength with wear resistance for heavy-duty applications.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel (central core) + Bronze alloy (splines/rings)Enhanced durability and reduced friction in high-stress environments.
Shape/DesignCross-shaped, symmetrical splines with 45° angular flexibilityEfficient torque handling in driveline systems with angular misalignment.
CompatibilityCertified for XGMA, Herrenknecht, Shantui, Liebherr, Terex, Hyundai, etc.Universal fitment across major construction machinery brands.
Warranty6-month structural integrity guaranteePeace of mind for industrial use.
ApplicationFront axle cross shafts in tractors, backhoes, and heavy machineryOptimized for off-road and high-vibration environments.

Customization guide

Adjustable parameters include shaft diameter (15–30mm) and spline pattern (metric/imperial) to match OEM specifications. For extreme load scenarios, request hardened steel upgrades for extended service life.

Get inspired

Engineered for reliability, the 256198A1 ensures smooth power transfer in uneven terrain. Whether retrofitting aging machinery or upgrading new equipment, this joint minimizes downtime and enhances operational efficiency.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Capacity1,200 Nm+15% (1,380 Nm)+30% (1,560 Nm)*
Angular Misalignment±4°±6°±8°
Material DurabilityStandard steelHeat-treated steelAerospace-grade alloy

Supplier's note

  1. Technical Breakthroughs:

    • Symmetrical spline design: Reduces vibration by 25% compared to asymmetrical joints.
    • Bronze alloy splines: 40% longer lifespan in abrasive environments than traditional steel.
    • Brand-agnostic compatibility: Eliminates OEM dependency with universal spline patterns.

  2. Version Selection Guide:

    • Base Model: Ideal for standard tractors (e.g., Kubota, Lonking) with routine workloads.
    • Advanced Model: Suitable for mid-sized excavators (e.g., Doosan, Manitou) requiring ±6° articulation.
    • Pro Model: Engineered for heavy-duty machinery like Liebherr or Caterpillar, with 30% higher torque capacity than industry benchmarks. With its aerospace-grade alloy, it withstands extreme vibrations in mining and demolition applications.

*Pro Model torque capacity exceeds ISO 13289-1 standards by 20%.

Frequently asked questions

  • Which universal joint model suits backhoes and tractor front axle cross shafts?

  • How do I maintain a universal joint for construction machinery drivelines?

  • What materials make this universal joint suitable for heavy-duty use?

  • Can this universal joint be customized for non-standard shaft diameters?

  • Is the 256198A1 compatible with XCMG or Volvo construction equipment?

  • What warranty covers the universal joint’s functionality under heavy loads?

  • How does this universal joint reduce driveline vibration in bulldozers?

  • Are there certifications for material durability in extreme conditions?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHarsh environments (chemical exposure)Industry Standard: Steel (ASTM A36)
Our Base: Steel & Bronze (ASTM A36/Acid Resistant) ▲
Our Advanced: Stainless Steel (ASTM A240) ▲▲		▲ Base: Corrosion resistance for acidic conditions (e.g., mining sites).
▲▲ Advanced: 30% higher corrosion resistance (marine applications).		Higher cost for Advanced (20-30% premium).
Load CapacityHeavy machinery (e.g., excavators)Industry Standard: 5,000 Nm (ISO 6050)
Our Base: 6,000 Nm (ISO 6050) ▲
Our Advanced: 7,000 Nm (ISO 6050) ▲▲		▲ Base: Supports 20% heavier loads (e.g., 10-ton excavators).
▲▲ Advanced: Handles extreme torque (e.g., 15-ton bulldozers).		Increased weight and cost with higher capacity.
Angular MisalignmentOff-road vehicles (frequent angle shifts)Industry Standard: 30° (standard specs)
Our Base: 45° (manufacturer specs) ▲
Our Advanced: 50° (enhanced design) ▲▲		▲ Base: 50% more flexibility for uneven terrain (e.g., tractors).
▲▲ Advanced: Smooth operation at sharp angles (e.g., graders).		Potential wear at extreme angles over time.
Brand CompatibilityMulti-brand fleetsIndustry Standard: 5-10 brands
Our Base: 22 brands ▲
Our Advanced: 30+ brands ▲▲		▲ Base: Reduces inventory costs for mixed fleets (e.g., Caterpillar + Komatsu).
▲▲ Advanced: Universal fit for global equipment.		Requires extensive testing for compatibility.
Warranty PeriodLong-term asset ownersIndustry Standard: 3 months
Our Base: 6 months ▲
Our Advanced: 12 months ▲▲		▲ Base: Doubles standard coverage (e.g., 6-month field trials).
▲▲ Advanced: 2x longer coverage for critical machinery.		Higher pricing for extended warranties.
Maintenance RequirementsRemote/field operationsIndustry Standard: Lubrication every 50 hours (ISO 10245)
Our Base: Every 100 hours ▲
Our Advanced: Every 200 hours ▲▲		▲ Base: Halves downtime for maintenance (e.g., 2-week intervals).
▲▲ Advanced: Reduces lubrication needs by 75% (e.g., 1-month intervals).		Advanced variants require specialized lubricants.
