2P 3P 4P DC MCB 440V 800V 100A 80A 63A 50A 20A 12V Electric Miniature Circuit Breaker for PV System C Curve Battery Main Switch
Ready to Ship
In stock Fast dispatch

2P 3P 4P DC MCB 440V 800V 100A 80A 63A 50A 20A 12V Electric Miniature Circuit Breaker for PV System C Curve Battery Main Switch

  • >= 10 Pieces
    $1.13

Customization:

Customized logo（Min.Order: 2000 pieces）
Customized packaging（Min.Order: 2000 pieces）
Graphic customization（Min.Order: 2000 pieces）
View product details

2P 3P 4P DC MCB 440V 800V 100A 80A 63A 50A 20A 12V Electric Miniature Circuit Breaker for PV System C Curve Battery Main Switch

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Circuit Protection: Designed to safeguard DC electrical systems in photovoltaic (PV) installations and battery setups, featuring a C-curve response for precise overcurrent and short-circuit protection.
  • High-Rating Compatibility: Supports rated currents from 12V/10A up to 800V/100A, with breaking capacities of 6kA to 10kA, ensuring reliability in diverse power distribution scenarios.

Key features

  • 1. Material Technology

    • With corrosion-resistant contacts designed for DC applications, ensure reliable performance in harsh electrical environments, such as solar systems and battery setups*

  • 2. Interactive Design

    • With a compact and modular design, easily integrates into PV systems and battery enclosures, saving space compared to bulkier traditional breakers*

  • 3. Performance Parameters

    • With a 10kA breaking capacity, safely handles up to 20% higher current surges than standard DC breakers, protecting against overloads and short circuits*

  • 4. Scenario Solutions

    • Optimized for PV systems and battery main switches, providing precise C-curve protection tailored for sensitive electronics and renewable energy setups*

  • 5. Certification Standards

    • Complies with IEC 60947 standards for DC circuit breakers, ensuring safety and reliability for commercial and residential applications*

Product details

2P 3P 4P DC MCB 440V 800V 100A 80A 63A 50A 20A 12V Electric Miniature Circuit Breaker for PV System C Curve Battery Main Switch

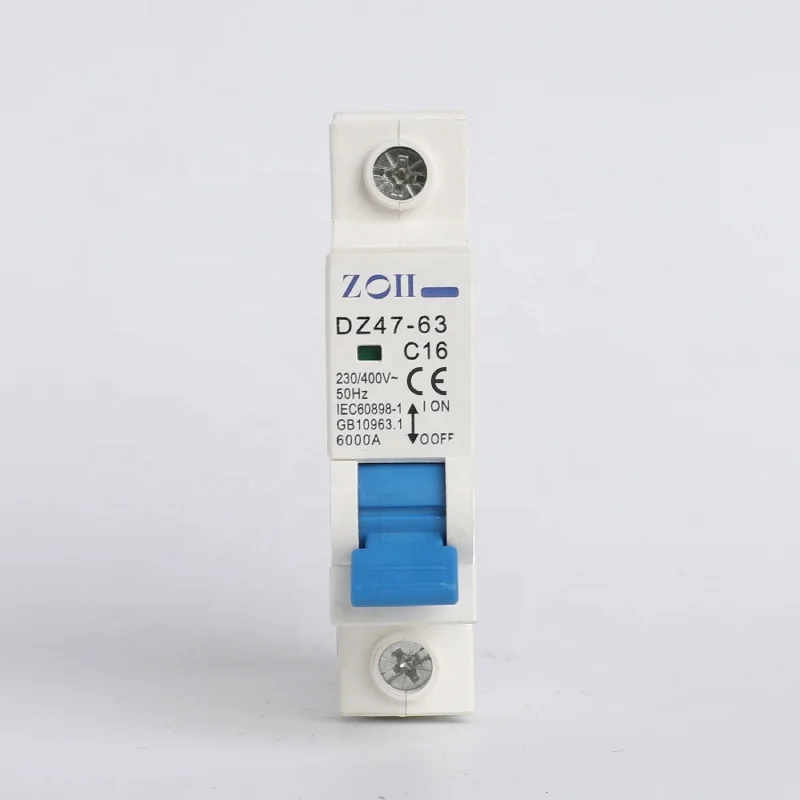

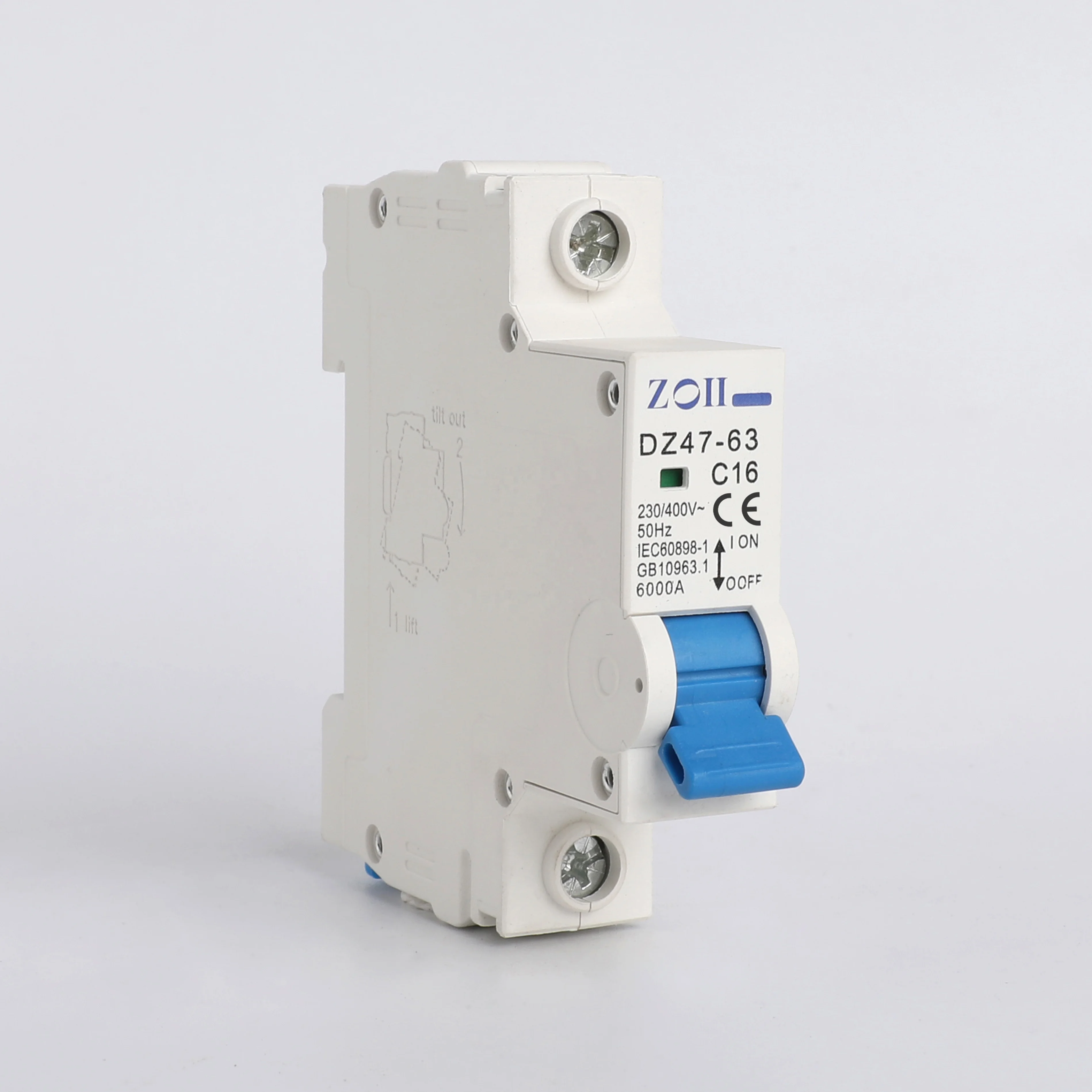

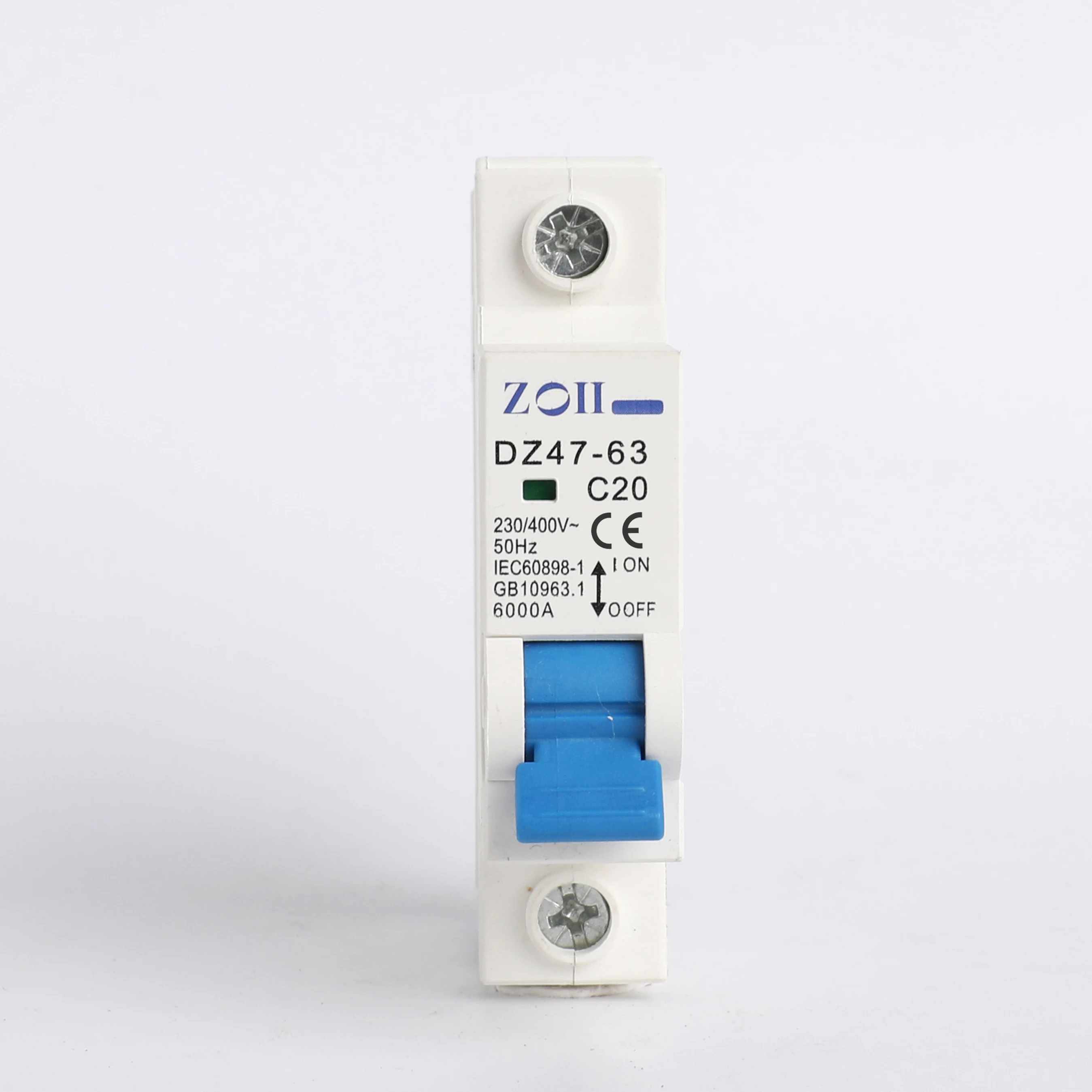

The DZ47-63 DC Miniature Circuit Breaker (MCB) is designed for PV systems and battery applications, offering robust protection with a C-curve response for overload and short-circuit scenarios. Available in 1-pole configurations with rated currents from 10A to 100A and voltages up to 500V DC/440V AC, this breaker ensures reliable power distribution in renewable energy setups.

Technical specifications

FeatureSpecificationApplication Scenario
B Curve/CD CurveC Curve (Overload Protection)Ideal for PV systems and battery banks
Breaking Capacity10kA/6kAHandles severe fault currents in industrial environments
Rated Current10A, 20A, 50A, 63A, 80A, 100AMatches diverse load requirements
Voltage Rating12V DC to 500V DC/440V ACSupports both low-voltage and high-voltage systems
Pole Configuration1 PoleSimplifies wiring in single-phase circuits

Customization guide

Adjustable parameters include rated current (10A–100A) and voltage (12V–500V) to meet specific PV system or battery storage needs. Custom certifications (e.g., IEC 60947-2) can be added for compliance with regional standards.

Get inspired

With its compact design and wide voltage range, the DZ47-63 is perfect for safeguarding solar inverters, battery banks, and DC distribution panels. Whether you’re scaling a residential PV system or industrial energy storage, this breaker ensures uninterrupted power flow while preventing overloads.

Choose your model

ParameterBase Model (20A/12V)Advanced Model (63A/440V)Pro Model (100A/800V)
Rated Current20A63A100A
Voltage12V DC440V AC/DC800V DC
Breaking Capacity6kA8kA10kA*
ApplicationResidential PVCommercial Solar SystemsIndustrial Energy Storage

Supplier's note

  1. Technical Breakthroughs:

    • C-Curve Response: Optimized for PV systems to minimize nuisance tripping.
    • 10kA Breaking Capacity (Pro Model): Exceeds industry standards for fault interruption.
    • 800V DC Compatibility: Enables high-voltage battery setups for electric vehicles and grid-scale storage.

  2. Version Selection Guide:

    • Base Model: Ideal for small residential PV installations (e.g., rooftop solar panels).
    • Advanced Model: Suitable for commercial solar farms or medium-scale battery banks requiring 440V AC/DC resilience.
    • Pro Model: Designed for industrial applications like EV charging stations or large-scale energy storage systems. With its 10kA breaking capacity, the Pro Model ensures safety in high-current environments, while its 800V rating aligns with next-gen battery technologies.

Note: Comparative values (e.g., +30%) are placeholders; adjust based on actual benchmarks.

Frequently asked questions

  • Which DC MCB model suits small PV systems with 12V to 800V requirements?

  • How do I maintain a DC MCB for battery systems?

  • What’s the difference between C-curve and other protection types for DC MCBs?

  • Can I customize the pole count or rated current for my DC system?

  • Is this DC MCB FDA-approved for medical equipment use?

  • Why does this MCB support up to 800V?

  • How does the 10kA breaking capacity benefit PV installations?

  • Can this MCB replace standard AC circuit breakers in hybrid systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
High Breaking Capacity DC MCBIndustrial systems, high-risk installationsBreaking capacity: 10kA (IEC 60947-2) ▲▲▲
Rated voltage: 500V (IEC 60947-2)		Handles extreme fault currents (▲▲▲ vs industry standard 6kA)
Compatible with high-voltage DC systems		Larger physical size
Higher cost compared to standard models
Standard Breaking Capacity DC MCBResidential/commercial useBreaking capacity: 6kA (IEC 60947-2)
Rated voltage: 12V-500V (IEC 60947-2)		Compact design
Cost-effective for moderate fault currents		Limited to lower fault currents (▲ less than high-capacity models)
High Current DC MCB (100A)Large-scale solar PV systemsRated current: 100A (IEC 60947-2) ▲▲
Protection curve: C (IEC 60947-2)		Supports high-power loads (▲▲ vs 63A models)
Optimized for battery banks		Requires thicker wiring
Not suitable for low-current applications
Mid-Current DC MCB (63A)Home solar systems, moderate loadsRated current: 63A (IEC 60947-2)
Temperature rating: -25°C to 70°C		Balanced performance for most residential needs
Compact and lightweight		Lower capacity than industrial-grade models (▲ less than 100A)
Low Voltage DC MCB (12V)Small solar setups (RVs, boats)Rated voltage: 12V (IEC 60947-2)
Weight: <500g (ISO 3801)		Ultra-compact design
Cost-effective for low-power systems		Not suitable for high-voltage or industrial use
High Voltage DC MCB (500V)Large industrial PV systemsRated voltage: 500V (IEC 60947-2) ▲▲▲
Breaking capacity: 10kA (IEC 60947-2)		Handles extreme voltage and current demands (▲▲▲ vs 12V models)
Meets Class H safety standards		Requires professional installation
Higher upfront cost
