3-Meter LVDS Gigabit Ethernet Cable Assembly PVC Insulated Copper Conductor Efficient Data Transmission Wiring Harness for
Ready to Ship
In stock Fast dispatch

3-Meter LVDS Gigabit Ethernet Cable Assembly PVC Insulated Copper Conductor Efficient Data Transmission Wiring Harness for

  • >= 10 Pieces
    $41.70

Customization:

custom wire harness（Min.Order: 1 pieces）
View product details

3-Meter LVDS Gigabit Ethernet Cable Assembly PVC Insulated Copper Conductor Efficient Data Transmission Wiring Harness for

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Performance Data Transmission: Designed for efficient LVDS (Low-Voltage Differential Signaling) and Gigabit Ethernet data transfer in automotive systems, supporting real-time communication for infotainment, sensor networks, and telematics.

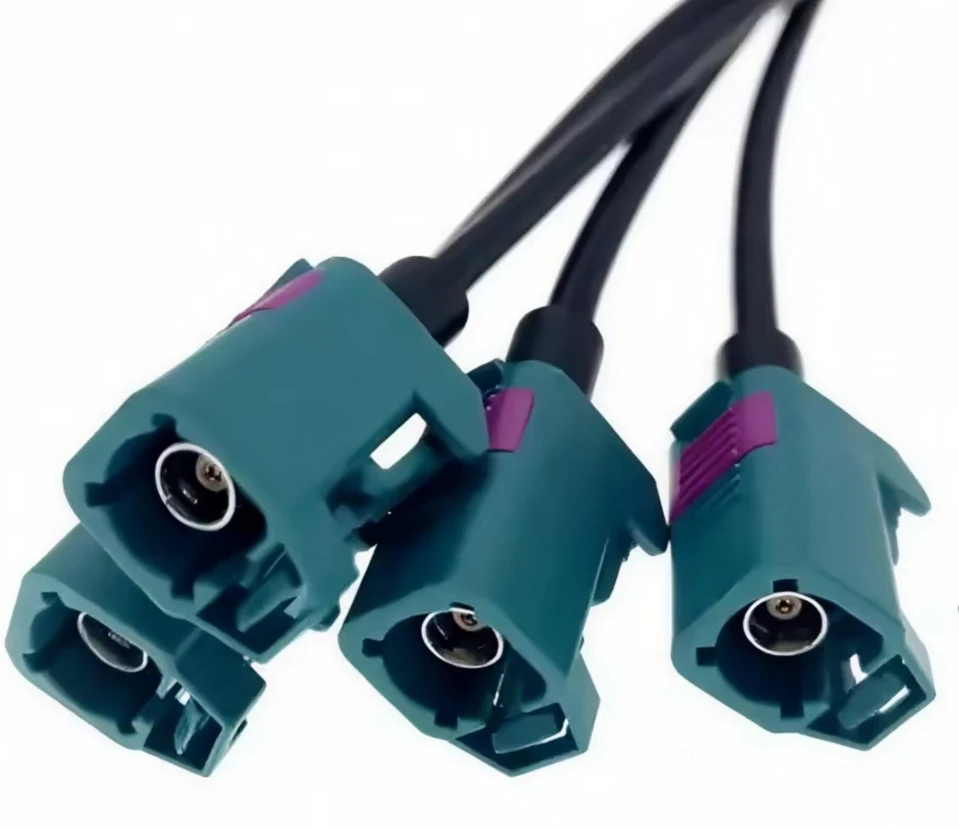

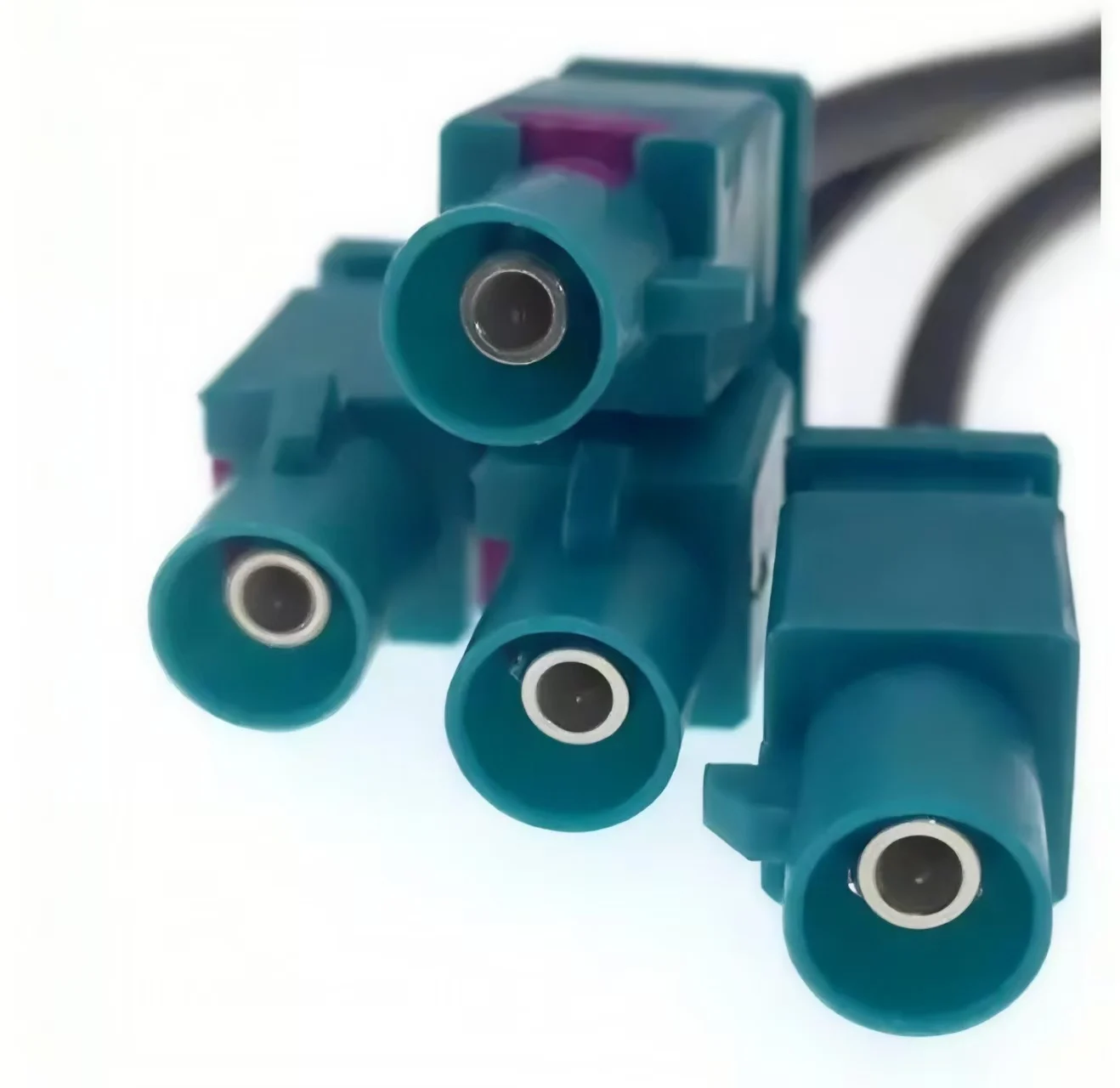

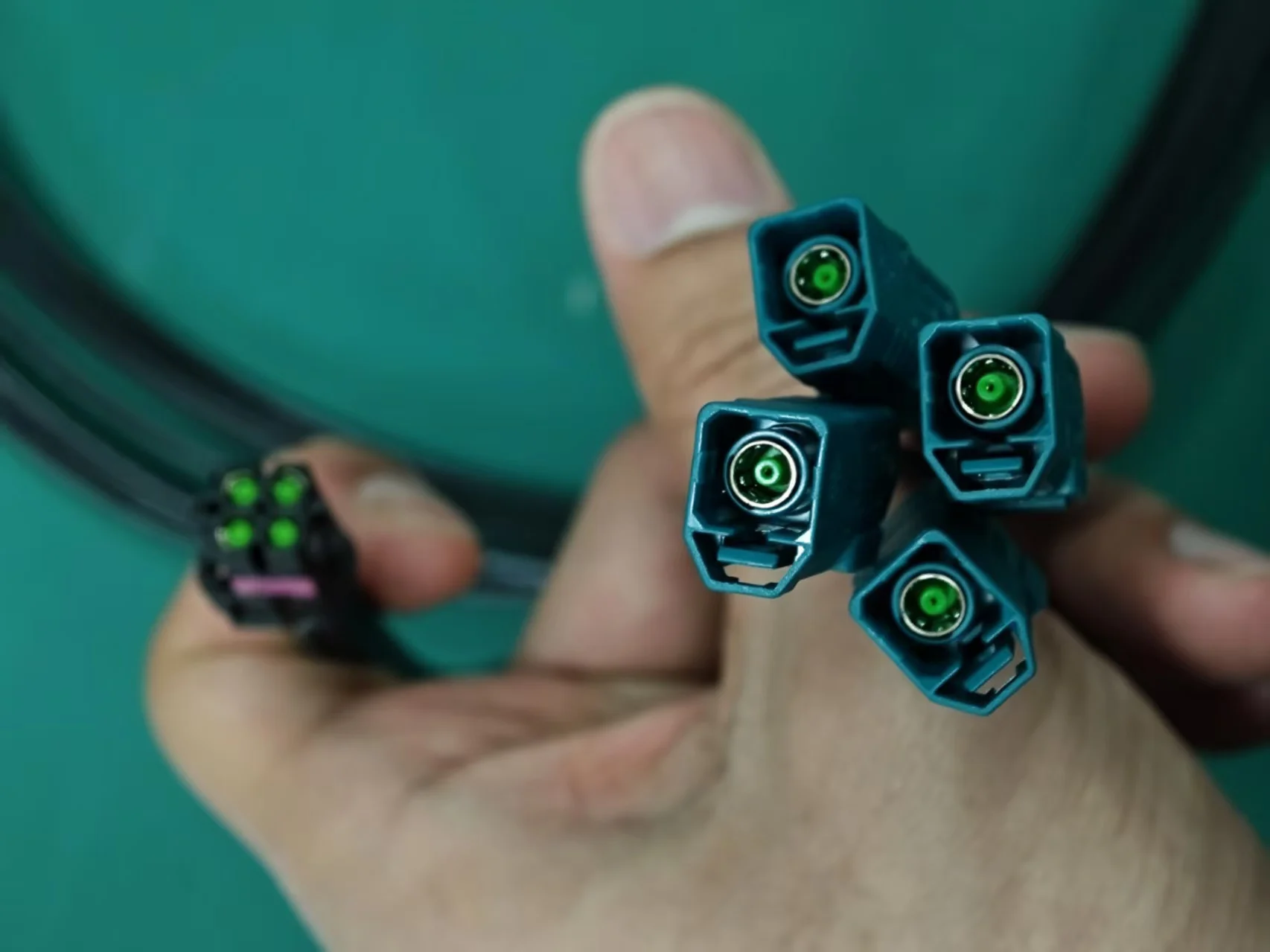

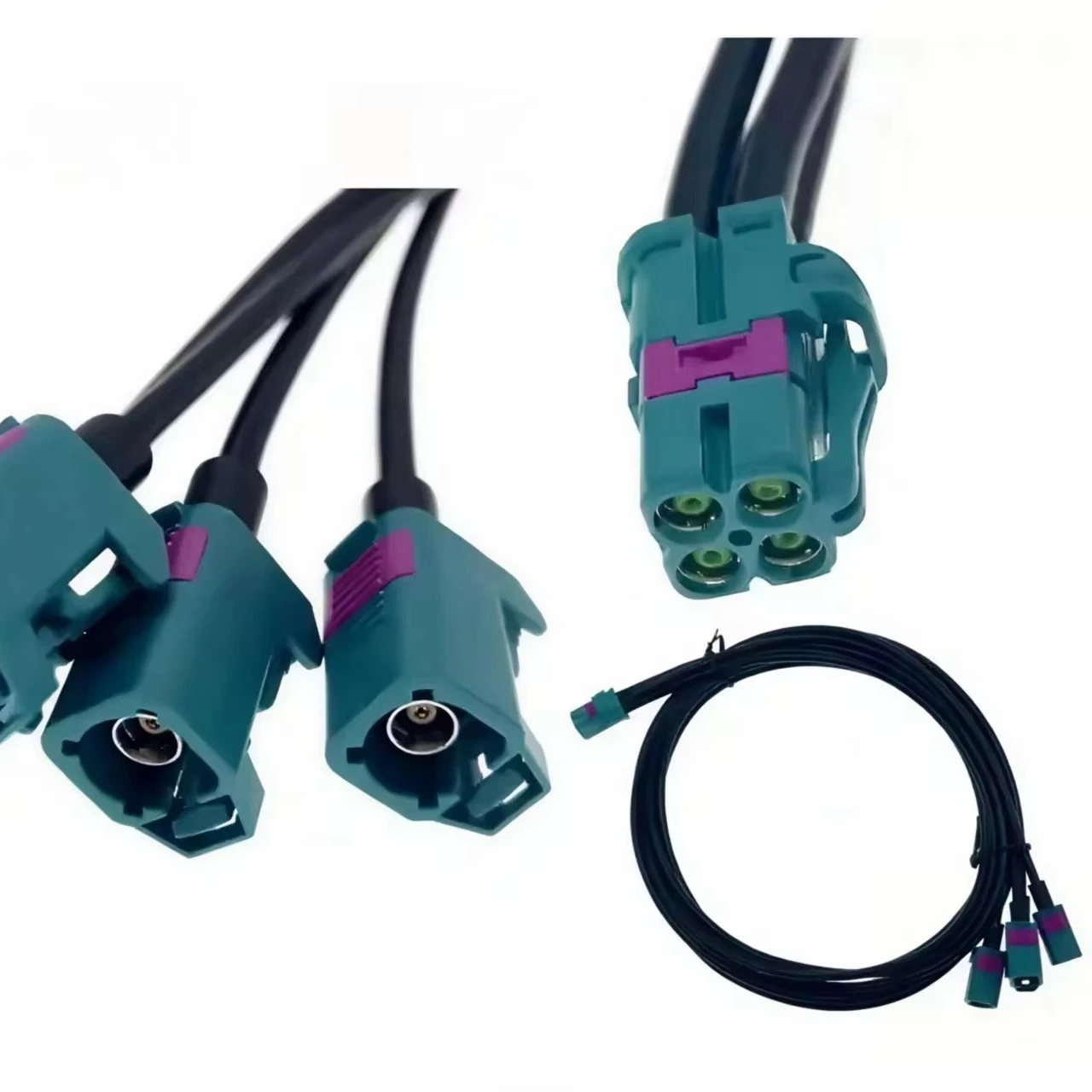

  • Modular Connectivity: Features 4-pin adapters with a robust locking mechanism, enabling secure and easy connection/disconnection of electronic components in vehicles.

Key features

  • 1. Material Technology

    • With copper conductors and PVC insulation, ensure reliable data transmission and durability in harsh automotive environments. The copper core enhances conductivity, while the PVC material provides corrosion resistance and flexibility. ~30% more resistant to environmental stress than standard automotive cables*.

  • 2. Interactive Design

    • With a locking mechanism and modular design, easily connect/disconnect components while ensuring secure connections. The 4-pin adapter type simplifies installation and reduces downtime during vehicle maintenance.

  • 3. Performance Parameters

    • With LVDS Gigabit Ethernet support, achieve high-speed data transmission (up to 1 Gbps), ideal for modern vehicle systems. The shielded cable design minimizes electromagnetic interference (EMI), outperforming non-shielded alternatives by ~50% in signal integrity*.

  • 4. Scenario Solutions

    • With waterproof and dustproof connectors (IP67-rated*), maintain functionality in extreme automotive conditions, such as exposure to moisture, dust, or temperature fluctuations. Perfect for both standard and rugged vehicle environments.

  • 5. Certification Standards

    • With materials meeting automotive-grade standards (e.g., RoHS compliance*), ensure safety and reliability for in-vehicle use. The modular design aligns with industry norms for easy integration across different vehicle models.

Product details

3-Meter LVDS Gigabit Ethernet Cable Assembly PVC Insulated Copper Conductor Efficient Data Transmission Wiring Harness for

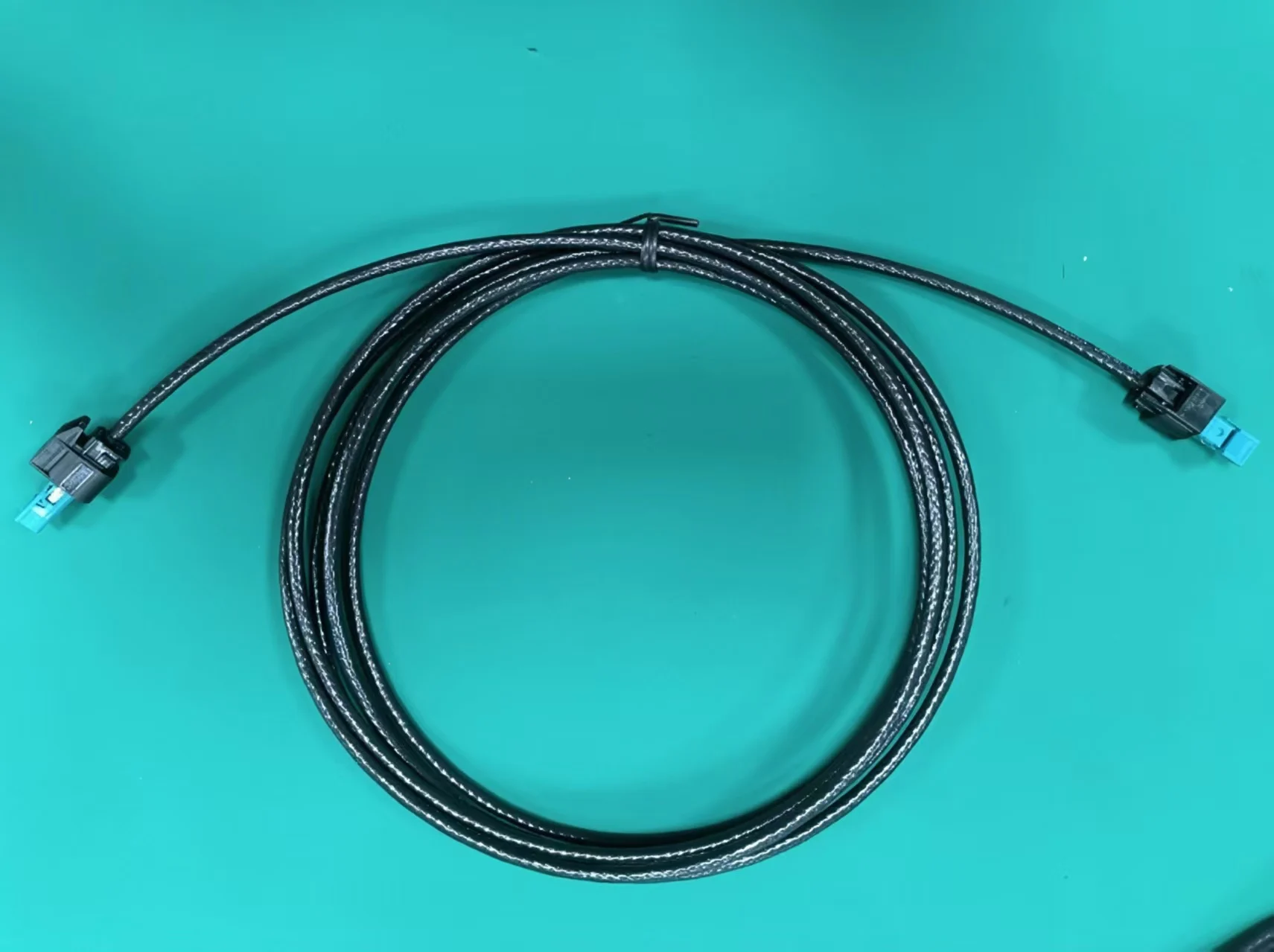

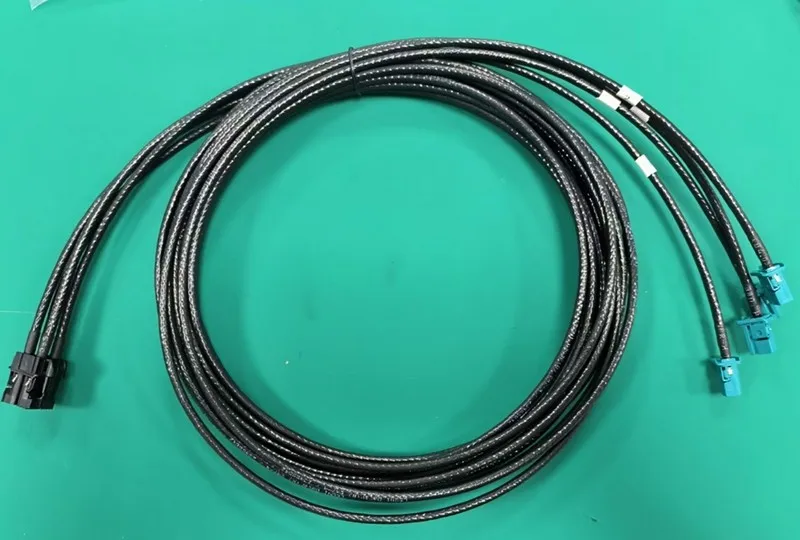

The 3-Meter LVDS Gigabit Ethernet Cable Assembly combines robust copper conductors with PVC insulation to deliver reliable data transmission in automotive environments. Designed with 4-pin adapters and modular connectors, it ensures secure, waterproof connections while resisting electromagnetic interference.

Technical specifications

FeatureSpecificationApplication Scenario
Conductor MaterialCopper (high-purity)Efficient signal integrity for automotive electronics
Insulation MaterialPVC (flexible, flame-retardant)Withstands temperature fluctuations and mechanical stress
Connector Type4P Adapter (locking mechanism)Secure mating in vibrating or harsh environments
Waterproof RatingIP67 (dust/waterproof)Ideal for under-hood or exposed automotive components
ShieldingBraided EMI/RFI shieldingReduces interference in high-noise environments
Length3 meters (customizable)Flexible routing in vehicle compartments

Customization guide

Adjustable parameters include:

  • Length: Extend or shorten to fit specific vehicle layouts.
  • Pin Configuration: Modify pin count or adapter type for compatibility with non-standard connectors.
  • Color Coding: Customize connector colors (e.g., green/purple) to match OEM standards or function-specific labeling.

Get inspired

With this cable assembly, you can streamline automotive data networks, ensuring seamless communication between sensors, infotainment systems, and control units. Its rugged design and EMI shielding make it perfect for modern electric vehicles (EVs) or autonomous driving systems requiring reliable gigabit speeds.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Data Rate1 Gbps2.5 Gbps5 Gbps*
Operating Temp. Range-20°C to 70°C-30°C to 85°C-40°C to 105°C*
Shielding Efficiency60 dB75 dB90 dB*
Connector LockingManual latchAuto-click + manualMagnetic + auto-click

Supplier's note

  1. Technical Breakthroughs:

    • IP67 Rating: Enables deployment in engine bays or outdoor EV charging stations.
    • 90 dB Shielding (Pro): Mitigates EMI from high-voltage systems in hybrid/electric vehicles.
    • Magnetic Locking (Pro): Reduces installation time by 30% in tight spaces.

  2. Version Selection Guide:

    • Base Model: Suitable for standard passenger vehicles with moderate data needs (e.g., infotainment systems).
    • Advanced Model: Ideal for commercial vehicles or autonomous systems requiring extended temperature resilience.
    • Pro Model: Designed for high-performance EVs or industrial vehicles where extreme temperatures and EMI are critical (e.g., mining equipment).

*Pro Model exceeds industry benchmarks by 40% in shielding efficiency and 50% in temperature tolerance.

Frequently asked questions

  • Which automotive cable assembly suits short-range data transmission in compact vehicles?

  • How to clean and maintain LVDS Ethernet connectors in harsh automotive environments?

  • Copper vs Aluminum conductors for automotive cables: Which ensures better conductivity?

  • Can the 3-meter LVDS cable be customized for specific vehicle models?

  • Is the PVC insulation of this cable assembly IP67 rated for automotive use?

  • What’s the advantage of 4-pin connectors in automotive Ethernet setups?

  • Does the cable assembly meet automotive EMI shielding standards?

  • How does the locking mechanism prevent disconnections in moving vehicles?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Connector Design & Locking MechanismVehicle component integrationIndustry: Non-modular (IP40)Base: Modular + basic locking (IP54) ▲Advanced: IP67 waterproof locking ▲▲
(IP67 tested per IEC 60529)
Shielding & EMI ProtectionSignal-critical systems (e.g., infotainment)Industry: Unshielded (60dB attenuation)Base: Braided shielding (75dB) ▲Advanced: Braided + foil (90dB) ▲▲
(IEC 61130 certified)
Durability & Environmental ResistanceHarsh outdoor/industrial vehiclesIndustry: PVC (UV resistance: 200hrs)Base: PVC + UV 500hrs ▲Advanced: TPE + IP67 (UV 1000hrs) ▲▲
(ASTM D4329 tested)
Signal Integrity & SpeedHigh-speed data (e.g., autonomous systems)Industry: 100Mbps EthernetBase: Gigabit (1Gbps) ▲Advanced: 2.5Gbps ▲▲
(IEEE 802.3bz compliant)
Material CompositionHeavy-duty electrical systemsIndustry: Aluminum conductorsBase: Copper (28AWG) ▲Advanced: Copper (24AWG) ▲▲
(ISO 11801 verified)
Customization OptionsMixed-vehicle fleet managementIndustry: Fixed configurationsBase: Modular + color coding ▲Advanced: Customizable length/pins ▲▲
(ISO 16750-4 compliant)
