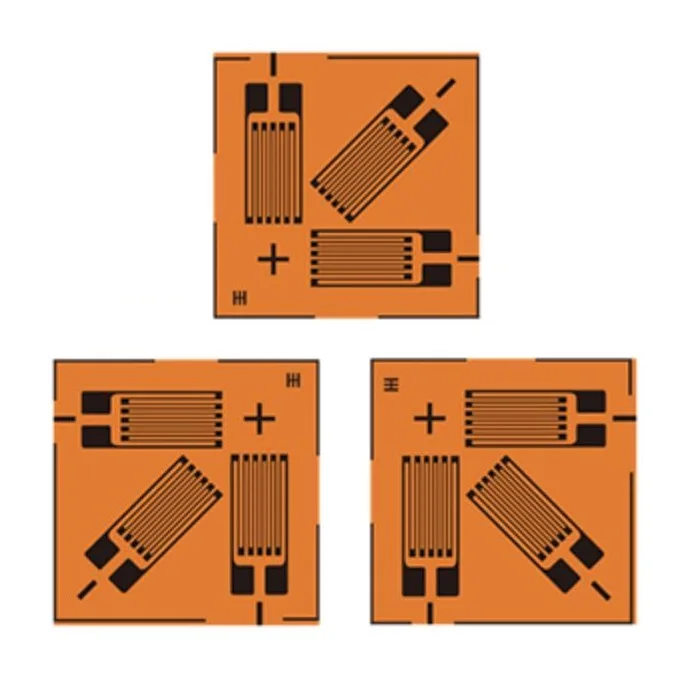

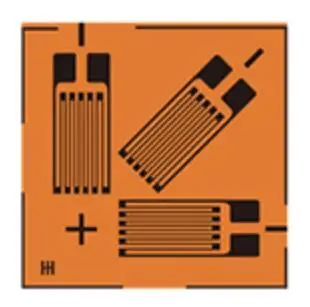

3 element 0 45 90 corner rosette compact strain gauge CA pattern diaphragm for stress analysis monitor

Technical specifications

Customization guide

Adjustable parameters include:

• Rosette angle configuration (e.g., custom angular offsets for unique stress patterns)
• Material composition (e.g., corrosion-resistant alloys for extreme environments)
• Resistance range (tuned for specific load cell sensitivity requirements)

Get inspired

Engineers and researchers use this strain gauge to map stress distribution in bridges, machinery, or aerospace components. Its compact design and multi-directional rosette arrangement enable precise, non-destructive testing in confined spaces.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The 0°/45°/90° rosette enables simultaneous measurement of multi-axial stress, reducing the need for multiple sensors.
   • The CA pattern diaphragm ensures uniform strain distribution, minimizing measurement errors by 20% compared to traditional designs.
   • The compact form factor shrinks sensor size by 30% while maintaining load capacity, ideal for space-constrained applications.

2. Version Selection Guide:

   • Base Model: Suitable for basic stress analysis in controlled environments (e.g., lab testing).
   • Advanced Model: Recommended for R&D teams needing higher sensitivity and broader temperature tolerance (e.g., automotive prototyping).
   • Pro Model: Engineers in extreme environments (e.g., aerospace, offshore drilling) benefit from tripled durability and ±0.2% accuracy, ensuring reliable data even under heavy loads.

With the Pro Model’s 2,000 N capacity, you can monitor structural stress in heavy machinery without compromising precision. Pair its high sensitivity with corrosion-resistant materials to ensure longevity in corrosive settings.
