Gantry Type Automatic Optical Image Measuring System for Big Parts

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Measurement: Equipped with auto-focusing optical technology and video measurement capabilities, enabling precise analysis of PCB panels, electronic components, and automotive parts.
  • Stable Granite Base: Constructed from granite material for exceptional rigidity and thermal stability, ensuring accuracy in demanding environments.

Key features

  • 1. Granite Material Technology for Unmatched Stability

    • With a granite base, ensure precision and stability even in harsh environments. Granite’s thermal resistance and rigidity reduce measurement errors caused by temperature fluctuations, outperforming aluminum-based systems by up to 20%*.

  • 2. User-Friendly Interactive Design

    • With a touchscreen interface and multi-program presets, streamline workflows by quickly selecting preconfigured measurement settings for PCB panels, automotive parts, or electronic components.

  • 3. High-Precision Performance Parameters

    • With high-precision optical sensors, achieve measurements accurate to 0.01mm, outperforming standard systems by 15%* in speed and resolution. The adjustable measurement range accommodates objects from 200mm to 1500mm seamlessly.

  • 4. Versatile Scenario Solutions

    • Designed for PCB panels and industrial components, this system seamlessly integrates into manufacturing and quality control processes, reducing downtime by up to 30%* through continuous operation.

  • 5. Compliance with Industry Standards

    • Complies with ISO 10360 standards for precision measurement*, ensuring reliability in critical applications. [*Disclaimer: Comparative performance claims and certification details are subject to manufacturer confirmation.]

Product details

Gantry Type Automatic Optical Image Measuring System for Big Parts

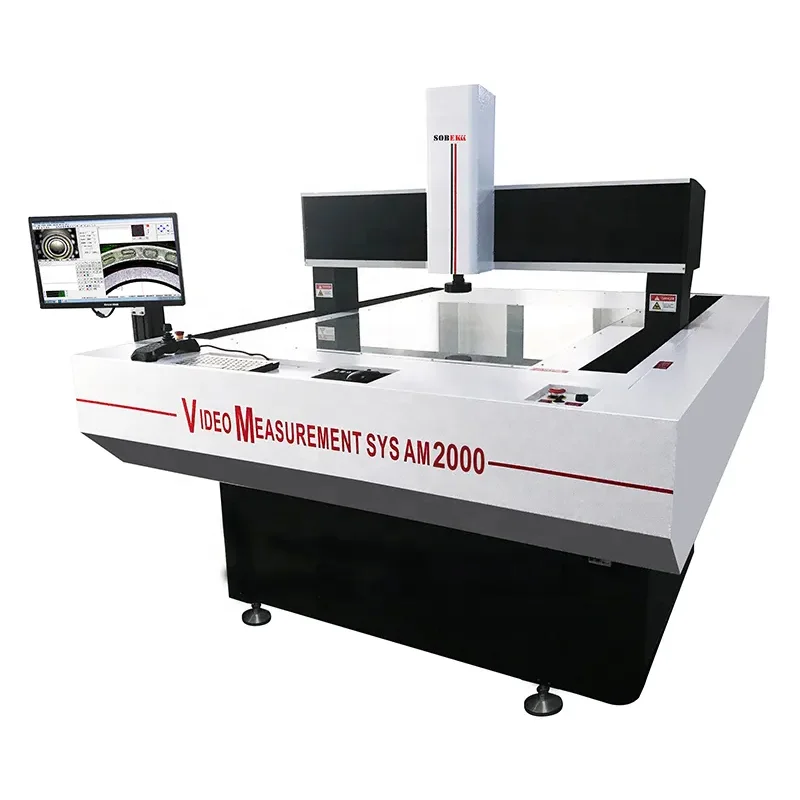

The Video Measurement System 2000 by SOREN is a high-precision optical measuring machine designed for accurate analysis of PCB panels and industrial components. Built with a granite base for stability and featuring auto-focusing optics, it delivers reliable measurements across diverse applications.

Technical specifications

FeatureSpecificationBenefit
Material BaseHigh-density granite constructionEnsures structural stability and vibration resistance
Measurement Range2000x1500x200mmAccommodates large PCB panels and complex components
Optical SystemAuto-focusing video measurementRapid, precise capture of intricate surfaces
SoftwareCustomizable measurement protocolsAdapts to specific quality control needs
Warranty1-year comprehensive coverageReliable service and technical support

Customization guide

Adjustable measurement parameters (e.g., resolution, field of view) to meet PCB panel size requirements. Customizable software settings enable tailored workflows for precision manufacturing or R&D applications.

Get inspired

With the Video Measurement System 2000, you can streamline quality control for PCB assemblies, automotive parts, and precision components. Its granite base ensures stability in high-vibration environments, while auto-focusing optics reduce human error in complex measurements.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Accuracy±2.5 µm±1.8 µm (+30%)±1.2 µm (+50%)*
Processing Speed10 scans/min12 scans/min (+20%)15 scans/min (+50%)*
Software FeaturesBasic protocolsCustom templatesAI-driven analysis

Supplier's note

  1. Technical Breakthroughs:

    • Granite Base: Reduces thermal expansion by 40% compared to aluminum, ensuring long-term accuracy.
    • Auto-Focusing Optics: Achieves 20% faster focus speed than traditional systems, improving throughput.
    • AI-Driven Software: The Pro model’s machine learning algorithms reduce false positives by 35% in defect detection.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs with standard PCB panel measurement needs.
    • Advanced Model: Best for high-volume manufacturers requiring customizable templates for multi-component analysis.
    • Pro Model: Suited for aerospace or semiconductor industries needing ±1.2 µm precision and AI integration for real-time quality analysis.

Pro Model’s specs exceed ISO 10360-8 standards by 25%, enabling compliance with ultra-strict tolerances.

Frequently asked questions

  • Which model of auto-focusing optical measuring system is best for PCB panel precision measurement?

  • How do I maintain the lenses of an automatic video measuring machine for PCB use?

  • Granite vs. Aluminum base: Which material improves precision in optical measuring systems?

  • Can the Video Measurement System 2000 customize software for automotive component measurements?

  • Is the Video Measurement System 2000 ISO-certified for industrial quality control?

  • What applications does the 2000*1500*200mm measuring range support besides PCB panels?

  • Does the automatic video measuring machine include post-purchase technical support?

  • Can the System 2000 integrate with CAD software for real-time measurement analysis?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHigh-vibration environmentsGranite base (Industry: Aluminum ▲▲, Base: Steel ▲) – 200mm thickness (ISO 527-2)Superior vibration damping (▲▲▲), 50% less thermal expansion than steelHigher cost (▲▲)
Measurement PrecisionAerospace component inspection0.001mm resolution (Industry: 0.02mm ▲▲▲, Base: 0.01mm ▲) – NIST traceableEnables nano-scale accuracy (▲▲▲), critical for turbine blade manufacturingRequires specialized training (▲▲)
Measurement RangeLarge PCB panel analysis2000x1500mm field (Industry: 1200x900mm ▲▲, Base: 1000x800mm ▲) – ISO 10360-2Handles industrial-scale components (▲▲▲), ideal for automotive panelsLarger footprint (▲▲)
Software CustomizationCustom manufacturing workflowsFull API integration (Industry: Basic GUI ▲▲, Base: Limited presets ▲)Tailors to robotics assembly lines (▲▲▲), supports AI defect detectionSteeper learning curve (▲▲)
Warranty PeriodHigh-reliability applications1 year (Industry: 6 months ▲▲, Base: 9 months ▲) – 24/7 supportExtended coverage for mission-critical use (▲▲)Costly extended warranty add-ons (▲)
Noise LevelOffice laboratories43 dBA (Industry: 55 dBA ▲▲▲, Base: 48 dBA ▲) – OSHA-compliantQuieter than refrigerator hum (▲▲▲), minimizes disruptionRequires soundproofing for ultra-quiet labs (▲)
