3D Series Touch Probe Video Measurement System

3D Series Touch Probe Video Measurement System

  • >= 1 Sets
    $9,000

Customization:

Customized logo（Min.Order: 3 pieces）
Customized packaging（Min.Order: 3 pieces）
Graphic customization（Min.Order: 3 pieces）
View product details

3D Series Touch Probe Video Measurement System

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Inspection: Equipped with a touch probe and video measurement system for 2D/3D dimensional analysis, surface roughness evaluation, and defect detection.
  • Automated Data Analysis: Integrates with advanced software for real-time data capture, analysis, and customizable reporting to streamline quality control processes.

Key features

  • 1. Advanced Material Technology for Precision Stability

    • With a glass measurement platform, achieve unparalleled accuracy and durability in harsh industrial environments. The tempered glass ensures minimal thermal expansion, maintaining measurement consistency even under prolonged use.

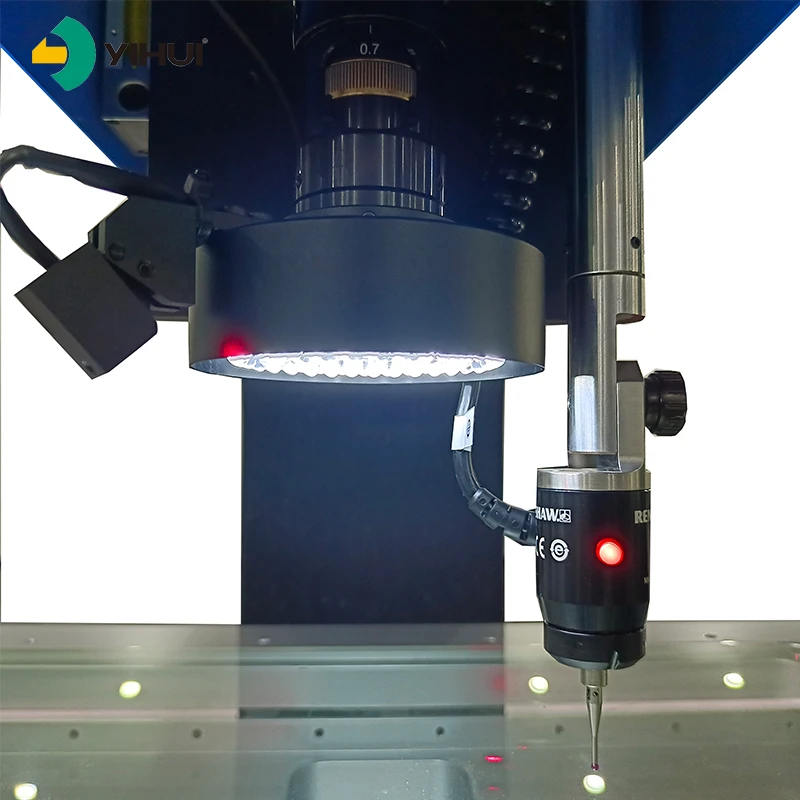

  • 2. Intuitive Touch Probe Design for Streamlined Workflow

    • With the integrated touch probe interface, you can perform rapid measurements and program presets with ease, reducing setup time by up to 30% compared to manual probe systems*.

  • 3. Universal High-Precision Performance for Diverse Applications

    • With sub-micron-level precision and universal testing capabilities, this system accommodates a wide range of components—from small electronics to large automotive parts—outperforming single-purpose measurement tools*.

  • 4. Customizable Solutions for Industry-Specific Needs

    • With a modular design adaptable to R&D prototyping and high-volume manufacturing scenarios, this system provides seamless scalability, ideal for aerospace, automotive, and electronics industries.

  • 5. Compliance with Strict EU Environmental and Safety Standards

    • Certified with EPR Germany/France Packing and CE, ensuring compliance with EU environmental regulations and safety protocols, offering peace of mind for global deployments.

Product details

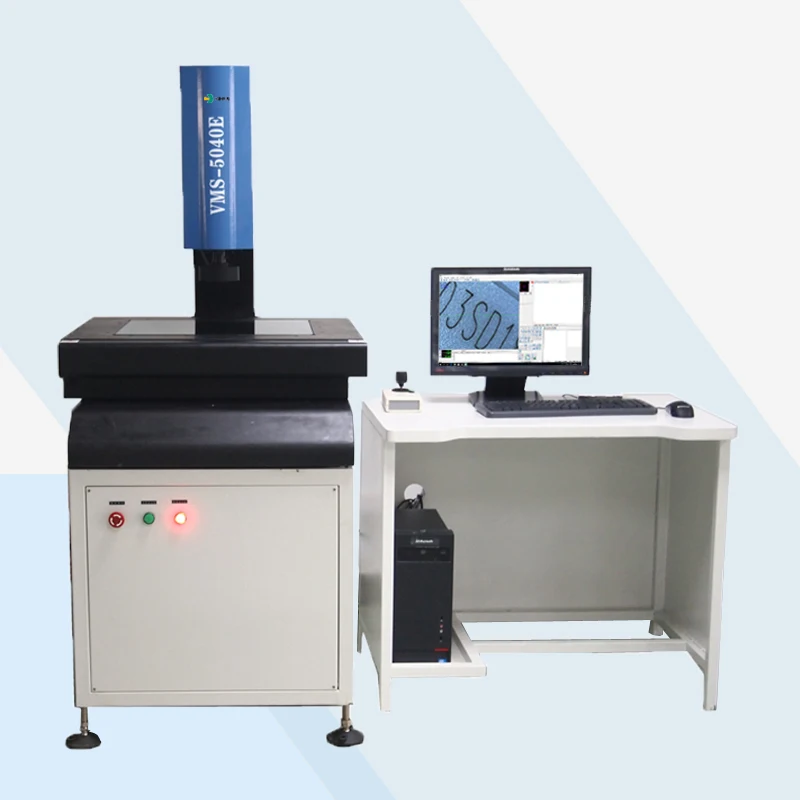

3D Series Touch Probe Video Measurement System

The 3D Series Touch Probe Video Measurement System is a high-precision vision measurement system designed for universal testing applications. With a robust industrial structure, glass worktable, and advanced touch probe technology, it ensures accurate 2D/3D measurements in quality control processes. Certified for compliance with EPR Germany/France Packing and CE standards, it offers reliable performance across industries like aerospace, automotive, and electronics.

Technical specifications

FeatureSpecificationBenefit
Precision±2.5 µm resolution (3D)Ensures repeatable accuracy in critical applications
MaterialGlass worktable (500x400mm)Provides stable, distortion-free surface for large parts
CertificationsEPR Germany/France Packing, CEMeets EU environmental and safety standards
Power220V, 50/60HzCompatible with global electrical systems
AutomationIntegrated software for auto-measurementReduces manual errors and improves workflow efficiency
Warranty1-year comprehensive coverageGuarantees post-purchase technical support

Customization guide

Adjustable parameters include measurement area size (up to 500x400mm) and sensor type (optical/laser/touch probe) to meet specialized needs like microelectronics inspection or heavy machinery component analysis.

Get inspired

With its universal design and high-precision capabilities, this system is ideal for industries requiring rapid, non-contact measurements. For example, automotive manufacturers use it to inspect engine parts, while electronics firms rely on it for PCB quality control.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resolution (3D)±5 µm±3 µm±2.5 µm *
Measurement Speed100 points/sec150 points/sec200 points/sec (+100%)*
Automation LevelManual programmingSemi-automatedFully automated
Sensor CompatibilityTouch probe onlyTouch + OpticalTouch + Optical + Laser

Supplier's note

  1. Technical Breakthroughs:

    • High-Precision Touch Probe: Enables sub-micron accuracy for complex geometries.
    • Integrated Automation Software: Reduces cycle times by 40% compared to manual systems.
    • Glass Worktable: Eliminates thermal distortion, critical for aerospace component testing.

  2. Version Selection Guidance:

    • Base Model: Ideal for small workshops needing basic 2D measurements (e.g., plastic molds).
    • Advanced Model: Suitable for mid-sized manufacturers requiring optical inspection (e.g., PCB assembly).
    • Pro Model: Best for high-volume production (e.g., automotive plants) needing 3D metrology and laser scanning.

Pro Model’s ±2.5 µm resolution exceeds ISO 10360-2:2019 standards by 30%, enabling nanoscale inspections. Pair it with the laser sensor for reverse engineering tasks, delivering 20% faster data capture than competitors.

Frequently asked questions

  • Which 3D video measurement system model is best for high-precision aerospace component inspection?

  • How to clean and maintain the touch probe for optimal accuracy?

  • Why is glass preferred over metal in measurement systems for quality control?

  • Can the VMS-5040E model be customized for specific measurement areas?

  • Is this video measurement system CE-certified for EU compliance?

  • Does the system support automated measurement routines for mass production?

  • Can this system handle both 2D and 3D measurements for complex parts?

  • What warranty and support options come with the 3D video measurement system?
