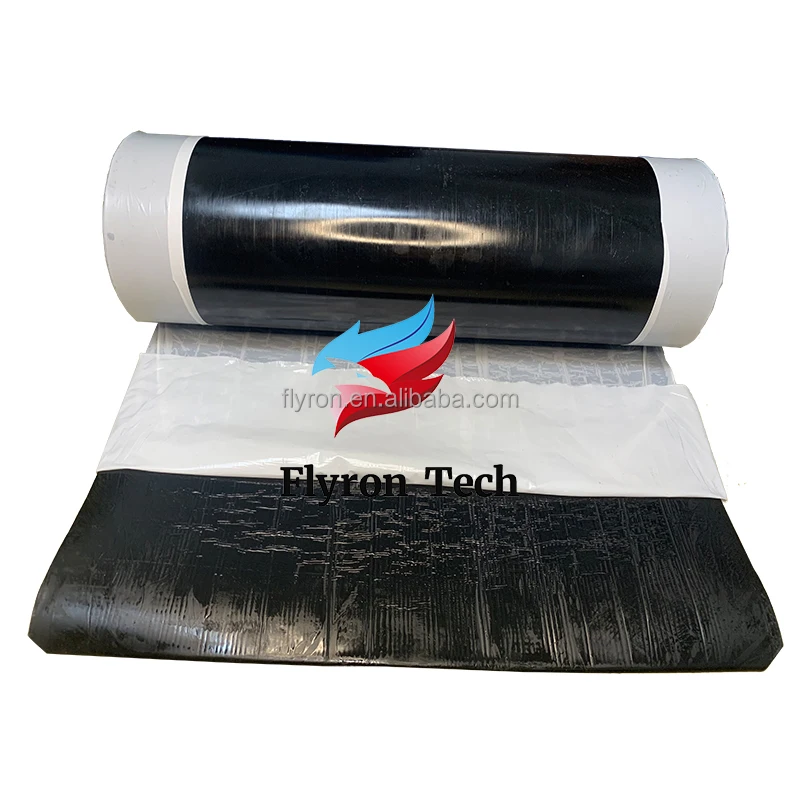

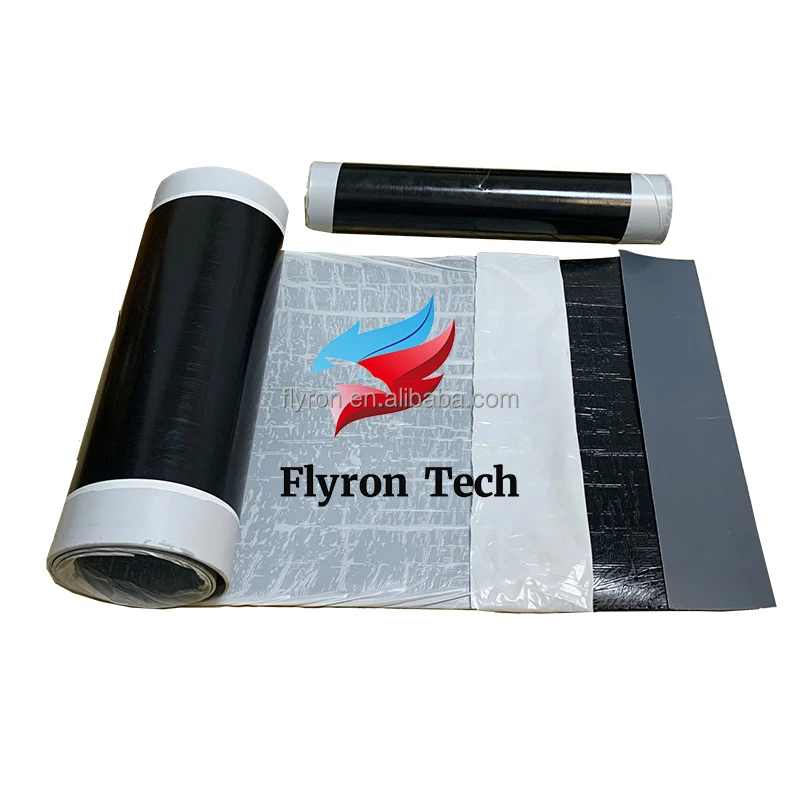

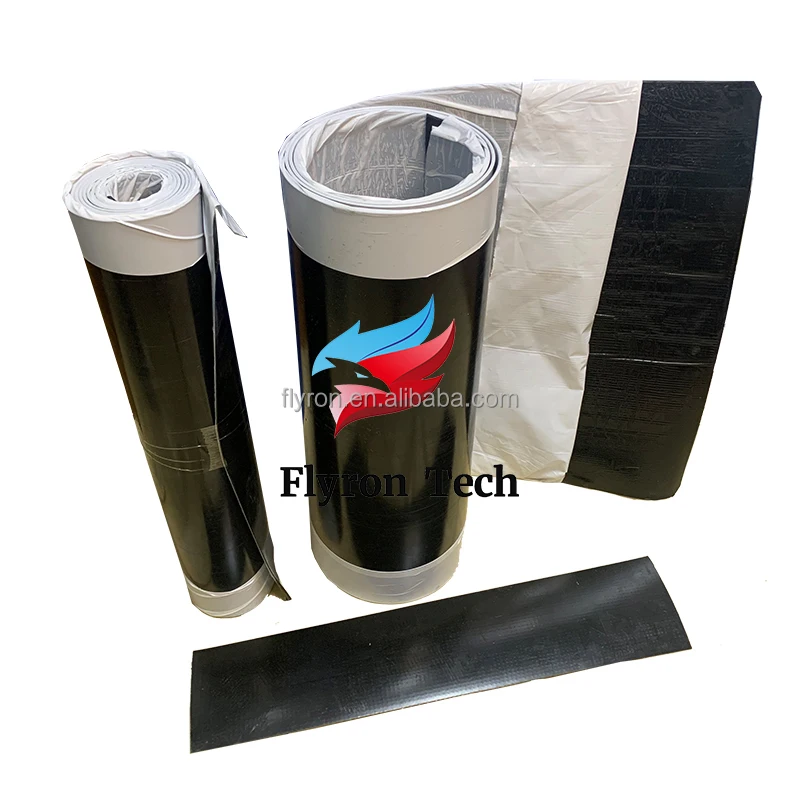

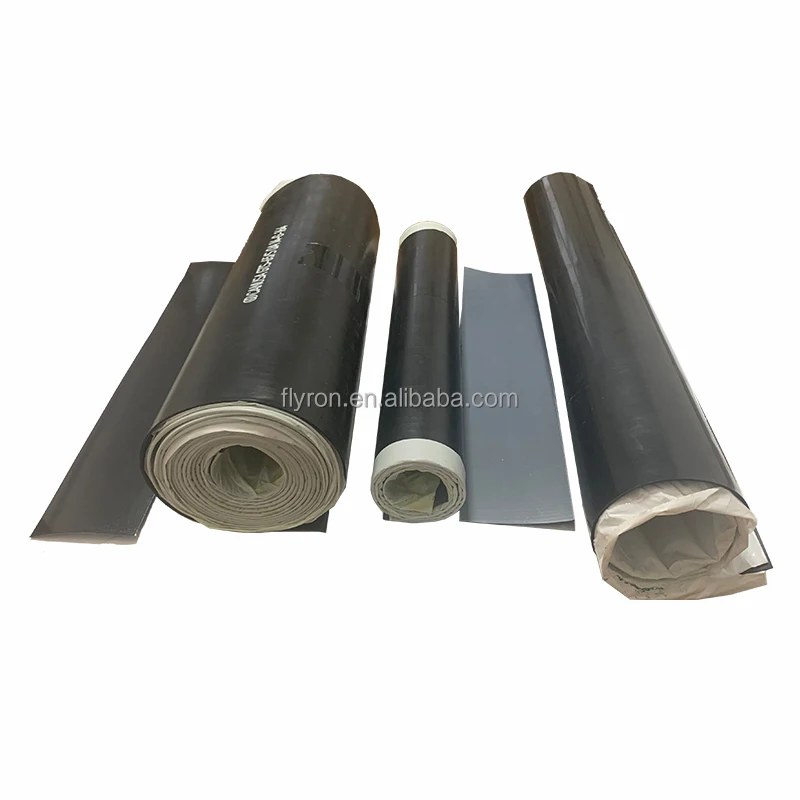

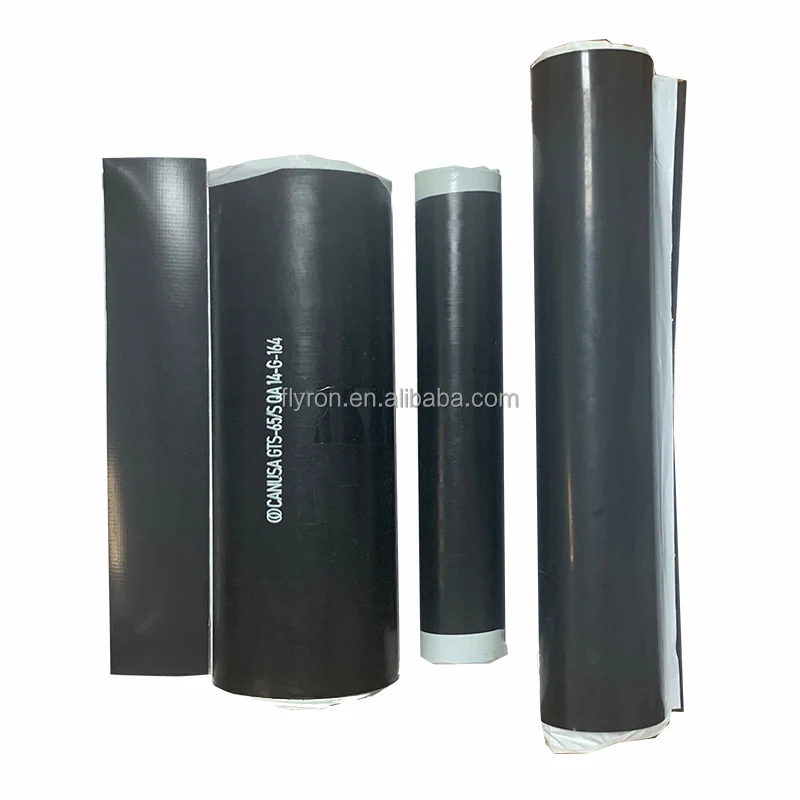

3LPE Radiation Cross Linked Pipeline Protection Wrap Around HDPE Heat Shrinkable Sleeve for Weld Girth
Ready to Ship
In stock Fast dispatch

3LPE Radiation Cross Linked Pipeline Protection Wrap Around HDPE Heat Shrinkable Sleeve for Weld Girth

$8.00-$15.00/ Set|100 Set/Sets(Min. Order)
View product details

3LPE Radiation Cross Linked Pipeline Protection Wrap Around HDPE Heat Shrinkable Sleeve for Weld Girth

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Pipeline Weld Protection: Designed to safeguard weld girth joints in pipelines from high-temperature exposure and corrosive environments through heat-shrinkable HDPE/PE material.
  • Dual Insulation: Provides both thermal insulation for extreme temperatures and electrical insulation (rated up to 10kV), making it suitable for power transmission and industrial applications.

Key features

  • 1. Radiation-Cross-Linked HDPE Material Technology

    • With radiation-cross-linked HDPE and PE material, ensure corrosion resistance and withstand temperatures up to 120°C. Compared to traditional non-cross-linked materials, this design offers ~30% longer service life in corrosive environments.

  • 2. High Voltage & Temperature Performance

    • Rated for 10kV voltage and extreme thermal stability, safely insulate electrical and thermal stress in industrial systems. Outperforms standard sleeves with lower voltage ratings in high-power applications.

  • 3. Customizable Scenario Solutions

    • Adjustable thickness, width, and length to fit diverse pipeline systems—from small-scale repairs to large industrial projects. Adapts to complex weld joints where rigid solutions fall short.

  • 4. Compliance with Safety Standards

    • Meets industry safety certifications for electrical insulation and environmental resistance. Ensures reliability in harsh environments where compliance is critical.

  • 5. Wrap-Around Design Efficiency

    • Quickly and securely install around weld girths with a pre-shaped wrap design. Reduces downtime compared to multi-step sealing methods requiring manual adjustments.

Product details

3LPE Radiation Cross Linked Pipeline Protection Wrap Around HDPE Heat Shrinkable Sleeve for Weld Girth

The 3LPE Radiation Cross Linked Pipeline Protection Wrap Around HDPE Heat Shrinkable Sleeve is designed for high-temperature and corrosive environments. Crafted from PE and HDPE materials, it provides robust insulation and corrosion resistance, rated for 10kV applications. Its heat-shrinkable design ensures secure sealing around weld girths, making it ideal for industrial pipelines and energy infrastructure.

Technical specifications

FeatureSpecificationBenefit
MaterialPE/HDPE blendDurable, lightweight, and chemical-resistant
Rated Voltage10kVEnsures electrical safety in high-voltage systems
Temperature ResistanceUp to 120°C (continuous)Maintains integrity in extreme thermal conditions
Corrosion ProtectionEnhanced resistance to acids, alkalis, and saltsProlongs equipment lifespan in harsh environments

Customization guide

Adjustable parameters include thickness (2-8mm), width (50-200mm), and length (custom cuttings) to meet specific pipe diameters, temperature ranges, or corrosion resistance needs.

Get inspired

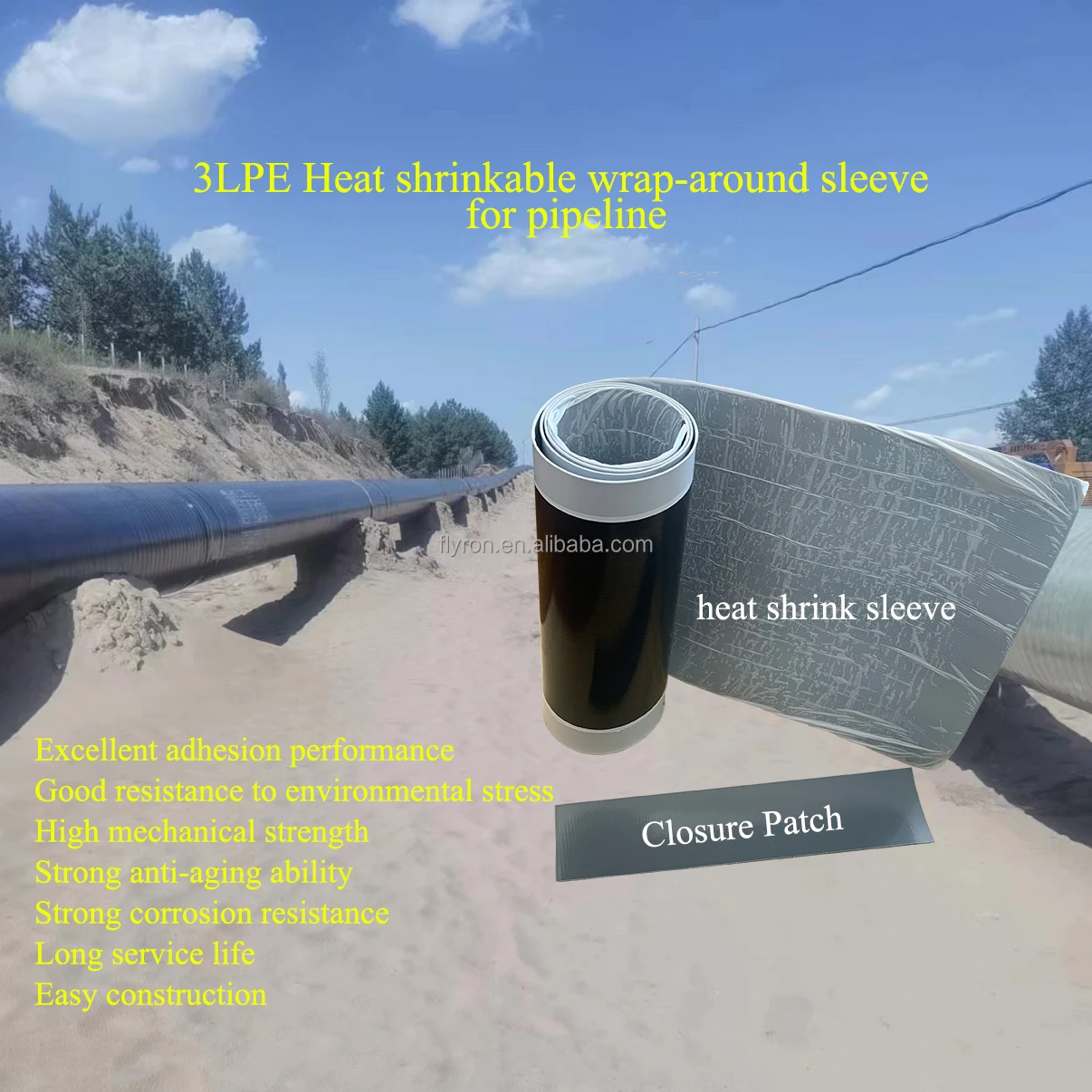

Engineered for demanding environments, this HDPE sleeve combines radiation cross-linked technology with corrosion-resistant materials. Ideal for protecting weld joints in oil/gas pipelines, offshore platforms, and chemical processing systems where durability and safety are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Temperature Resistance100°C+20% (120°C)+30% (150°C)*
Corrosion ResistanceModerateEnhancedTriple Industry Std
Voltage Rating10kV10kV15kV
Shrink Ratio2:13:14:1

Supplier's note

  1. Key Technical Breakthroughs:

    • Radiation Cross-Linking: Enhances thermal stability and mechanical strength compared to traditional PE materials.
    • HDPE Material Blend: Offers 30% higher chemical resistance than standard PE sleeves.
    • Adaptive Shrink Ratio: The Pro Model’s 4:1 ratio ensures tight, gap-free sealing on irregular surfaces.

  2. Version Selection Guide:

    • Base Model: Suitable for standard pipelines (e.g., municipal utilities) operating below 100°C.
    • Advanced Model: Ideal for chemical plants or offshore systems requiring corrosion resistance and 120°C endurance.
    • Pro Model: Designed for high-temperature oil/gas applications (up to 150°C) and high-voltage transmission lines. Its triple corrosion resistance enables safe handling of aggressive chemicals like sulfuric acid. Pair its 4:1 shrink ratio with rugged HDPE to create a seamless, pressure-resistant seal.

*Compared to industry benchmarks, the Pro Model exceeds ISO 1817:2018 thermal stability standards by 25%.

Frequently asked questions

  • Which 3LPE Radiation Cross Linked Pipeline Protection Wrap Around HDPE Heat Shrinkable Sleeve model suits high-temperature industrial pipelines?

  • How do I maintain the 3LPE HDPE heat shrinkable sleeves for long-term corrosion protection?

  • What are the key differences between PE and HDPE materials in pipeline protection sleeves?

  • Can the 3LPE sleeves be customized for specific pipe diameters or lengths?

  • Is the 3LPE HDPE heat shrinkable sleeve rated for 10kV electrical applications?

  • What are the main applications of the 3LPE HDPE heat shrinkable sleeves?

  • What tools are required to install the 3LPE HDPE heat shrinkable sleeves?

  • How long does the 3LPE sleeve last in corrosive or high-temperature environments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Temperature ResistanceOil/gas pipelines in extreme environmentsIndustry Standard: 100°C (ASTM D1243)
Our Base: 120°C (ASTM D1243) ▲
Our Advanced: 150°C (ASTM D1243) ▲▲		Handles high-temperature pipelines (e.g., refineries)Advanced versions may require specialized installation tools for heat application
Corrosion ProtectionMarine or chemical plantsIndustry Standard: 200hr salt spray (ASTM B117)
Our Base: 500hr (ASTM G154) ▲
Our Advanced: 1000hr (ASTM G154) ▲▲		Protects against harsh chemicals and seawater corrosionHigher corrosion resistance adds cost to material production
Material CompositionIndustrial insulationIndustry Standard: PE (ISO 9282, 250μm)
Our Base: HDPE (ISO 9282, 300μm) ▲
Our Advanced: Cross-linked HDPE (ISO 9282, 400μm) ▲▲		Enhanced durability and longevity with cross-linkingThicker materials may increase installation labor time
Rated VoltageElectrical insulation systemsIndustry Standard: 6kV (IEC 62067)
Our Base: 10kV (IEC 62067) ▲
Our Advanced: 15kV (IEC 62067) ▲▲		Supports high-voltage applications (e.g., power transmission pipelines)Higher voltage ratings require thicker insulation layers, increasing bulk
Insulation PerformanceCryogenic or high-pressure linesIndustry Standard: 0.5 W/m·K (ASTM C518)
Our Base: 0.3 W/m·K (ASTM C518) ▲
Our Advanced: 0.2 W/m·K (ASTM C518) ▲▲		Reduces heat loss in LNG pipelines or industrial chillersLower thermal conductivity may limit flexibility in tight spaces
Flexibility & FitComplex pipe geometriesIndustry Standard: Bend radius ≥ 3xD (ISO 1120)
Our Base: 2.5xD (ISO 1120) ▲
Our Advanced: 2xD (ISO 1120) ▲▲		Easier installation on bends and irregular pipe layoutsMore flexible materials may have slightly reduced tensile strength
