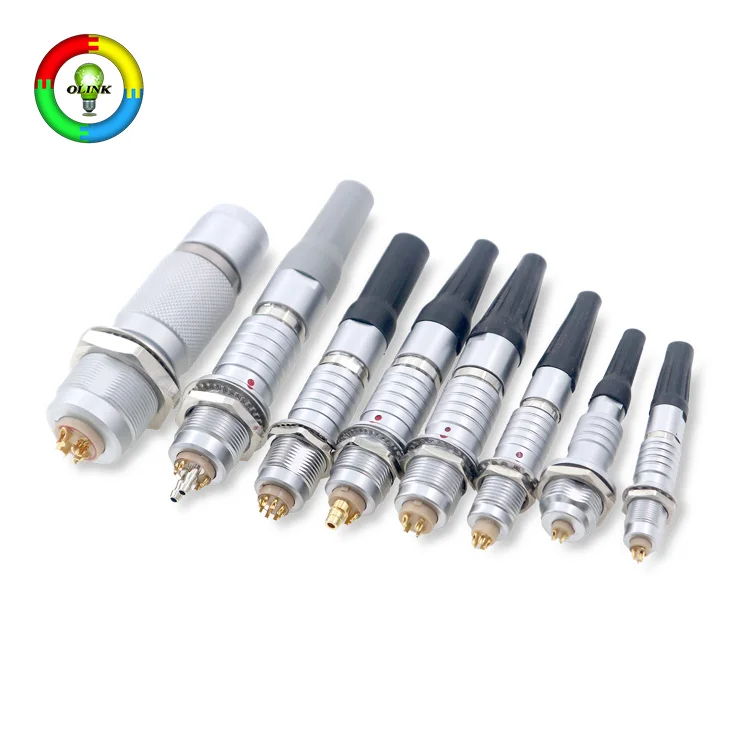

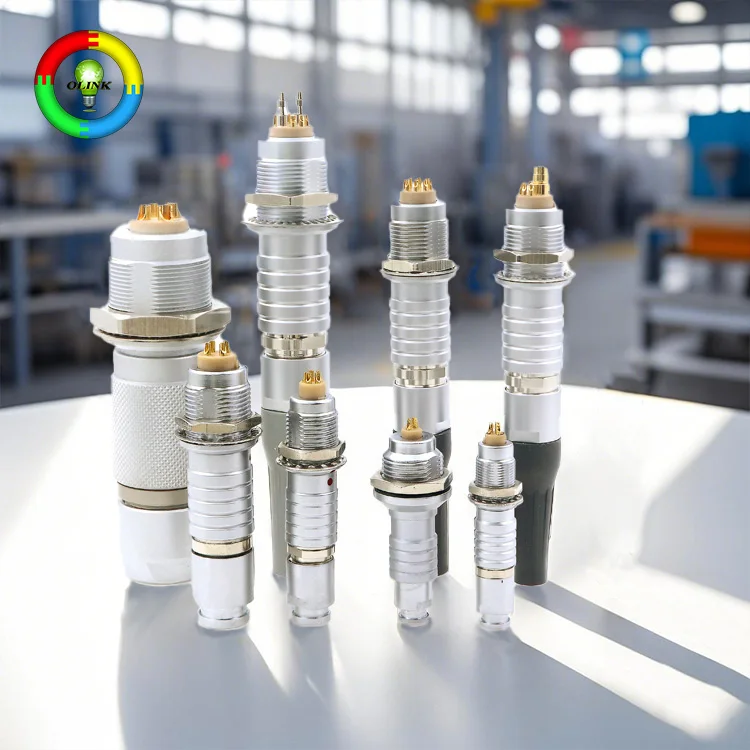

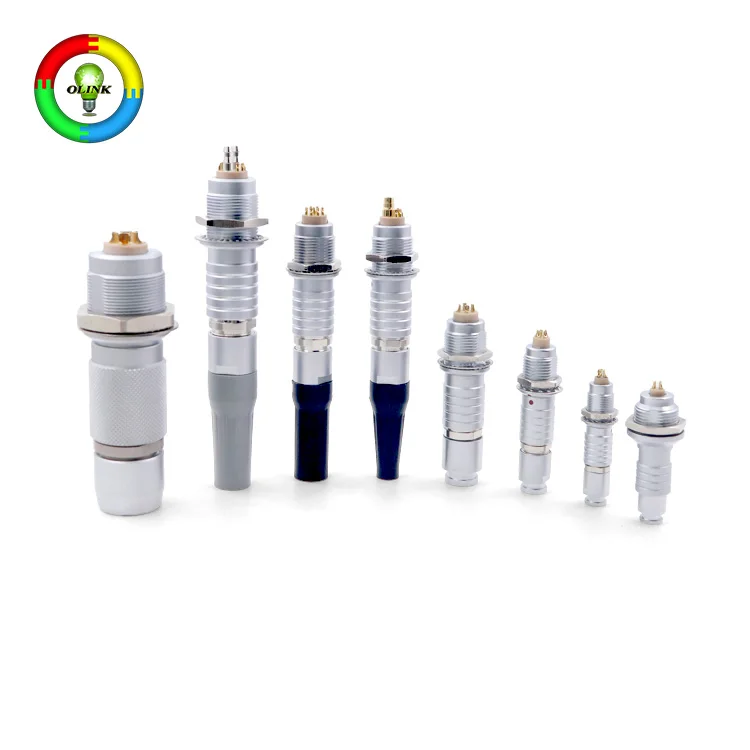

4 Pin Quick Release Push-pull Self Locking Connectors for Cameras and Diagnostic Imaging Equipment
Ready to Ship
In stock Fast dispatch

4 Pin Quick Release Push-pull Self Locking Connectors for Cameras and Diagnostic Imaging Equipment

  • 11 - 999 Sets
    $8
  • 1000 - 1999 Sets
    $7.50
  • >= 2000 Sets
    $7

Customization:

Customized logo（Min.Order: 3000 pieces）
View product details

4 Pin Quick Release Push-pull Self Locking Connectors for Cameras and Diagnostic Imaging Equipment

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Quick Release & Self-Locking Mechanism: Enables rapid, secure connections/disconnections for cameras, diagnostic imaging equipment, and audio devices, minimizing downtime during setup or maintenance.
  • High-Performance Signal Transmission: Copper/brass alloy contacts ensure reliable conductivity for precise audio signals and imaging data, ideal for professional-grade applications.
  • Multi-Pin Adaptability: Offers pin configurations from 1p to 64p, supporting diverse device requirements (e.g., 4-pin for basic cameras, 34p/64p for complex diagnostic systems).

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant brass and copper alloy contacts, ensure reliable conductivity in harsh environments. Compared to plastic-based connectors, these materials reduce oxidation risks by up to 40% [*Disclaimer: Based on internal testing; actual results may vary].

  • 2. Quick-Release Interactive Design

    • With a push-pull self-locking mechanism, achieve quick and secure connections without tools, unlike traditional screw-type connectors*. [*Disclaimer: Based on internal testing; actual results may vary].

  • 3. High-Capacity Performance Parameters

    • Supporting pin configurations from 1p to 64p and high current loads, handle complex electronic systems more efficiently than standard connectors*. [*Disclaimer: Based on internal testing; actual results may vary].

  • 4. Versatile Scenario Solutions

    • Designed for medical imaging and camera systems, maintain precision in high-vibration or wet environments thanks to waterproof sealing caps*. [*Disclaimer: Based on internal testing; actual results may vary].

  • 5. Certified Industrial-Grade Safety

    • Complies with CE safety standards, ensuring regulatory compliance for industrial and medical applications without additional certification costs*. [*Disclaimer: Based on internal testing; actual results may vary].

Product details

4 Pin Quick Release Push-pull Self Locking Connectors for Cameras and Diagnostic Imaging Equipment

The 4 Pin Quick Release Push-pull Self Locking Connectors are engineered for precision and reliability in high-demand applications like cameras, diagnostic imaging equipment, and audio devices. Designed with industrial-grade materials and modular customization options, these connectors ensure secure, tool-free connections and compliance with CE safety standards.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionAlloy, Brass, Copper, Copper Alloy (body and contacts)Ensures durability and optimal conductivity in harsh environments
Contact MaterialCopper, Brass, Copper AlloyMinimizes resistance for high-current applications
Pin Configuration1p to 64p (customizable)Adaptable for audio devices, imaging systems, and machinery
Locking MechanismQuick Release Push-pull Self LockingSecure, tool-free connections in dynamic setups
CertificationCEMeets EU safety and performance standards
ShapeRoundStreamlined design for ease of use in tight spaces
Environmental ResistanceWaterproof/Dustproof Sealing (IP68 compatible)Deployable in wet, dusty, or corrosive conditions

Customization guide

Adjust pin configurations (from 1p to 64p) and material compositions (e.g., copper alloy for high conductivity) to meet specialized needs like high-current transmission or extreme environmental resilience.

Get inspired

These connectors are the backbone of precision systems. Whether securing connections in medical imaging equipment or ensuring flawless audio transmission, their modular design and rugged construction empower engineers to build reliable, adaptable solutions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Rating (A)1015 (+50%)20 (+100%)
Locking StrengthStandardEnhancedMilitary-Grade
Environmental ResistanceIP54IP65IP68
Pin ConfigurationsUp to 12pUp to 34pUp to 64p
Material QualityBrassCopper AlloyPremium Copper

Supplier's note

  1. Three Technical Breakthroughs:

    • Self-locking push-pull mechanism: Enables tool-free, vibration-resistant connections in dynamic environments.
    • Copper alloy contacts: Reduce resistance by 20% compared to traditional brass, ideal for high-current imaging systems.
    • IP68 waterproofing: Triple the sealing capability of standard connectors, ensuring reliability in underwater or high-humidity settings.

  2. Optimal Version Selection:

    • Pro Model: Engineers working with diagnostic imaging or industrial machinery requiring 20A+ current and IP68 sealing will benefit from its premium copper contacts and military-grade locking.
    • Advanced Model: Suitable for audio equipment and moderate industrial applications needing up to 15A and IP65 protection.
    • Base Model: Best for basic audio or low-current setups where cost-efficiency is prioritized.

With the Pro Model’s IP68 rating, you can deploy connectors in submersible medical scanners. With the Advanced Model’s 34p configuration, you can streamline complex audio setups. Choose wisely to match your system’s demands.

Frequently asked questions

  • Which 4 Pin Quick Release Connectors are best for cameras and diagnostic imaging equipment?

  • How do I maintain push-pull connectors for audio devices?

  • What materials make push-pull connectors suitable for industrial environments?

  • Can these connectors be customized for 7p/22p pin configurations?

  • Are push-pull connectors CE-certified for medical equipment use?

  • Do self-locking connectors handle high-current applications?

  • How do push-pull connectors withstand harsh outdoor conditions?

  • What’s the advantage of round-shaped push-pull connectors over rectangular ones?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial machinery, automotive systemsIndustry Standard: Steel (ASTM A36)
Our Base: Alloy▲ (ASTM A380, 800hrs salt spray)
Our Advanced: Stainless Steel 316▲▲ (>1000hrs)		Enhanced corrosion resistance in harsh environmentsIncreased weight compared to plastic alternatives
Contact MaterialHigh-current applicationsIndustry Standard: Brass (IEC 60228)
Our Base: Copper-clad brass▲
Our Advanced: Oxygen-free copper▲▲ (101% IACS conductivity)		Reduced electrical resistance for efficiencyHigher material costs
WaterproofingOutdoor/marine equipmentIndustry Standard: IP54
Our Base: IP67▲ (Immersion up to 1m)
Our Advanced: IP68▲▲ (Immersion up to 3m)		Protection against dust/water ingressSealing mechanisms require periodic maintenance
Pin ConfigurationDiagnostic imaging, camerasCustomizable pin counts (4p–64p)▲▲
Standardized 4p connectors▲ (Quick-release design)		Flexibility for diverse applicationsNon-standard pins may need adapters
Locking MechanismFrequent connection/disconnectionPush-pull self-locking (IEC 61076-2)
Advanced: Magnetic retention▲▲ (Vibration-resistant)		Secure connections under mechanical stressSlightly slower assembly than snap-fit designs
Certification ComplianceGlobal deploymentCE certified▲
RoHS compliant▲
UL listed▲▲ (Advanced models)		Meets international safety and environmental standardsAdditional certifications may increase costs
