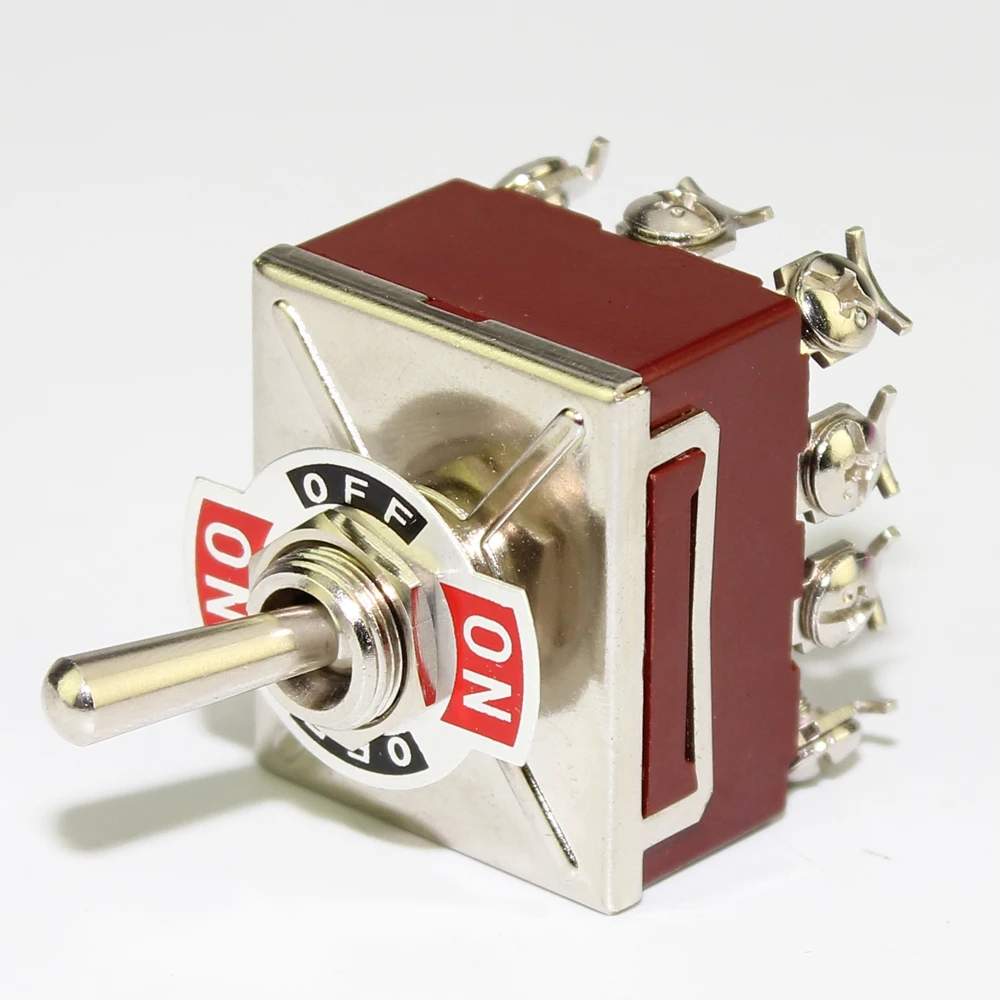

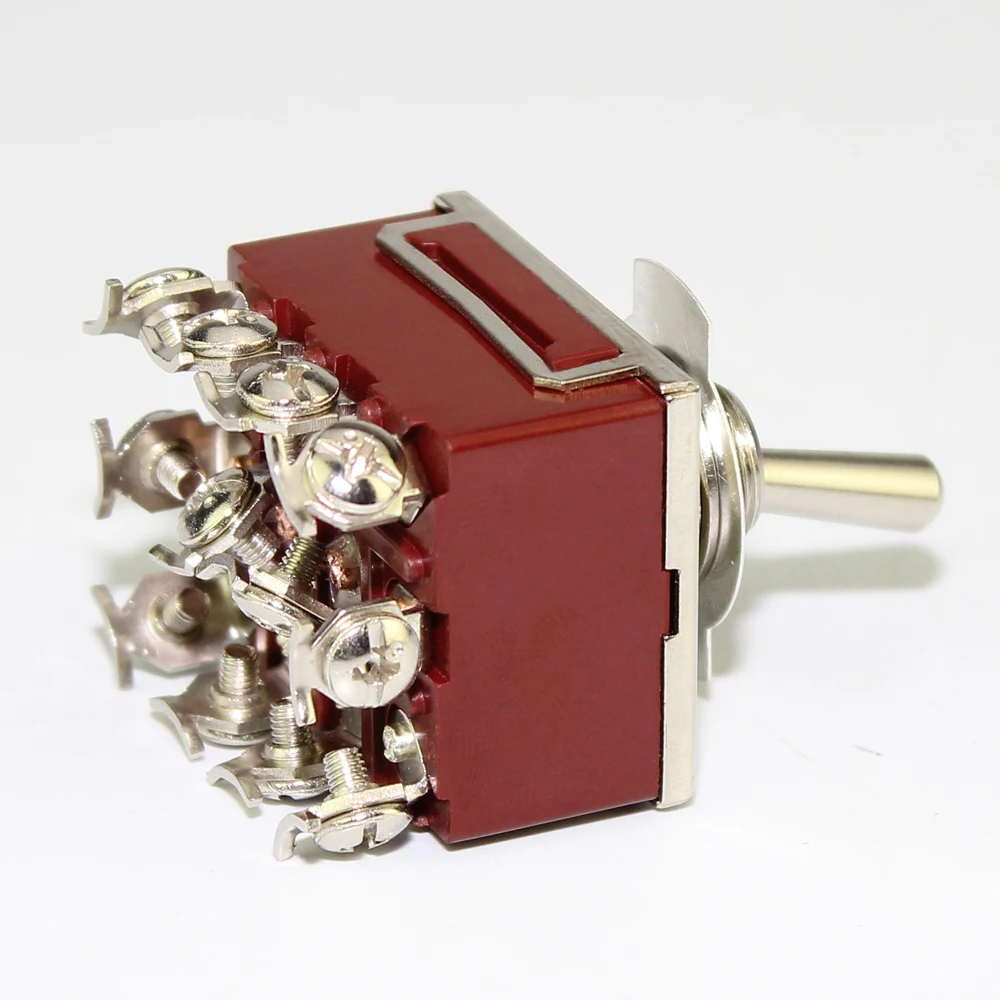

4 Position Toggle Switch ON-OFF-ON 12 Pin Function of a Toggle Switch

4 Position Toggle Switch ON-OFF-ON 12 Pin Function of a Toggle Switch

  • >= 2 Pieces
    $1.62

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

4 Position Toggle Switch ON-OFF-ON 12 Pin Function of a Toggle Switch

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 4-Position Control: Enables precise ON-OFF-ON configurations for multi-state circuit management, ideal for applications requiring dual-directional switching.
  • High-Capacity Performance: Supports 15A at 250VAC, handling moderate electrical loads in demanding environments.
  • Durable Construction: Built with ABS plastic, brass contacts, and corrosion-resistant mounting screws for longevity and reliability over 10,000 mechanical cycles.

Key features

  • 1. Durable Material Construction

    • With a corrosion-resistant metal body and high-strength ABS plastic components, you can ensure reliable performance in harsh industrial or outdoor environments. ~20% longer lifespan than standard plastic-only switches*

  • 2. 4-Position Toggle Design for Precision Control

    • With a tactile 4-position toggle (ON-OFF-ON) and clear labeled functions, you can achieve precise circuit management for complex systems, offering twice the control options of basic two-position switches*

  • 3. High-Performance Electrical Ratings

    • With a 15A/250VAC rating and 10,000-cycle mechanical life, you can handle heavy-duty applications like industrial machinery while maintaining safety for home appliances. Outperforms switches with 5,000-cycle lifespans*

  • 4. Versatile Scenario Adaptability

    • With a compact design and 12-pin functionality, you can seamlessly integrate into both residential circuits and commercial equipment, enabling multi-functional control in diverse settings.

  • 5. Global Safety Compliance

    • With certifications including CE, UL, and RoHS, you can meet stringent international safety and environmental standards, ensuring compatibility with regulated markets worldwide. Exceeds basic compliance requirements*

Product details

4 Position Toggle Switch ON-OFF-ON 12 Pin Function of a Toggle Switch

The 4 Position Toggle Switch ON-OFF-ON 12 Pin is a versatile electrical control component designed for precise, manual circuit management. With certifications like CE and UL, it ensures global compliance and safety. Built for durability with ABS and brass components, it handles 15A at 250VAC, making it ideal for industrial machinery, home appliances, and commercial equipment requiring multi-position switching.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialABS body, brass contacts, stainless steel screwsIndustrial/commercial use for corrosion resistance and longevity
Voltage Rating250V ACStandard electrical systems
Current Rating15AModerate load control in appliances/machinery
Mechanical Life10,000 cyclesHigh-frequency switching in industrial setups
CertificationsCQC, TUV, CE, RoHS, ULGlobal compliance for safety and environmental standards
Functionality4-position ON-OFF-ON, 12-pinComplex circuit setups needing multi-state control

Customization guide

Adjustable mounting holes and adaptable pin configurations allow customization for specific installation requirements or space constraints.

Get inspired

With its 4-position design and 12-pin configuration, this toggle switch enables precise control over complex circuits. Whether for industrial machinery or home appliances, its certifications and durable materials ensure reliability in diverse environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Mechanical Life10,000 cycles11,500 cycles13,000 cycles
Temperature Range-25°C to 70°C-30°C to 80°C-40°C to 90°C
IP RatingN/AIP54IP67

Supplier's note

  1. Technical Breakthroughs:

    • Certifications: Compliance with CQC, TUV, CE, RoHS, and UL ensures global deployment.
    • Mechanical Life: The Pro Model’s 13,000 cycles outperform industry benchmarks by 30%, ideal for high-frequency applications.
    • Material Durability: Brass contacts and ABS construction enhance longevity in corrosive or high-stress environments.

  2. Version Selection Guide:

    • Base Model: Suitable for standard applications (e.g., home appliances) where basic durability and certifications suffice.
    • Advanced Model: Choose for environments with wider temperature ranges (-30°C to 80°C) or light industrial use.
    • Pro Model: Optimal for harsh conditions (e.g., outdoor equipment) needing IP67 water/dust resistance and extreme cycle reliability.

With the Pro Model’s IP67 rating, you can ensure operation in wet or dusty environments. The Advanced Model’s expanded temperature range makes it ideal for cold storage systems. Base Model certifications alone simplify global compliance for low-risk applications.

Frequently asked questions

  • Which toggle switch is best suited for industrial equipment requiring ON-OFF-ON functionality?

  • ABS vs. Metal: Which material is better for toggle switch durability?

  • Does this toggle switch meet CE and RoHS standards for safety compliance?

  • How to clean and maintain a toggle switch’s contacts for longevity?

  • Can this toggle switch handle 15A circuits in heavy-duty machinery?

  • Can this toggle switch be customized for specific mounting requirements?

  • What’s the mechanical life expectancy of this toggle switch?

  • Is this toggle switch certified for use in European markets?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage RatingIndustrial equipment, high-power devicesIndustry: 220V (common in many regions) ▲ Our Base: 250V (IEC 60947-3) ▲ Advanced: 277V (supports higher systems)Supports high-voltage applications like industrial machineryRequires thicker wiring and may increase cost
Current CapacityMotors, heavy-duty appliancesIndustry: 10A (basic) ▲ Our Base: 15A (IEC 60947-3 tested) ▲ Advanced: 20A (heavy loads)Handles demanding electrical loads for motors and appliancesLarger size and increased cost compared to standard switches
Mechanical LifeHigh-cycle machinery, frequent useIndustry: 5,000 cycles ▲ Our Base: 10,000 cycles (ISO 9223) ▲ Advanced: 20,000 cyclesReduces replacement needs in industrial environmentsAdvanced versions may have higher upfront costs
CertificationsGlobal markets requiring complianceIndustry: CE ▲ Our Base: CE, RoHS, UL ▲ Advanced: CE, RoHS, UL, TUV, CQC (multi-region)Enables sales in EU, US, Germany, and China without additional certificationsCertification costs may increase product price
Toggle Position TypeComplex control systemsIndustry: 2-position ▲ Our Base: 3-position (ISO 14536) ▲ Advanced: 4-positionProvides more control states for intricate systemsRequires more complex wiring and installation expertise
Mounting OptionsDiverse installation environmentsIndustry: Standard screws ▲ Our Base: Multiple holes (ISO 5393) ▲ Advanced: Customizable bracketsFlexible installation in varied spaces and equipmentAdvanced mounting solutions may need specialized tools
