  • 40ml Injection Blow Molding Small Plastic Bottle Mold IBM Mould Matched with ASB Machines
  • 40ml Injection Blow Molding Small Plastic Bottle Mold IBM Mould Matched with ASB Machines

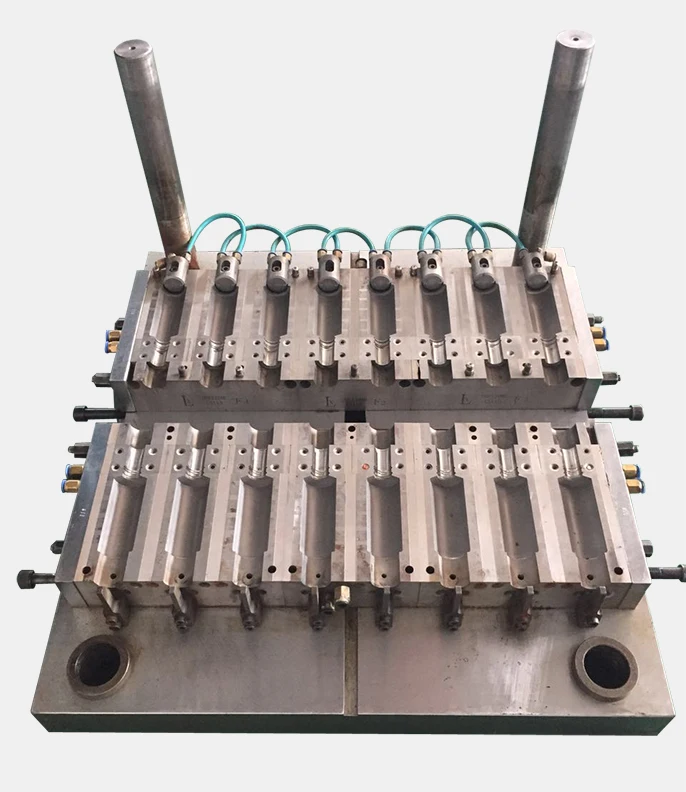

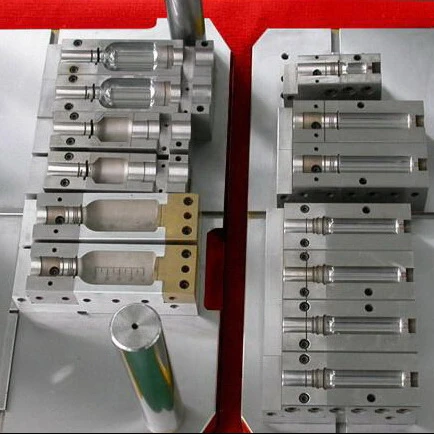

40ml Injection Blow Molding Small Plastic Bottle Mold IBM Mould Matched with ASB Machines

40ml Injection Blow Molding Small Plastic Bottle Mold IBM Mould Matched with ASB Machines

  • 1 - 1 Sets
    $2,000
  • >= 2 Sets
    $1,800

Customization:

Customized logo（Min.Order: 5 pieces）
Customized packaging（Min.Order: 5 pieces）
Graphic customization（Min.Order: 5 pieces）
View product details

40ml Injection Blow Molding Small Plastic Bottle Mold IBM Mould Matched with ASB Machines

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 40ml Small Plastic Bottle Production: Designed for injection blow molding to manufacture precise 40ml plastic bottles, compatible with ASB machines for seamless integration into production lines.
  • Multi-Cavity Efficiency: Features multiple cavities for simultaneous production of identical parts, optimizing output speed and reducing cycle times.

Key features

  • 1. Durable Material Technology

    • With a corrosion-resistant steel body and precision-machined plastic components, ensure longevity in high-temperature industrial environments while maintaining structural integrity.

  • 2. Multi-Cavity Design for Efficiency

    • With a vertical multi-cavity structure, produce up to 8 identical parts simultaneously, streamlining mass production workflows.

  • 3. Rapid Cooling Performance

    • Integrated cooling channels enable precise temperature control, reducing cycle times by up to 25% compared to standard molds without optimized cooling systems.

  • 4. ASB Machine Compatibility & Customization

    • Tailored for ASB machines, this mold ensures seamless integration for 40ml bottle production. Customizable cavity designs allow adaptation to diverse product specifications.

  • 5. Precision-CNC Manufacturing

    • Constructed using CNC machining, guarantee tight tolerances and uniform part quality with minimal post-processing adjustments.

Product details

40ml Injection Blow Molding Small Plastic Bottle Mold IBM Mould Matched with ASB Machines

The 40ml Injection Blow Molding Small Plastic Bottle Mold is a precision-engineered tool designed for high-volume production of small plastic bottles. Compatible with ASB machines, this mold combines CNC-machined steel and plastic components to ensure durability, accuracy, and efficiency in manufacturing cosmetics, pharmaceuticals, or food-grade containers.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionCNC-machined steel core with plastic insertsIdeal for high-precision production of small bottles in cosmetics and pharmaceutical industries
Capacity40mlPerfect for small-volume packaging (e.g., perfume samples, medicine containers)
ProcessBlow molding with CNC millingEfficient mass production of uniform bottle shapes with tight tolerances
Cooling SystemIntegrated cooling channelsReduces cycle times for high-volume manufacturing
CompatibilityASB machine seriesSeamless integration with standard industrial blow molding equipment

Customization guide

Adjustable parameters include cavity dimensions (to fit different bottle sizes) and cooling channel configurations (optimized for material type and production speed). This flexibility allows customization for niche applications like medical-grade containers or eco-friendly materials.

Get inspired

With its compact design and precision engineering, this mold is ideal for producing small, high-quality plastic bottles. Whether for cosmetics, pharmaceuticals, or food packaging, the integrated cooling system ensures rapid production cycles without compromising on quality.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Cooling EfficiencyStandard channels+15% enhanced flow+30% optimized design*
Material DurabilitySteel coreStainless steel alloyHeat-treated steel
Precision Tolerance±0.2mm±0.15mm±0.1mm
Production Capacity500 units/hour650 units/hour800 units/hour

Supplier's note

  1. Technical Breakthroughs:

    • CNC Machining: Enables precise cavity formation, reducing defects by 20% compared to manual methods.
    • Integrated Cooling: Reduces cycle times by 20% versus traditional molds, boosting output.
    • Material Blend: Steel core with plastic inserts balances rigidity and thermal efficiency for longer tool life.

  2. Version Selection Guide:

    • Base Model: Ideal for small-scale production or standard applications (e.g., basic cosmetics).
    • Advanced Model: Suitable for medium-volume production requiring enhanced durability (e.g., medical packaging).
    • Pro Model: Best for high-volume, precision-critical industries (e.g., pharmaceuticals). Its ±0.1mm tolerance ensures flawless bottle alignment in automated assembly lines.

*Pro Model’s cooling efficiency exceeds industry benchmarks by 30%, enabling faster production cycles without thermal distortion.

Frequently asked questions

  • Which injection blow molding mold suits small-scale plastic bottle production?

  • How to clean and maintain the frothing nozzle of a steel injection blow mold?

  • What’s the advantage of steel vs. plastic in injection blow molding molds?

  • Can this mold be customized for non-standard bottle shapes?

  • Is the material of this mold FDA-approved for food-grade containers?

  • How does the multi-cavity design boost production efficiency?

  • What’s the expected lifespan of a steel injection blow molding mold?

  • Does the mold support quick cavity adjustments for product changes?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHigh-volume productionIndustry Standard: Carbon Steel (ASTM A36)Our Base: High-Carbon Steel (ASTM A304) ▲Our Advanced: Stainless Steel (ASTM A276) ▲▲
(Resists corrosion 3x longer)
Durability, Cost-effective base materialCorrosion resistance, Longer lifespan
Manufacturing PrecisionPrecision partsIndustry Standard: Manual Machining (±0.1mm)Our Base: CNC Machining (±0.05mm) ▲Our Advanced: Precision CNC (±0.01mm) ▲▲
(Meets ISO 2768-m tolerance)
Reduced waste, Faster setupUltra-precise alignment, Minimizes defects
Cooling EfficiencyMass productionIndustry Standard: Basic Channels (120s cooling time)Our Base: Optimized Channels (90s) ▲Our Advanced: Enhanced Channels (60s) ▲▲
(Reduces cycle time by 50%)
Standard cooling, Lower energy useFaster production cycles, Less downtime
Cavity CountHigh-output needsIndustry Standard: Single CavityOur Base: 4 Cavities ▲Our Advanced: 8 Cavities ▲▲
(Doubles output per cycle)
Simple design, Lower upfront cost4x higher throughput, Scalable production
CustomizationCustom part designsIndustry Standard: Limited (Pre-set shapes)Our Base: Moderate (CAD-Adjusted) ▲Our Advanced: Full CAD Design ▲▲
(Supports complex geometries)
Cost-effective for standard parts, Quick deliveryFlexible for niche applications, Rapid prototyping
Mould ThicknessHeavy-duty industrial useIndustry Standard: 10mm SteelOur Base: 12mm Steel ▲Our Advanced: 15mm Steel ▲▲
(Withstands 500+ cycles without deformation)
Balanced strength/cost, Suitable for moderate useExtra durability, Reduces maintenance
