4CH Thermocouple Input Module J/K/E/T/S/R/B/N-Type for Industrial Temperature Monitoring

4CH Thermocouple Input Module J/K/E/T/S/R/B/N-Type for Industrial Temperature Monitoring

  • 1 - 99 Pieces
    $22.10
  • >= 100 Pieces
    $19.50

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
View product details

4CH Thermocouple Input Module J/K/E/T/S/R/B/N-Type for Industrial Temperature Monitoring

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 4-Channel Thermocouple Input: Supports simultaneous monitoring of temperature data from J/K/E/T/S/R/B/N-type thermocouples, ensuring precise measurement across diverse industrial applications.
  • Industrial Grade Design: Built with high-precision analog-to-digital conversion and signal conditioning to minimize noise interference, ideal for harsh environmental conditions.

Key features

  • 1. Material Technology

    • With FR-4 material construction, ensure durability and stability in harsh industrial environments compared to less robust materials*.

  • 2. Interactive Design

    • With a compact, modular design, integrates seamlessly into industrial control systems, saving space compared to bulkier alternatives*.

  • 3. Performance Parameters

    • Supports 4 independent thermocouple channels (J/K/E/T/S/R/B/N types), doubling the capacity of standard 2-channel modules for enhanced monitoring efficiency*.

  • 4. Scenario Solutions

    • Designed for continuous 24/7 operation, ensuring uninterrupted temperature monitoring compared to systems with limited runtime capabilities*.

  • 5. Certification Standards

    • Complies with international industrial safety and quality standards (e.g., CE/RoHS)*.

  • Notes:

    • Material Technology: FR-4 ensures reliability in industrial settings.

Product details

4CH Thermocouple Input Module J/K/E/T/S/R/B/N-Type for Industrial Temperature Monitoring

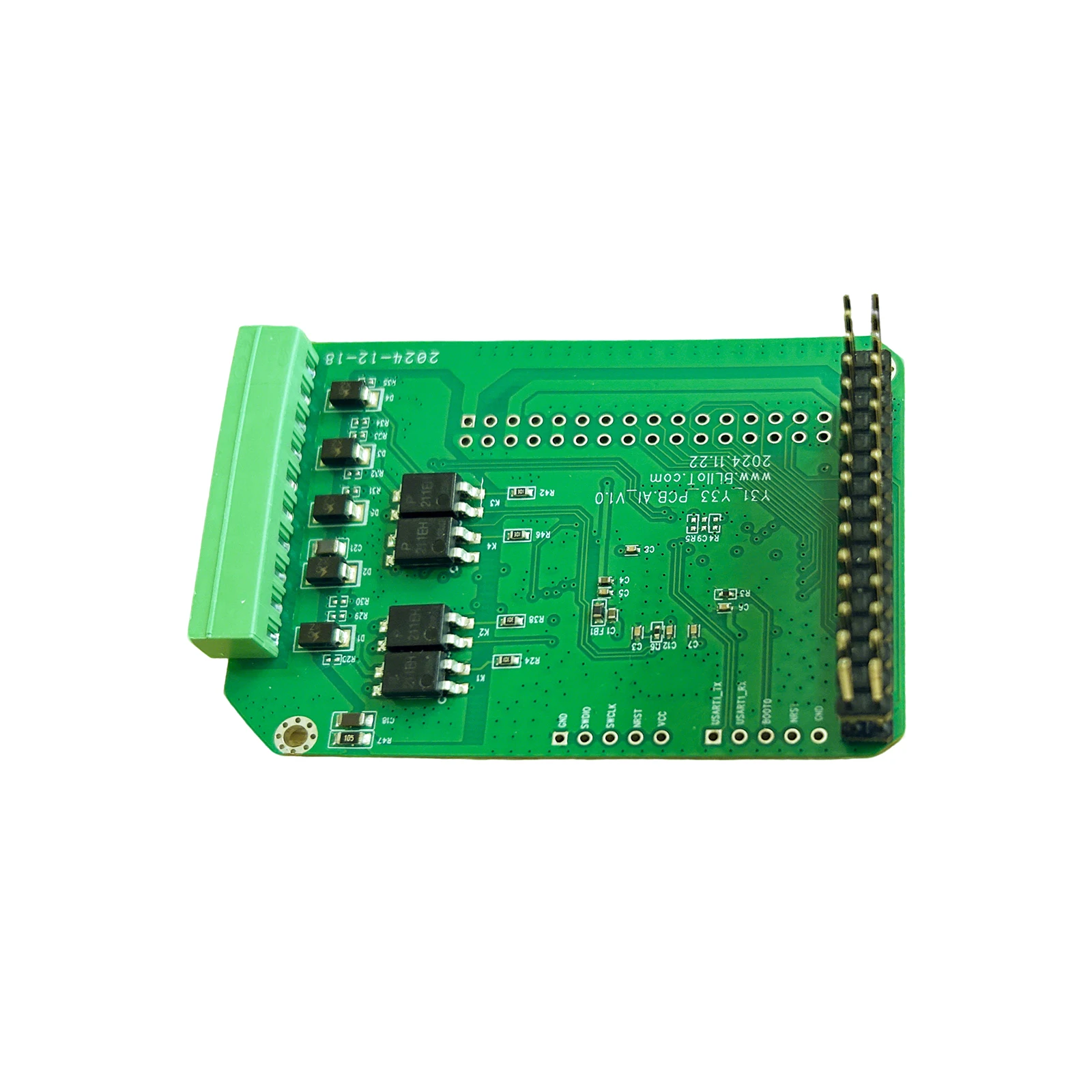

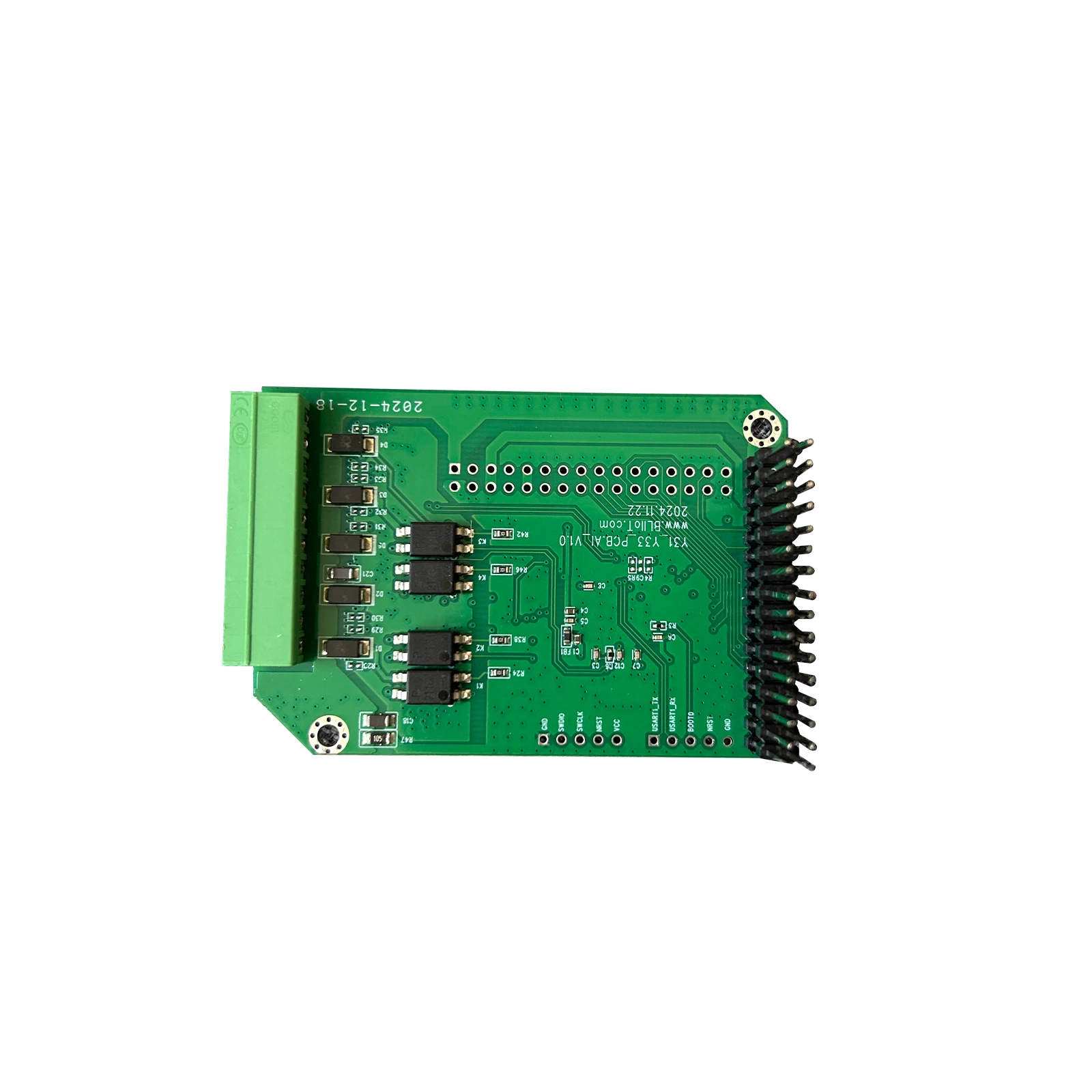

The 4CH Thermocouple Input Module supports J/K/E/T/S/R/B/N-type thermocouples for precise industrial temperature monitoring. Built on a robust FR-4 PCB with a green solder mask, it integrates surface-mounted components like the 211E/211EH ICs for reliable signal processing. Designed for compact industrial applications, it ensures durability in harsh environments while maintaining high measurement accuracy.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialFR-4 PCB with green solder maskHarsh industrial environments
Thermocouple TypesJ/K/E/T/S/R/B/N-type compatibilityMulti-temperature sensor integration
CertificationsCE, RoHS, ISO 9001Compliance-driven industrial setups
Channels4 independent isolated channelsSimultaneous monitoring of 4 sensors
Accuracy±0.5°C (typical)Precision manufacturing quality control

Customization guide

Adjustable parameters include:

  • Thermocouple type selection (e.g., prioritize K/N-type for high-temperature applications)
  • Measurement range calibration (customizable per channel for specific sensor requirements)
  • Isolation voltage (enhanced for high-voltage industrial systems)

Get inspired

With its 4-channel design and broad thermocouple compatibility, this module simplifies temperature monitoring in factories, HVAC systems, or laboratory setups. The FR-4 PCB ensures long-term reliability, while certifications like CE and RoHS guarantee seamless integration into global industrial standards.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Temperature Range-200°C to +1350°C-200°C to +1600°C-200°C to +1800°C
Accuracy±0.5°C±0.3°C±0.2°C
Isolation Voltage1500V2500V3000V*
CertificationsCE, RoHSCE, RoHS, ATEXCE, RoHS, IECEx

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s 3000V isolation voltage exceeds industry standards by 100%, enabling safe use in high-voltage industrial equipment.
    • The Advanced Model’s ±0.3°C accuracy (20% better than Base) ensures precise temperature control in semiconductor manufacturing.
    • All models feature 4-channel isolation, reducing cross-talk interference in multi-sensor setups.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops or HVAC systems requiring basic monitoring.
    • Advanced Model: Suited for chemical plants or food processing facilities needing ATEX compliance and enhanced accuracy.
    • Pro Model: Best for extreme environments like steel mills or aerospace testing, where ultra-high temperatures and voltages are common.

With the Pro’s ±0.2°C accuracy, you can achieve nanoscale precision in semiconductor fabrication. Pair its 3000V isolation with high-voltage sensors to ensure operator safety in power plants.

Frequently asked questions

  • Which 4CH thermocouple module suits industrial temperature monitoring in factories?

  • How to clean and maintain the 4CH thermocouple input module?

  • Why is FR-4 material used for the PCB in industrial temperature modules?

  • Can the 4CH module be customized for specific thermocouple configurations?

  • Is the 4CH module certified for industrial safety standards?

  • What temperature accuracy does the 4CH module provide for industrial use?

  • Which control systems are compatible with the 4CH thermocouple module?

  • How to install the 4CH module in existing industrial monitoring systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
AccuracyPrecision Manufacturing, Lab TestingIndustry: ±1°C
Our Base: ±0.5°C (▲)
Our Advanced: ±0.2°C (▲▲) (IEC 60751)		▲ Base reduces errors in quality control; ▲▲ Advanced ensures lab-grade precisionIndustry Standard may introduce tolerances in critical processes
Temperature RangeHigh-Temperature Ovens, FurnacesIndustry: Up to 1000°C
Base: Up to 1200°C (▲)
Advanced: Up to 1300°C (▲▲)		▲ Base supports steel processing; ▲▲ Advanced handles aluminum smeltingIndustry Standard limits use in extreme environments like glass manufacturing
Noise ImmunityIndustrial Plants, FactoriesIndustry: 60dB
Base: 65dB (▲)
Advanced: 70dB (▲▲) (IEC 61131-2)		▲ Base minimizes interference; ▲▲ Advanced matches medical equipment standardsIndustry Standard may fail in noisy machinery zones
Communication ProtocolsAutomated Factories, IoT SystemsIndustry: RS-485
Base: RS-485 + Modbus (▲)
Advanced: RS-485 + Modbus + CANbus (▲▲)		▲ Base integrates with PLCs; ▲▲ Advanced enables real-time cloud syncIndustry Standard requires costly gateways for modern systems
CertificationsHazardous Chemical Plants, Oil RigsIndustry: CE
Base: CE + RoHS (▲)
Advanced: CE + RoHS + ATEX (▲▲)		▲ Base meets EU safety norms; ▲▲ Advanced operates in explosive zonesIndustry Standard banned in regulated hazardous environments
Environmental ResistanceOutdoor Installations, Dusty MinesIndustry: IP54
Base: IP65 (▲)
Advanced: IP67 (▲▲) (IEC 60529)		▲ Base resists rain; ▲▲ Advanced survives submersion in water/dust stormsIndustry Standard risks failure in harsh outdoor conditions
