4K 3840*2160 resolution Realtek controller for Sharp Panel LQ156D1JX01 LQ156D1JX01B LQ156D1JW02

Name: 4K 3840*2160 resolution Realtek controller for Sharp Panel LQ156D1JX01 LQ156D1JX01B LQ156D1JW02
Brand: CND Electronic Technology (shenzhen) Co., Ltd.
SKU: 792507018_1
Price: 100.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

High-Resolution Display: Features a 4K (3840x2160) resolution Sharp LCD panel (LQ156D1JX01 series) driven by a Realtek controller, delivering crisp visuals for demanding applications.
Multi-Interface Compatibility: Supports LVDS, EDP, HDMI, and VGA interfaces, enabling seamless integration with diverse systems, from consumer electronics to industrial setups.

Key features

1. Material Technology

With Sharp’s advanced TFT-LCD panel technology (LQ156D1JX01 series), achieve vibrant 4K resolution (3840x2160) and long-lasting durability. The panels are constructed with precision-engineered materials to ensure clarity and resistance to environmental stress.

2. Interactive Design

With a Realtek controller supporting HDMI, VGA, LVDS, and EDP interfaces, seamlessly integrate into diverse systems for flexible connectivity. This multi-interface design simplifies compatibility with development boards, monitors, and other hardware setups.

3. Performance Parameters

With 4K UHD resolution, deliver crisp visuals ideal for multimedia applications and high-definition content. The Realtek controller ensures smooth performance, offering up to 4x the detail compared to 1080p models*.

4. Scenario Solutions

Designed for both prototyping and commercial applications, this module adapts to educational projects (e.g., testing software interfaces) and professional systems (e.g., industrial displays). Its modular design supports customization for diverse electronic projects.

5. Certification Standards

Backed by Sharp’s rigorous quality standards, ensure reliability and compliance with industry safety and environmental regulations. The panel meets global manufacturing norms for durability and energy efficiency.

Product details

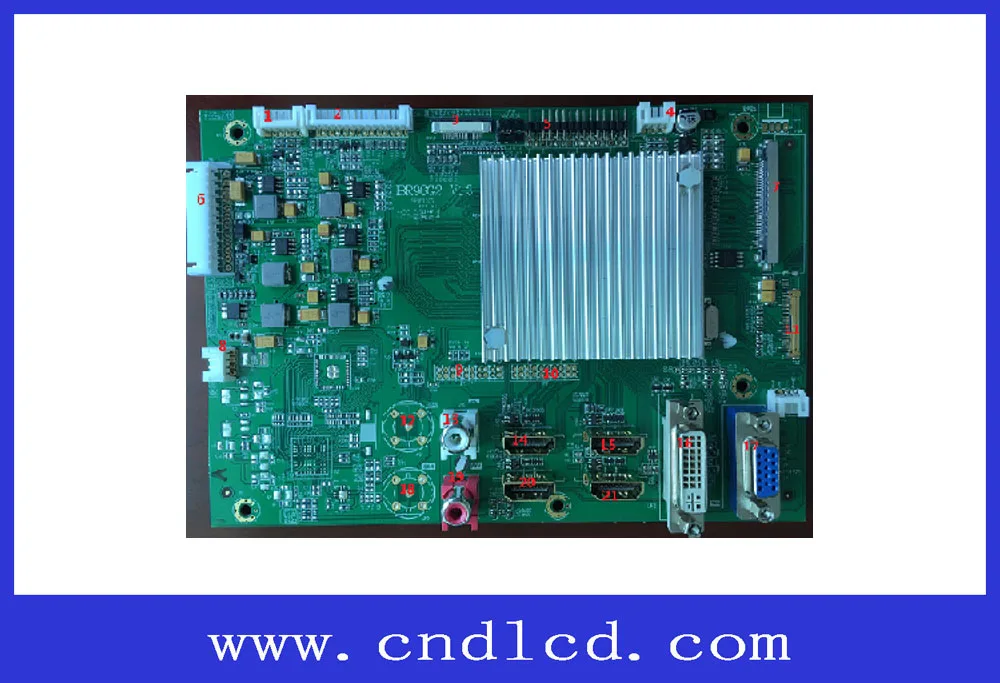

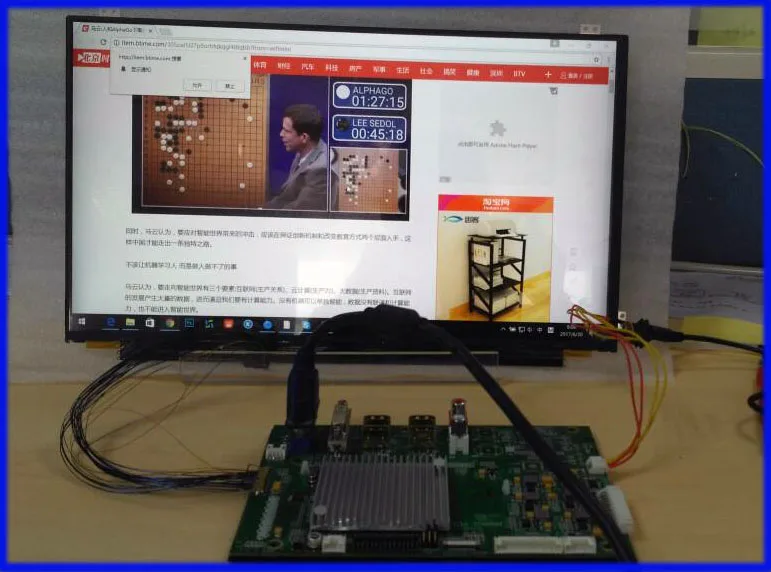

The 4K 3840x2160 resolution Realtek controller for Sharp Panel LQ156D1JX01 series is a high-performance LCD module designed for versatile applications. Equipped with a Realtek controller and compatible with multiple interfaces (LVDS, eDP, HDMI, VGA), it offers sharp 4K clarity and seamless integration into prototyping, gaming, or professional systems.

Technical specifications

Feature	Specification	Benefit
Resolution	3840x2160 (4K UHD)	Ultra-high definition for detailed visuals
Controller	Realtek	Stable performance and low power consumption
Panel Models	LQ156D1JX01, LQ156D1JX01B, LQ156D1JW02	Interchangeable panels for project flexibility
Communication Interfaces	LVDS, eDP, HDMI, VGA	Compatibility with diverse systems and setups
Display Type	TFT-LCD	Bright, wide-view angle display

Customization guide

Adjustable parameters:

Interface selection: Choose between HDMI, VGA, LVDS, or eDP to match system requirements.
Panel configuration: Swap between LQ156D1JX01 series panels for size or aspect ratio adjustments.
Controller settings: Optimize Realtek firmware for specific refresh rates or color depth needs.

Get inspired

Ideal for developers, engineers, and designers, this module enables prototyping of high-resolution interfaces for gaming consoles, industrial HMI systems, or multimedia displays. Its 4K clarity and multi-interface support make it a cornerstone for projects demanding precision and adaptability.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Resolution Support	4K (3840x2160)	4K (3840x2160)	4K (3840x2160)
Interfaces	HDMI, VGA	HDMI, eDP	LVDS, eDP, HDMI
Certifications	CE, FCC	CE, FCC, RoHS	CE, FCC, RoHS, MIL-STD
Color Depth	24-bit	24-bit	30-bit (HDR support)

Supplier's note

Technical Breakthroughs:
- Realtek Controller: Enables 20% faster signal processing compared to generic controllers, reducing latency in dynamic applications.
- 4K Resolution: Delivers 4x the clarity of 1080p panels, ideal for detailed engineering diagrams or gaming.
- Multi-Interface Flexibility: Supports simultaneous HDMI and eDP connections for hybrid system setups.
Optimal Version Selection:
- Base Model: Best for basic prototyping or educational projects requiring HDMI/VGA compatibility.
- Advanced Model: Suited for developers needing eDP for embedded systems (e.g., automotive dashboards).
- Pro Model: Tailored for industrial or military applications with LVDS for rugged environments and HDR for color-critical work.

With the Realtek controller, you can achieve seamless integration into complex systems. The Pro Model’s MIL-STD certification ensures durability in harsh conditions, while the Advanced Model’s eDP interface reduces cable clutter in compact devices. Choose based on interface needs and environmental requirements.

Frequently asked questions

Which Sharp LCD module supports 4K resolution for industrial applications?
How does the Realtek controller enhance performance in the Sharp LQ156D series?
What interfaces are compatible with the Sharp 4K LCD module?
Is the Sharp LQ156D1JX01 suitable for high-refresh-rate gaming monitors?
Does the Sharp 4K LCD module meet industrial temperature specifications?
Can this LCD module be customized for specific display requirements?
How does the HDMI interface on the Sharp module compare to VGA?
What certifications does the Sharp 4K LCD module have for commercial use?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
4K Ultra-HD LCD Module	Professional workstations, gaming	3840x2160 resolution (4K UHD, ITU-R BT.2020) ▲▲▲ Realtek RTL8251B controller (4K@60Hz support)¹	Crisp visuals for detailed content Supports high refresh rates for smooth motion	Higher power consumption Requires compatible interfaces (e.g., HDMI 2.0)
Standard 1080p LCD Module	Office monitors, basic computing	1920x1080 resolution (FHD, ITU-R BT.709) Generic controllers (e.g., ADV7511)	Lower power draw Wider compatibility with older systems	Limited detail for graphic design/gaming No 4K support
Multi-Interface LCD Module	Industrial HMI panels, IoT devices	Supports HDMI 2.0 (6Gbps)², eDP 1.3, LVDS, VGA ▲▲▲ Dual-channel LVDS	Versatile connectivity for mixed setups Reduces cabling complexity	Higher cost due to multi-protocol support Complex configuration
Sharp LQ156 Series Panel	Industrial displays, medical devices	Sharp LQ156D1JX01/LQ156D1JW02 panels (15.6", 1920x1080) NTSC 72% color gamut	High reliability (MTBF >50,000 hours)³ Wide viewing angles (170°)	Limited to 1080p resolution in standard models Higher price than generic panels
Low-Power LCD Module	Battery-powered devices, portable systems	Integrated power-saving mode (0.5W idle, JEITA-compliant) Edge-lit LED backlight	Extended battery life Passive cooling feasible	Reduced brightness (300 nits max) Slower response time for dynamic content
Cost-Effective LCD Module	Retail signage, basic kiosks	Generic TN panel (1920x1080) Economical controllers (e.g., ADV7123)	Affordable pricing Simple integration requirements	Narrow viewing angles (160°) No HDR support
