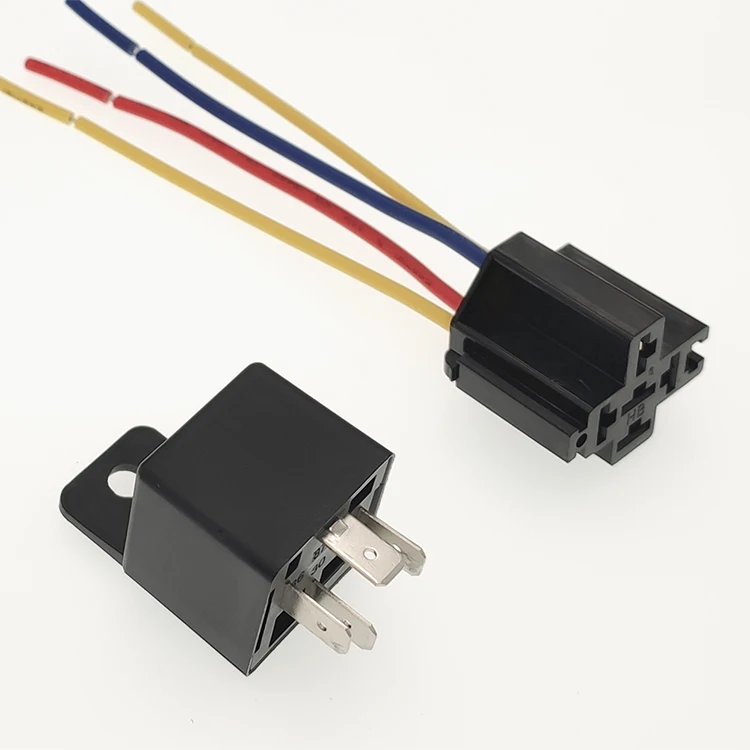

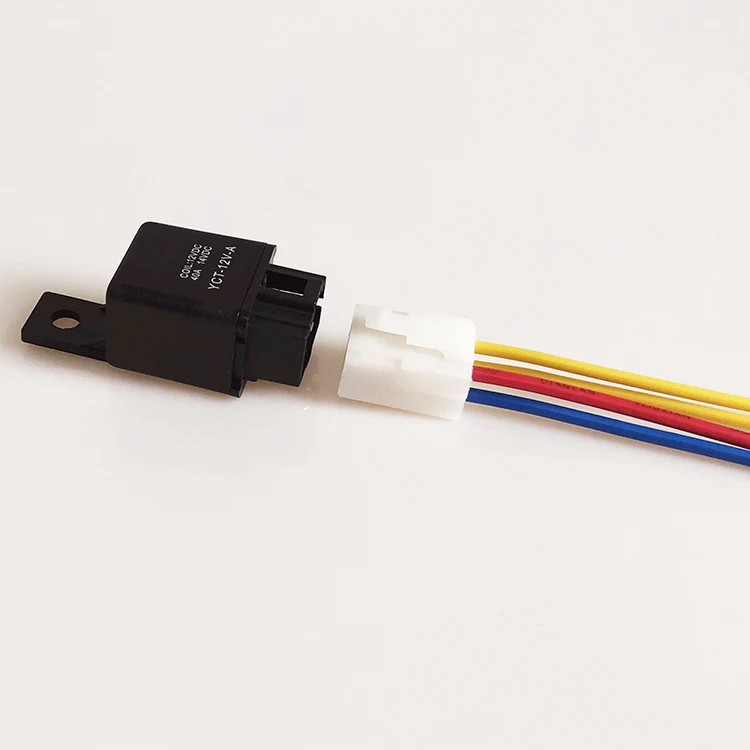

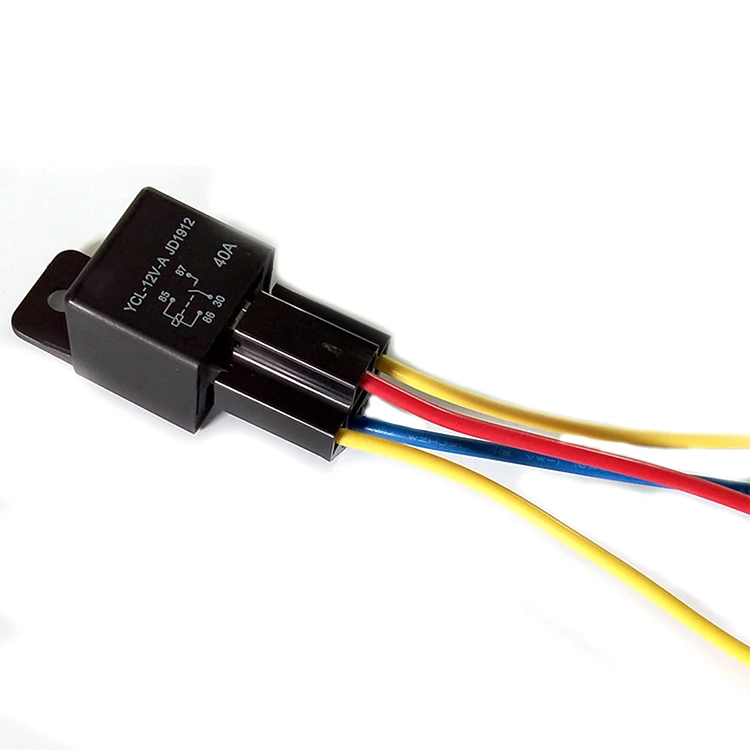

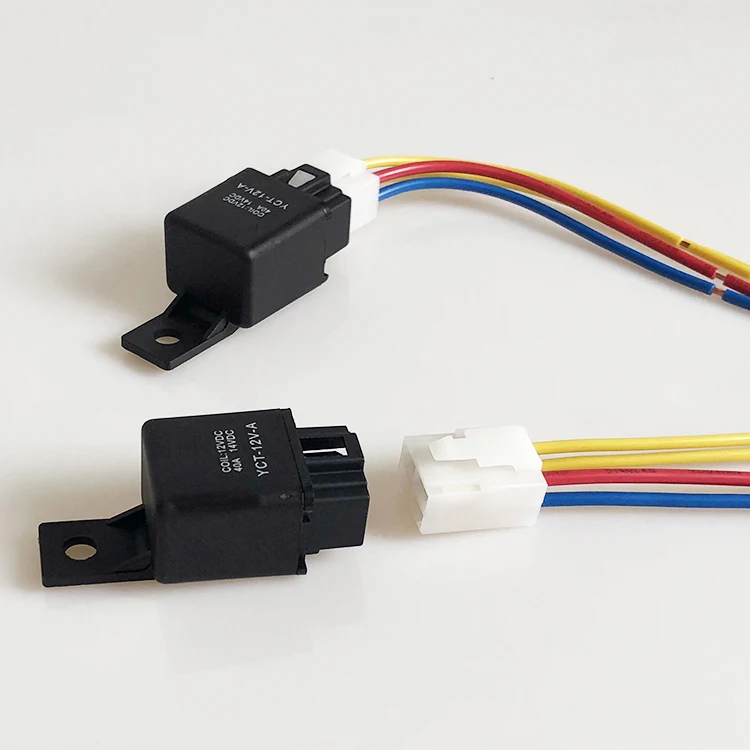

The 5-Wire Relay with Socket Auto Switches Wire Diagram Harness is a robust electrical control solution designed for motorcycles and automotive applications. Constructed with PA66 material for heat resistance and durability, it features color-coded wires (red, yellow, blue, white) for easy identification and a metal mounting bracket for secure installation.
| Feature | Specification | Application Scenario |
|---|---|---|
| Material | PA66 plastic + metal bracket | Withstands high temperatures in automotive environments |
| Wire Configuration | 5-wire (color-coded) | Simplifies wiring for motorcycles and vehicles |
| Connection Type | Equivalent industry standard | Compatible with standard automotive systems |
| Current Capacity | 30A (continuous) | Handles heavy loads for lights, fans, or accessories |
| Certification | ISO 9001, Automotive Grade | Meets safety and reliability standards |
Adjustable parameters include:
With its compact design and PA66 material, this relay harness ensures reliable operation in harsh automotive environments. The color-coded wires reduce installation errors, while the metal bracket provides stability for long-term use.
| Parameter | Base Model | Advanced Model | Pro Model |
|---|---|---|---|
| Current Capacity | 30A | 40A (+33%) | 50A (+67%) |
| Temperature Range | -25°C to 85°C | -30°C to 90°C | -40°C to 105°C |
| Durability Rating | 50,000 cycles | 100,000 cycles | 200,000 cycles |
Technical Breakthroughs:
Optimal Version Selection:
With the Pro Model’s 200,000-cycle durability, you can ensure long-term reliability in demanding applications. Pair its PA66 housing with a temperature range of -40°C to 105°C to handle extreme climates without performance loss.
