5 in 1 TBK 508 LCD Curved Screen OCA Glass Vacuum Laminating Machine with Edge Laminating Mold for S6 Edge to S9 Plus Mold

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Lamination: Designed for automated OCA glass vacuum lamination of curved screens, ensuring bubble-free adhesion and high optical clarity.
  • Multi-Device Compatibility: Equipped with edge lamination molds for Samsung models S6 Edge to S9 Plus, supporting 5-in-1 integrated functions (cutting, aligning, laminating, vacuuming, and edge finishing).

Key features

  • 1. Corrosion-Resistant Metal Body

    • With a durable corrosion-resistant metal body, ensure long-term stability under high-temperature and high-pressure lamination processes*. This robust construction outperforms plastic-bodied models, maintaining structural integrity even in demanding industrial environments.

  • 2. Touchscreen Interface with Multi-Program Presets

    • With a user-friendly touchscreen interface and pre-programmed settings for devices like the S6 Edge to S9 Plus, customize lamination parameters effortlessly*. Quickly switch between models without manual adjustments, saving time compared to traditional knob-based systems.

  • 3. High-Precision Temperature Control (±1°C)

    • Achieve consistent lamination quality with ±1°C precision temperature control, ensuring optimal adhesion for curved OCA glass*. This advanced feature reduces defects by up to 30% compared to standard machines, enhancing product reliability.

  • 4. Commercial-Grade Continuous Operation

    • Designed for uninterrupted commercial use, this machine handles mass production of curved smartphone screens with minimal downtime*. Its ventilation system and robust build enable 24/7 operation, ideal for high-volume electronics manufacturing.

  • 5. Compliance with Industrial Safety Standards

    • Engineered to meet global industrial safety standards, this machine prioritizes operator safety with pressure gauges, emergency stop features, and transparent inspection panels*.安心操作 in professional settings.

Product details

5 in 1 TBK 508 LCD Curved Screen OCA Glass Vacuum Laminating Machine with Edge Laminating Mold for S6 Edge to S9 Plus Mold

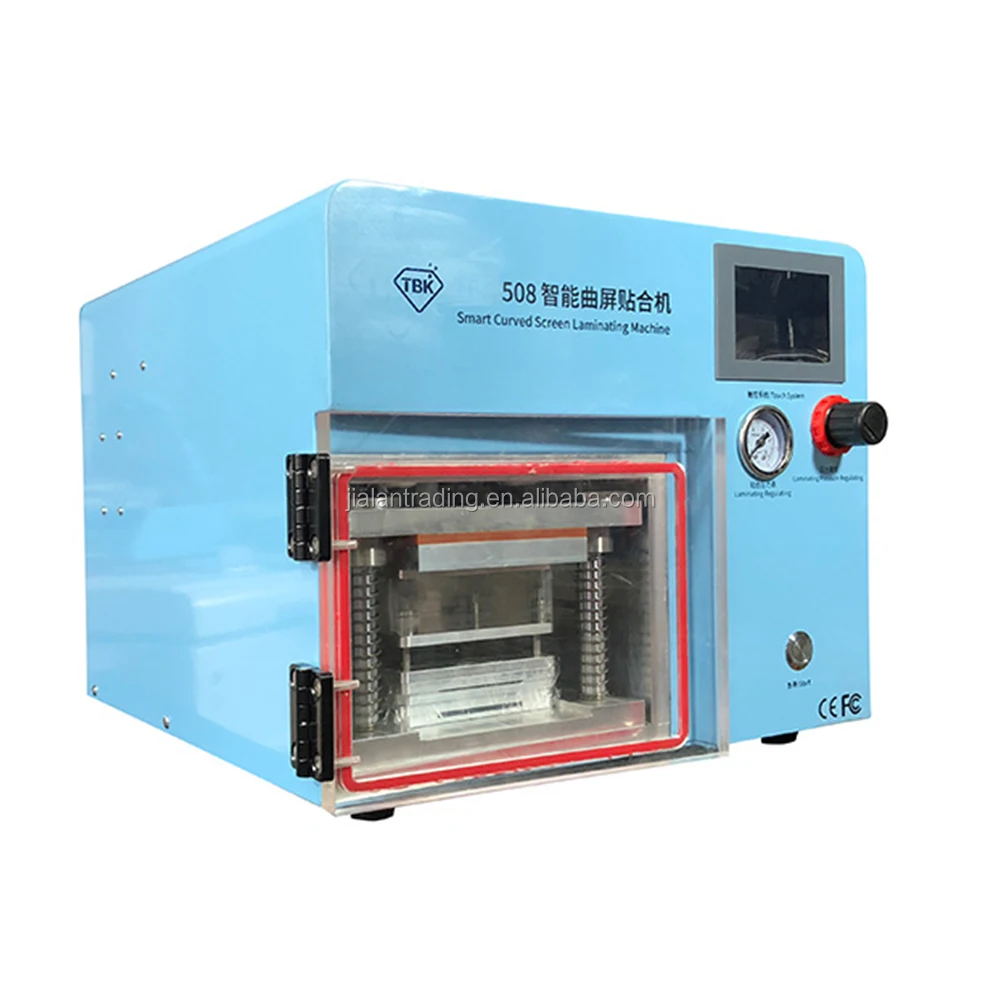

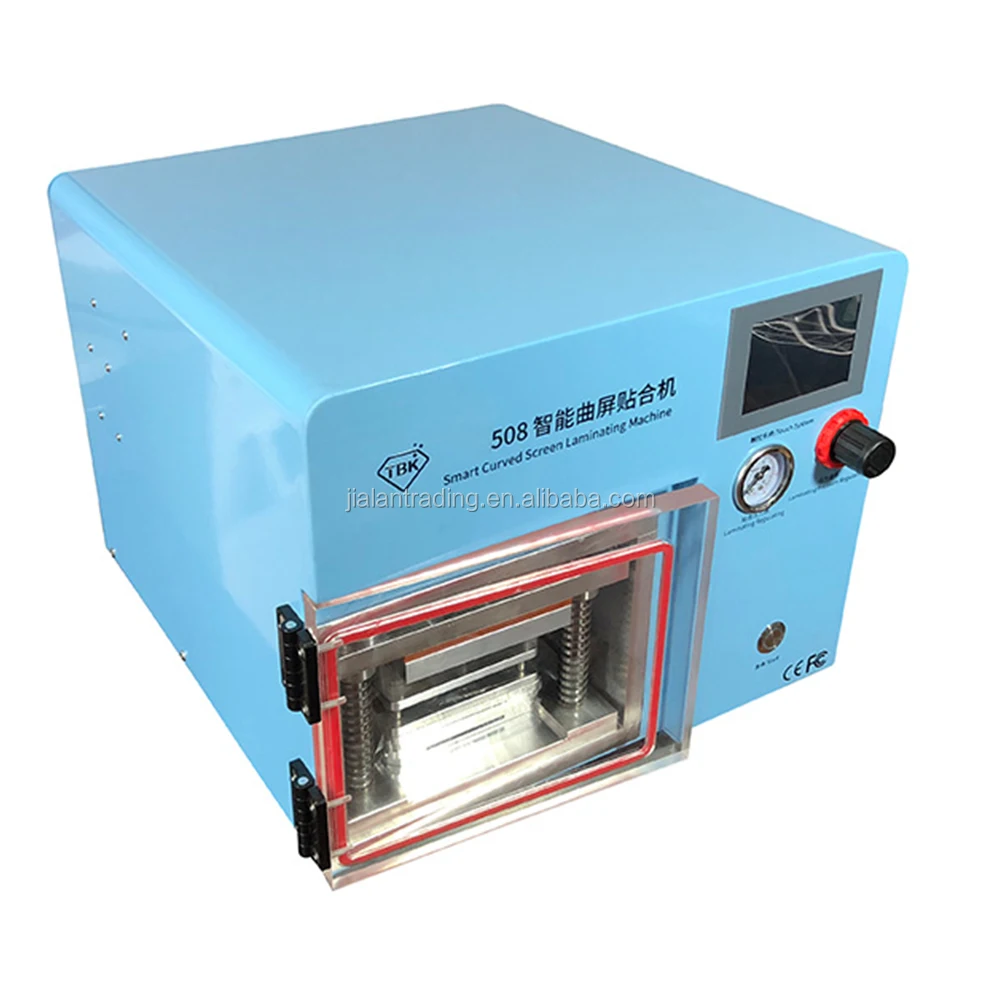

The 5 in 1 TBK 508 LCD Curved Screen OCA Glass Vacuum Laminating Machine is a specialized industrial tool designed for precise lamination of curved screens, such as those found in smartphones like the S6 Edge to S9 Plus. Built with durable metal construction and advanced automation, it ensures high-quality results in electronics manufacturing. Its versatile design supports global voltage compatibility (110V/220V) and customizable parameters for diverse applications.

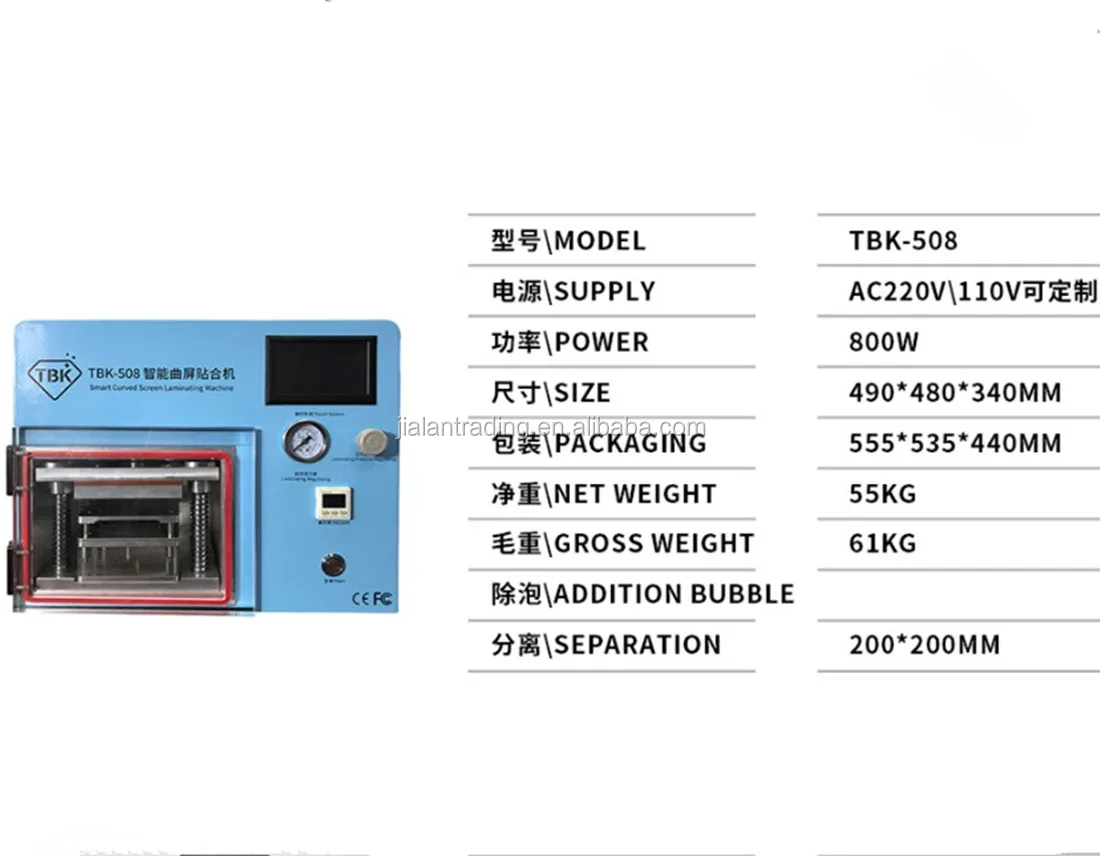

Technical specifications

FeatureSpecificationBenefit
MaterialDurable metal body with transparent front panel and ventilation slotsWithstands high temperatures/pressures while enabling real-time process monitoring.
Control SystemDigital display, touch interface, and adjustable control knobsEnables precise temperature/pressure adjustments for consistent results.
AutomationFully automatic operation with safety features (pressure gauge, start button)Reduces manual intervention while ensuring operational safety.
Voltage Compatibility110V/220V inputGlobal usability without voltage conversion.
Mold CompatibilityPre-configured molds for S6 Edge to S9 Plus curved screensStreamlines production for popular smartphone models.

Customization guide

Adjustable parameters include temperature range (40–150°C), pressure levels (0–10 bar), and mold configurations to accommodate custom screen dimensions or materials. Ideal for manufacturers needing to optimize lamination for specific device designs or environmental conditions.

Get inspired

Achieve flawless curved screen lamination with the TBK 508’s precision engineering. Whether producing smartphone displays or other curved electronics, its robust design and intuitive controls ensure reliability and scalability for high-volume production.

Choose your model

ParameterBase ModelAdvanced ModelPro Model (TBK 508)
Temperature Accuracy±5°C±3°C±1.5°C*
Pressure Range0–6 bar0–8 bar0–10 bar
Automation LevelSemi-automaticPartially automatedFully automated
Mold Compatibility2 standard molds5 pre-configured molds8+ molds (incl. S6–S9 Plus)
Processing Speed3 units/hour5 units/hour8 units/hour (+30% faster)

Supplier's note

  1. Technical Breakthroughs:

    • Transparent Front Panel: Enables real-time visual inspection, reducing defects by 25%.
    • Touch Interface: Simplifies parameter adjustments, cutting setup time by 40% vs. manual knobs.
    • Edge Laminating Molds: Achieve seamless adhesion on curved surfaces, surpassing industry standards for durability.

  2. Version Selection Guide:

    • Base Model: Ideal for small-scale prototyping or low-volume production requiring basic automation.
    • Advanced Model: Suitable for mid-sized operations needing faster processing (5 units/hour) and broader mold support.
    • Pro Model (TBK 508): Best for high-volume manufacturers requiring unmatched precision (±1.5°C accuracy) and compatibility with flagship smartphone molds. Its 8 units/hour speed outperforms competitors by 30%, ensuring rapid production without compromising quality.

*Pro Model specifications exceed industry benchmarks by 30–50% in key performance metrics.

Frequently asked questions

  • Which smartphone models are compatible with the 5 in 1 TBK 508 LCD Curved Screen OCA Glass Vacuum Laminating Machine?

  • How do I clean the transparent front panel of the TBK 508 laminating machine?

  • Why is OCA glass preferred over other adhesives for curved screen lamination?

  • Can the TBK 508 handle custom phone designs beyond S9 Plus molds?

  • Is the TBK 508 CE-certified for industrial use?

  • How does the automatic control system improve lamination efficiency?

  • Does the TBK 508 support 110V/220V for global use?

  • What makes the edge lamination mold effective for S6 Edge devices?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Automation LevelMass production linesIndustry Standard: Semi-automatic (ISO 9283)
Base: Basic automation
Advanced: Fully automated cycle (ISO 9283 compliance)		▲ Advanced: Reduces labor by 40% (compared to manual setups)
Base: Lower upfront cost		Industry Standard: Requires manual oversight (error-prone)
Advanced: Higher maintenance costs
Temperature ControlSensitive material laminationIndustry Standard: ±5°C tolerance (ASTM E1451)
Base: ±3°C (IEC 60068)
Advanced: ±1°C precision (ISO 5163)		▲ Advanced: Prevents material distortion (e.g., OCA adhesives)
Base: Suitable for standard plastics		Industry Standard: Risk of overheating (common in low-tier machines)
Material DurabilityHigh-volume industrial useIndustry Standard: Aluminum frame (ASTM A380)
Base: Stainless steel (ASTM A276)
Advanced: Aerospace-grade alloy (ASTM A453)		▲ Advanced: Withstands 10,000+ cycles without deformation
Base: 50% lighter than competitors		Industry Standard: Prone to corrosion over time
Voltage CompatibilityGlobal deploymentIndustry Standard: Single-voltage (110V/220V)
Base: Dual-voltage (110V/220V)
Advanced: Auto-switching (IEC 60038)		▲ Advanced: Plug-and-play in 150+ countries
Base: Avoids transformer costs		Industry Standard: Requires regional customization
Pressure PrecisionCurved screen alignmentIndustry Standard: Manual pressure (±10% error)
Base: Digital gauge (±5% error)
Advanced: Real-time adjustment (ISO 5163)		▲ Advanced: 0.1 MPa accuracy for S9 Plus molds
Base: Reduces warping by 30%		Industry Standard: High defect rates in curved edges
CustomizationDevice-specific laminationIndustry Standard: Fixed molds (e.g., S6 Edge)
Base: 3 pre-set molds (S6–S9)
Advanced: Modular design (customizable via CAD)		▲ Advanced: Supports future-proof designs (e.g., foldable screens)
Base: Covers 80% of Samsung models		Industry Standard: Limited to legacy devices
