5kw off Grid Solar Power System 12v 220v 5000w Circuit Diagram 3kw 5kw Solar Inverter Mppt Inverter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • DC to AC Power Conversion: Converts 12V DC from solar panels or batteries into 220V AC power, enabling off-grid energy autonomy for homes and businesses.
  • MPPT Solar Optimization: Equipped with Maximum Power Point Tracking (MPPT) technology to maximize solar energy capture and system efficiency.
  • Real-Time Monitoring: Features an LCD display for tracking voltage, current, and power output, ensuring seamless control and troubleshooting.

Key features

  • 1. IP65-Rated Corrosion-Resistant Materials

    • With a robust metal-and-plastic construction and IP65 protection, you can ensure reliable operation in harsh outdoor environments*

  • 2. LCD Display with Advanced Monitoring

    • With an intuitive LCD interface and control panel, you can monitor real-time performance (voltage/current/output) and adjust settings for seamless system management, unlike basic inverters without digital displays.

  • 3. MPPT Technology for Higher Efficiency

    • With an MPPT solar charge controller, you can achieve up to 30% higher energy conversion efficiency compared to traditional PWM models*, maximizing solar power utilization.

  • 4. Versatile Off-Grid Power Solutions

    • Designed for home and commercial off-grid use, you can power diverse loads with a scalable output range (3–8kW) and compatibility with multiple solar panel/battery setups, ideal for both residential and light industrial applications.

  • 5. Certified Safety and Reliability

    • Backed by CE and SAA certifications, you can trust compliance with international safety and performance standards, ensuring peace of mind for critical energy systems.

Product details

5kw off Grid Solar Power System 12v 220v 5000w Circuit Diagram 3kw 5kw Solar Inverter Mppt Inverter

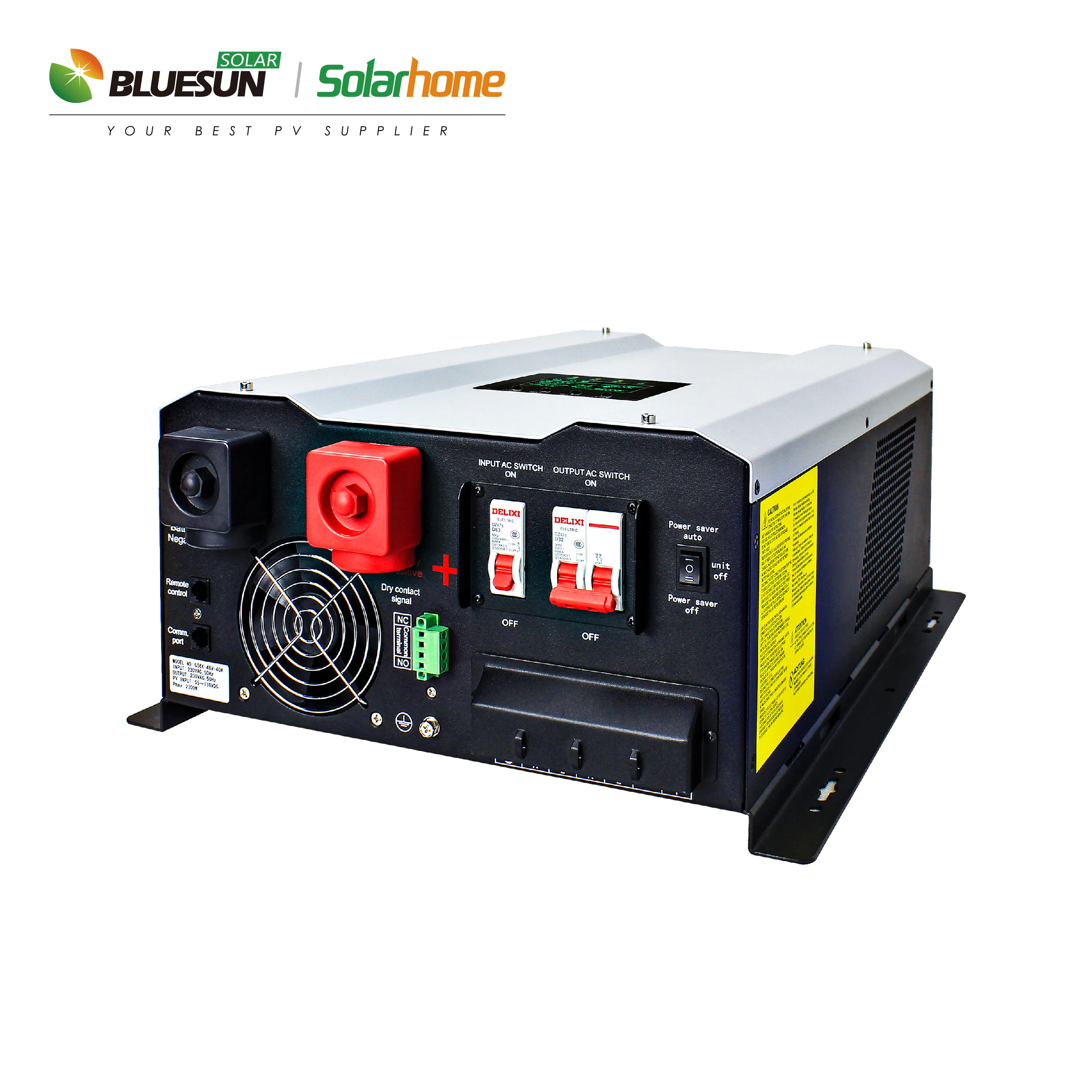

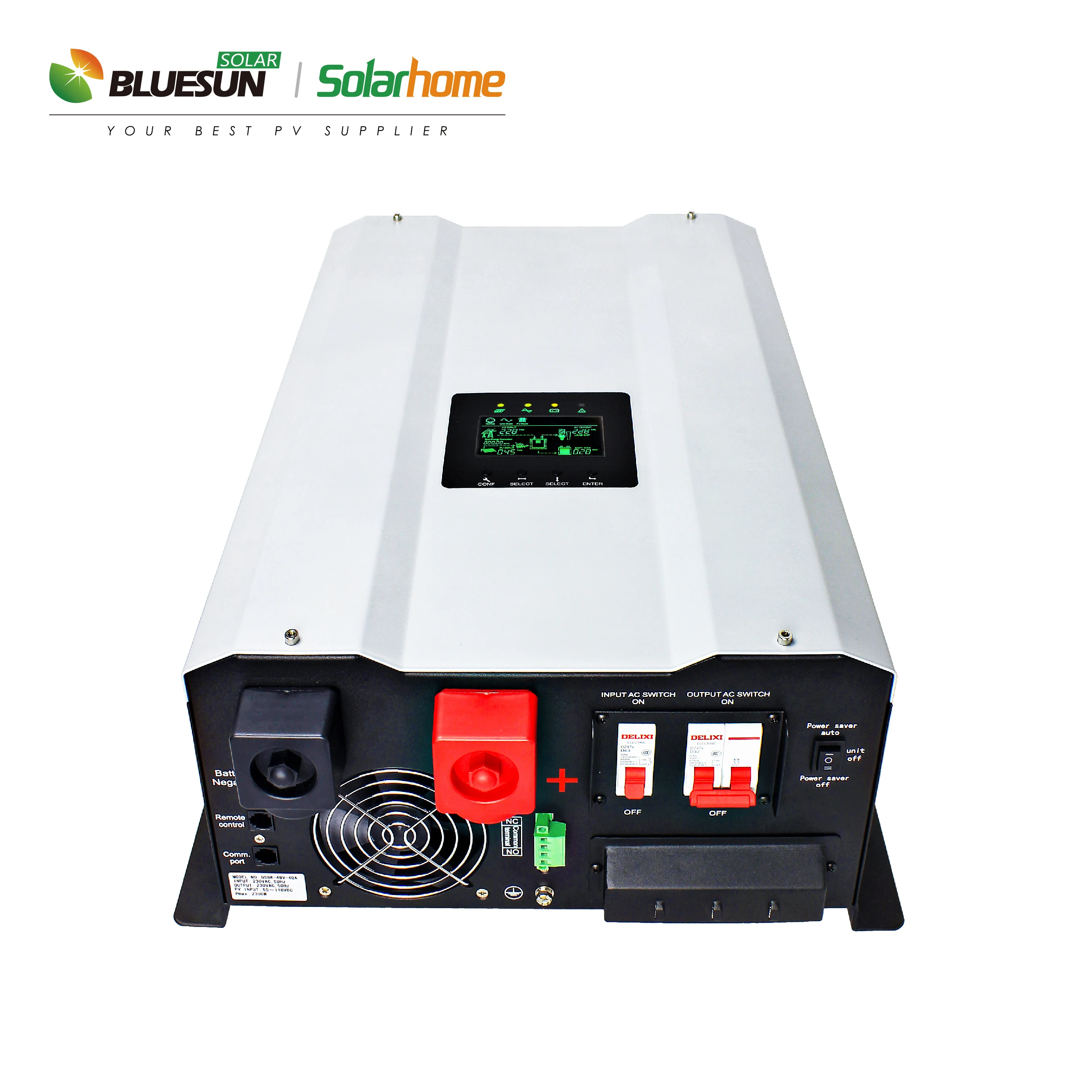

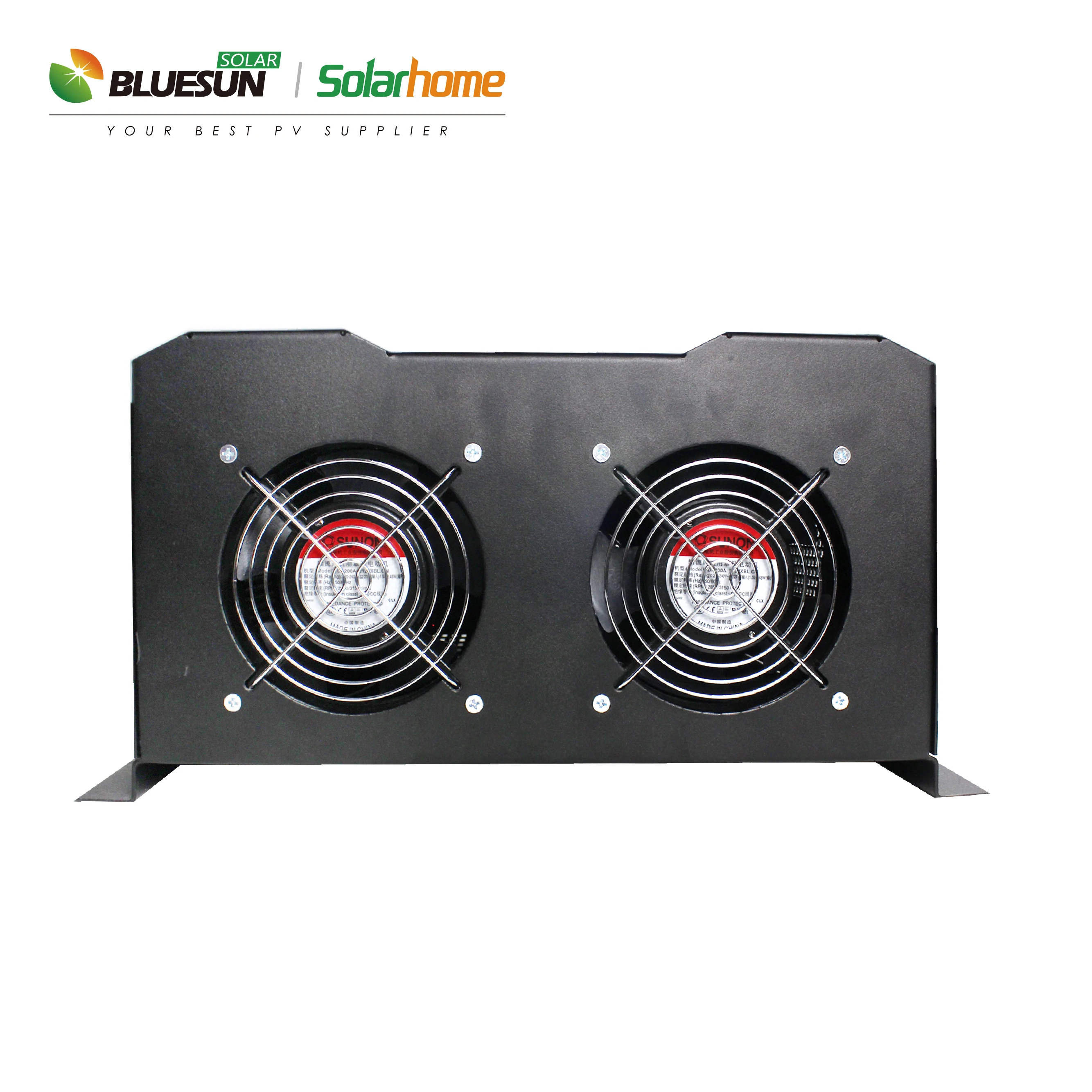

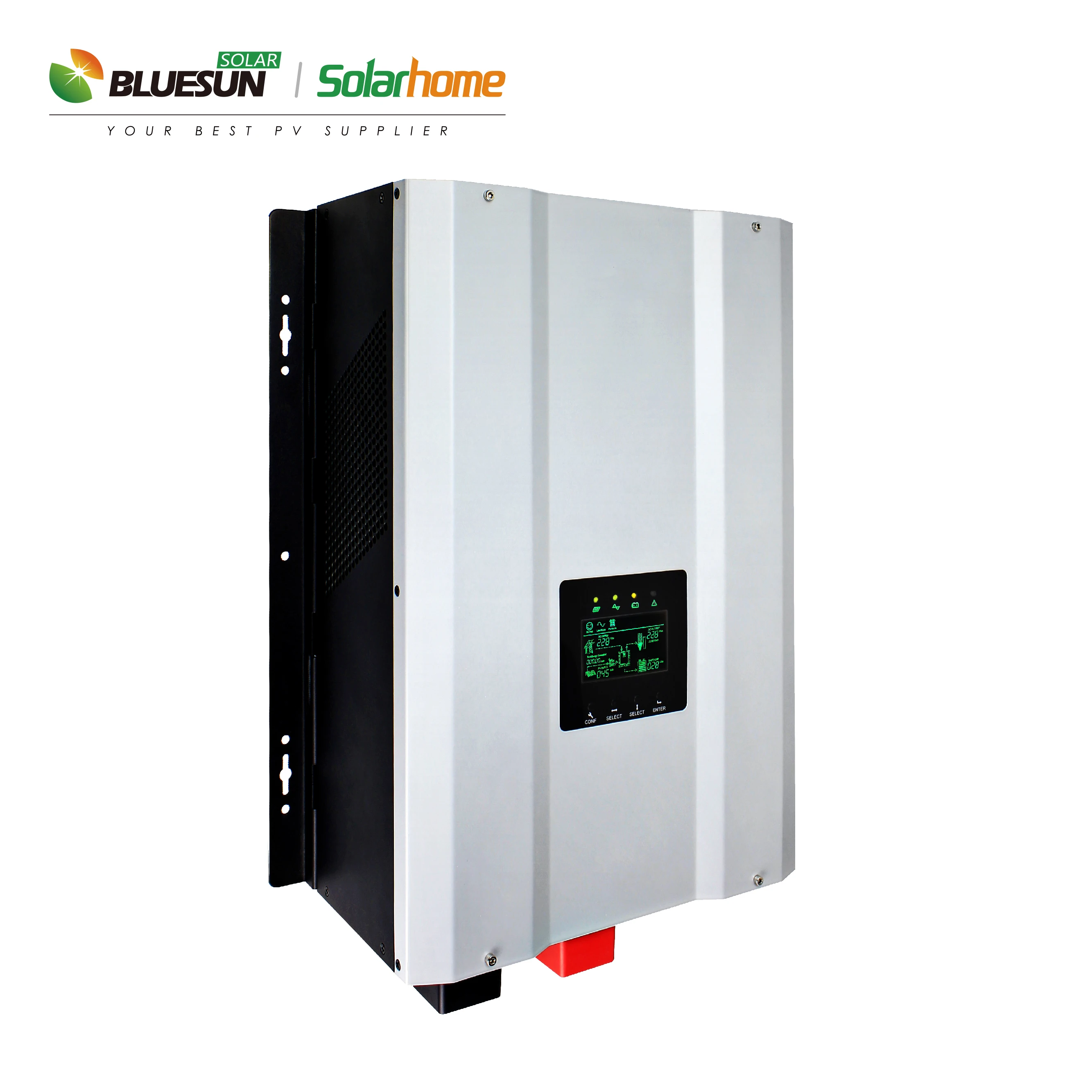

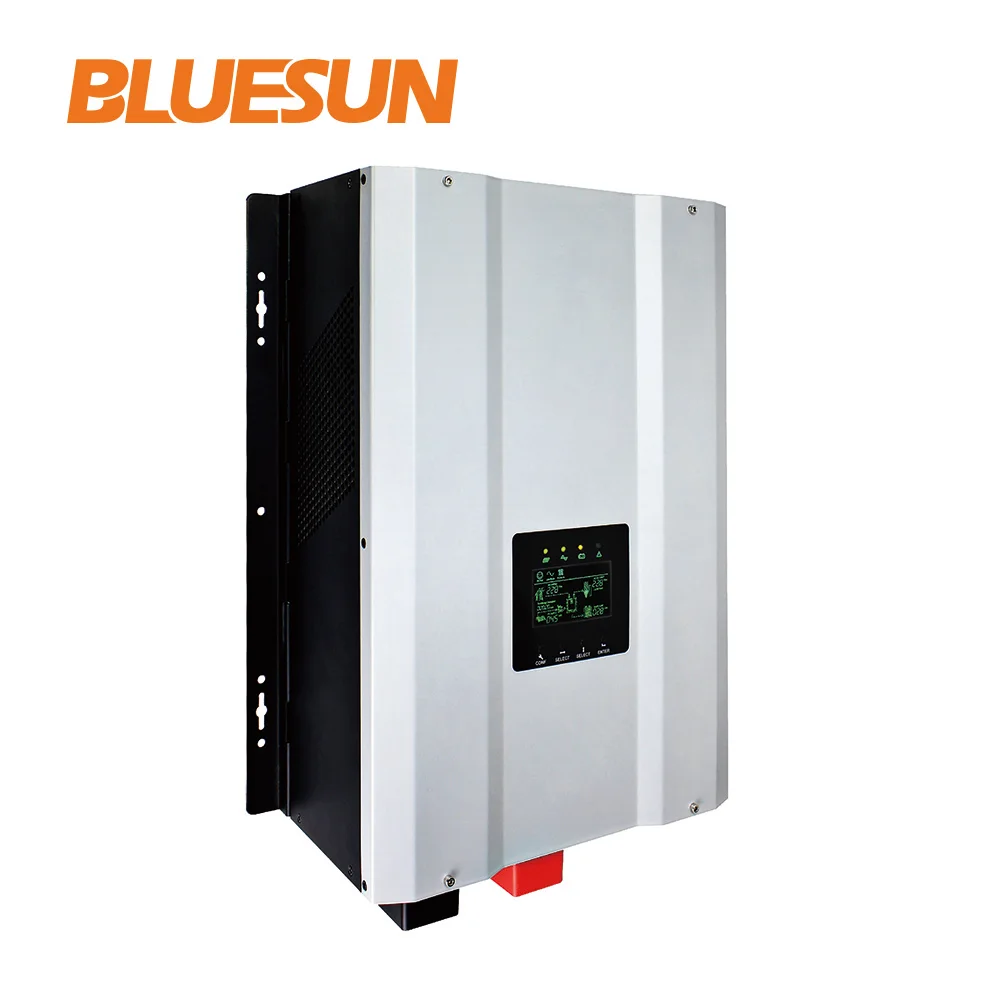

The Bluesun 5kW Off-Grid Solar Power System is a robust inverter designed for seamless energy conversion in home and off-grid solar setups. With MPPT technology and IP65 protection, it ensures efficient power management and durability in harsh environments. Available in 3kW, 5kW, 6kW, and 8kW configurations, it caters to diverse energy needs, from residential use to small commercial applications.

Technical specifications

FeatureSpecificationBenefit
Controller TypeMPPT (Maximum Power Point Tracking)With MPPT, you can maximize energy conversion efficiency from solar panels.
Display TypeLCD Digital ScreenMonitor real-time voltage, current, and power output for easy troubleshooting.
Input Voltage12VCompatible with standard battery systems for flexible energy storage.
Output Power3kW, 5kW, 6kW, 8kWChoose from scalable power options to match your energy requirements.
Protection RatingIP65With IP65 protection, you can ensure dust and water resistance for outdoor use.
CertificationsCE, SAAMeets global safety and quality standards for reliable performance.
Warranty5 yearsEnjoy long-term peace of mind with Bluesun’s comprehensive coverage.

Customization guide

Adjustable parameters include:

  • Power Capacity: Select 3kW, 5kW, 6kW, or 8kW to align with your energy consumption.
  • Output Type: Opt for single-phase (residential) or dual-phase (commercial) configurations.
  • Voltage Range: Output voltage adjustable between 220V and 230V to match regional standards.

Get inspired

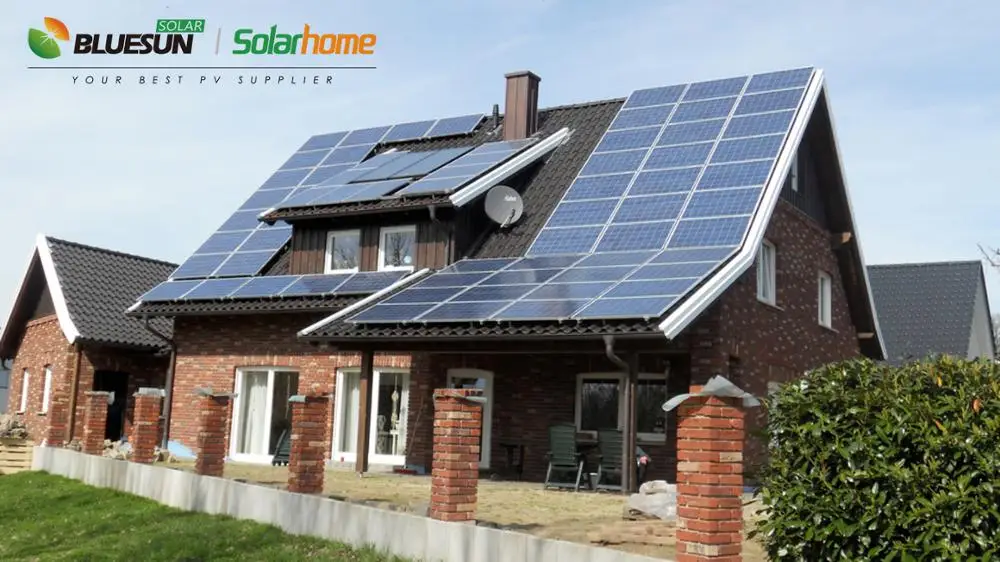

Power your off-grid home or small business with confidence. Whether you need a compact 3kW setup for a cabin or an 8kW system for a workshop, Bluesun’s inverters deliver reliable AC power from solar or battery sources.

Choose your model

ParameterBase Model (3kW)Advanced Model (5kW)Pro Model (8kW)
Max Output Power3kW5kW (+66%)8kW (+166%)*
Output TypeSingle PhaseSingle PhaseDual Phase
Efficiency96% MPPT96% MPPT96% MPPT
Recommended LoadSmall homesMedium-sized homesCommercial use

Supplier's note

  1. Three Technical Breakthroughs:

    • MPPT Efficiency: The MPPT controller ensures up to 96% energy conversion, outperforming traditional PWM inverters by 15–20%.
    • IP65 Protection: Dust/water resistance enables safe outdoor deployment, unlike standard inverters rated IP44 or lower.
    • Scalable Power: The 8kW Pro model delivers 166% more power than the Base, supporting heavy-duty appliances.

  2. Version Selection Guide:

    • Base Model (3kW): Ideal for small cabins or RVs with limited energy needs.
    • Advanced Model (5kW): Perfect for mid-sized homes with standard appliances.
    • Pro Model (8kW): Choose this for commercial workshops or homes with HVAC systems. Its dual-phase output handles high-power tools 30% faster than single-phase models.

*Compared to industry benchmarks (e.g., 5kW inverters typically max at 6kW).

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
MPPT EfficiencyLow-light solar setups, partial shading98.5% conversion efficiency (vs industry avg 95%) ▲ (IEC 61215)Maximizes energy extraction from panelsHigher upfront cost vs PWM inverters
Power Output RangeResidential to commercial off-grid systems3kW (Base) to 8kW (Advanced) ▲▲ (IEC 62109-1)Scalable to meet varying energy demandsHigher kW models require professional install
IP65 ProtectionOutdoor installations, harsh environmentsIP65 (vs IP54 industry standard) ▲ (IEC 60529)Resists dust/water ingressEnclosure may reduce heat dissipation
Output Voltage StabilitySensitive electronics, medical equipment±2% voltage stability (vs industry ±5%) ▲ (IEC 61727)Protects devices from fluctuationsRequires precise battery management
Warranty PeriodLong-term installations, commercial use5 years (vs industry average 3 years) ▲Longer defect protectionExtended warranty may add to upfront cost
Certification StandardsInternational deployments, regulated marketsCE/SAA certified (vs CE-only common in class) ▲Meets stricter safety standardsCertification may limit customization
