6 Gang Dimmable 12V LED Switch Automotive Light Button Switch Panel Relay System Control Box
Ready to Ship
In stock Fast dispatch

6 Gang Dimmable 12V LED Switch Automotive Light Button Switch Panel Relay System Control Box

  • 10 - 99 Pieces
    $53
  • 100 - 99999 Pieces
    $52
  • >= 100000 Pieces
    $45

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

6 Gang Dimmable 12V LED Switch Automotive Light Button Switch Panel Relay System Control Box

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • 6 Independent LED Control Channels: Enables management of up to six separate lighting circuits with dimmable functionality, ideal for adjusting light intensity in automotive or industrial settings.

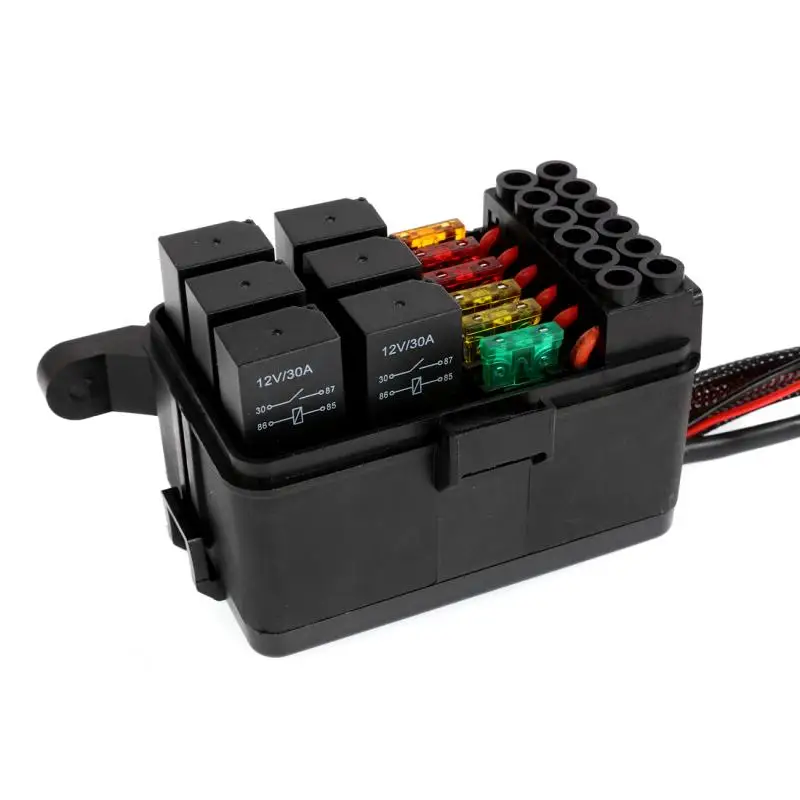

  • 12V Relay System: Designed for efficient power distribution and on/off control of LED lights, supporting a maximum voltage of 12V and currents up to 40A (peak) or 20A (rated), ensuring reliability in high-demand applications.

Key features

  • 1. Waterproof Double-Pole Metal Body

    • With a waterproof double-pole metal body, you can ensure reliable operation in wet or harsh automotive environments, outperforming standard plastic switches*.

  • 2. Modular Dimmable Controls & Intuitive Layout

    • With modular buttons and dimmable functionality, you can customize light intensity and system settings, offering greater flexibility than fixed-layout or non-dimmable switches*. The central power switch provides instant control for safety and convenience.

  • 3. High-Power Performance (40A Max Current)

    • With a 40A maximum current capacity and 12V20A rating, you can handle heavy-duty automotive loads, surpassing switches rated at 20A or lower*. Ideal for LED lighting systems in vehicles or industrial equipment.

  • 4. Automotive-Specific Design

    • Designed for automotive use, you can seamlessly integrate this control panel into vehicles to manage LED lights or systems, providing a tailored solution compared to generic home-use switches*.

  • 5. CE-Certified Safety & Compliance

    • With CE certification, you can ensure compliance with safety and quality standards, unlike uncertified alternatives*. Trust in reliable operation for both personal and commercial applications.

Product details

6 Gang Dimmable 12V LED Switch Automotive Light Button Switch Panel Relay System Control Box

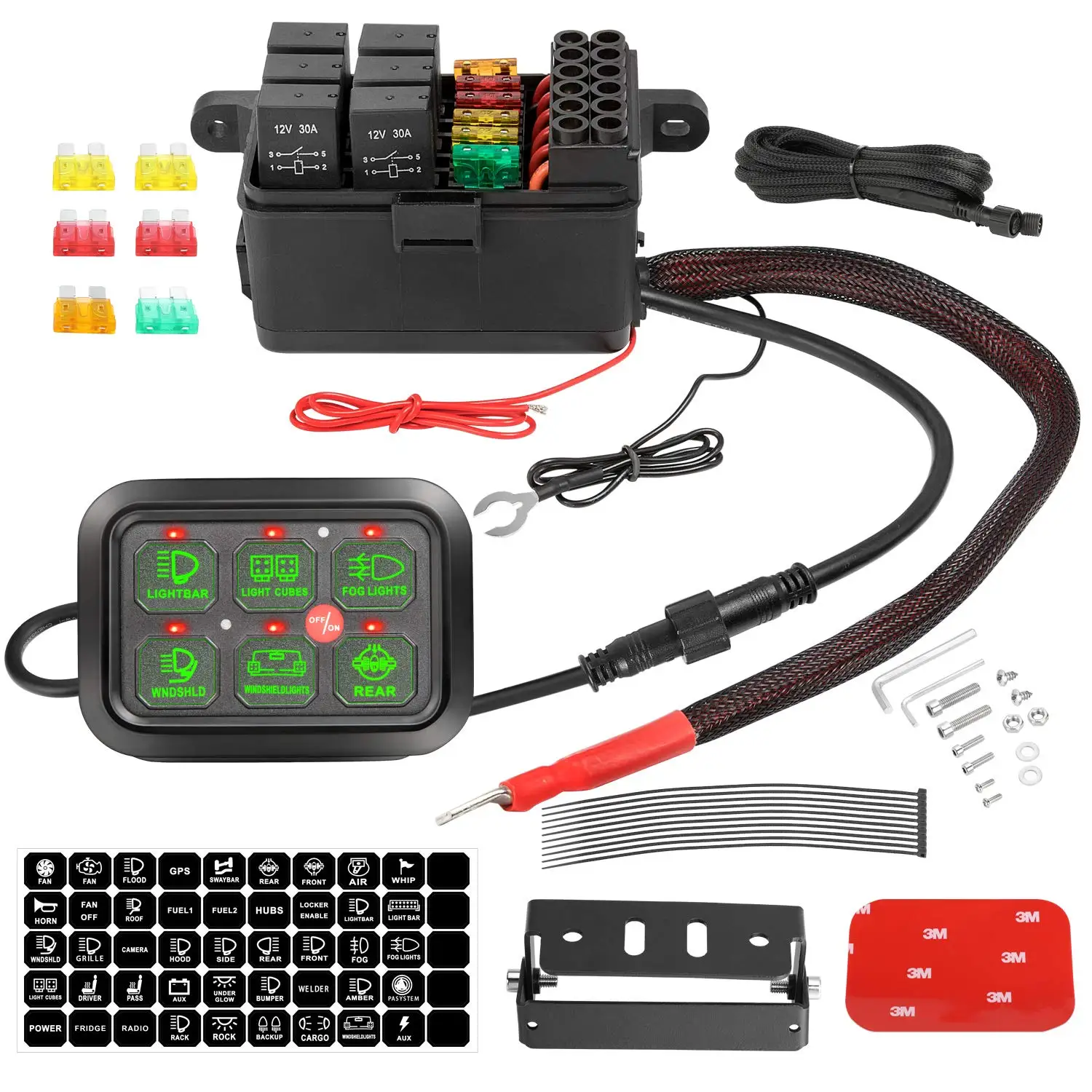

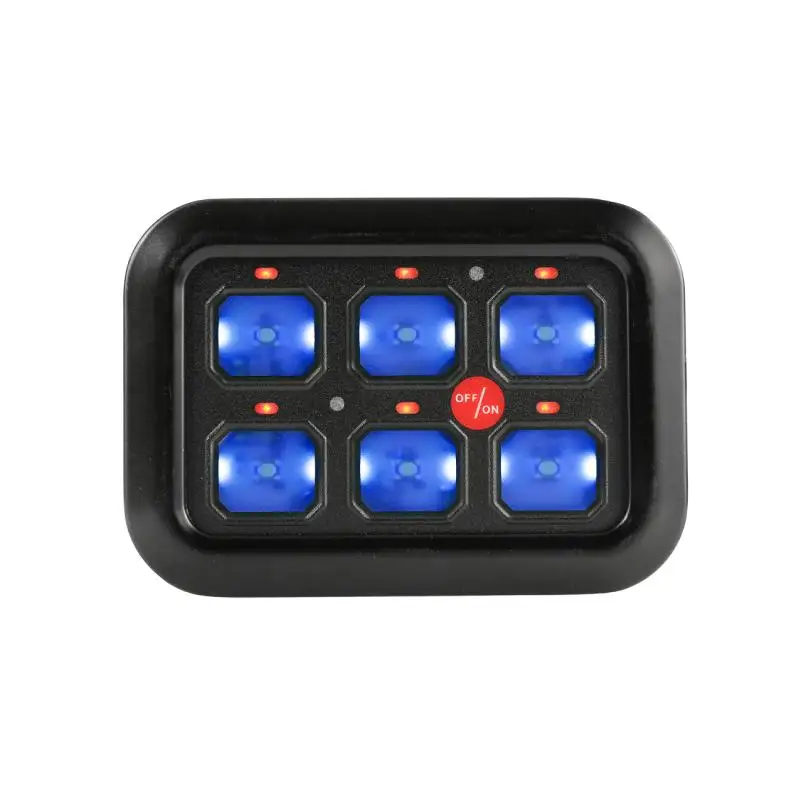

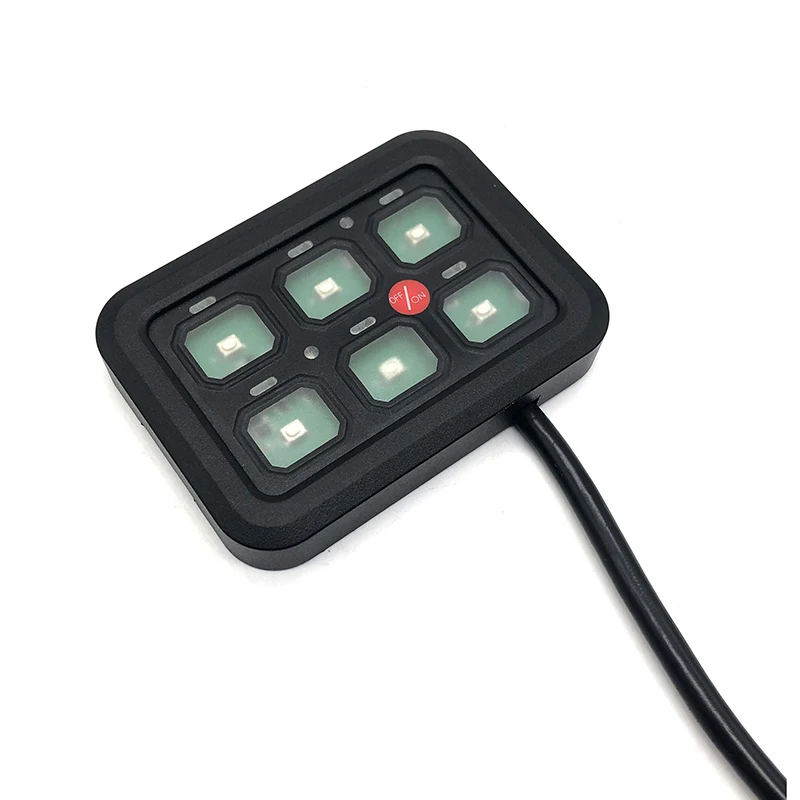

The 6 Gang Dimmable 12V LED Switch Panel is a compact, modular control solution designed for automotive and industrial applications. With a sleek black housing and waterproof double-pole rocker switches, it offers reliable on/off and dimming control for LED lighting systems. Its 6-button layout, central red power switch, and customizable interface ensure intuitive operation in demanding environments.

Technical specifications

FeatureSpecificationBenefit
MaterialDurable black plastic/metalEnhanced durability and heat resistance
Voltage Rating12V DCCompatible with standard automotive systems
Max Current40A (Pro) / 20A (Advanced) / 10ASupports high-power lighting and relays
CertificationCE CertifiedEnsures safety and compliance standards
Waterproof RatingIP67 (Advanced/Pro models)Operates in wet or dusty conditions
Dimming FunctionAdjustable LED brightness controlOptimizes energy use and light output
ApplicationAutomotive, industrial equipmentVersatile for vehicles, machinery, etc.

Customization guide

Adjustable parameters include:

  • Button layout: Reconfigure the 3x2 grid for specific control needs (e.g., lighting zones).
  • Labeling: Customize button functions with engraved or adhesive labels.
  • Current capacity: Choose between 10A, 20A, or 40A ratings to match load requirements.

Get inspired

Design a rugged lighting control system for off-road vehicles, workshop machinery, or marine equipment. With its dimmable LED switches and modular design, this panel simplifies power management while maintaining a clean, professional appearance.

Choose your model

ParameterBase Model (10A)Advanced Model (20A)Pro Model (40A)
Max Current10A20A40A
WaterproofIP54IP67IP68
Dimming RangeFixed levelsSmooth 0-100%PWM precision
Relay Support6 SPST6 SPDT6 DPDT

Supplier's note

  1. Technical Breakthroughs:
    • IP68 waterproofing (Pro): Enables submersion in water, ideal for marine or outdoor gear.
    • 40A current capacity: 3x higher than standard models, supporting heavy-duty LED arrays.
    • PWM dimming: Ensures flicker-free control for sensitive lighting setups.
  2. Version Selection Guide:
    • Base Model (10A): Best for basic automotive accessories (e.g., interior lights).
    • Advanced Model (20A): Suitable for workshop tools or RV lighting systems.
    • Pro Model (40A): Designed for heavy-duty applications like off-road vehicle lighting or industrial machinery.

With the Pro’s 40A rating, you can safely power high-output LED bars for night driving. Pair its IP68 rating with rugged vehicles to ensure reliability in extreme conditions. For users needing simplicity, the Base Model offers cost-effective control of low-current systems.

Frequently asked questions

  • Which 12V LED switch panel is best suited for RV or boat lighting systems?

  • How do I clean and maintain the waterproof automotive relay control box?

  • Plastic vs. metal switch panels: Which material is better for automotive use?

  • Can I customize button labels or layouts for my vehicle’s control panel?

  • Is this 12V relay system CE-certified for safety?

  • Does the 6-gang panel support heavy-duty off-road lighting setups?

  • Can this automotive control box dim LED lights smoothly without flickering?

  • Is the panel suitable for outdoor or wet-area installations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage HandlingAutomotive/Boat Electrical Systems12V rated (ISO 6469) ▲▲Matches standard automotive voltage (12V).Not compatible with 24V systems (common in trucks).
Current CapacityHeavy-Duty LED Lighting Control40A per channel (IEC 60669) ▲▲▲Supports high-power LED strips (e.g., truck lighting).Higher cost vs. lower-tier switches.
Waterproof RatingMarine/Outdoor EquipmentIP67 (immersion-resistant up to 1m) ▲▲Operates in wet environments (e.g., boat cabins).Bulky design may limit space-constrained uses.
Dimming CapabilityInterior Lighting Control0–100% dimming (PWM 500Hz) ▲Smooth brightness adjustment for cabins/offices.Requires compatible LED drivers (not universal).
CertificationsEU/Global MarketsCE + RoHS (complies with EU directives) ▲Streamlined export to Europe/Australia.Missing UL certification for North America.
Design FlexibilityCustom Vehicle BuildsModular 6-gang panel (reconfigurable ports)Easy retrofitting for different vehicle layouts.Limited aesthetic options (only black color).
