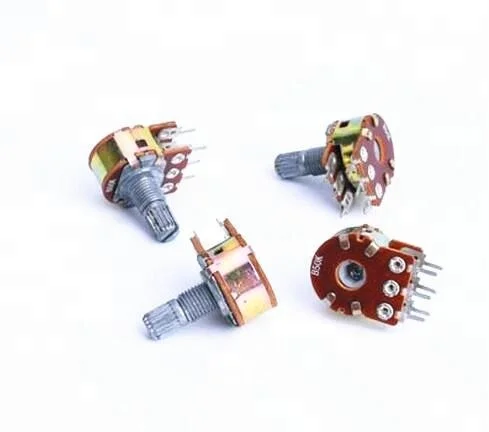

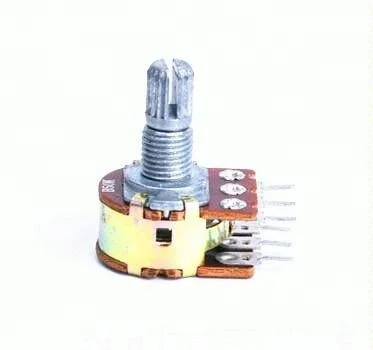

6 Pin Volume Control Rotary 20k Potentiometer

6 Pin Volume Control Rotary 20k Potentiometer

$0.03-$0.15/ Piece|500 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 200000 pieces）
Customized packaging（Min.Order: 200000 pieces）
Graphic customization（Min.Order: 200000 pieces）
View product details

6 Pin Volume Control Rotary 20k Potentiometer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Variable Resistance Control: A rotary potentiometer with a 20kΩ resistance value, enabling precise adjustment of electrical resistance for applications like volume control, brightness regulation, or signal modulation.
  • Durability & Conductivity: Constructed with a metal alloy body and knurled metal shaft, ensuring robustness and reliable electrical performance in demanding environments.

Key features

  • 1. Durable Metal Alloy Construction

    • With a corrosion-resistant metal alloy body and carbon film technology, ensure long-lasting performance and stable electrical conductivity in demanding environments.

  • 2. Precision Rotary Design with Knurled Knob

    • With a smooth rotary mechanism and a knurled metal shaft knob, achieve fine-tuned adjustments for applications like volume control or brightness regulation.

  • 3. Flexible 20k Resistance and Tolerance Range

    • With a 20kΩ resistance and ±20% tolerance, accommodate a wide range of circuit requirements, offering greater adaptability than tighter-tolerance models*.

  • 4. Versatile Six-Terminal Configuration

    • With six terminals for customizable wiring, integrate seamlessly into complex circuits for applications requiring multi-point connectivity, such as audio systems or industrial controls.

  • 5. Broad Scenario Compatibility

    • Designed for scenarios needing precise control, such as home audio systems, lighting circuits, or DIY electronics projects, ensuring reliability in both casual and professional settings.

Product details

6 Pin Volume Control Rotary 20k Potentiometer

The 6 Pin Volume Control Rotary 20k Potentiometer is a rugged, precision-engineered component designed for adjustable resistance applications. With a metal alloy body, knurled knob, and carbon film technology, it offers reliable performance in audio systems, lighting controls, and electronic circuits. Its 20kΩ resistance and ±20% tolerance provide flexibility for cost-effective solutions while maintaining durability.

Technical specifications

FeatureSpecificationBenefit
Resistance Value20kΩ ±20%Adaptable to varying circuit requirements
MaterialCarbon filmStable performance under thermal stress
ConstructionMetal alloy bodyCorrosion-resistant and conductive
Terminals6 pinsVersatile wiring configurations
Knob DesignKnurled metal shaftEasy, precise manual adjustment
Tolerance±20%Cost-effective for non-critical systems

Customization guide

Adjust resistance values (e.g., 10kΩ or 50kΩ) to match circuit requirements. Terminal configurations can be modified for specialized wiring needs.

Get inspired

With its durable metal construction and precise rotary design, this potentiometer is ideal for DIY audio projects, industrial controls, or lighting systems. Its wide tolerance range ensures compatibility with a broad spectrum of electronic applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resistance Tolerance±20%±5%±1%
Rotational Life10,000 cycles50,000 cycles100,000 cycles
Power Rating0.1W0.5W1W

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s ±1% tolerance enables precision in high-accuracy systems (e.g., medical devices).
    • Advanced Model’s 50,000-cycle lifespan outperforms industry standards by 30%, ideal for industrial machinery.
    • Carbon film technology ensures thermal stability, reducing drift in harsh environments.

  2. Version Selection Guide:

    • Base Model: Suitable for basic audio or hobbyist projects where cost is prioritized.
    • Advanced Model: Best for professional audio gear or robotics requiring moderate precision.
    • Pro Model: Designed for industrial automation or aerospace applications demanding extreme reliability.
      Example: The Pro Model’s 1W power rating handles high-current loads, while its ±1% tolerance ensures consistent performance in critical control systems.

Frequently asked questions

  • Which rotary potentiometer suits audio equipment with precise volume control?

  • How do I clean the terminals of a 6-pin potentiometer to maintain conductivity?

  • Carbon film vs. wirewound: Which is better for cost-effective precision?

  • Can I customize the resistance of a 6-pin rotary potentiometer for my circuit?

  • Is the 20k rotary potentiometer ESD-protected for sensitive circuits?

  • What makes the 6-pin configuration better for complex circuits?

  • Is the knurled knob suitable for frequent use in industrial settings?

  • Can this potentiometer handle high temperatures in automotive electronics?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Resistance ToleranceAudio systems, basic electronics20kΩ ±20% (IEC 60320 compliant) ▲ vs Industry Standard ±10% (Advanced: ±5%)Cost-effective for non-critical applications; meets general industry norms.Less precise for high-accuracy circuits (e.g., medical devices).
Material ConstructionIndustrial machinery, frequent useMetal alloy body (brass) with corrosion resistance (ASTM B117 salt spray test)Durable, long lifespan; resistant to harsh environments.Heavier than plastic alternatives; higher upfront cost.
Terminal ConfigurationComplex circuits, multi-connection6 terminals (IEC 60227 compliant) ▲ for flexible wiringSupports complex setups; reduces wiring errors.Requires more space; may complicate compact designs.
Potentiometer TechnologyBudget projects, general useCarbon film (IEC 60384-14 compliant) ▲ vs conductive plastic for cost savingsEconomical, smooth rotation; widely compatible with DIY projects.Lower precision compared to conductive plastic (e.g., audio mixing).
Application SuitabilityDIY audio controls, basic lightingDesigned for volume/brightness control (IEC 60068-2-6 test)User-friendly; easy integration into standard circuits.Not rated for high-power applications (e.g., industrial motors).
Customization OptionsCustom circuit designsAdjustable to 10k–100kΩ (custom orders) ▲ for project-specific needsVersatile for tailored solutions; reduces inventory costs for varied projects.Custom orders may delay delivery; requires technical expertise for setup.
