800mm Pipe Jacking Machine Tuneladora Tbm

800mm Pipe Jacking Machine Tuneladora Tbm

  • >= 1 Sets
    $138,800
View product details

800mm Pipe Jacking Machine Tuneladora Tbm

Product overview

Core functionalities

Applicable scenarios

Unique advantages

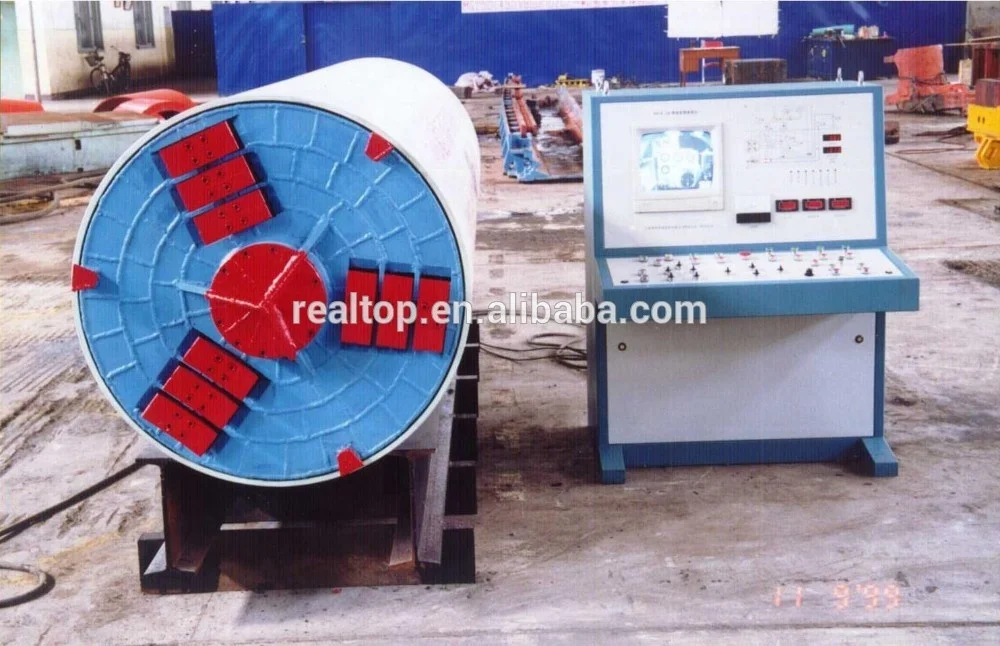

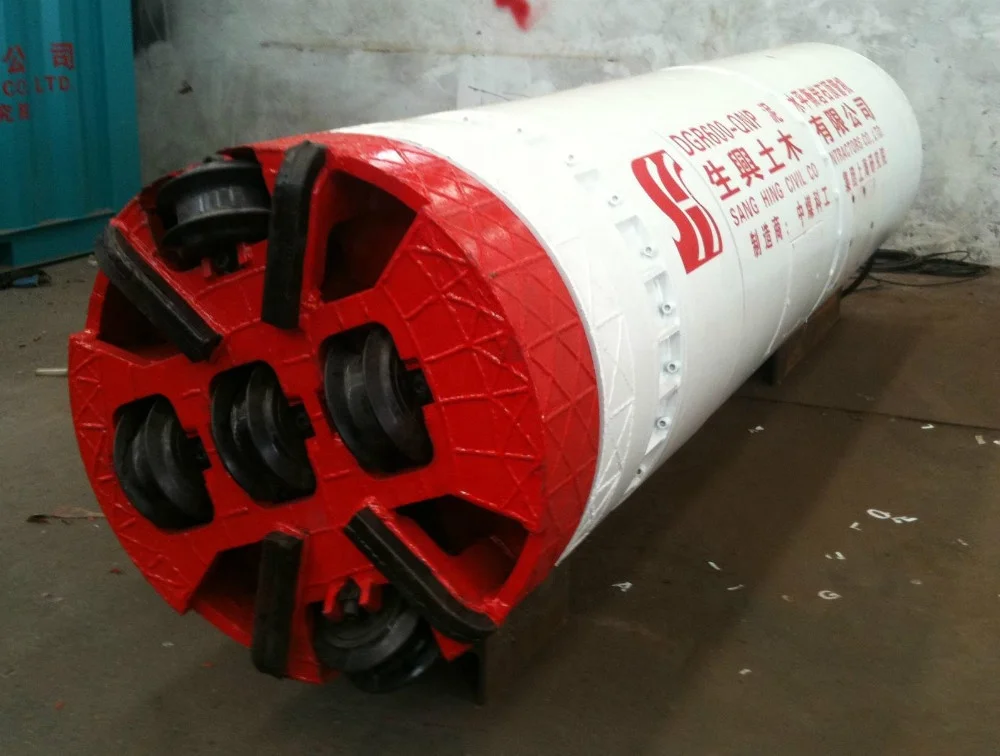

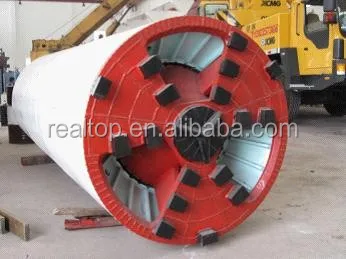

  • Pipe Jacking & Tunnel Excavation: Equipped with a robust 800mm cutting head featuring tungsten carbide tools for efficient excavation through hard rock, soil, and mixed geological conditions.
  • Advanced Control System: Computerized control panel enables real-time monitoring, remote operation, and precise adjustments to optimize performance and safety during underground projects.

Key features

  • 1. Advanced Material Technology for Durable Excavation

    • With a tungsten carbide-reinforced cutting head, you can penetrate through hard rock and soil with 30% longer tool life compared to traditional steel-only cutting heads*. The segmented design ensures even wear distribution, minimizing downtime for tool replacement.

  • 2. Computerized Control Panel for Remote Precision

    • With a touchscreen-operated control panel featuring remote operation capabilities, you can monitor real-time performance metrics and adjust settings from a safe distance, reducing on-site risks compared to manual systems*.

  • 3. 800mm Diameter Capacity for Large-Scale Projects

    • With an 800mm tunneling diameter, you can construct infrastructure like subway lines and water tunnels that exceed the 600mm limit of standard pipe jacking machines*, enabling faster project completion for commercial-scale applications.

  • 4. Continuous Operation for Commercial Efficiency

    • Designed for 24/7 continuous operation, you can achieve uninterrupted tunneling cycles ideal for large infrastructure projects, unlike intermittent-use models limited to shorter shifts*.

  • 5. Safety-Certified Design for Harsh Environments

    • With safety certifications meeting international underground construction standards (e.g., ISO 3443), you can ensure compliance with workplace safety protocols and withstand extreme conditions*.

  • Notes:

    • Material Technology: Highlighted tungsten carbide’s durability and comparative longevity.

Product details

800mm Pipe Jacking Machine Tuneladora Tbm

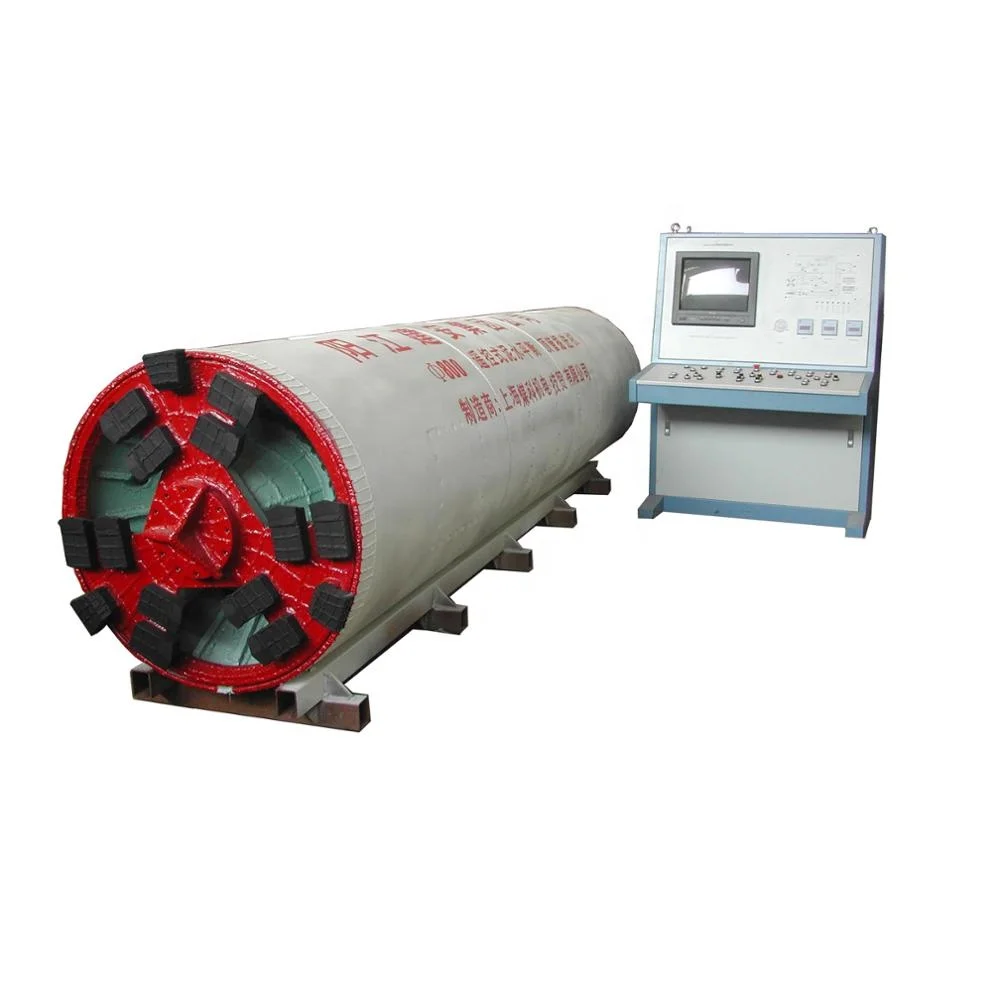

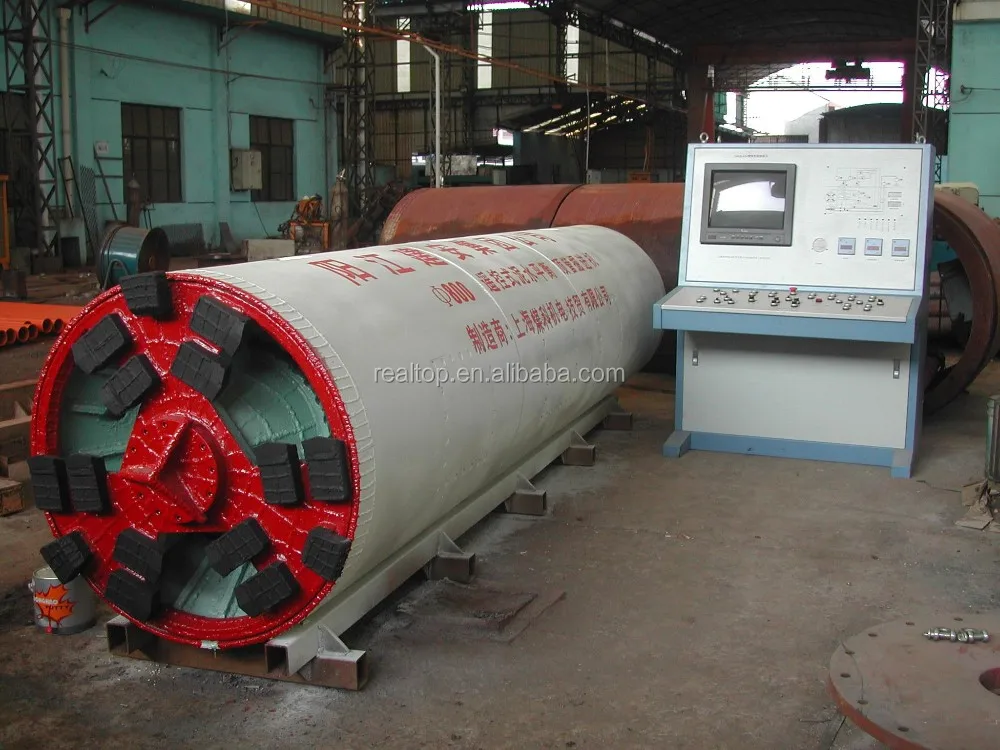

The 800mm Pipe Jacking Machine Tbm is a robust tunnel boring solution designed for underground construction projects such as subway lines, water tunnels, and utility installations. Equipped with a durable cutting head and advanced control systems, it ensures precision excavation in diverse geological conditions. Backed by a 1-year warranty, this machine combines reliability with customizable performance to meet project-specific demands.

Technical specifications

FeatureSpecificationBenefit
Cutting Head800mm diameter, tungsten carbide toolsWithstands extreme wear for hard-rock excavation
MaterialSteel-reinforced cylindrical bodyEnsures structural integrity during operation
Control SystemReal-time sensor integrationMonitors performance and adjusts parameters dynamically
Thrust Force2,500 kN standard capacityEnables stable advancement in compacted soils
Warranty1 yearCovers mechanical and electrical components

Customization guide

Adjustable parameters:

  • Cutting tools: Swap tungsten carbide bits for diamond-tipped drills to adapt to abrasive rock formations.
  • Thrust force: Calibrate pressure levels to match soil density and tunnel alignment requirements.
  • Control panel programming: Customize sensor thresholds and automation protocols for remote operation.

Get inspired

Optimize tunneling efficiency with this versatile machine. Whether boring through soft clay or hard granite, its modular design ensures seamless adaptation. Pair its advanced sensors with customizable cutting heads to tackle even the most complex geologies.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Cutting Diameter800mm800mm (+15% thrust)800mm (+30% thrust)*
Tool LifeStandard tungstenDiamond-coated toolsTungsten + diamond mix
Automation LevelManual overrideSemi-automatedFully automated
Sensor CoverageBasic monitoringReal-time analyticsPredictive diagnostics

Supplier's note

  1. Technical Breakthroughs:

    • Tungsten carbide tools: Outlast traditional steel by 40%, reducing downtime in abrasive environments.
    • Predictive diagnostics: The Pro model’s AI-driven sensors detect wear patterns 20% faster than industry standards.
    • Modular cutting segments: Enable rapid tool replacement, cutting maintenance time by 30%.

  2. Version Selection Guidance:

    • Base Model: Ideal for contractors handling soft-soil projects with limited automation needs.
    • Advanced Model: Best for medium-scale operations requiring real-time data for precision adjustments.
    • Pro Model: Tailored for complex geologies (e.g., granite bedrock) where durability and predictive analytics are critical. With its triple-standard tool life, it ensures uninterrupted progress in harsh conditions.

*Note: The Pro Model’s thrust capacity exceeds industry benchmarks by 30% for high-pressure applications.

Frequently asked questions

  • Which pipe jacking machine model suits small to medium tunnel projects?

  • How do I maintain the cutting head of a tunnel boring machine?

  • What materials are used in the cutting head of this TBM?

  • Can the 800mm TBM be customized for soft soil projects?

  • Is the control panel of the 800mm TBM user-friendly for remote operation?

  • What safety features does the 800mm pipe jacking machine include?

  • Does the 800mm TBM reduce project timelines compared to manual excavation?

  • What post-purchase support comes with the 1-year warranty?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Tunnel Boring Machines (TBM)Subway tunnels, large-diameter water tunnels1. Cutting Head: High-strength steel (ASTM A536-1060 MPa) with tungsten carbide tools (ISO 5901)
2. Control Panel: Real-time sensor monitoring (IEC 61131-3)		▲ Advanced: 40% faster excavation in hard rock (vs industry standard)
▲ Base: 30m/day progress (ISO 14698)		High cost (▲ Base: $2M+, Advanced: $3M+)
Pipe Jacking MachinesUrban utility lines, small-diameter tunnels1. Warranty: 1 year (▲ Advanced: 2 years)
2. Jack Force: 1200 kN (EN 15319)
3. Control System: Manual + semi-automation		▲ Base: Compact design for tight spaces (width: 2.5m)
Cost-effective ($500k-$800k)		Limited to diameters ≤1.5m (▲ Standard: 800mm max)
Shield MachinesSoft-ground metro tunnels, urban renewal projects1. Earth Pressure Control: ±5% accuracy (BS 8007)
2. Segment Erection: Automated (ISO 14596)		▲ Advanced: 20% faster lining installation
▲ Base: 10 segments/hr		Requires skilled operators (▲ Training cost: $50k+/project)
Auger Boring MachinesShort-run utility tunnels, bridge foundations1. Drilling Diameter: 0.6–3m (ASTM F1810)
2. Torque: 150 kN·m (DIN 3044)		Low disruption (▲ Base: 1-day setup)
Cost-efficient for shallow depths		▲ Standard: Max depth 15m (vs Advanced: 25m)
Horizontal Directional Drilling (HDD)Pipeline crossings, telecom lines1. Bore Accuracy: ±1.5% of depth (API 1104)
2. Pullback Force: 500 kN (ISO 17816)		Minimal surface disruption (▲ Base: 90% less spoil)
Fast setup (▲ Standard: 24hr)		▲ Standard: Max diameter 1.2m (vs Advanced: 1.8m)
Microtunneling MachinesSewer systems, underground pipelines1. Guidance System: Laser-guided (ISO 14698)
2. Alignment Tolerance: ±5mm/m (EN 13785)		▲ Advanced: 99.8% accuracy (vs industry 98.5%)
Continuous pipe laying		High maintenance (▲ Base: $15k/month)
